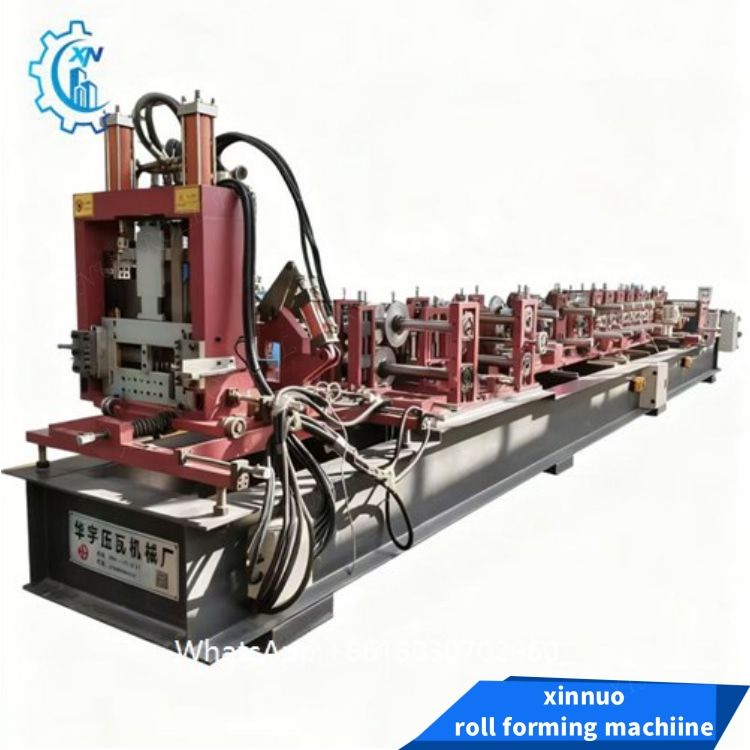

1)XINNUO CZ purlin roll forming machine , accordingly a classic model designed for mid to high-end customers seeking exceptional performance and stability. With 21 roll forming stations, this machine offers double straightening for higher accuracy, ensuring your output meets the highest standards. The width range of 80-300mm and thickness range of 1.0-3.0mm provides versatility in production and can meet the needs of various projects.
2)Technical Highlights:
Smart Control: Real-time production data monitoring via touchscreen
Efficient Mold Change: 180-degree rotary mold system (C/Z switching in 3 minutes)
Durable Design: 40Cr steel quenched main shaft (HRC28-32 hardness)
Safety Certifications: CE Mark + ISO 9001 Quality Management System
3)Steel Purlin Roll Forming Equipment
| 1.In-put material | Guiding shaft and guiding rollers |
| 2. Flatten | Up three down four additional two stations guiding and sending ,at the same time full solid shaft heat treatment with blasting and chroming. |
| 3. Forming | 18 stations of main forming (inside 1 station for forming flange, meanwhile 87-95 degree adjustable), then 13 stations CZ change mould, turnover 180 degree to finish the change. Changing the Specification size on Touchscreen.ad |
| 4. Rib forming | diagonal rib roller 2 sets |
| 5. Straighten | 10 rollers CZ special-use double axis straightening and 4 rollers double axis straightening, total 2 straightening units. |
| 6. Guiding and sending | driven by up and down gears |

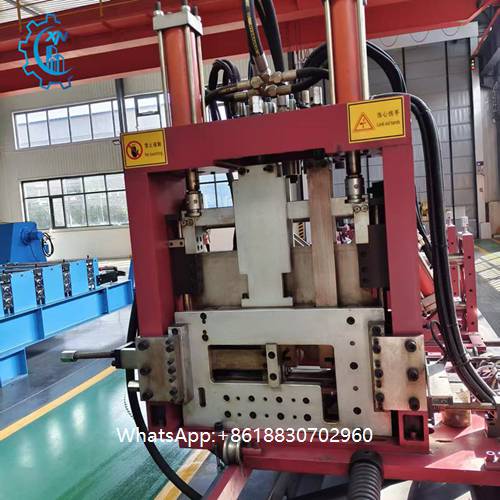

| 7. Punch | punch single hole (D14, D16) on web and dual hole (26×16, 26×14) on web , dual hole (26×16, 26×14) on flange |
| 8. Formed-cut | step-less cutting system, meantime no need change blade, universal size 80-300 blade. |
4)Flow direction:
Decoiler – Leveling device — pre- punching and pre-cutting – roll forming parts – stack
5)Applicable Industries:
Steel Structure Buildings | Industrial Plants | Logistics Warehouses | Airport & Railway
At XINNUO, we are committed to delivering high-performance metal roll forming machines tailored for global industrial needs. Our equipment offers reliable and flexible production capabilities to meet the demands of modern construction and manufacturing industries.
