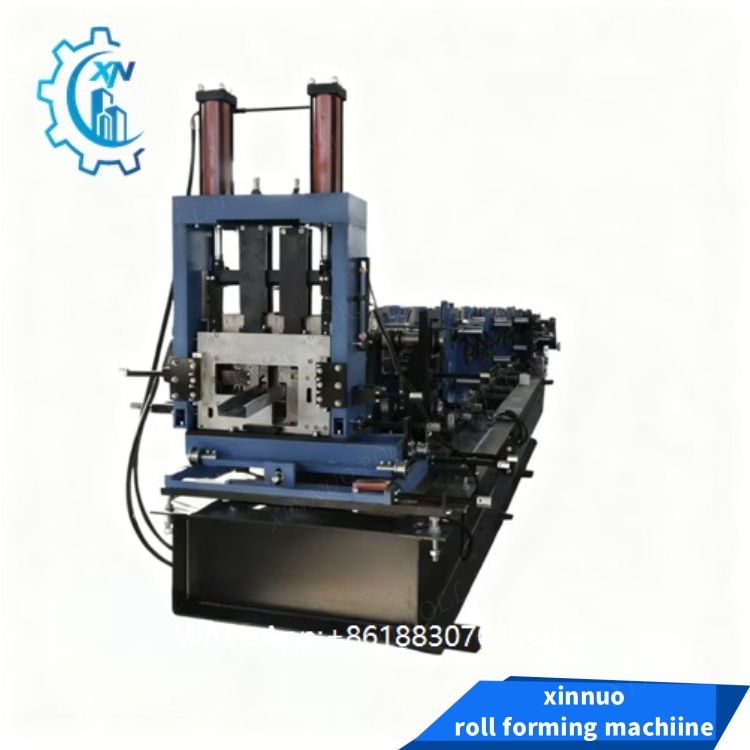

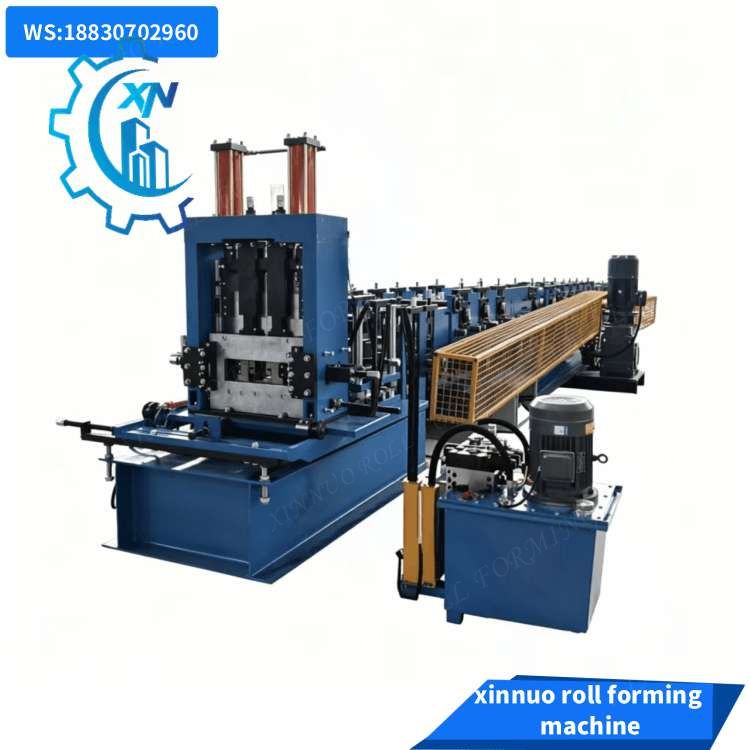

atomatic exchange cz purlin roll forming machine

1)C/Z Purlin Product Description

Xinnuo cz purlin roll forming machine,accordingly a classic model designed for mid to high-end customers seeking exceptional performance and stability. With 21 roll forming stations, this machine offers double straightening for higher accuracy, ensuring your output meets the highest standards. The width range of 80-300mm and thickness range of 1.0-3.0mm provides versatility in production and can meet the needs of various projects.

2)Manual Type Change for C/Z Purlin Roll Forming Machine (3-Point Version)

1. Power Off & Loosen ComponentsStop production and cut off the main power supply. Use a wrench to loosen the fixing bolts of the roller groups and side guide roller locking nuts that secure the current C/Z type configuration.
2. Adjust & Reset Key UnitsRefer to the dimension specification sheet to manually adjust the spacing and angle of forming rollers to match the target purlin type (C or Z). Then reset the cutting knife and length positioning baffle to fit the target section size.
3. Lock & Test RunTighten all bolts and nuts firmly. Conduct a trial run with a steel sheet sample, check its cross-sectional shape and dimensions against standards, and fine-tune the roller position if deviations occur.
4.

3)Technical Highlights:

Smart Control: Real-time production data monitoring via touchscreen

 Efficient Mold Change: 180-degree rotary mold system (C/Z switching in 3 minutes)

 Durable Design: 40Cr steel quenched main shaft (HRC28-32 hardness)

 Safety Certifications: CE Mark + ISO 9001 Quality Management System

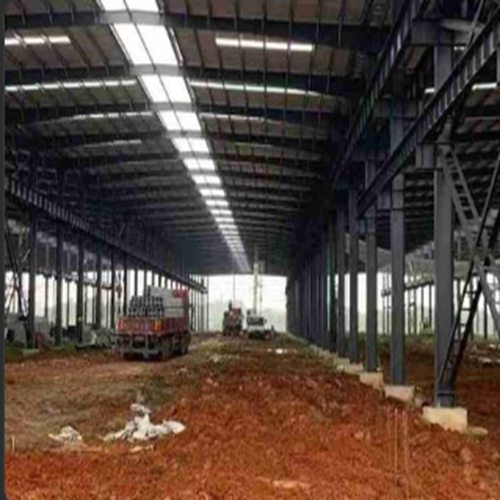

4)Applicable Industries:

Steel Structure Buildings | Industrial Plants | Logistics Warehouses | Airport & Railway

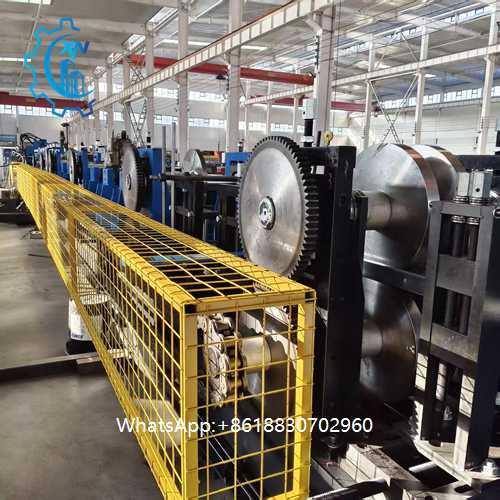

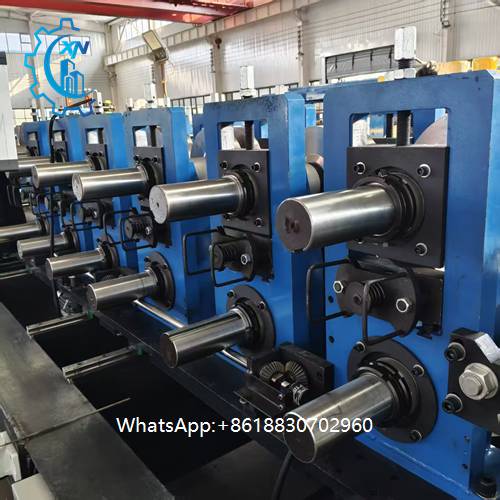

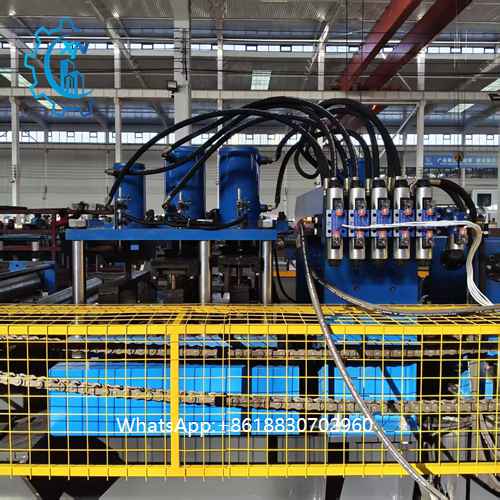

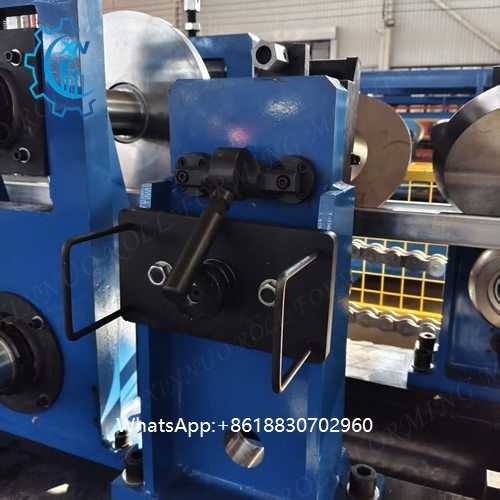

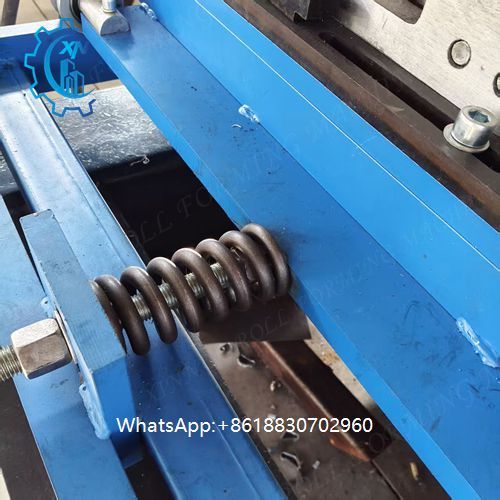

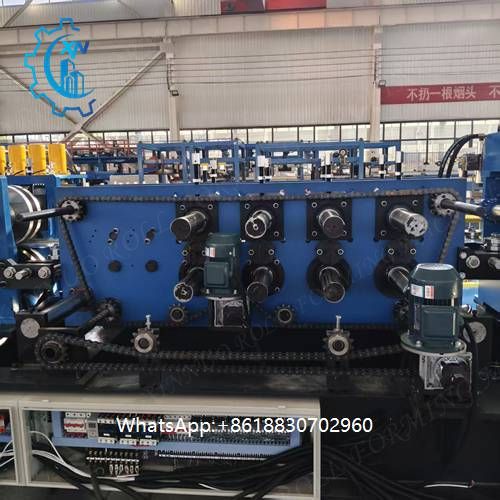

5)Steel Purlin Roll Forming Equipment

6).Our Company

    Xinnuo Roll Forming Machine Co.,Ltd Established in 1998, is a leading manufacturer specializing in the design and production of C/Z purlin roll forming machines, high-speed purlin lines, and other customized roll forming equipment. Our facilities cover over 100,000 square meters, including 2 modern factorys and 12 warehousing bases. Since 2002, Xinnuo machines have been successfully exported to over 180 countries worldwide, earning consistent praise fortheir performance, ease of operation, and our comprehensive customer service. Looking ahead, Xinnuo remains commited to the principle of "Quality First, Service First, Customer First." We continue to focson R&D in energy-saving and intelligent machinery for the construction sector, aiming to deliver fully automated, unmanned production solutions that drive efficiency and innovation for our global partners.
