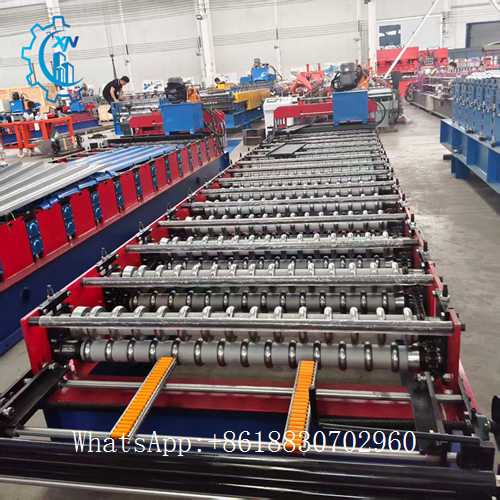

1. Corrugated Roof Sheeting Machine
corrugated metal roofing sheets have durability because of their special corrugated shape. in addition, The natural shape of corrugated metal roof panels gives it a structural advantage over other panels of the same material. the color-coated roofing sheets can hide small imperfections over time from weather or impacts.

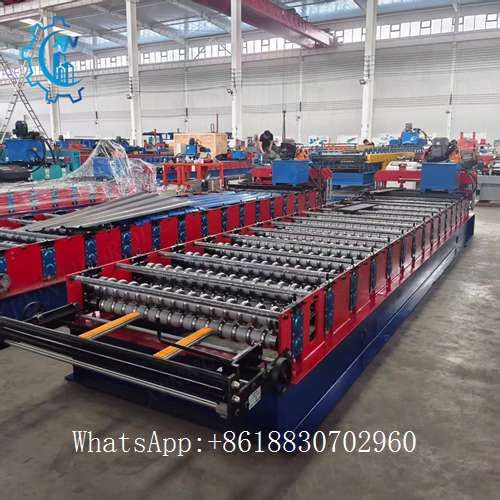

XINNUO▷ Corrugated Roll Forming Machine | Corrugated Metal Roofing
2026◁ is specifically designed for rolling galvanized also pre-painted and Galvalume steels into corrugated roof sheets.

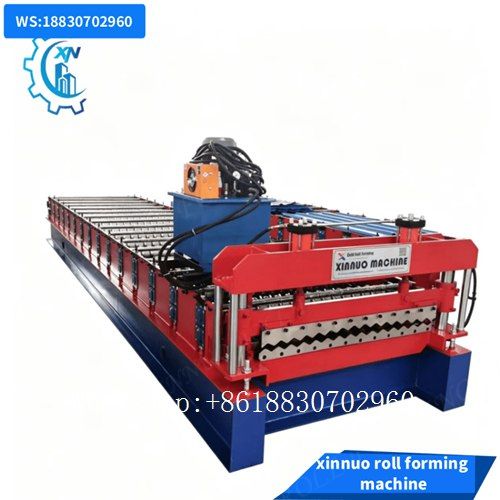

2. Main workflow of full automatic glazed metal tile roofing corrugated sheet cold roll forming machine production line
Decoiler → Molding core → Hydraulic System → Automatic Control system → Step Formed
Mechanism → Automatic Shearing Mechanism → Products Receiving Tables
3. Roll Forming Machine Components:
|
Decoiler
|
1 |
set |
|
Feeding Device With Pre-sliding Cutter
|
1 |
set |
|

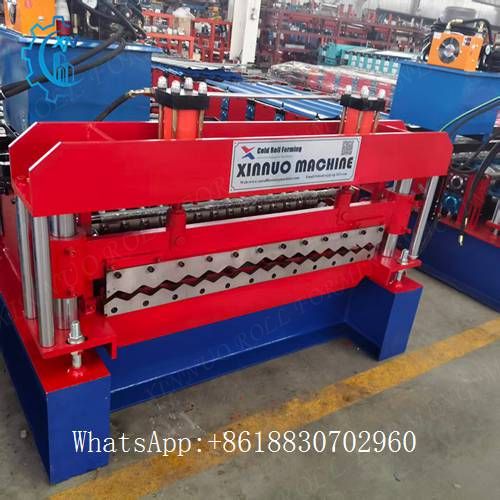

Cutting Device
|
1 |
set |
|

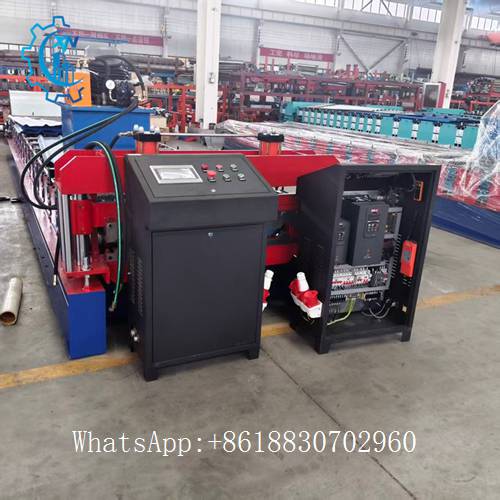

PLC Control Box
|
1 |
set |

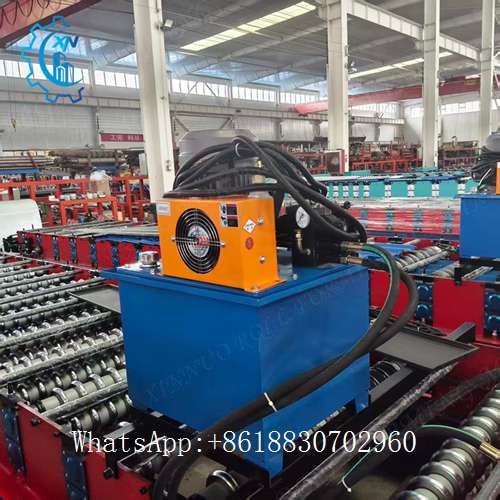

| Hydraulic Pump Station |
1 |
set |
| Production Support Table |
1 |
set |
3. Core Machine Features
-

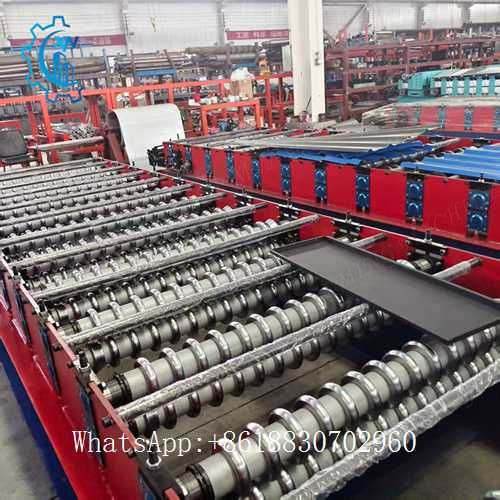

High Forming Precision: Adopts high-precision solid roller shafts and heat-treated forming rollers. The sheet surface is smooth without scratches, and the wave size and straightness fully meet international building material standards.
-
Wide Material Compatibility: Suitable for 0.3mm–0.8mm thick PPGI, galvanized steel and aluminum-zinc steel coils. Stable molding for thin and medium thickness sheets without deformation.
-
Fully Automatic PLC Control: Equipped with touch screen operating system, supports free setting of cutting length, production quantity and speed. Error alarm and automatic stop functions ensure safe and stable operation.
-
Durable Structure: Integral heavy-duty steel frame, not easy to deform after long-term high-load operation. All electrical and hydraulic components adopt well-known brand accessories to reduce failure rate.
-
High Production Efficiency: Stable running speed, large daily output, effectively saving labor costs and improving customer production benefits.
4. Technical Parameters
-
Applicable Material: PPGI, Galvanized Steel, Galvalume Steel
-
Material Thickness: 0.3–0.8 mm
-
Forming Speed: 10–35 m/min
-
Control System: PLC full automatic control + touch screen
-
Cutting System: Hydraulic automatic fixed-length cutting
-
Main Roller Material: 45# steel with fine finishing
-
Power Supply: 380V/50Hz/3Phase (customizable)
-
Machine Size: About 8.0×1.6×1.4 m
-
Machine Weight: About 4–6 Tons
5.Product Application
Finished corrugated roof sheets have good waterproof, windproof and load-bearing performance. They are widely applied in factory workshops, steel structure buildings, warehouses, poultry houses, simple residential buildings,
stadiums and other roof and wall enclosure projects. Suitable for mass production and wholesale sales of building materials factories.
Hebei Xinnuo Factory Advantages
- Direct Manufacturer: Real factory production, no middleman difference, providing competitive factory price and stable delivery cycle.
- Customized Service: Support customized profile size, machine speed, voltage and configuration according to customer local market demand.
- Complete After-sales System: Provide machine installation guidance, operation video, technical training and long-term after-sales support. Spare parts are supplied in stock quickly.
Package & Shipping
Standard export seaworthy packaging, fixed by steel wire and wooden box. The whole machine is well protected to avoid deformation and damage during long-distance sea transportation. Support FOB, CIF, CFR and other trade terms.
