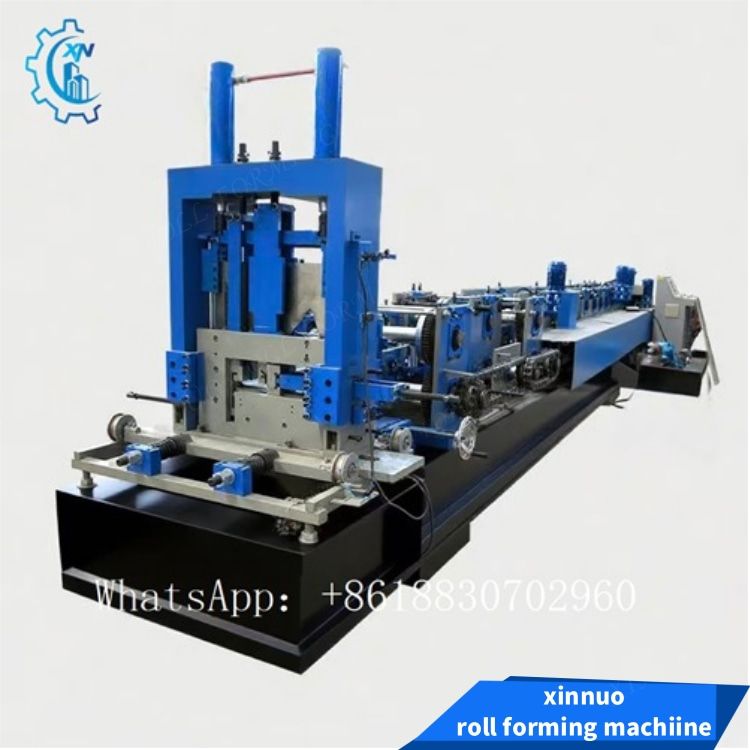

C100-300/Z120-300 CZ Purlin Roll Forming Machine

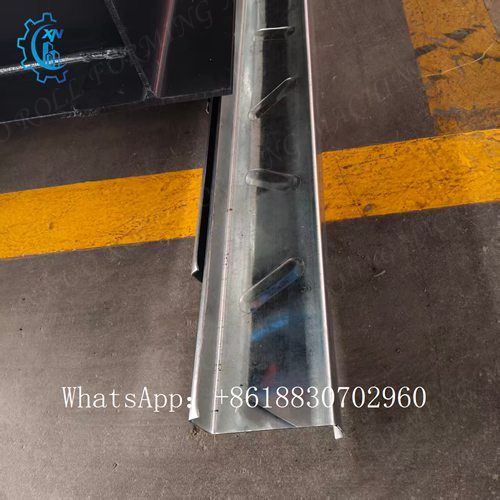

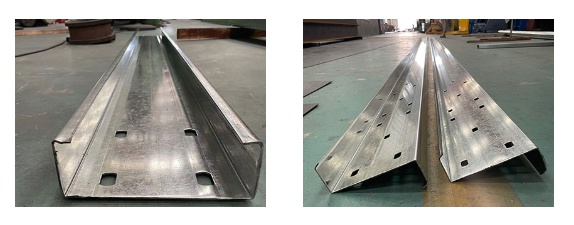

This purlin roll-forming machine can swiftly switch from a C-shaped to a Z-shaped profile in just 30 minutes. It produces purlin sizes ranging from 100 mm to 300 mm, with adjustments taking only five minutes. Additionally, our purlin machine can be equipped with a punch device for accurate hole punching, allowing easy screwing during installation.

• Hydraulic System

  1. Hydraulic Power: 7.5kW
  2. Hydraulic Brand: Yuken
  3. Oil Tank: 120L
  4. Cooling System: fan cooling

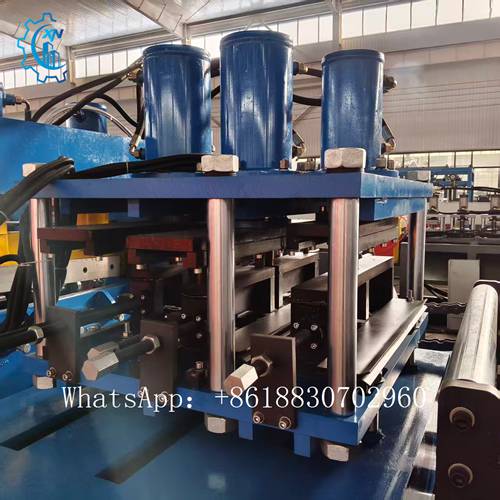

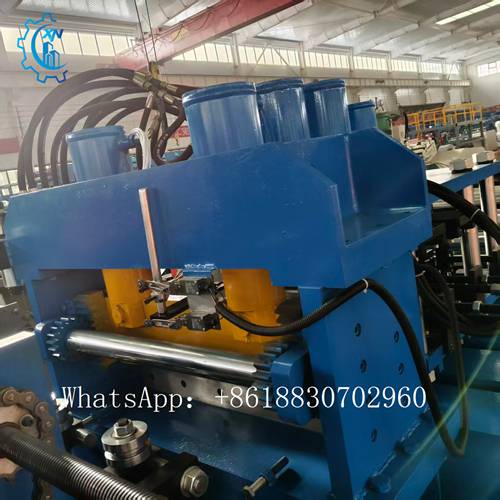

• Hydraulic Pre-cutting & Pre-punching Device

  1. Blade Material: Cr12Mov
  2. Surface treatment: CNC semi-finishing
  3. Vacuum treatment to 58-60HRC, CNC finishing

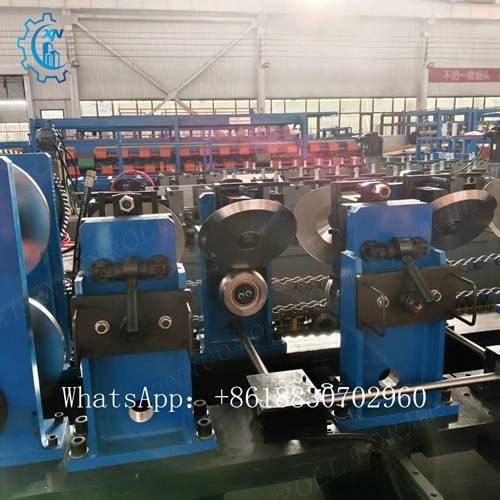

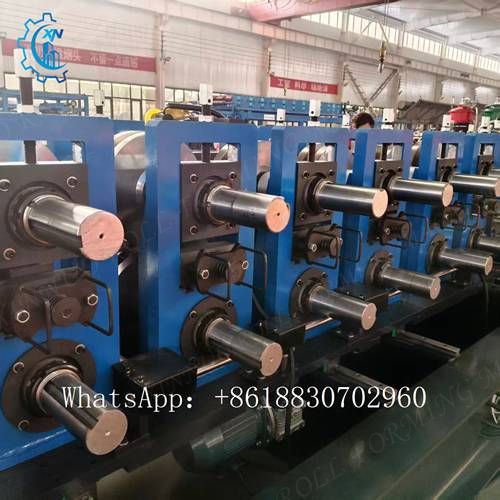

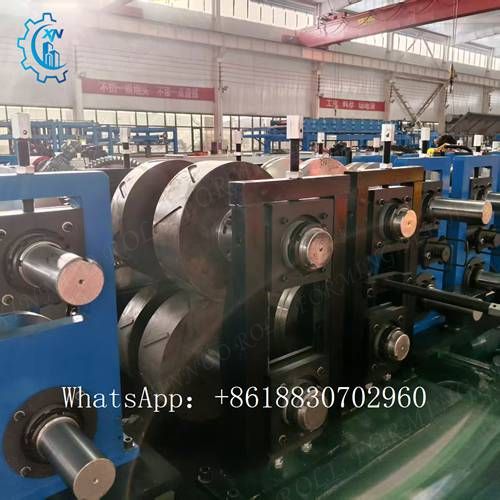

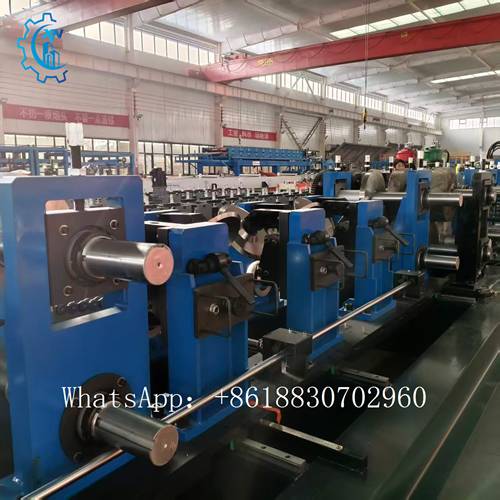

• Roll Former

  1. Forming Steps: 23 steps
  2. Running Speed: 30m/min (without punching and cutting)
  3. Main Servo Motor Power: 30kW
  4. Roller Material: Gcr15/Cr12, CNC processing and heat treatment, hard chrome plated on the surface
  5. Shaft Material: 40Cr with shaft diameter of 90mm
  6. Machine Frame: 400# H-beam and A3 steel with 30mm thickness
