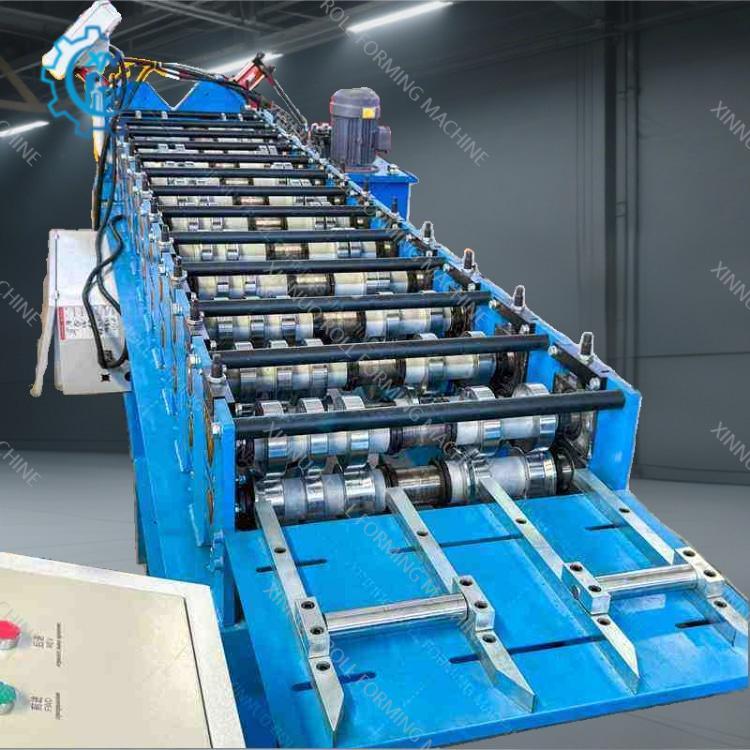

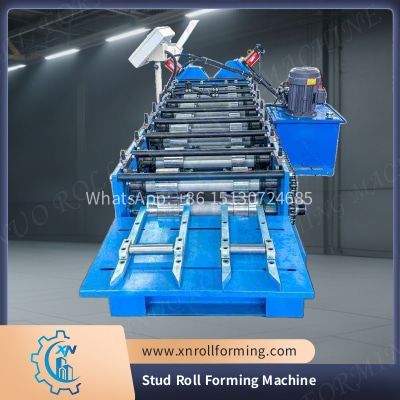

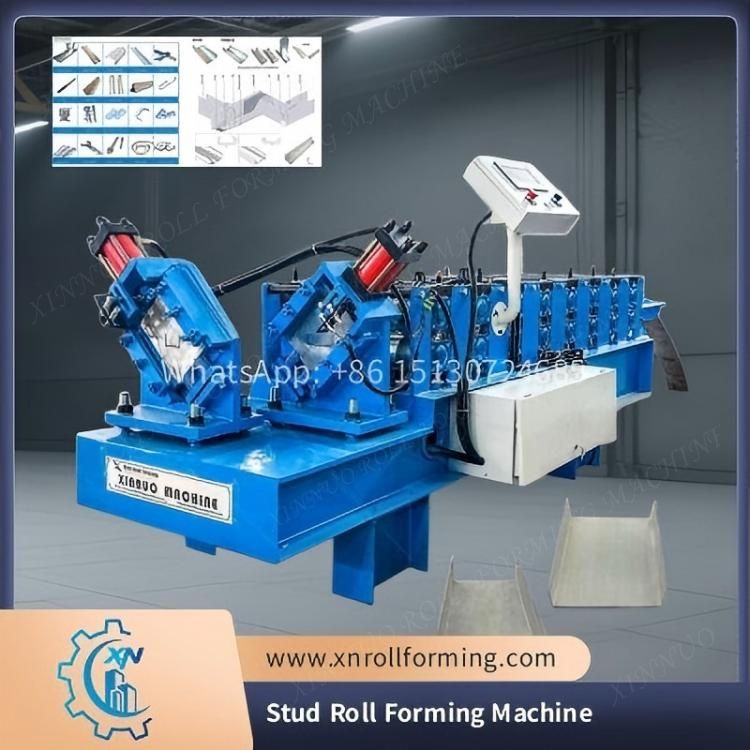

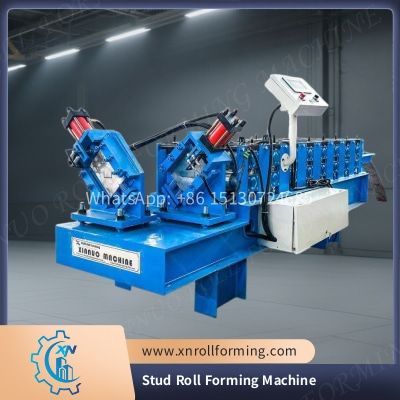

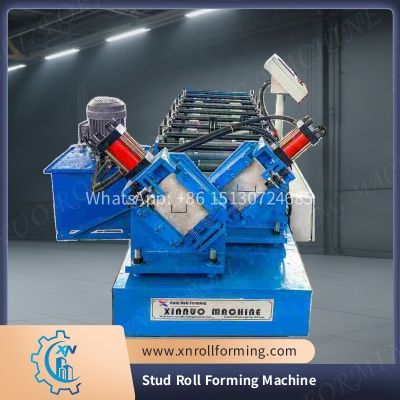

Stud Roll Forming Machine

The Xinnuo Stud Roll Forming Machine is a high-efficiency, precision-engineered solution designed for producing double-row C-shaped truss keels, widely used in steel structure frameworks, ceilings, and partition systems. This machine combines robust construction with advanced forming technology to deliver consistent quality profiles at high speeds, meeting the demands of modern construction projects.

Engineered to process a variety of materials such as color steel plate, galvanized sheet, and aluminum coils, it supports a feeding width of 1000mm or can be tailored to your specific requirements. The feeding material thickness ranges from 0.3–0.8mm, ensuring versatility for different structural needs while maintaining precise profile accuracy.

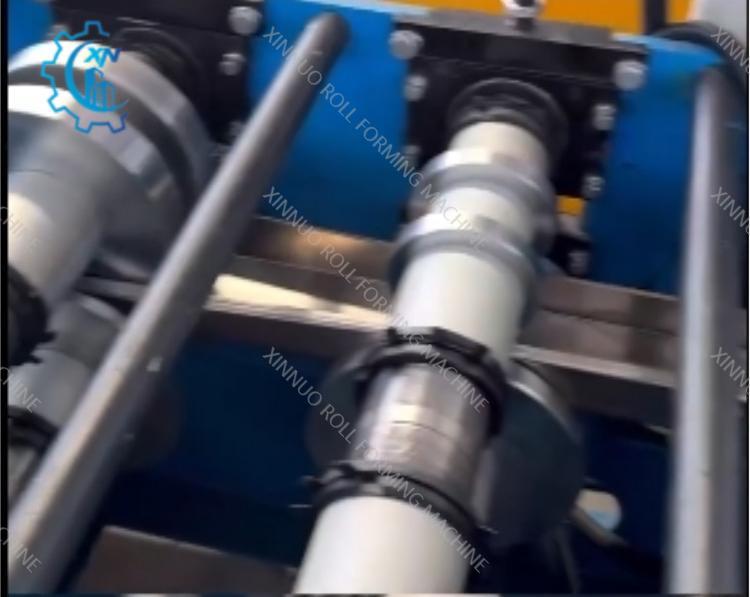

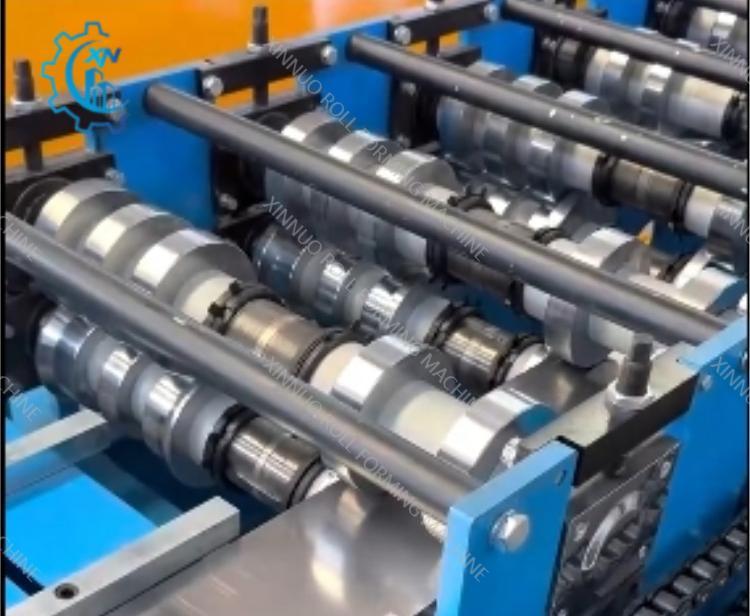

Built for speed and productivity, this machine achieves an impressive 30 meters per minute, significantly boosting output while minimizing downtime. The roll forming stations are equipped with 45# steel rollers, precision-machined and surface-treated for durability and consistent shaping. The 70mm diameter shafts provide enhanced stability during forming, reducing vibration and ensuring dimensional accuracy.

The machine’s structural strength is reinforced by a 350 H steel frame with a 16mm wall thickness, ensuring excellent rigidity and long service life even under continuous heavy-duty operation. Powered by a 3+3 kW motor system, it delivers reliable performance with the flexibility to adapt to different project specifications. Voltage configuration is 380V, 60Hz, 3-phase by default, but can be customized according to regional power requirements.

Customization is a key advantage of Xinnuo’s equipment. From roller configuration to feeding size, almost every detail can be adjusted to suit your specific production needs. Whether you require unique profile shapes, additional punching units, or an integrated cutting system, Xinnuo can provide a tailored solution.

This Double Row C-shaped Truss Keel Forming Machine is not only about performance—it is also designed for ease of operation and maintenance. The user-friendly control system, typically equipped with PLC automation, allows operators to manage settings, monitor performance, and achieve quick changeovers with minimal training.

In the competitive construction materials market, precision, speed, and adaptability are essential. Xinnuo’s Stud Roll Forming Machine delivers all three, making it an ideal investment for manufacturers aiming to produce high-quality truss keels efficiently. With its strong build, customizable features, and proven performance, this machine ensures you stay ahead in both productivity and product quality.
