1.Customization:Available
2.Tile Type:Glazed Steel
3.Certification: CE, ISO
4.Material Thickness:0.3-0.8mm
5.Email:xinnuo05xinnuomachine.com
6.WhatsApp:+8618830702960
| Cutting&Hydraulic type | Cut slide/ Double guide pillar |
| Hydraulic motor power | 3kw-7.5kw |
| Cutting drive | Decelerating motor + Chain drive gear all by high-frequency |
| Length measurement | Encoder |

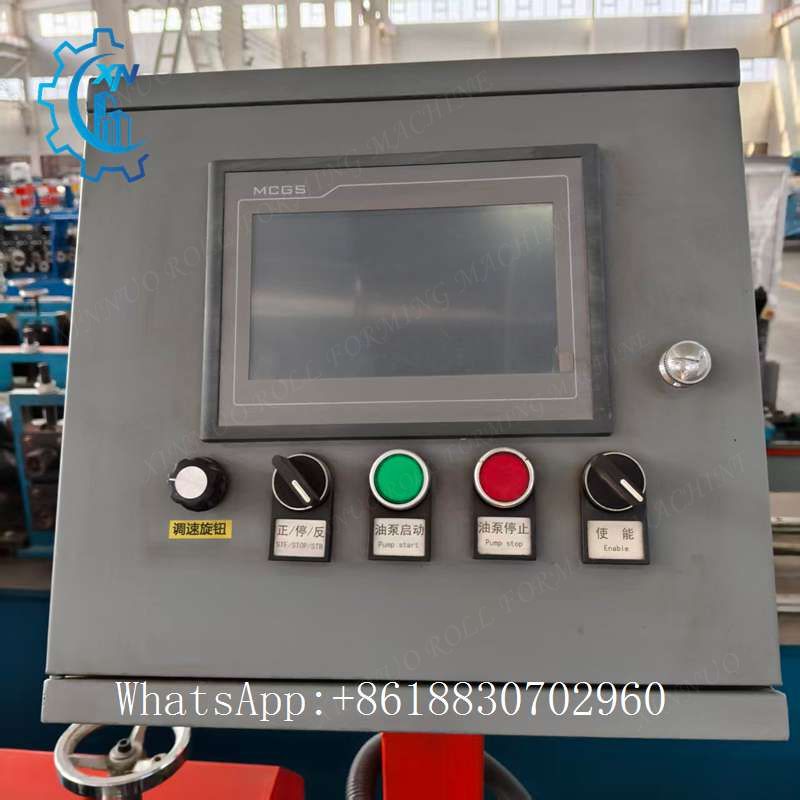

| Control System | Panasonic /Siemens / Schneider / Delta PLC |
| Chain Size | 1inch/2inch |
| Main Frame | 300mm/350mm H-Beam or 350mm |
| Backboard Thickness | 17mm/200mm |
| Feeding Thickness | 0.3mm-0.8mm |
| Productivity | 8-15/min |

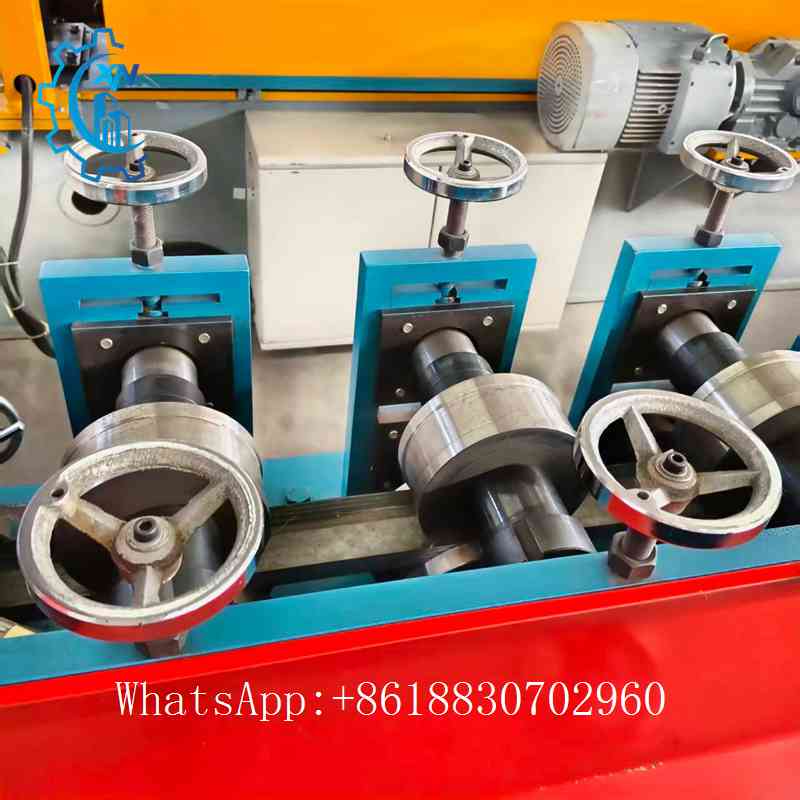

| Roll Station | 14rows(according to different design) |
| Roller Diameter | 70mm/75mm(depend on different design) |
| Roller material | 45# steel |
| Cutter material | Cr12 mould steel heat-treated hardness of HRC = 60-62 degrees |
| Total Weight | 2-8T |
Export standard packing:
1.The main body of the roll forming machine will be naked packing into the container,covered with plastic film.
2.Steel wire fix the machine into the container, in case any damage when shaking on the sea.
3.The spare parts will be packed into the carton box.
4.The received goods table put into carton box .
5.Manual decoiler naked package .
At XINNUO, we are committed to delivering high-performance metal roll forming machines tailored for global industrial needs. Our equipment offers reliable and flexible production capabilities to meet the demands of modern construction and manufacturing industries.
