Model : keel forming machine
Min.Order Quantity : 1 Pieces
Develivry time : 45-60 workdays
Working speed : 15-20m/min
Payment Terms : 40% T/T in advance,60% when shipping
Email : xinnuo05@xinnuomachine.com
WhatsApp ：+8618830702960

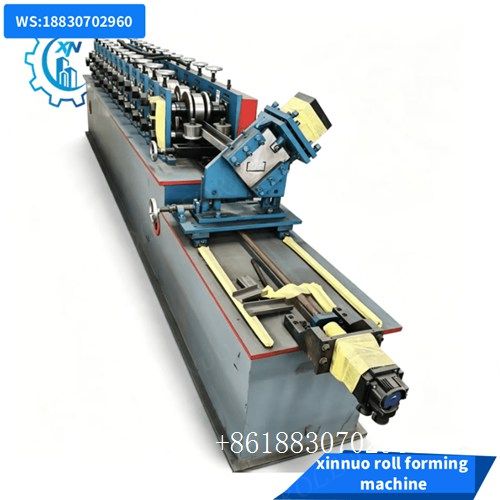

CU Channel Steel Stud and Track Roll Forming Machine
Xinnuo Automatic CU Channel Steel Stud and Track Roll Forming Machine is specially engineered for the Indian construction market — ideal for producing C-shape (stud) and U-shape (track) light steel keel profiles used in drywall partition systems,
suspended ceilings, and pre-engineered building (PEB) framing.
With a double-head design and automatic quick mold change system, the machine switches between C and U profiles within 60 seconds — dramatically boosting production flexibility and output efficiency. Backed by PLC intelligent control,
hydraulic auto-cutting, and CE certification, this machine delivers precision, reliability, and long service life.
Target Industries in India:
Machine specifications
| Parameter | Specification |
|---|---|
| Machine Type | Double-head C & U channel roll forming machine |
| Profile Types | C Stud (CW/UW/stud profile) & U Track (CD/UD/track profile) |
| Raw Material | Galvanized steel coil (GI), cold-rolled steel |
| Material Thickness | 0.4 – 1.2 mm |
| Feeding Width | 50 – 200 mm (adjustable) |
| Profile Height | 28 – 100 mm (customizable) |
| Forming Speed | 15 – 25 m/min |

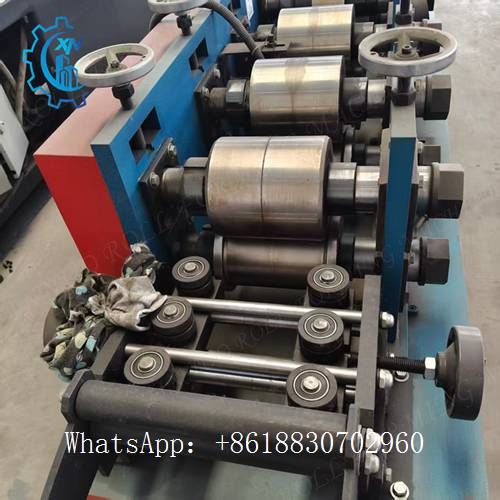

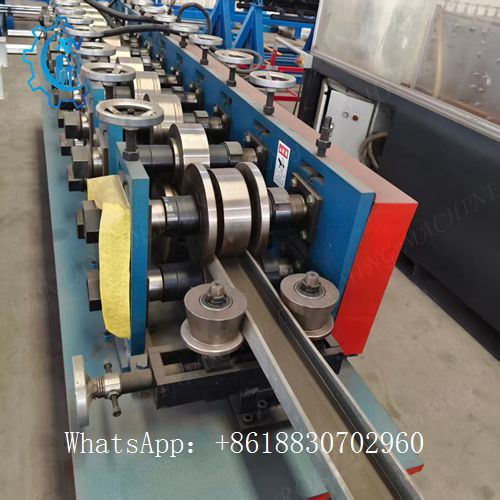

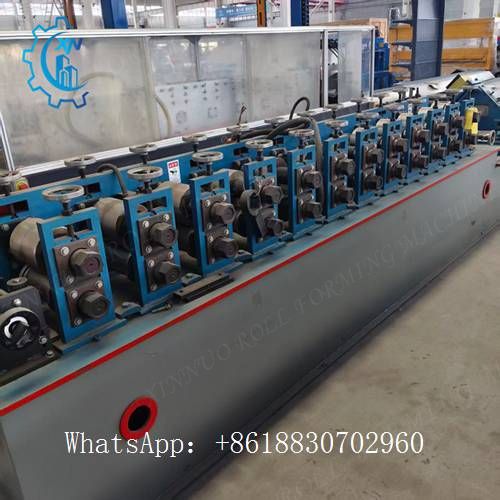

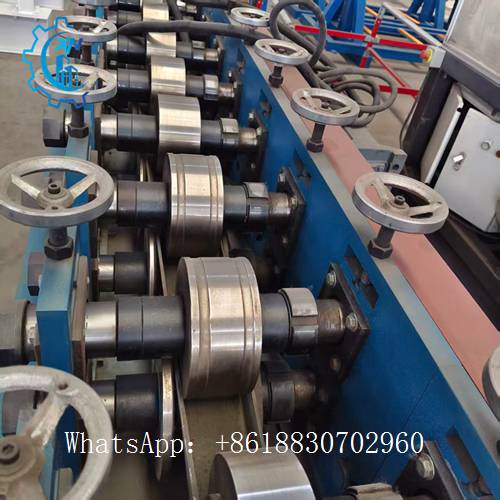

| Forming Stations | 12 – 14 stations (heavy-duty 45# steel shafts, Ø50mm) |
| Roller Material | GCr15 bearing steel, hard chrome plated (HRC58-62) |

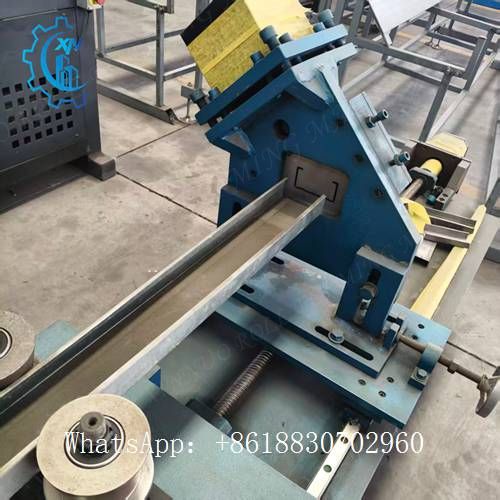

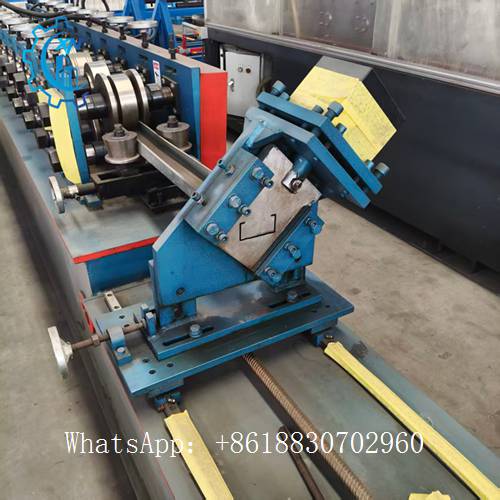

| Cutting System | Hydraulic auto-cutting, Cr12MoV blade, tolerance ±1mm |
| Control System | PLC + touch screen (Mitsubishi/Siemens optional) |
| Drive System | Motor + gearbox / servo motor optional |
| Main Frame | 300H steel, welded & stress-relieved |
| Voltage | 380V / 415V / 220V (customized per Indian requirements) |
| Power | Main motor 5.5 kW + hydraulic 3 kW |
| Dimension (L×W×H) | 6,500 × 1,200 × 1,500 mm |
| Weight | ~3,500 kg |
| Certification | CE, ISO 9001 |
| Warranty | 2 years (core components) |
| After-Sales | Online support, video technical guidance, engineers available for overseas commissioning |
| Feature | Benefit for Indian Buyers |
|---|---|
|
