| Develivery time:45-50 days |
| Model:XN- keel forming machine |
| Payment:40% T/T deposit,60% balance before shipping |
| Voltage:380V 50HZ 3Phase or based on customer’s need . |
| Warranty :1 years for machinery warranty |

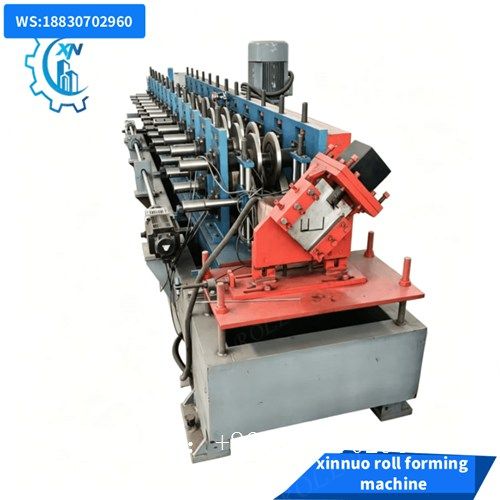

Designed for automated production of light steel keel profiles in the construction and interior decoration industry, this machine continuously roll-forms double U-shaped keels for suspended ceiling systems, partition wall framing, and interior finishing.
Featuring PLC-based full automation and hydraulic cut-to-length, it handles the complete workflow—from coil decoiling and roll forming to automatic cutting and finished product discharge—in a single fully integrated line.
Machine Feature
| Feature | Description |
|---|---|
| High Efficiency | PLC-controlled fully automatic production; forming speed adjustable from 0–25 m/min |
| Precision Forming | Precision-ground roller tooling delivers profile tolerance ≤ ±0.1 mm |
| Dual-U Output | Two U-channels formed simultaneously in a single pass, doubling throughput |
| Hydraulic Cutting | 45° angled hydraulic shear for clean, burr-free cuts with high length accuracy |
| Quick Changeover | Modular roller cassette design enables fast profile size switching with minimal downtime |
| Heavy-Duty Build | Fully welded structural frame; critical components in premium alloy steel for 10+ year service life |
| Parameter | Specification |
|---|---|
| Raw Material | Galvanized steel coil / Cold-rolled steel coil |
| Material Thickness | 0.3 – 1.2 mm |
| Yield Strength | ≤ 345 MPa |
| Forming Speed | 0 – 25 m/min (VFD-controlled) |
| Profile Height | 30 – 100 mm |
| Effective Width | 35 – 148 mm |
| Forming Stations | 16 – 20 stations (configured per profile) |
| Roller Material | GCr15 bearing steel, quenched to HRC 58–62 |
| Shaft Diameter | Φ40 – Φ60 mm (45# steel, quench-tempered) |
| Cutting Method | Hydraulic shear with 45° angled blade |
| Hydraulic Working Pressure | 10 – 14 MPa |
| Main Motor Power | 7.5 – 15 kW |
| Hydraulic Power Pack | 3 – 5.5 kW |
| Total Installed Power | ≈ 15 – 22 kW |
| Power Supply | 380V / 3-Phase / 50Hz (60Hz customizable) |
| Control System | PLC + Touchscreen HMI (Delta / Siemens optional) |

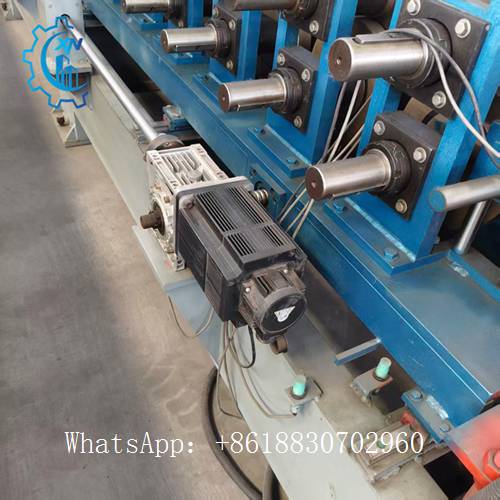

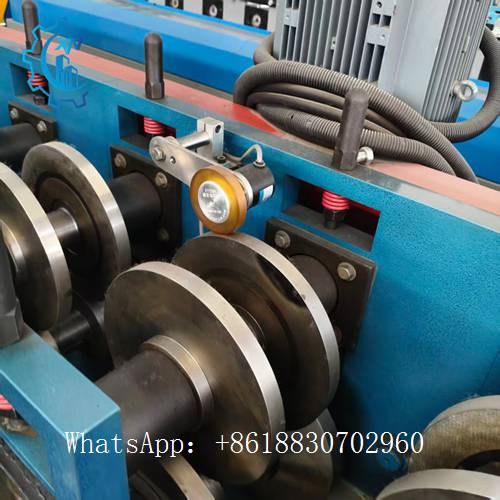

| Length Measurement | Rotary encoder with auto cut-to-length |
| Length Accuracy | ± 0.5 mm |
| Overall Dimensions (approx.) | 6000 × 1300 × 1200 mm (customizable) |
| Machine Weight | ≈ 3.5 – 5.5 tons |

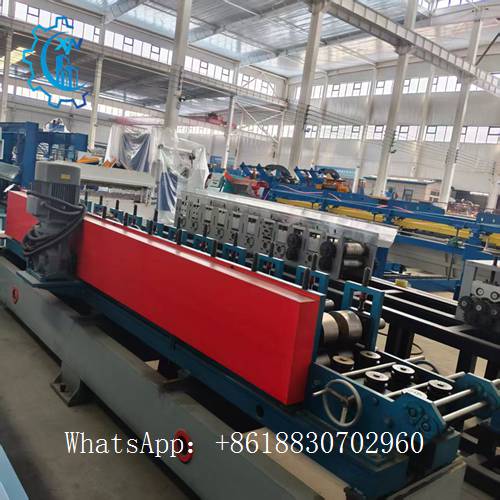

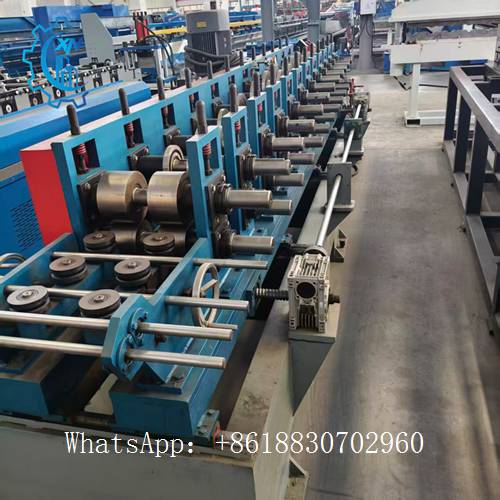

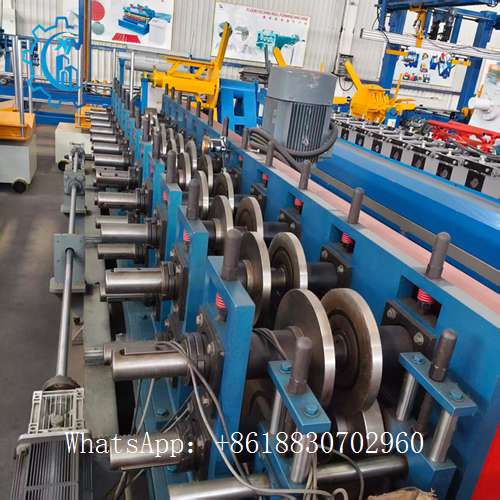

Machine Component
Workflow :
Galvanized Steel Coil → Manual Decoiler → Entry Guide →
Multi-Station Roll Forming → Encoder Length Measurement →
Hydraulic Cut-to-Length → Run-out Table → Manual Stacking
Applicable Products
• Ceiling U Keel / Furring Channel
• Partition Wall Stud
• Partition Wall Track
• Light Steel Keel Accessory Series
Application Scenarios
• Commercial building suspended ceiling framing systems
• Residential and office partition wall systems
• Integrated ceiling support profiles
• Light gauge steel structure housing frames
• Cleanroom partition systems
