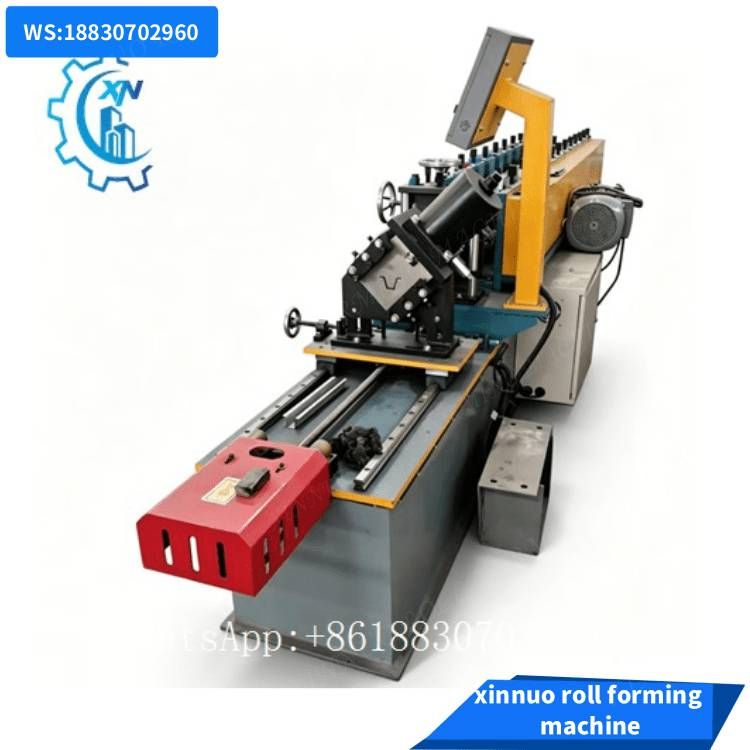

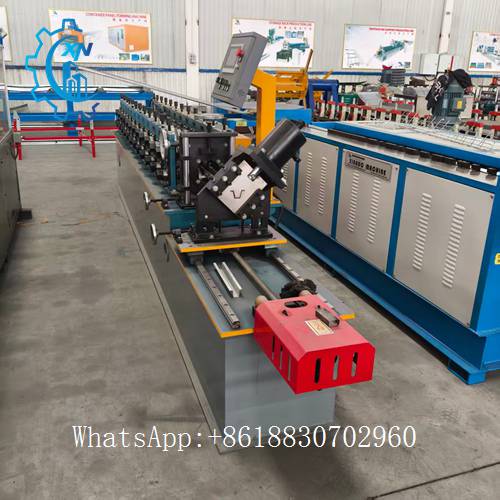

Keel Forming Machine | Light Steel Keel Roll Forming Equipment
This automatic keel forming machine is a high-efficiency cold roll forming equipment, specially designed for producing light steel V keel, ceiling keel, partition keel. The whole production line realizes automatic uncoiling, feeding,
continuous rolling forming, hydraulic cutting. With stable running, easy operation and flexible size adjustment, it is widely used in construction ceiling and light steel structure industry.
Technical Parameters
- Applicable raw material: Galvanized steel strip
- Material thickness range: Customized
- Forming speed: 15–25 m/min
- Control system: PLC + Touch Screen
- Cutting way: Hydraulic post-cut
- Working voltage: 380V 50Hz / Customized
- Main Production Flow
- Hydraulic Decoiler → Unload raw steel coil automatically
- Roll Forming Host → Multiple groups forming rollers shape metal strip steadily
- PLC Control Cabinet → Intelligent parameter setting

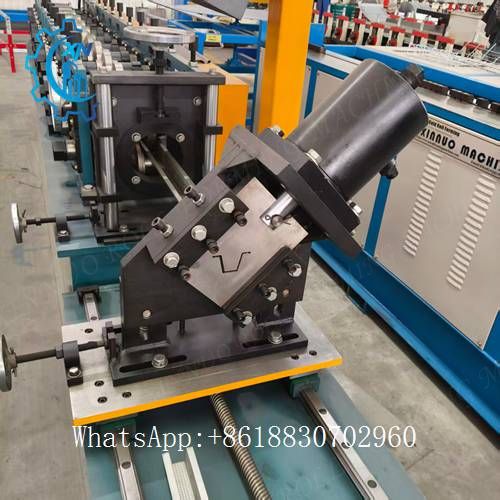

- Hydraulic Cutting Station → Cut finished keel to custom length

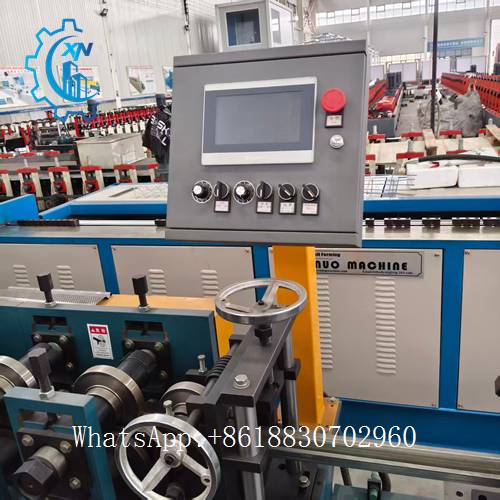

PLC Intelligent Control System
Adopts touch screen + PLC automatic control system. Operators can set target length, production quantity and running speed directly on screen. Support automatic counting, auto-stop after finishing scheduled output.

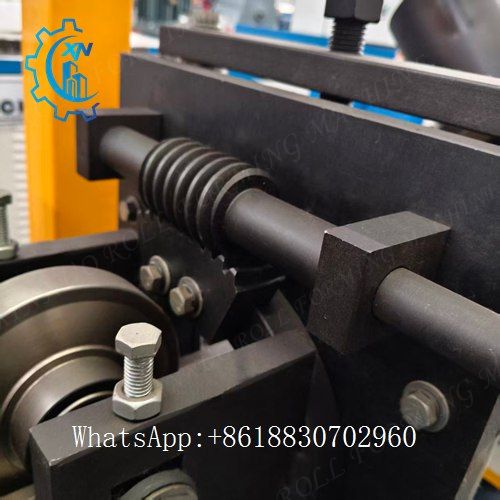

Manual adjustment handwheels make roller calibration convenient, greatly lower operation difficulty for workers.

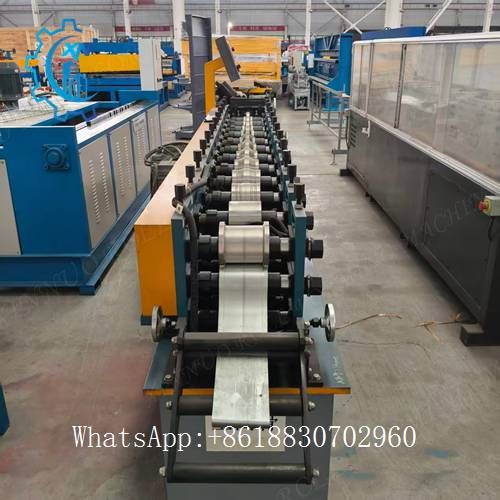

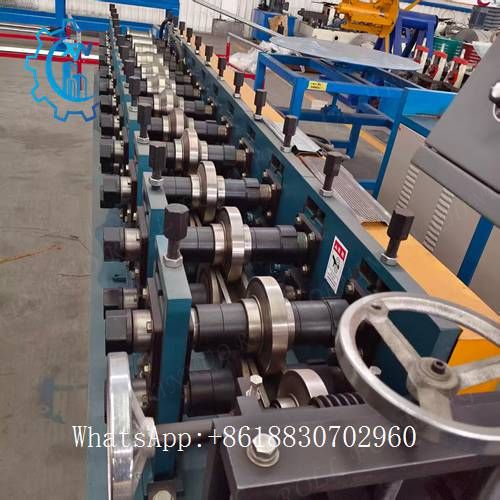

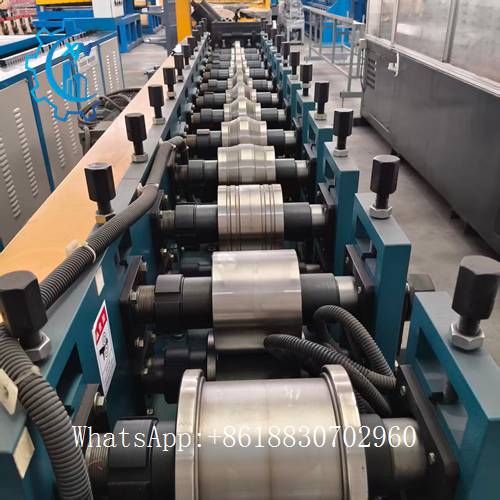

Forming Roller Groups
Multi-pass progressive rolling design ensures precise profile shape without deformation. All roller surfaces undergo precision turning and quenching treatment, strong wear resistance.
Adjustable roller spacing supports production of keels within specified size range, realize one machine for multiple specifications.

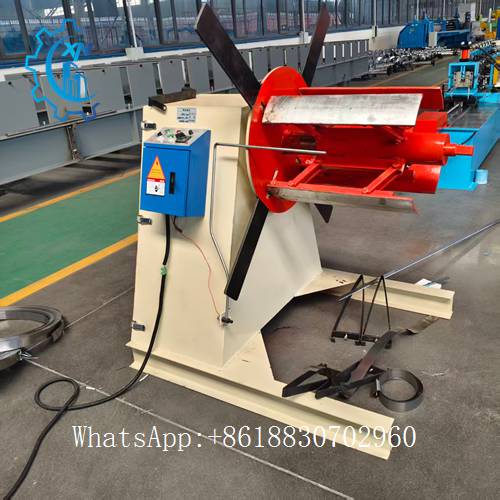

Automatic Hydraulic Decoiler
Matching heavy-duty hydraulic decoiler, load capacity up to 3-5 tons. It supports automatic tension control for steel coil, stable feeding without strip deviation. Independent control box makes coil loading and
unwinding operation safer and simpler, perfect match with the forming main machine.
Core Advantages
✅ High forming precision, finished keel with flat surface and standard dimension
✅ Full automatic running, save labor cost
✅ Wear-resistant forming rollers, long service cycle
✅ Quick size adjustment, adaptable for multiple keel specifications
✅ Stable hydraulic cutting, neat cutting section without burr
✅ CE standard electric configuration, low failure rate
Application
Mainly manufacture light steel ceiling keel, V keel, partition keel for interior decoration, building suspended ceiling, prefabricated light steel construction projects.
