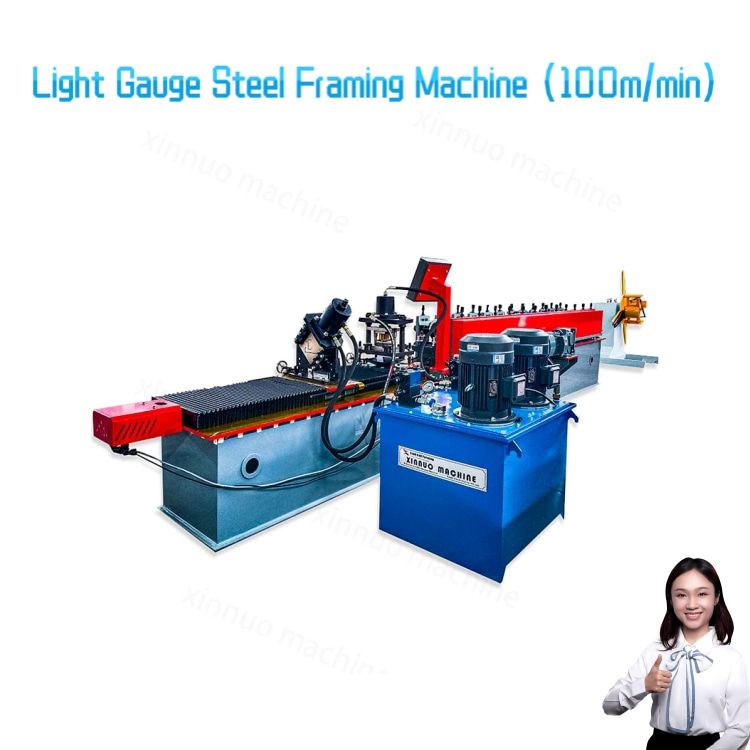

Light Gauge Steel Forming Machine (100m/min)
Product Description
Light Gauge Steel Forming Machine (100m/min) is an advanced automated solution designed for the high-speed production of keels and structural profiles used in light steel villas. Operating at speeds up to 100 meters per minute, it streamlines the entire workflow—from raw coil feeding to finished profiles—ensuring precision, speed, and stability.

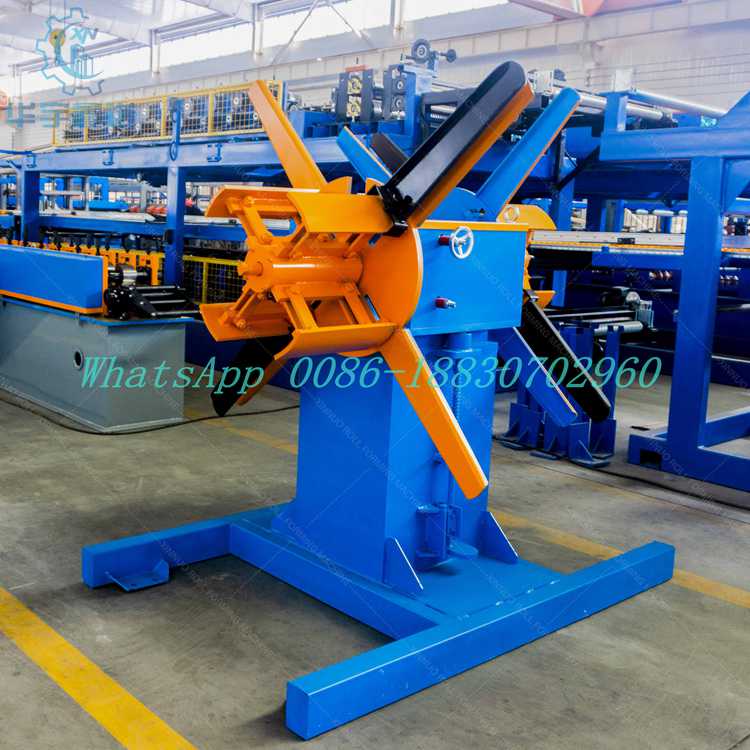

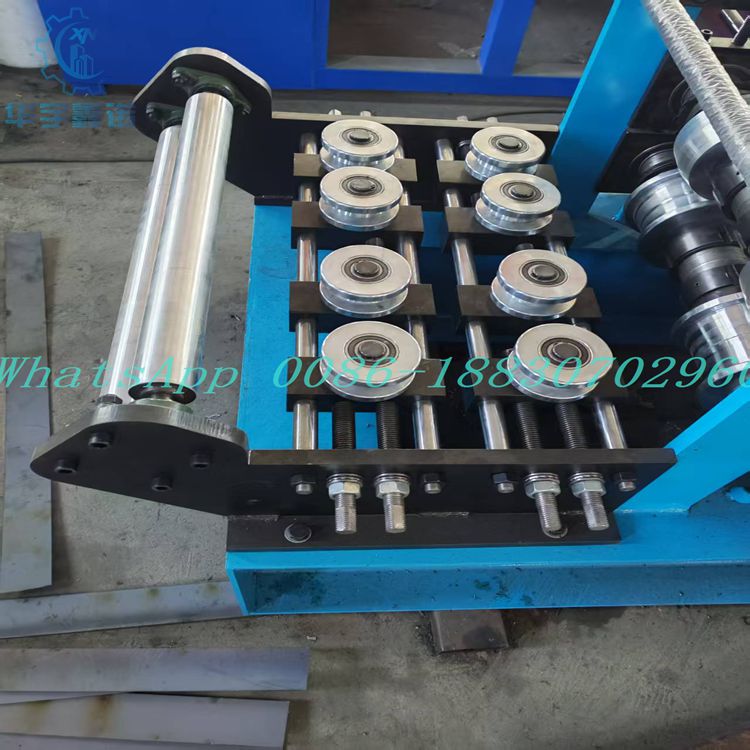

System Composition: The full production line includes a decoiler, leveling system, servo punching station, high-precision roll forming unit, flying shear cutting system, and automated receiving table. These components are seamlessly integrated to produce complex, customized profiles for light steel frame construction in a fully automated manner.

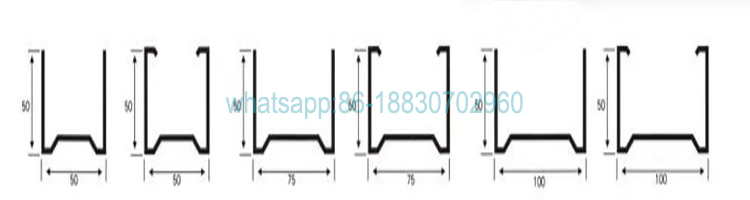

Profile Drawing
Working Flow

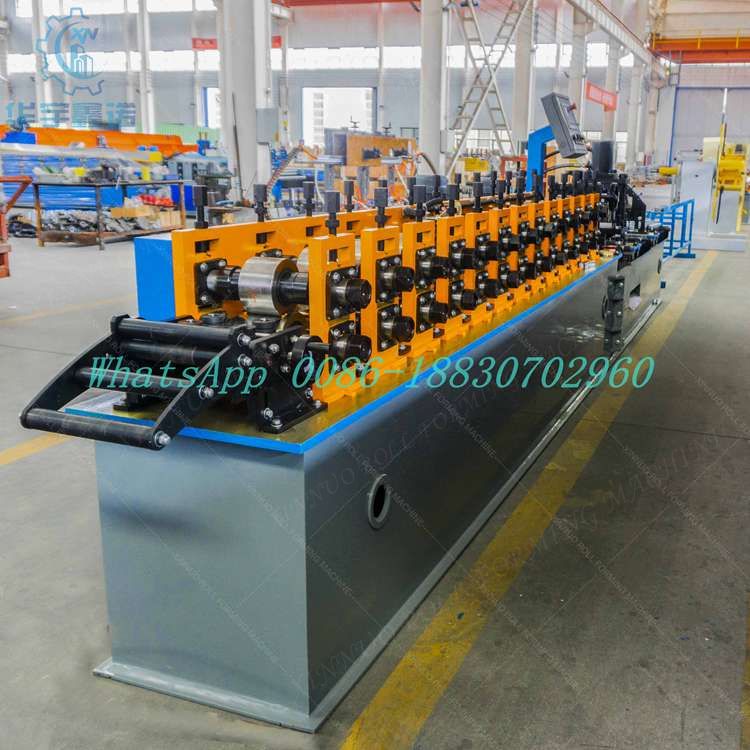

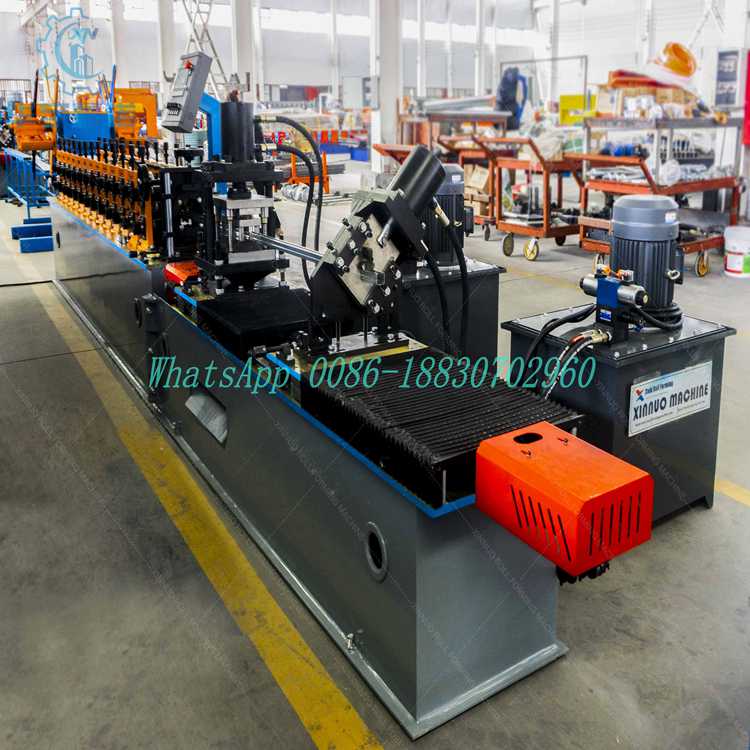

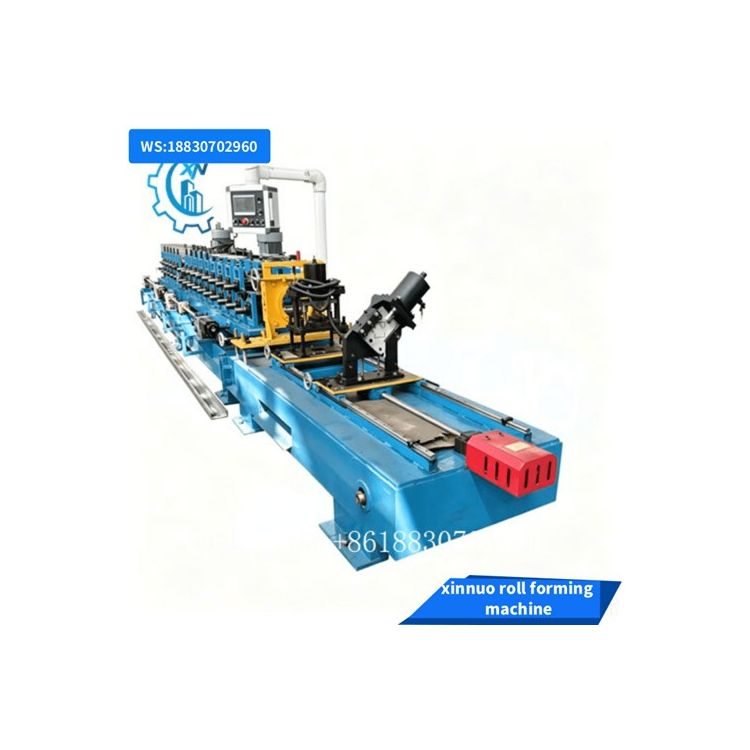

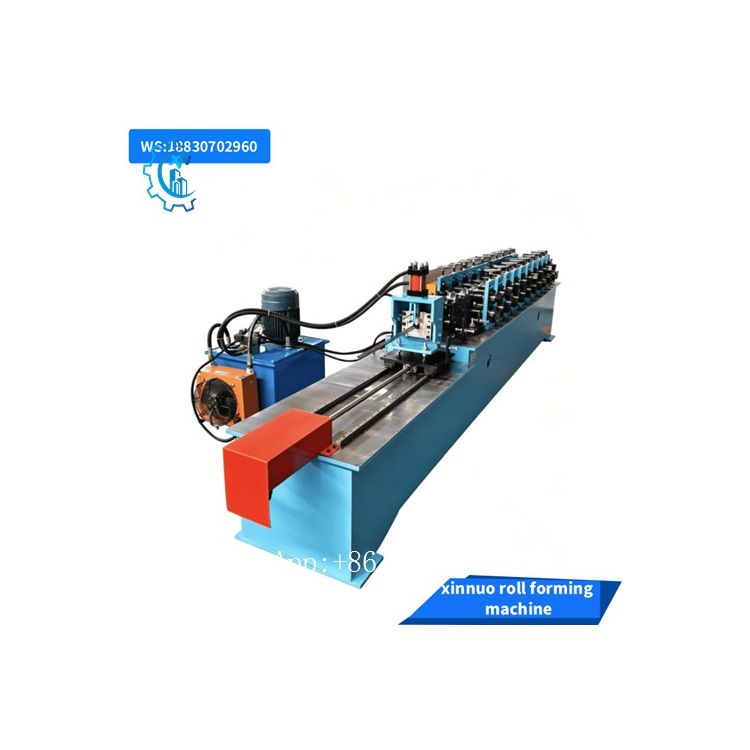

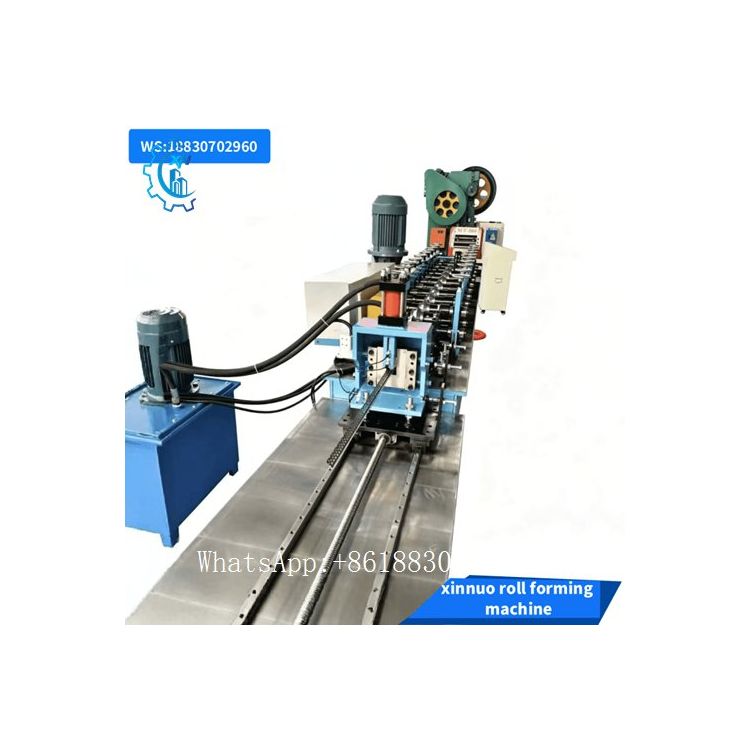

Product Details
Machine Parameters
|
Name
|
Light Gauge Steel Forming Machine (100m/min)
|
|
Suitable to process
|
Galvanized steel strips/cold rolled strips
|
|
Roller
|
25-30Rows
|
|
Dimensions
|
15*1.3*1.5m
|
|
Motor Power
|
11Kw
|
|
Pump Station Motor
|
7.5Kw
|
|
Thickness of the plate
|
1.0mm-3.0mm
|
|
Productivity
|
50-100m/min
|
|
Material of the cutting blade
|
Cr12MoV,Quenched treatment 58ºC-60ºC
|
|
Diameter of the roller
|
95mm
|
|
Weight
|
About 5000Kgs
|
|
Main structure of the machine
|
Arch structure
|
|
Voltage
|
380V 50Hz 3phases or as customer’s need
|
|
Control system
|
PLC control (Delta) or as customer’s need
|
|
Drive mode
|
Motor driver
|
|
Touch screen
|
Delta or as customer’s need
|
|
Rolling materials
|
GCr15(bearing steel)hard chrome plated after heat treatment
|
|
Length Tolerance
|
±1mm
|
|
Type of cutting
|
Length-set cutting Guiding pipe Hydraulic cutter Each side one Oil cylinder |
Prodcut Application
At XINNUO, we are committed to delivering high-performance metal roll forming machines tailored for global industrial needs. Our equipment offers reliable and flexible production capabilities to meet the demands of modern construction and manufacturing industries.
