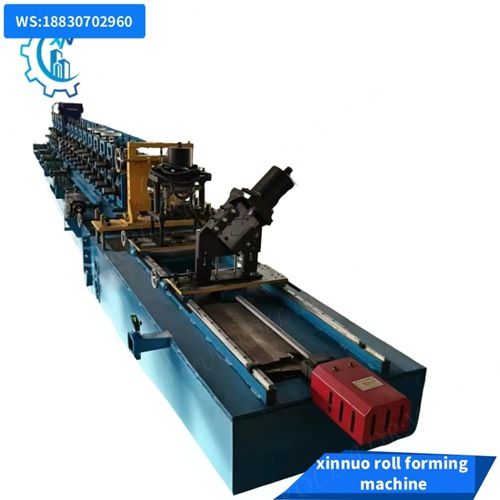

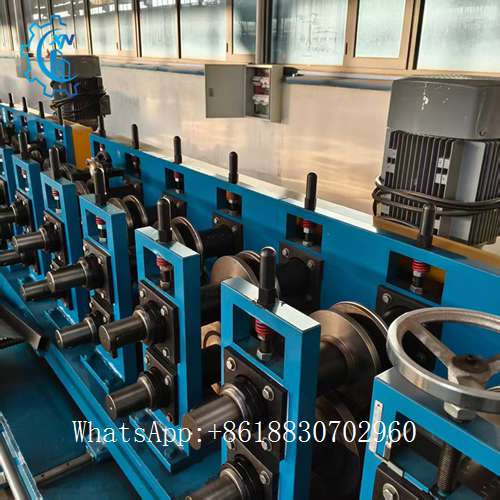

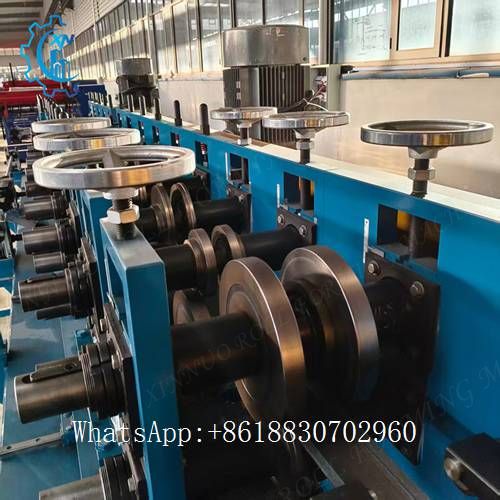

Keel MakingMachineThe keel machine uses strip steel as rawmaterial and is formed by continuous coldroll forming to produce complex cross-section profiles (products include: light steelkeel.)
The keel Machine uses strip steel as raw material andis formed by continuous
cold roll forming to produce complex cross-sectionprofiles (products include:light steel keel, paint keel, cassette keel, variousbuilding profiles, steel structures,steel-lined door frame profiles, high-speed protectionBar, etc.)

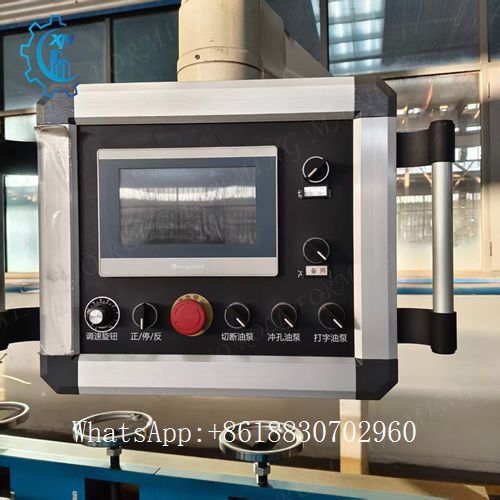

and different specificationsof cold-bending and paint-baking units are controlledby PLC.
Light steel keel is a new type of building material. Withthe development ofmodernization in my country, light steel keel is widelyused in hotels, terminals,
train stations, stations, playgrounds, shopping malls,factories, office buildings,and old buildings. Renovation, interior decoration,ceiling and other places.
Light steel (painted) keel ceiling has the advantages of lightweight, high strength, adaptabilityto waterproof, shockproof, dustproof, sound insulation, soundabsorption, and constanttemperature.
It also has the advantages of short constructionperiod and simple construction.
The light steel keel includes ceiling keel and partition keelaccording to the purpose, and V-shaped,C-shaped, T-shaped, L-shaped and U-shaped keels according tothe cross section.

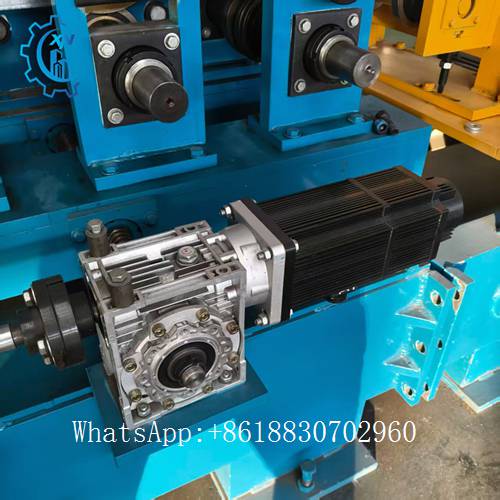

The servo drive device of the CU keel forming machine consists of a servo motor and a worm gear reducer (gearbox). It is one of the core power and control units of the equipment.
Roll Forming Machine Features
- Double heads decoiler- High speed cold roll forming- Combi structure for your choice to produce different steelprofiles on one machine
Machine protection
- Hydraulic fly shearing
-Auto stacking system for your choice.
Technical Specification Of CU Channel Roll Forming Machine:
| Item | Specification |
|---|---|
| Raw materials | galvanized steel strip or stainless-steel strip |
| Spring tee sizes | According with customers' drawing |
| Maximum forming speed | 120 m / min |

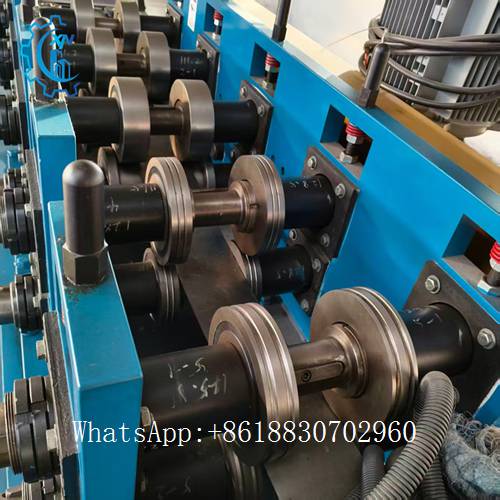

| Roll Forming stands | 15 Rollers station |
| Machine Power | ~ 15 KW |
Structure Of CU Channel Roll Forming Machine :
- Hydraulic decoiler
- Main roll forming machine

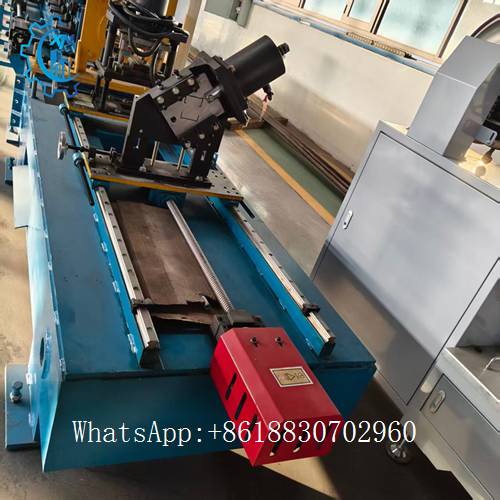

- shearing station
- Output table.
- Electrical & Hydraulic system
At XINNUO, we are committed to delivering high-performance metal roll forming machines tailored for global industrial needs. Our equipment offers reliable and flexible production capabilities to meet the demands of modern construction and manufacturing industries.
