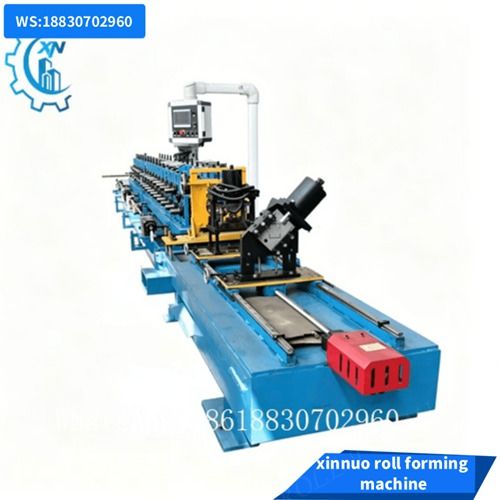

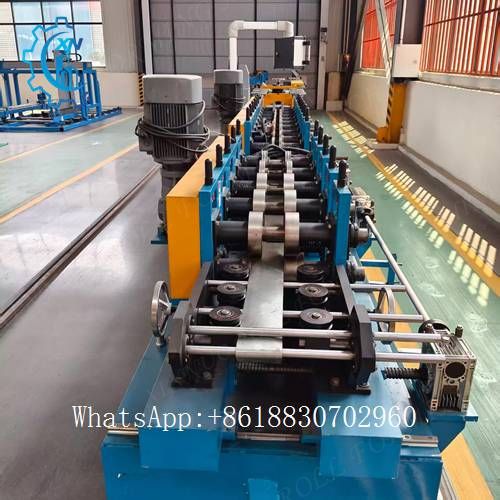

automatic cu light steel keel roll forming machine

Product Introduction

Core Advantages

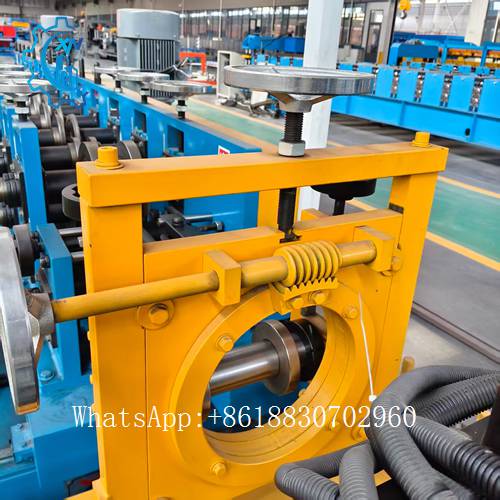

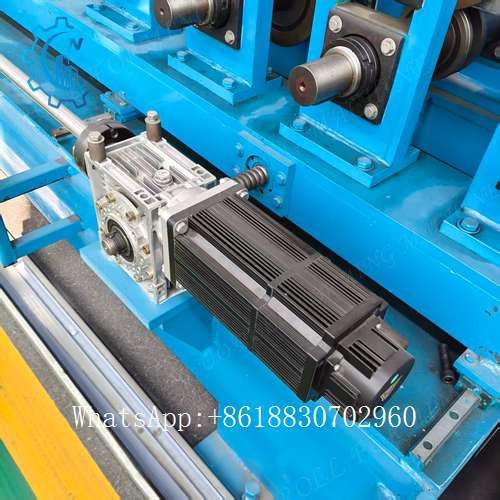

1. Dual-function Design, Switch C & U Profiles Rapidly



   Adjustable forming track for width and height; one set of machine produces both C main studs and U tracks without full die replacement. Supports mainstream partition keel sizes 50/75/100, cutting your equipment investment cost.
2. Full CNC Automatic Control, Labor-saving



   Equipped with PLC touch screen control system. Set profile length, punching spacing and production quantity directly on screen. Features automatic counting, auto stop and fault alarm. Only one worker is required to operate the whole line.

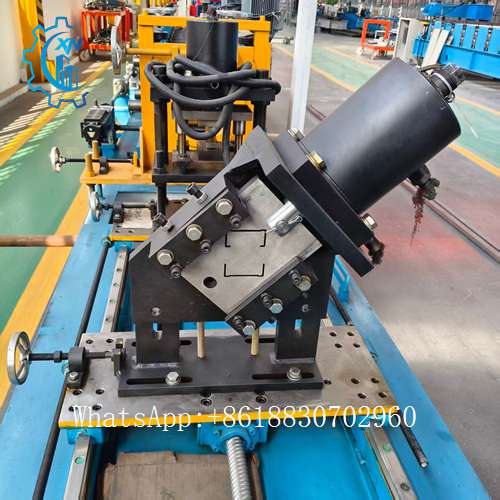

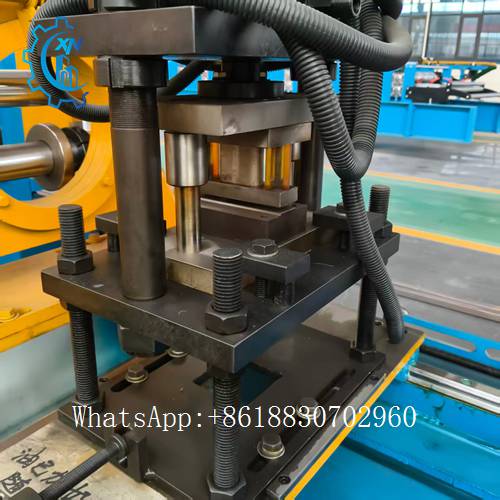

3. High-precision Hydraulic Punching & Cutting Module



   High-thrust hydraulic cylinder synchronously punches mounting holes and connecting holes. Flying cutting without leftover scraps, flat & distortion-free cutting surface. Dimensional tolerance ≤ ±0.5mm, fully meets construction industry standards.

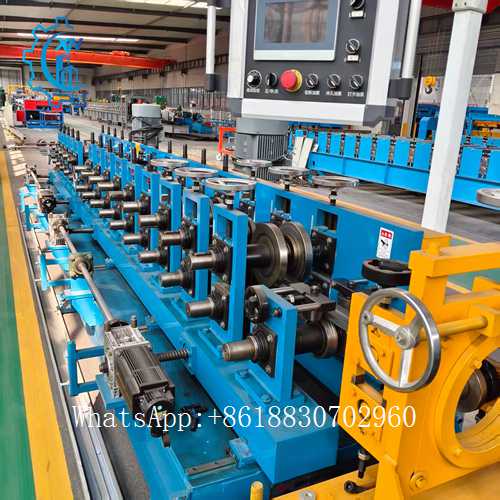

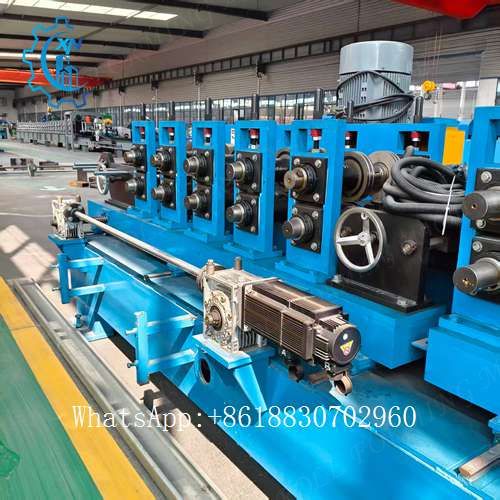

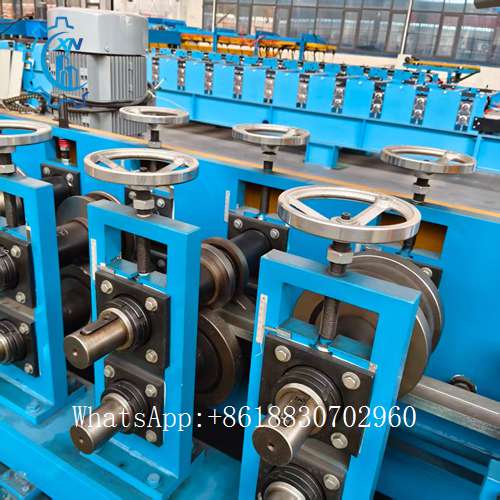

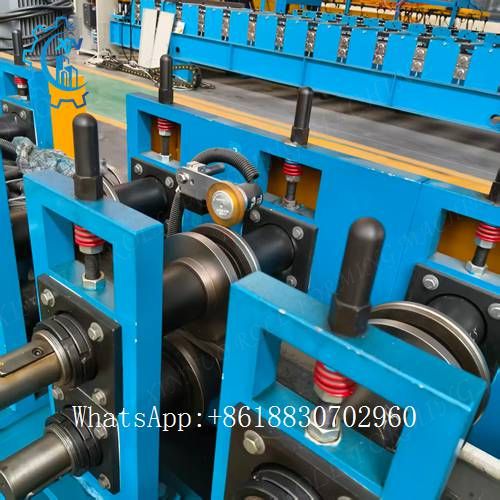

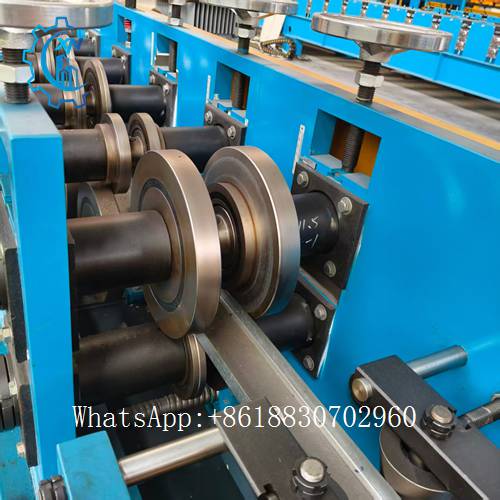

4. Thickened Machine Base & Wear-resistant Forming Rollers



   Heavy-duty thick steel plate welded base, low vibration and anti-deformation. Forming rollers made of high wear-resistant bearing steel with quenching treatment, long service life with scratch-free finished profiles.
5. High Production Efficiency for Mass Factories



   Stepless forming speed 0–30 m/min, large daily output to support large-scale profile manufacturing.
