1.Machine Dimension:6500×1200×1500mm (L×W×H; subject to model adjustmen)
2.Forming Speed:15-60 m/min
3.Min.Order Quantity:1 Pieces
4.Payment Terms:30% T/T in advance,70% when shipping
5.Email:xinnuo05@xinnuomachine.com
6.whatsapp：+8618830702960

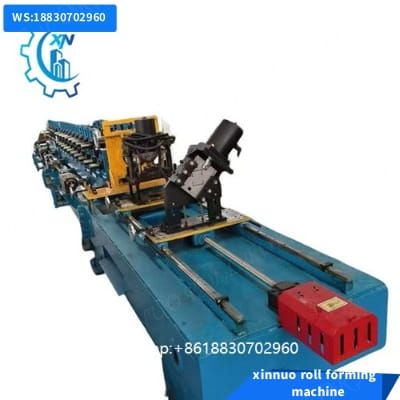

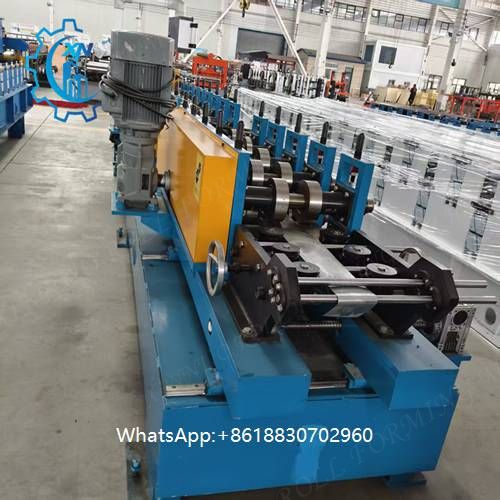

u-Type Keel Roll Forming Machine Product Description
Our high-performance u-Type Keel Roll Forming Machine is engineered for efficient, precise production of u-shaped steel keels—ideal for construction framing, drywall installation, and interior partitioning. It features customizable roll forming speeds (5-15m/min), adjustable keel dimensions (width 50-200mm, thickness 0.8-2.0mm), and CE certification for safety. With automatic material feeding, forming, and cutting, it minimizes manual labor, ensures consistent keel quality, and reduces waste. Low maintenance, durable steel structure, and user-friendly control panel make it suitable for small-to-large construction component factories.
| Parameter Category | Specification Details |
| Machine Model | U-KFM-200 (Customizable model number based on production needs) |
| Keel Type Produced | U-shaped steel keels (for drywall, ceiling, interior partitioning) |
| Applicable Material | Galvanized steel, cold-rolled steel (thickness: 0.6-1.5mm) |
| Keel Dimension Range | Width: 40-200mm; Height: 30-100mm; Flange: 15-50mm (adjustable via roll sets) |
| Forming Speed | 15-60 m/min (stepless speed regulation via frequency converter) |

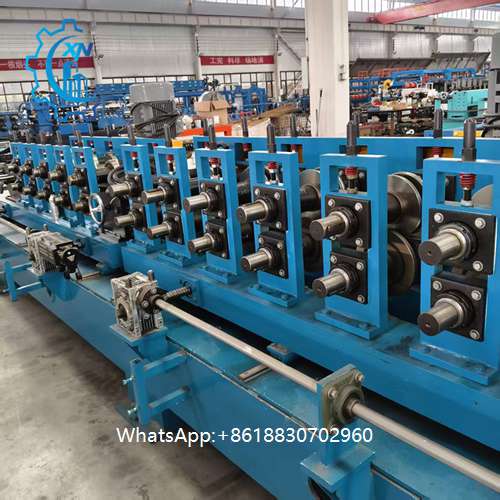

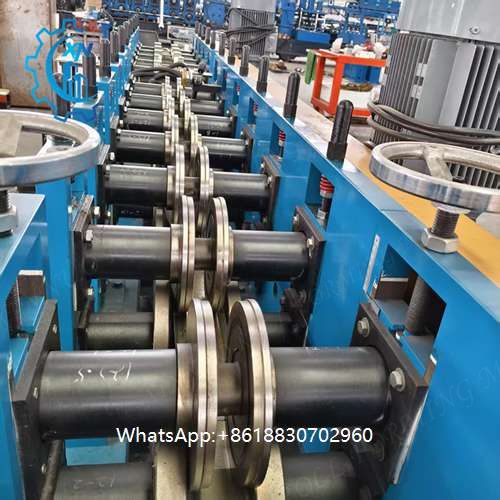

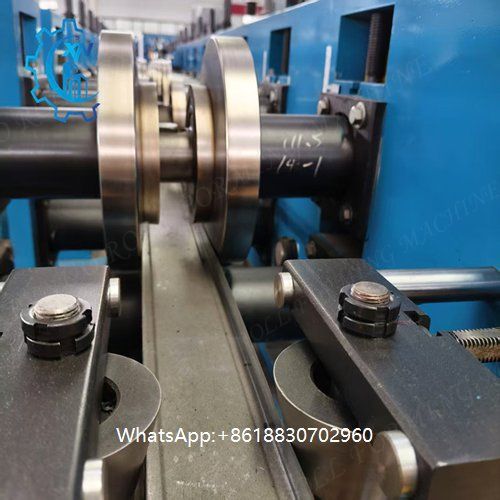

| Forming Stations | 12-16 stations (optimized for smooth, high-precision shaping) |

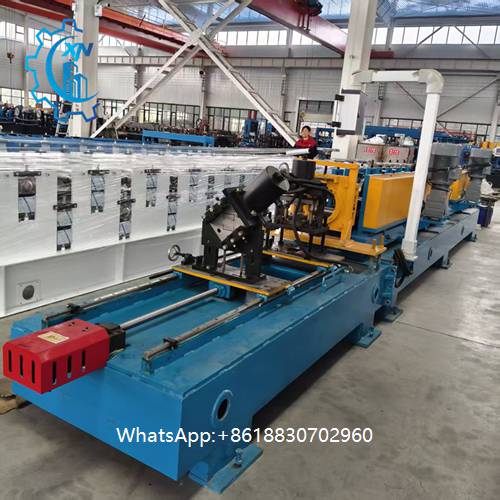

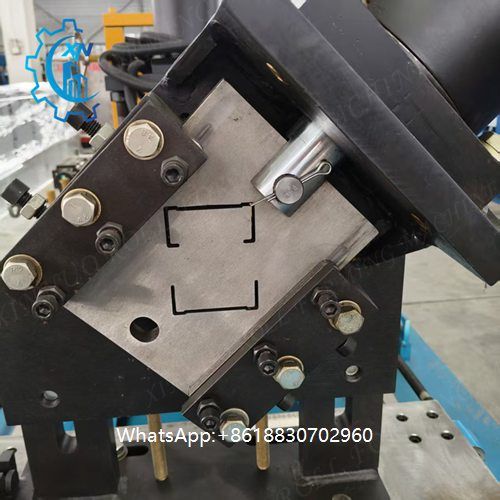

| Cutting System | Hydraulic automatic cutting (cutting accuracy: ±0.5mm; max cutting length: 6000mm) |
| Power Supply | 380V/50Hz (3-phase; customizable for 220V/60Hz per regional standards) |
| Total Power | 15-22 kW (varies by forming speed and keel thickness) |
| Control System | PLC control with touchscreen (supports parameter storage, fault alarm) |
| Machine Dimension | 6500×1200×1500mm (L×W×H; subject to model adjustmen |
| Certification | CE, ISO 9001 (safety and quality compliance for global markets) |
Dual-Model Keel Roll Forming Machine Advantages
Our Dual-Model Keel Roll Forming Machine stands out for its exceptional customizable production capabilities, tailored to meet diverse construction needs. It supports flexible customization of two keel types—choose from U-type, C-type, or other specifications based on your project requirements, eliminating the need for multiple standalone machines.
CE and ISO 9001 certified, it features a PLC touchscreen control system that stores custom parameters for quick recall, reducing setup time by 40%. With low maintenance, durable steel construction, and compatibility with global power standards (220V/380V), this machine delivers consistent precision while adapting to your unique production goals—ideal for factories seeking versatility and efficiency in keel manufacturing.

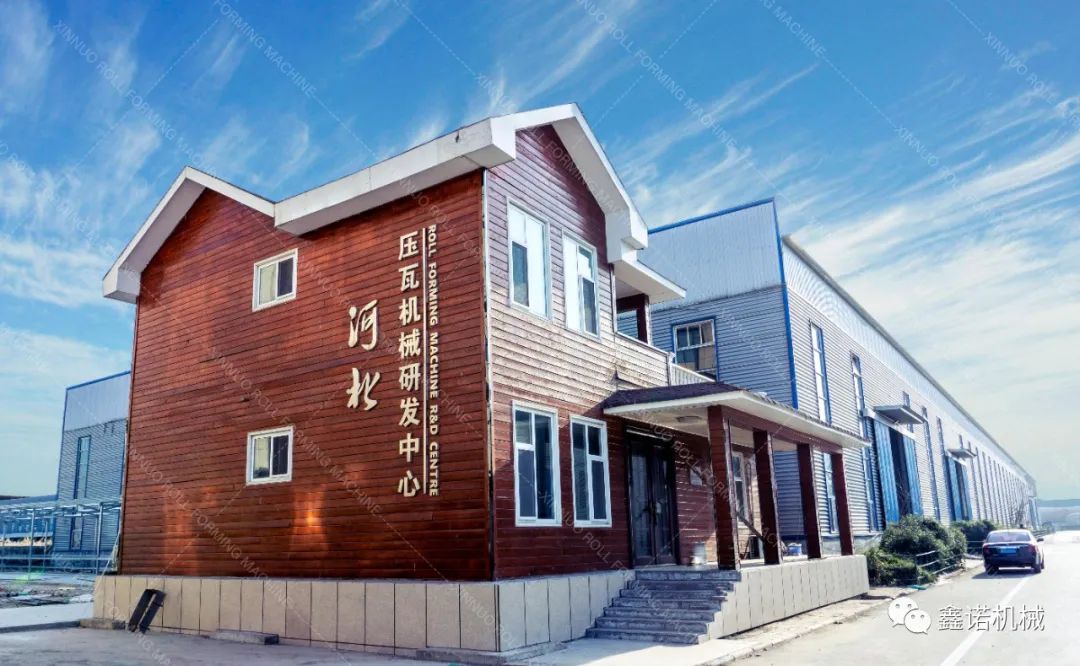

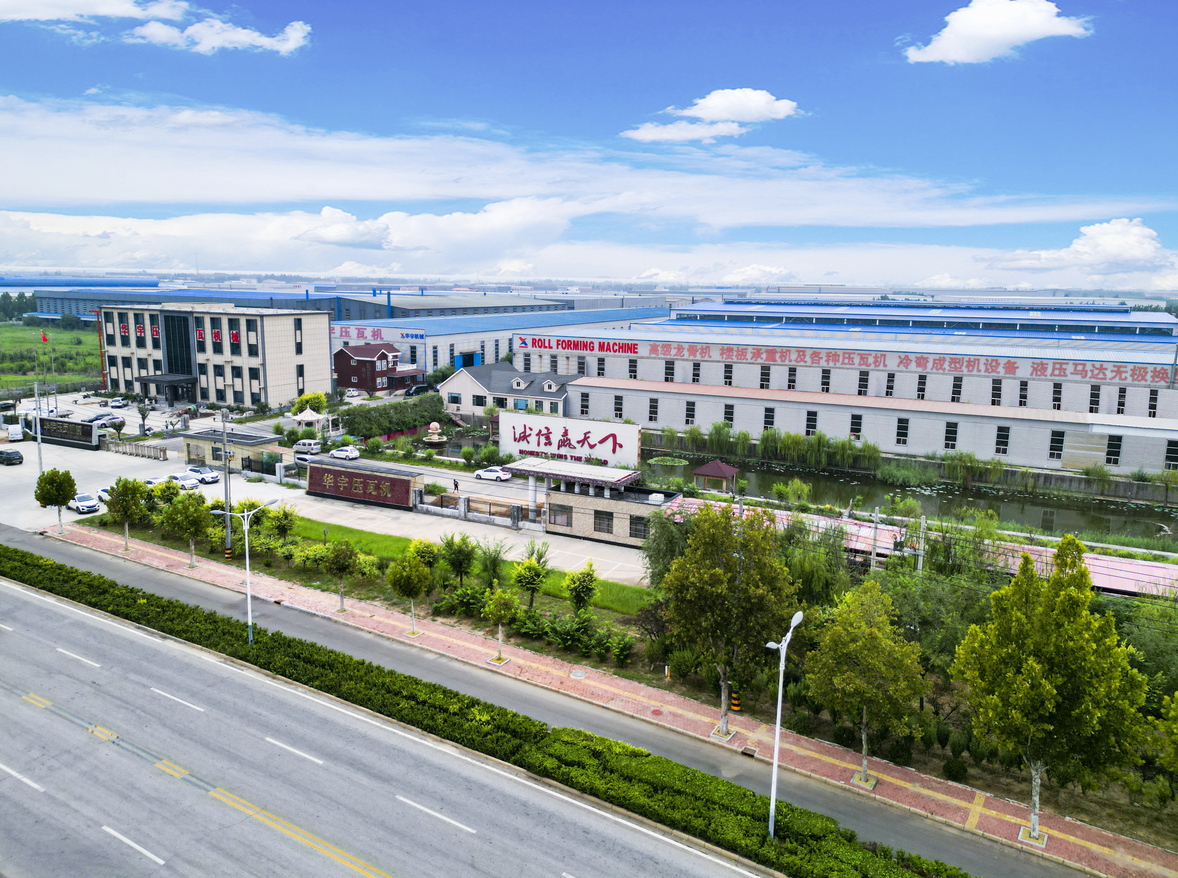

Our Facory
Xinnuo Roll Forming Machine Co.,Ltd Established in 1998, is a leading manufacturer specializing in the design and production of C/Z purlin roll forming machines, high-speed purlin lines, and other customized roll forming equipment. Our facilities cover over 100,000 square meters, including 2 modern factorys and 12 warehousing bases. Since 2002, Xinnuo machines have been successfully exported to over 180 countries worldwide, earning consistent praise fortheir performance, ease of operation, and our comprehensive customer service. Looking ahead, Xinnuo remains commited to the principle of "Quality First, Service First, Customer First." We continue to focson R&D in energy-saving and intelligent machinery for the construction sector, aiming to deliver fully automated, unmanned production solutions that drive efficiency and innovation for our global partners.
At XINNUO, we are committed to delivering high-performance metal roll forming machines tailored for global industrial needs. Our equipment offers reliable and flexible production capabilities to meet the demands of modern construction and manufacturing industries.
