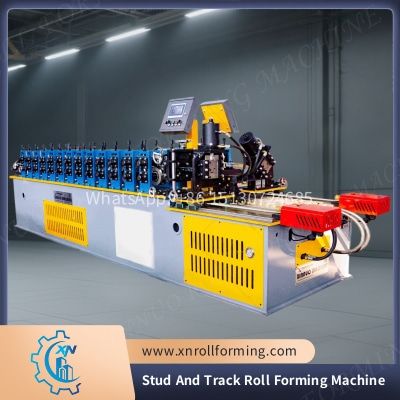

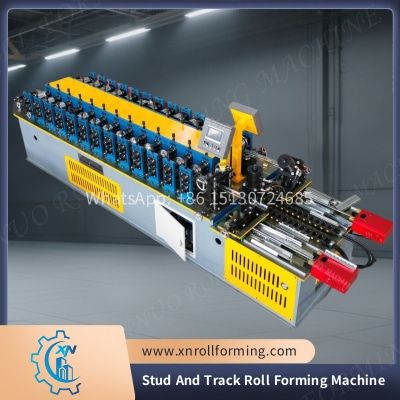

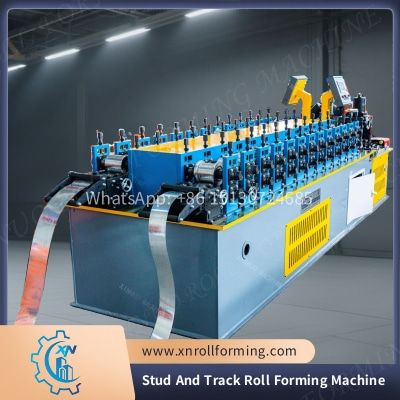

Stud And Track Roll Forming Machine

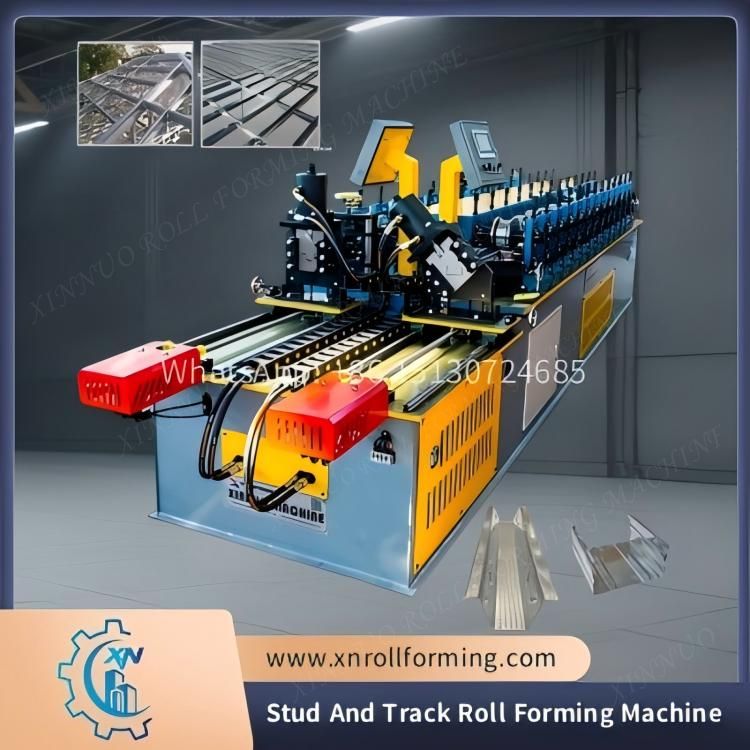

The Xinnuo Stud and Track Roll Forming Machine is a high-precision, double-layer PLC-controlled system designed for the efficient production of Omega and C profile studs and tracks. This advanced forming line is engineered to meet modern construction demands for metal framing components, offering a perfect combination of speed, accuracy, and durability.

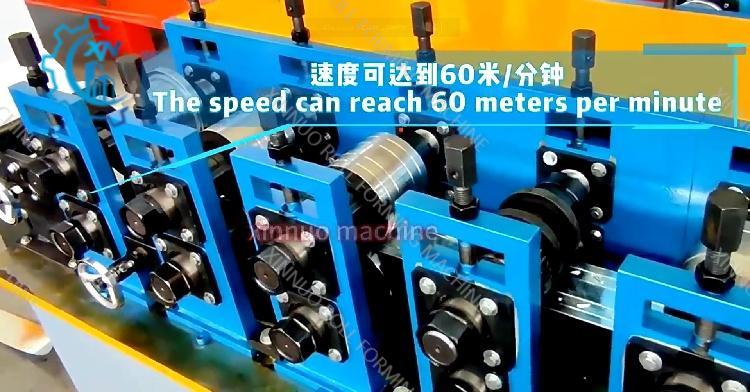

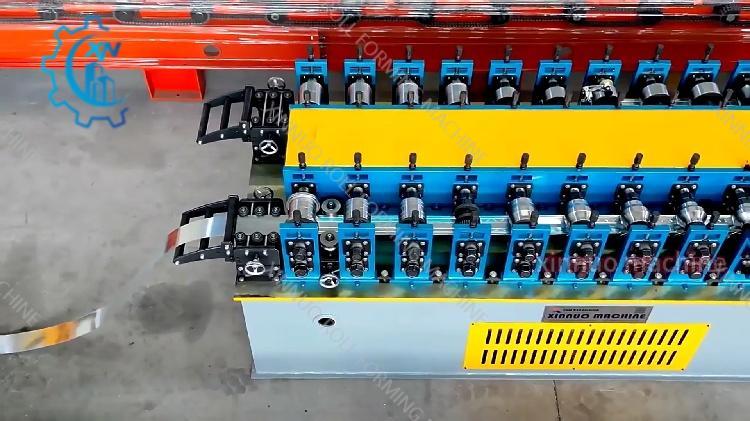

Built with versatility in mind, the machine can process a wide range of feeding material widths and thicknesses, allowing manufacturers to produce various stud and track sizes without major mechanical adjustments. Its robust 26-station roller system, made from high-quality 45# steel, ensures consistent shaping with minimal wear, even under continuous high-volume operation. The shaft diameters range from 70 to 80 mm, delivering excellent stability and alignment for precise profile formation.

With a forming speed of 18–20 meters per minute (or as customized), this equipment significantly boosts productivity while maintaining exceptional profile consistency. The main machine body, constructed from 300–400 mm H-steel, along with a wall thickness of 12–18 mm steel plate, provides superior structural strength and vibration resistance, ensuring smooth performance during high-speed runs.

Power is delivered through a 5.5 kW motor, optimized for energy efficiency while offering the torque needed for complex profile shaping. The machine’s PLC control system allows operators to manage production parameters with ease, including profile length, punching position, and batch quantity, ensuring both flexibility and precision in production runs.

Safety and customization are also prioritized. The electrical system supports 380V, 50Hz, three-phase power (or as per customer requirements), with overload and emergency stop features integrated for operator protection. Every unit can be tailored to meet specific material specifications, profile dimensions, and automation needs, making it a versatile investment for both large-scale factories and specialized production workshops.

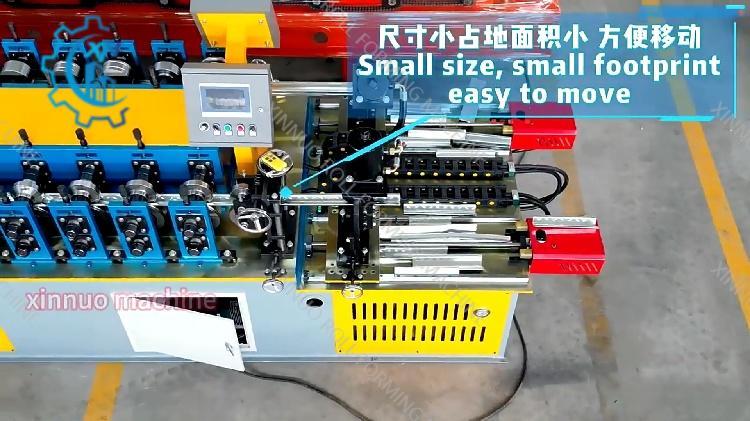

Compact in design yet heavy-duty in capability, the Stud and Track Roll Forming Machine is easy to maintain and has a service-friendly layout. At about 5.2 tons, it provides a stable base for precision forming without unnecessary floor space consumption.

Whether producing profiles for residential partitions, commercial interiors, or large industrial frameworks, the Xinnuo Stud and Track Roll Forming Machine delivers unmatched performance, long-term reliability, and consistent quality, making it a key asset for modern steel framing production lines.
