Composition of Production Line
-Decoiler
-Raw materials guide
-Continuously cold roll forming
-Hydraulic follow shearing
-Output tables
-Electrical & hydraulic system

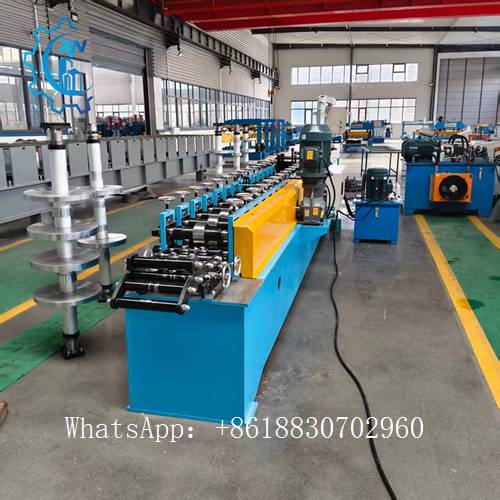

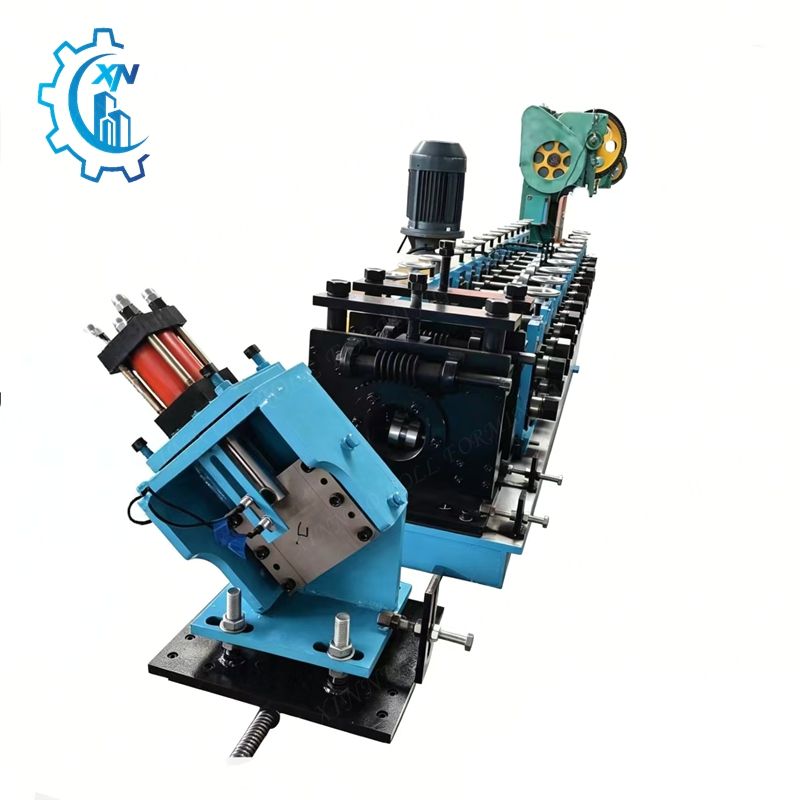

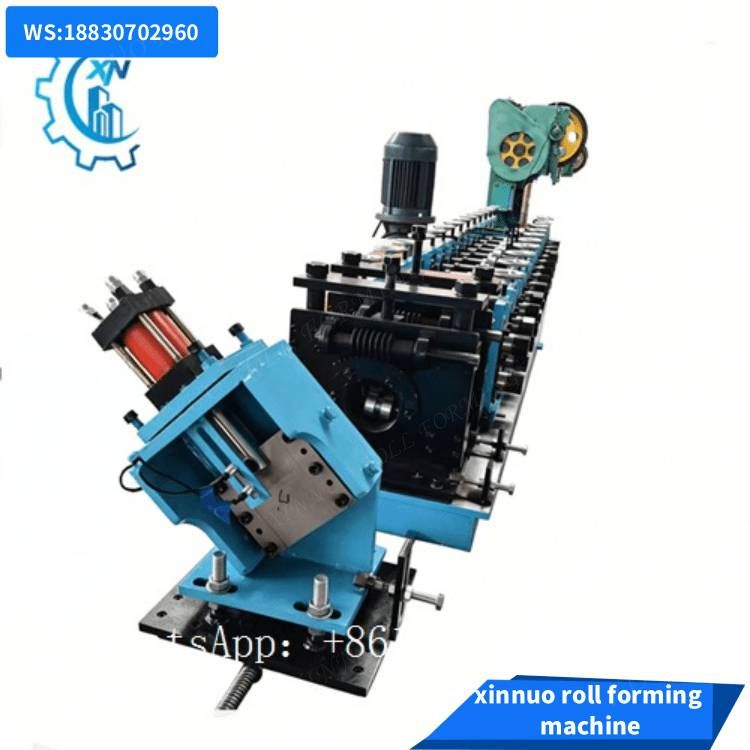

Drywall stud & track roll forming machine integrates uncoiling, servo punching, cold forming and hydraulic cutting. Equipped with NCF-200 auto puncher and precision stamping dies, it fabricates standard drywall keels in one pass.
PLC touch control adjusts sizes quickly; quenched forming rollers guarantee smooth profiles without distortion. Stable running, high speed and low waste, ideal for drywall partition material mass production.

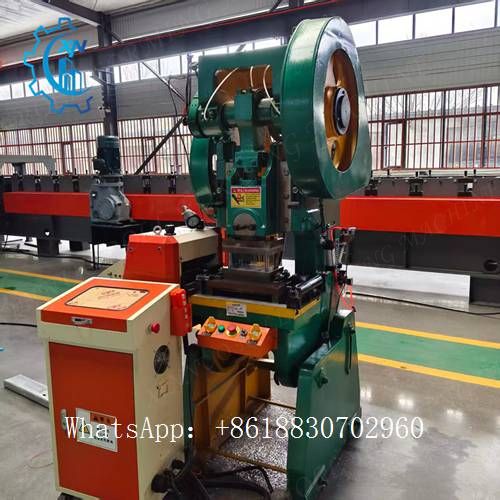

Servo Punching Press
NCF-200 servo feeding punching machine, pre-punch mounting holes automatically, sync feeding & punching for full-auto keel production.

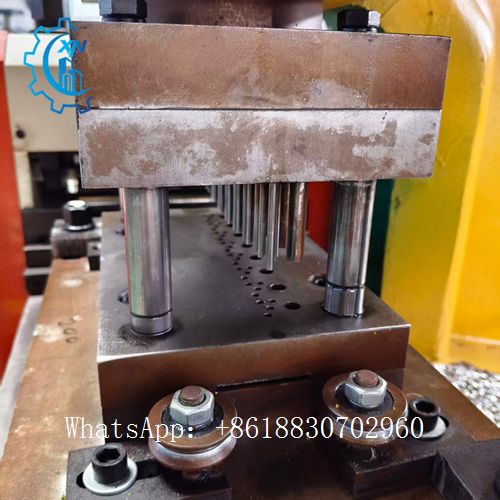

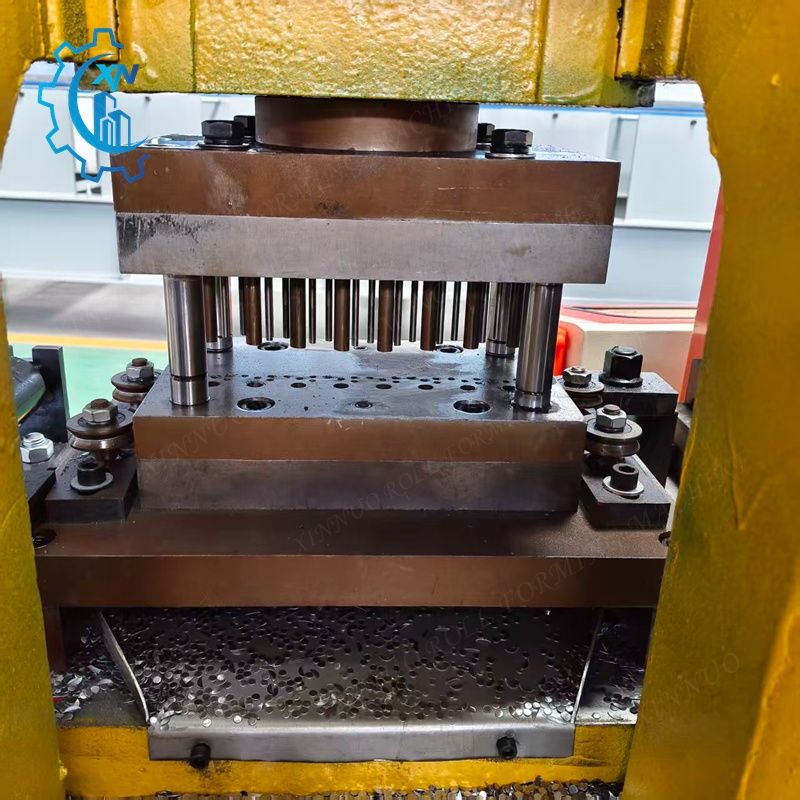

Precision Punch Die Mold

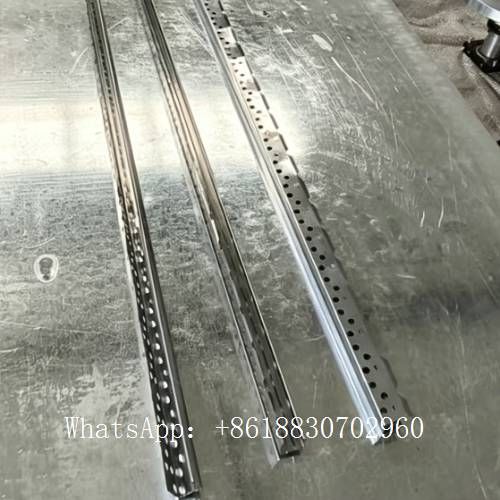

Custom integral punching mold, dense multi-hole design, durable die steel for long service life, uniform hole spacing on metal drywall keel.

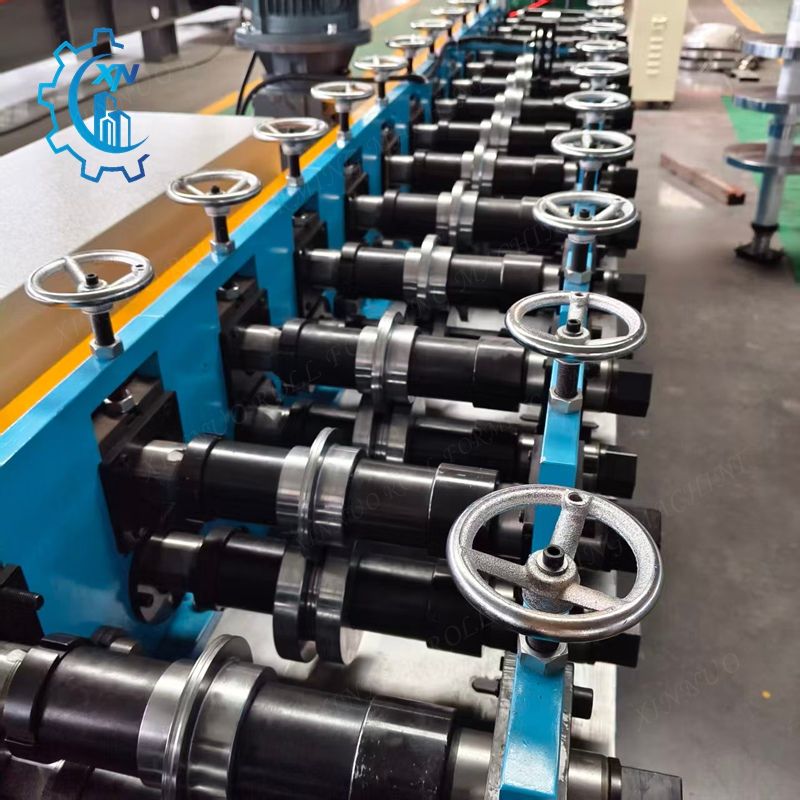

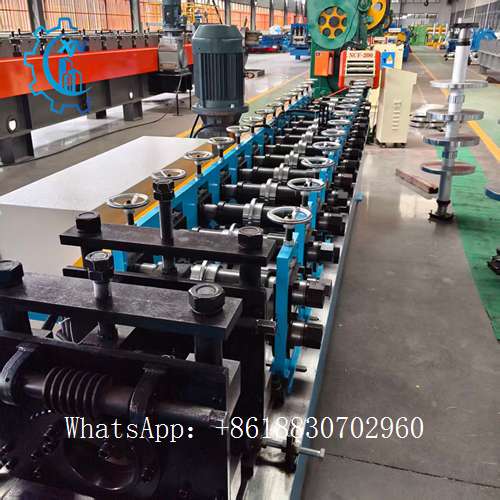

Roll Forming Main Body
Multi-row precision forming roller group, gradual cold bending to shape U/C drywall keel, adjustable rollers for multiple keel sizes.

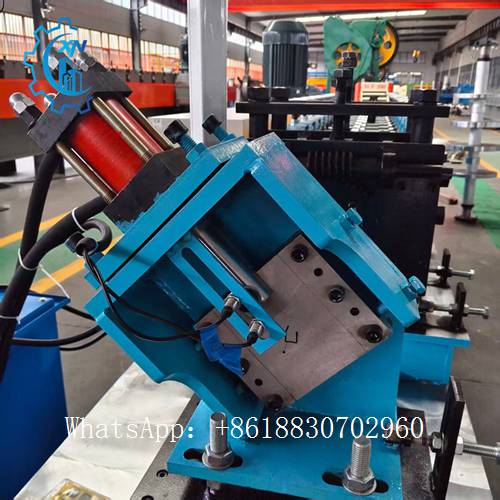

Hydraulic Cutting Head
Hydraulic cutoff unit with high-speed shearing, clean & burr-free finished keel cutting, accurate fixed-length cutting for drywall studs & tracks.
| No. | Item | Parameter |
|---|---|---|
| 1 | Raw Material | Galvanized steel strip / GI coil |
| 2 | Processing Thickness | 0.4–1.2 mm |
| 3 | Forming Size | Custom drywall stud & track sizes |
| 4 | Forming Speed | 15–25 m/min |
| 5 | Punching Unit | NCF-200 servo auto punching feeder |
| 6 | Cutting Type | Hydraulic fixed-length cutting |
| 7 | Control System | PLC + touch screen automatic control |
| 8 | Forming Roller Material | Cr12MoV, high frequency quenched |
| 9 | Total Installed Power | About 18.5 KW |
| 10 | Overall Dimension | 6800×1100×1450 mm |
At XINNUO, we are committed to delivering high-performance metal roll forming machines tailored for global industrial needs. Our equipment offers reliable and flexible production capabilities to meet the demands of modern construction and manufacturing industries.
