1.Model:omega keel forming machine
2.Min.Order Quantity:1 Pieces
3.Working speed:15-25m/min
4.Payment Terms:40% T/T in advance,60% when shipping
5.Email:xinnuo05@xinnuomachine.com
6.WhatsApp：+8618830702960

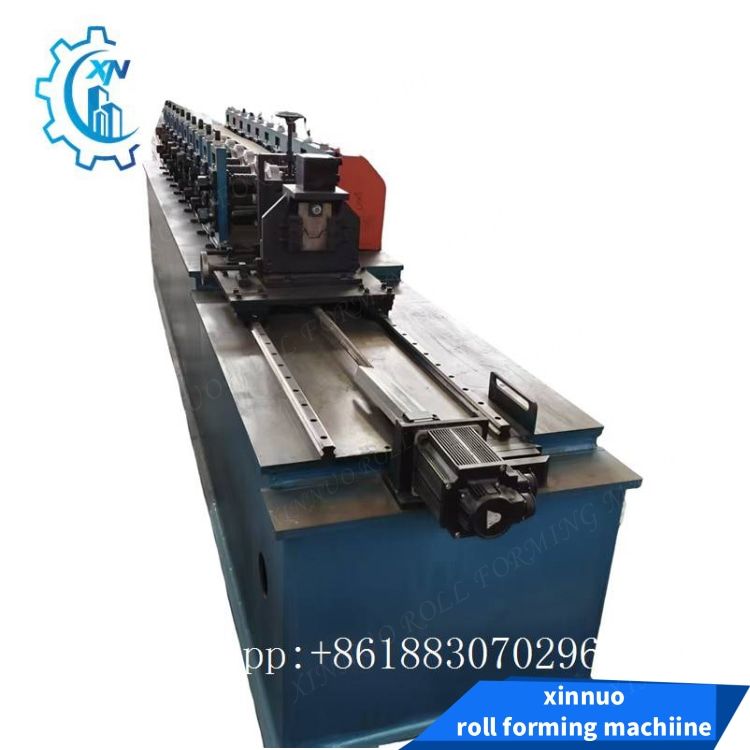

Omega keel roll forming machine
Full Automatic Stuc And Track Keel Roll Forming Machine Light Keel Roll Forming Machine
Omega light keel roll forming machine is used for building materials, galvanized and aluminum coils as raw materials, light gauge, easy to operate.
Basic Info
Control System:PLC
Delivery Time:60 Workdays
Warranty:12 Months
Material Of Cutting Blade:Cr12

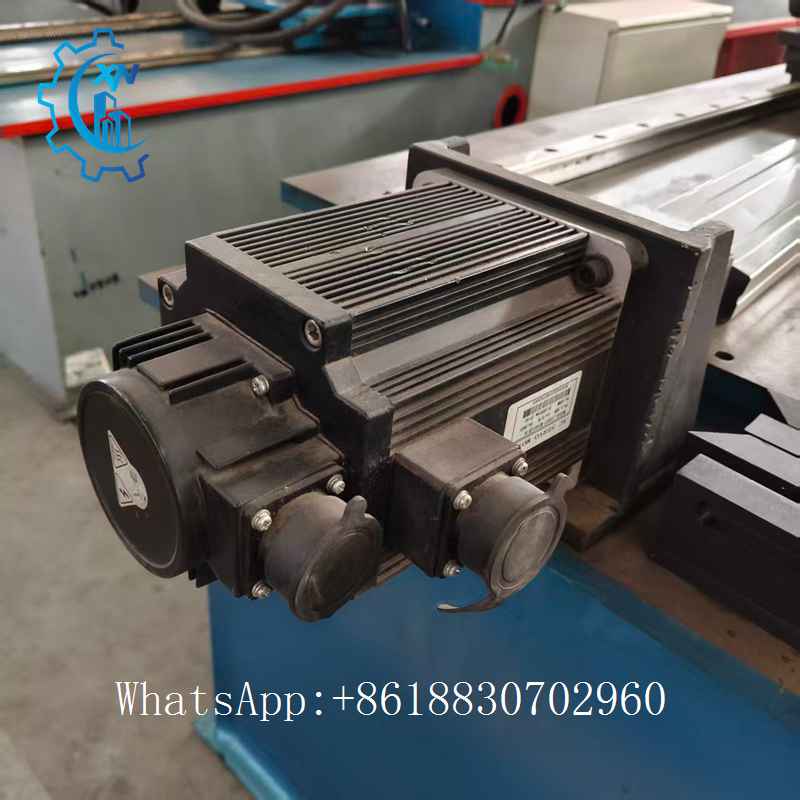

Cutting Mode:Servo Tracking Cutting
Type:Steel Frame & Purlin Machine
After Service:Engineers Available To Service Machinery Overseas
Voltage:380V/3Phase/50Hz Or At Your Request
Forming Speed:15-60m/min(include Punching)
Way Of Driven:Gear
| Raw material | PPGI, GI, Aluminum coils |
| Material thickness range | 0.3-0.8mm |
| Forming speed | 0-25m/min(without punching) |

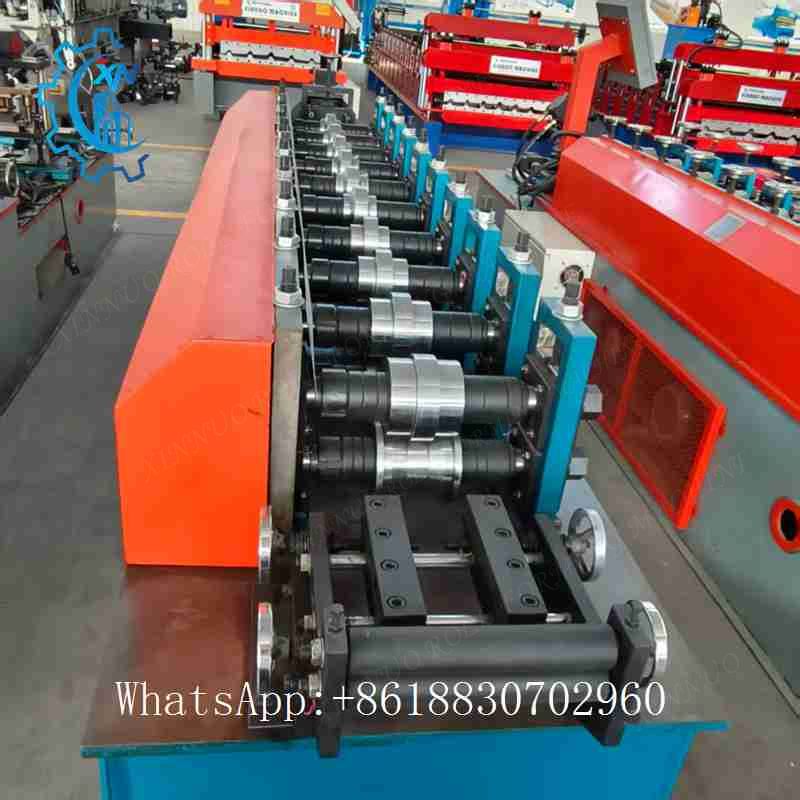

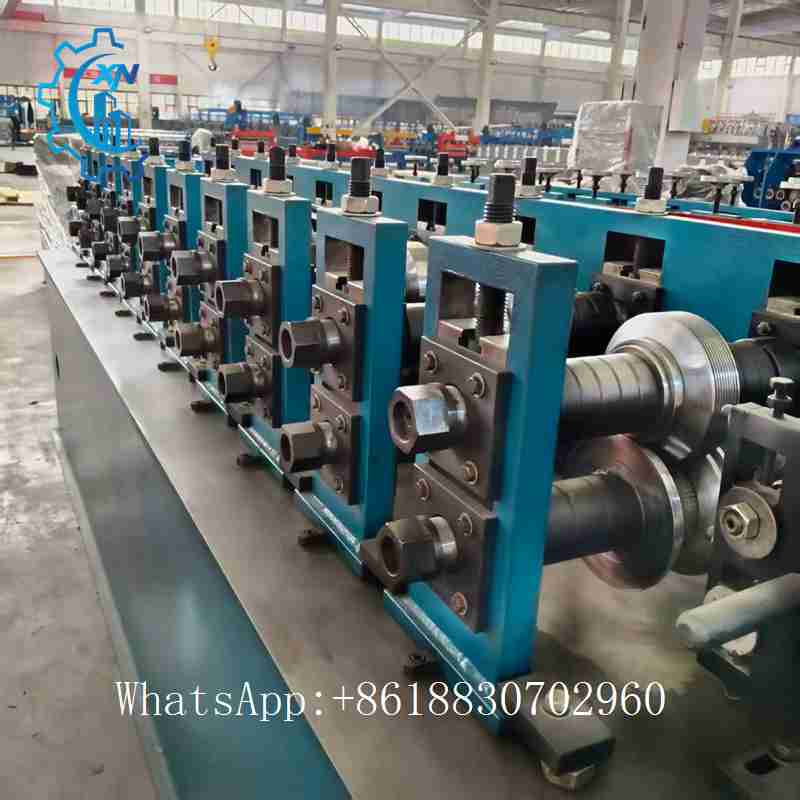

| Rollers | 10-18 rows |

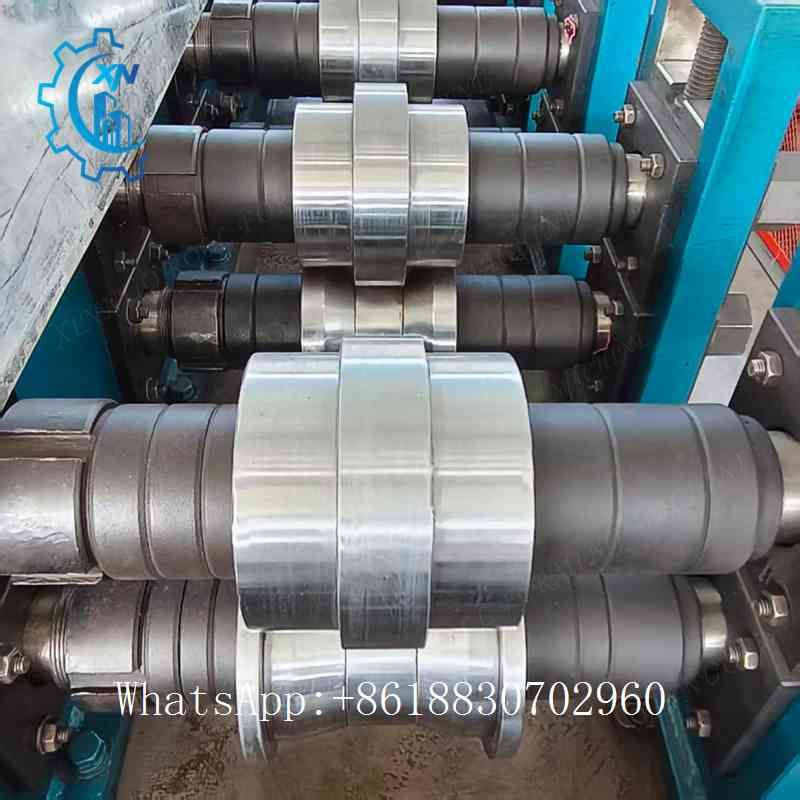

| Material of forming rollers | 45# steel with chromed |
| Shaft diameter and material | 40mm, Cr12 |
| Controlling system | PLC |

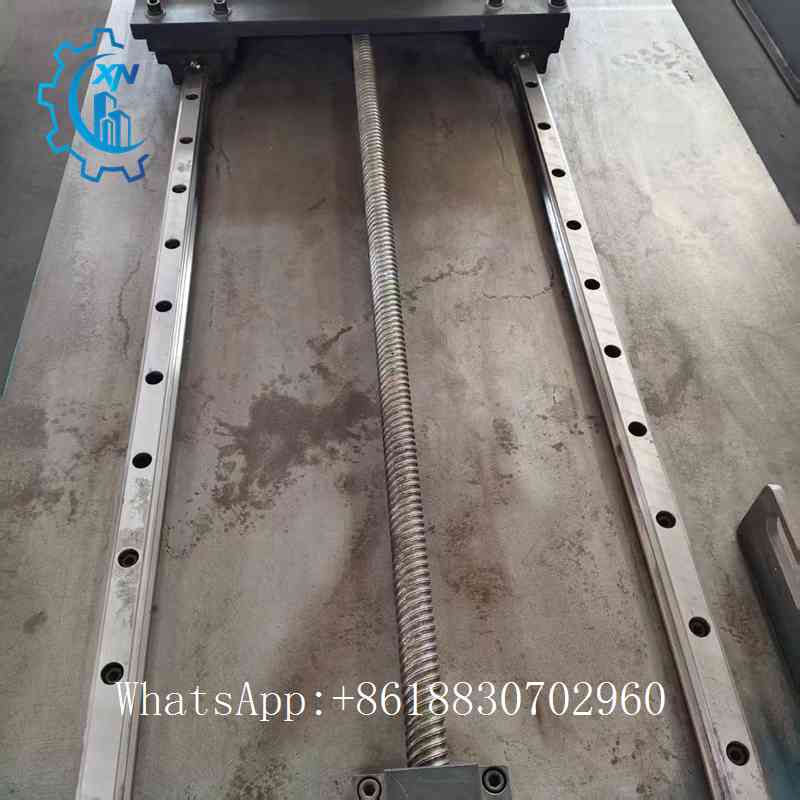

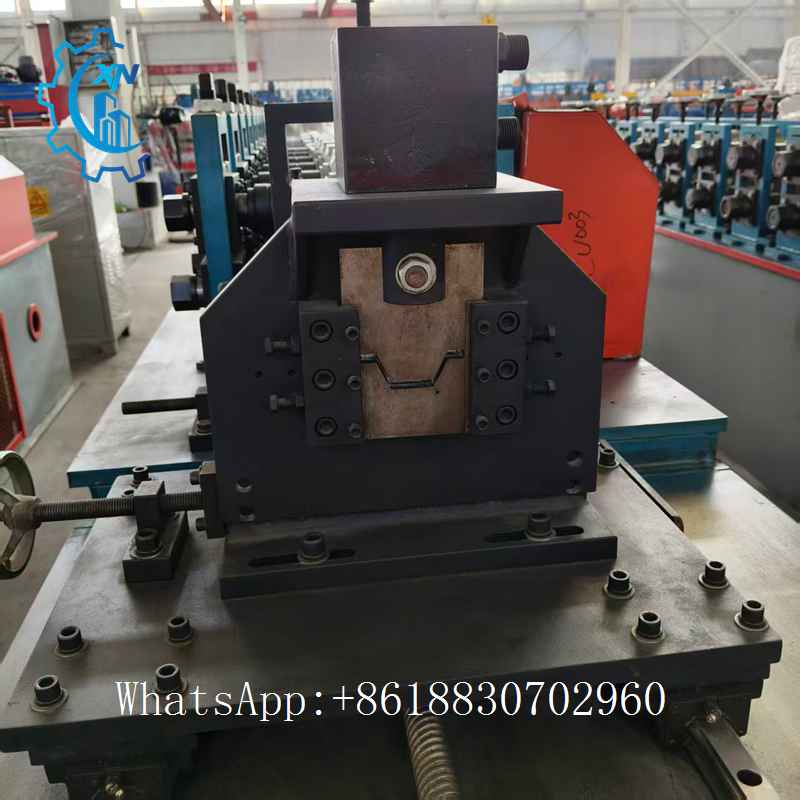

| Cutting mode | Servo tracking cutting |
| Material of cutting blade | Cr12 mould steel with quenched treatment |
| Voltage | 380V/3Phase/50Hz or at your requirement |
| Main motor power | 5.5KW |
| Hydraulic station power | 3.5KW |

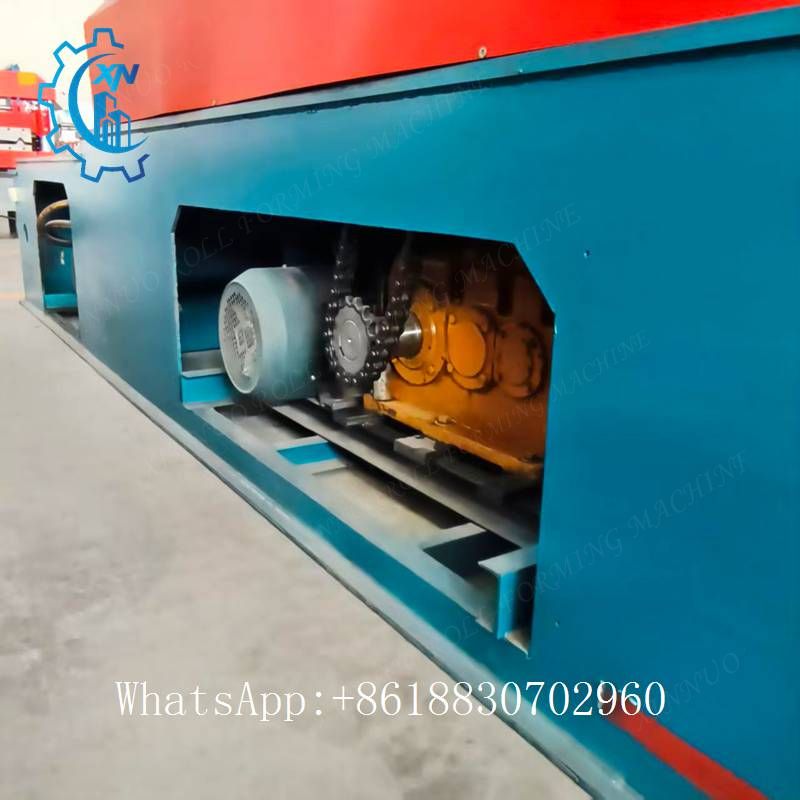

| Way of driven | Gear |
Workflow:

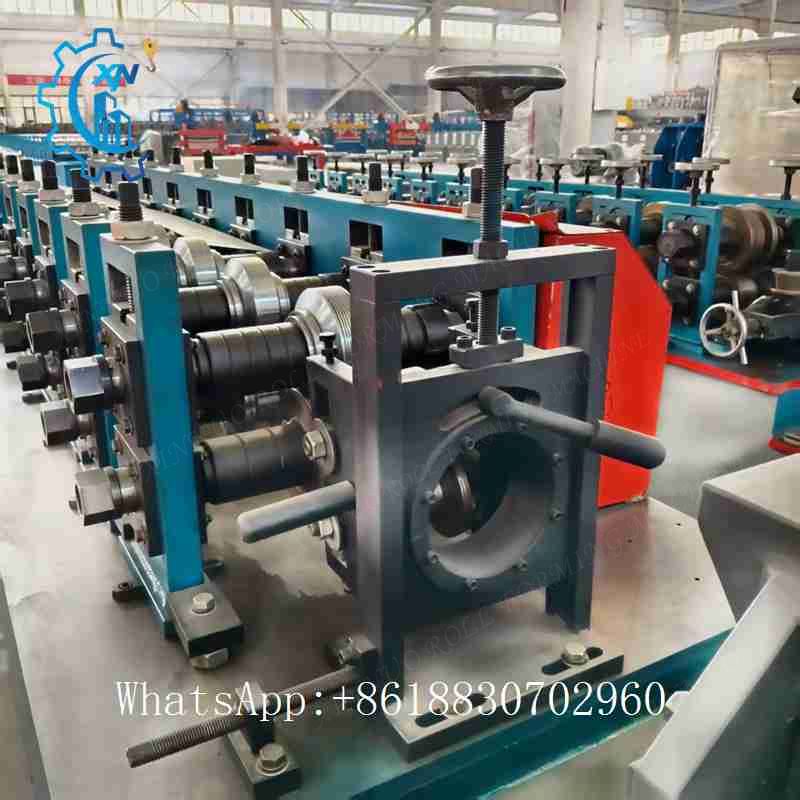

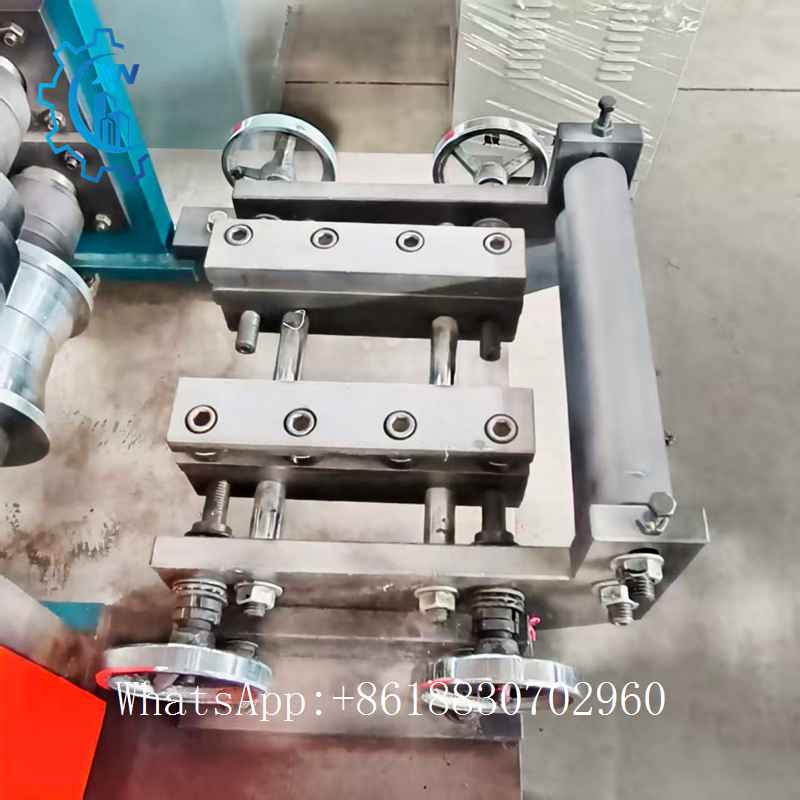

Decoiler – Feeding guide – Straighteing – Main roll forming machine – PLC control system – Servo tracking cutting – Receiving table
Our advantage:
1. Professional Design Team & Customized Machinery
2. The factory boasts strong strength and guaranteed quality
3. We have a professional after-sales team and can dispatch engineers overseas.
At XINNUO, we are committed to delivering high-performance metal roll forming machines tailored for global industrial needs. Our equipment offers reliable and flexible production capabilities to meet the demands of modern construction and manufacturing industries.
