Keel Machine

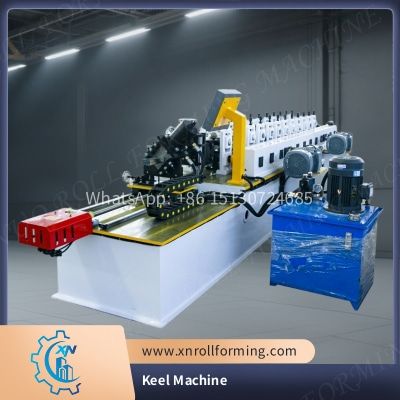

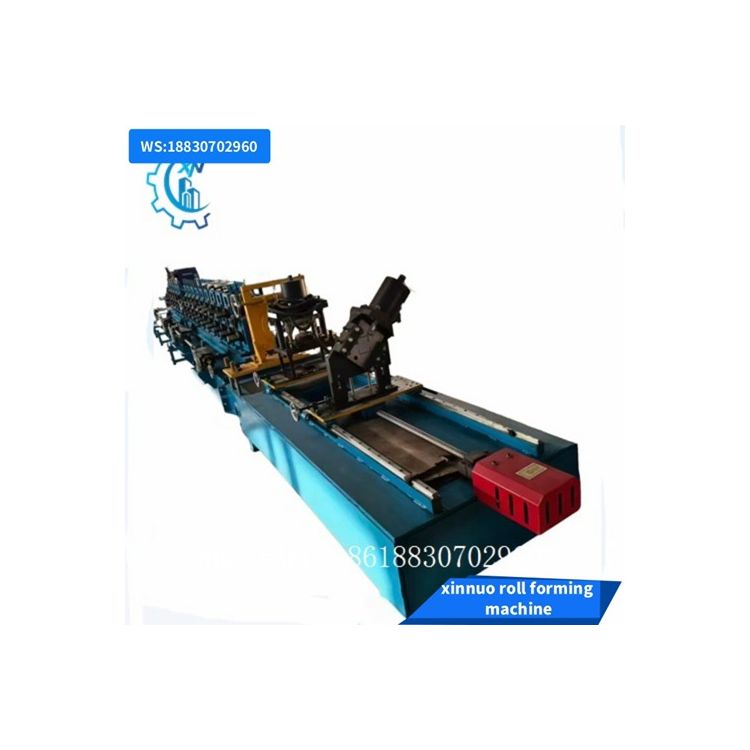

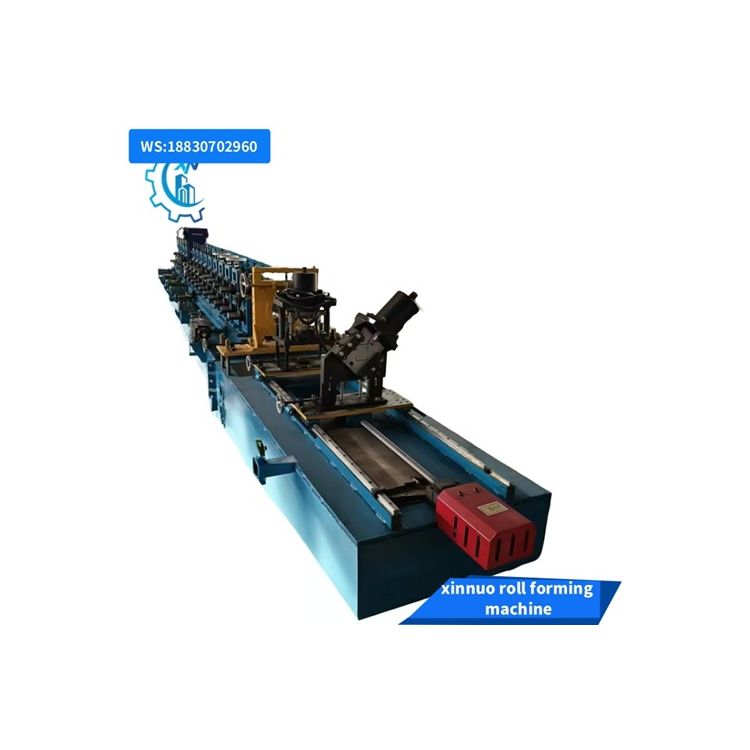

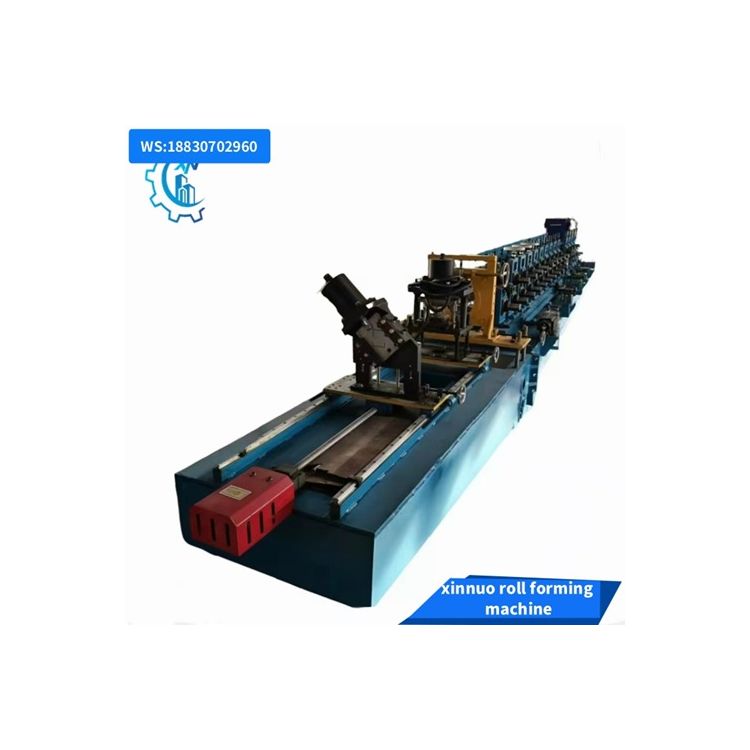

Xinnuo Automatic Light Steel Keel Roll Forming Machine – C & U Channel Making Solution

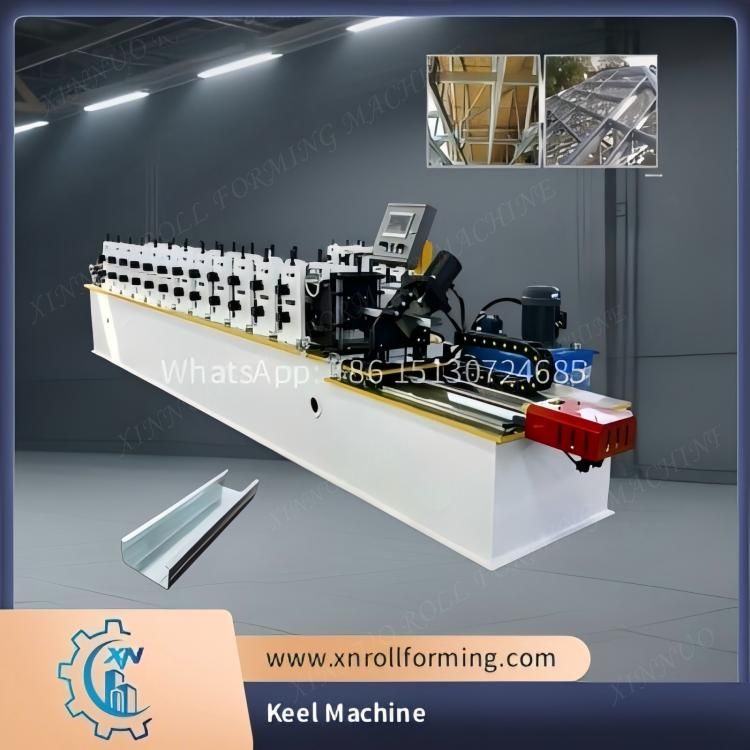

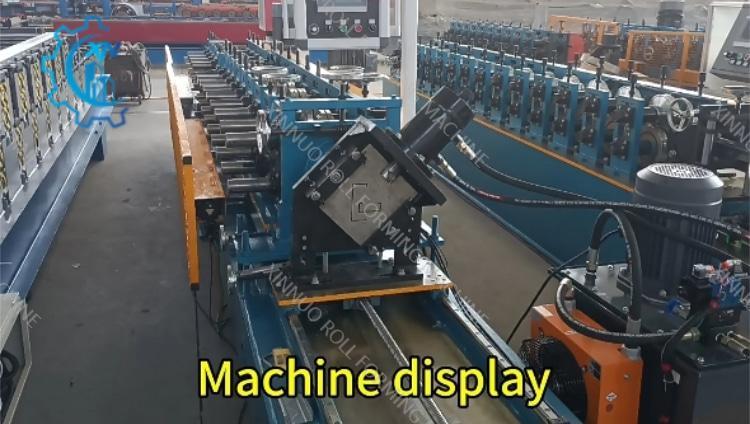

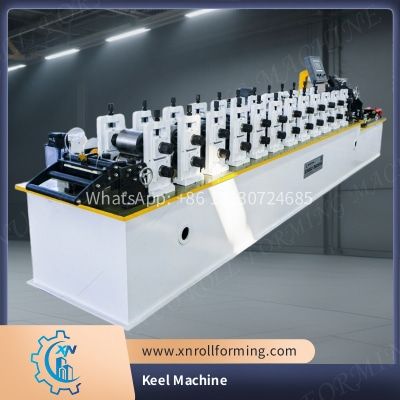

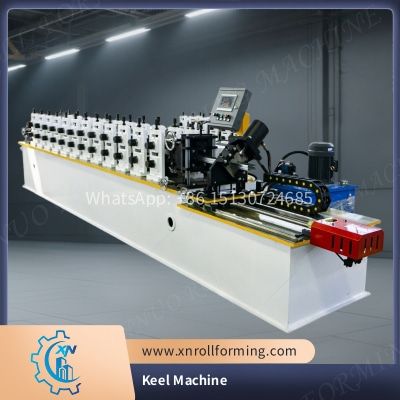

Xinnuo’s Automatic Light Steel Keel Roll Forming Machine is a precision-engineered solution designed for the efficient production of high-quality C and U channels used in light steel frame construction, interior partition systems, and suspended ceilings. This advanced line combines robust construction with intelligent automation, ensuring consistent output and minimal manual intervention.

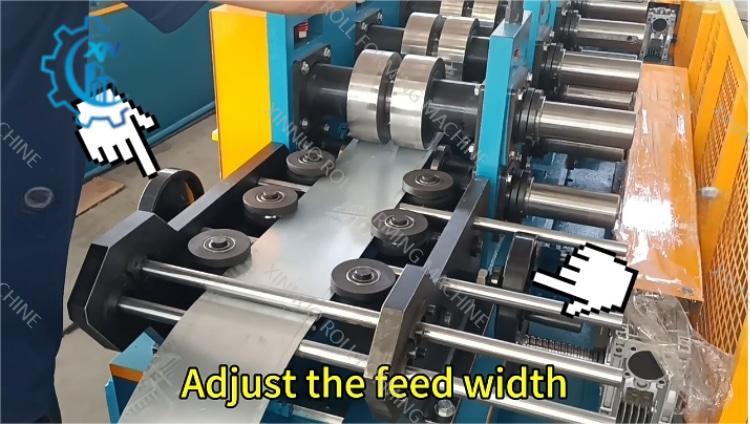

Built to process galvanized steel coils, the machine accommodates feeding material widths tailored to your exact requirements, ensuring compatibility with diverse project specifications. With 26 roller stations (or customized configurations), the forming process delivers superior accuracy and a smooth surface finish.

The equipment works with material thicknesses from 0.6 to 1.5 mm, striking a perfect balance between rigidity and flexibility. Its production speed of 18–20 meters per minute means high-volume manufacturing without compromising quality.

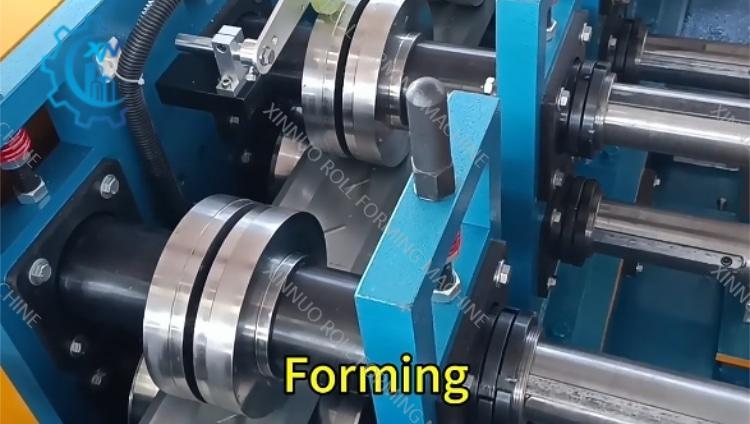

The rollers are made from high-grade 45# steel, precisely machined and heat-treated for durability and wear resistance. A 70–80 mm diameter shaft ensures stability during high-speed operation, while the main forming frame is crafted from 300–400 mm H-beam steel for structural strength. With a wall thickness of 12–18 mm steel plate, the frame resists deformation even under heavy load.

Driven by a 5.5 kW motor and operating at 380V 50Hz 3-phase (or customized voltage), the system offers both power and efficiency. Despite its sturdy build, the machine maintains a compact footprint and weighs approximately 5.2 tons, making it suitable for various factory layouts.

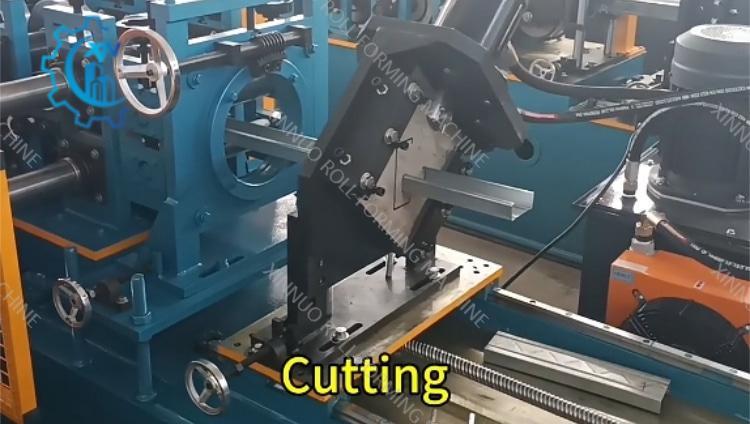

The machine’s fully automatic control system streamlines operations—feeding, forming, and cutting are seamlessly coordinated for reduced downtime and precise results. Custom configurations are available to meet unique channel dimensions, ensuring the machine integrates perfectly into your production workflow.

With Xinnuo’s expertise in roll forming technology, this keel machine is not only a production tool but a long-term investment. It helps manufacturers boost productivity, maintain consistent product quality, and reduce labor costs, all while meeting the evolving demands of modern construction projects.

If you require a dependable, high-performance solution for light steel keel and channel production, Xinnuo’s Automatic Light Steel Keel Roll Forming Machine delivers the perfect combination of durability, precision, and customization.
