Xinnuo Light Steel Keel Roll Forming Machine
Product Introduction

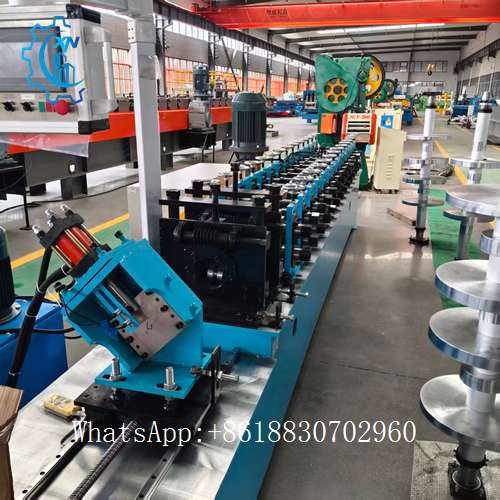

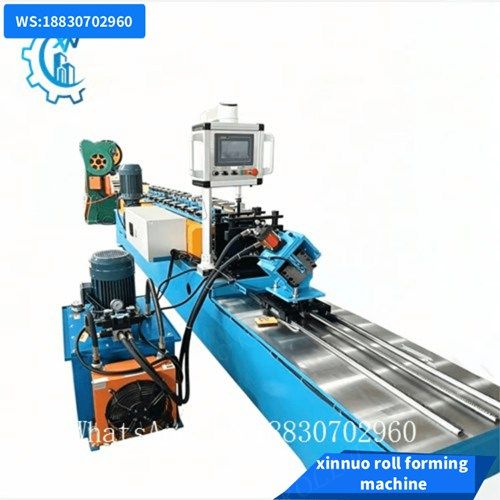

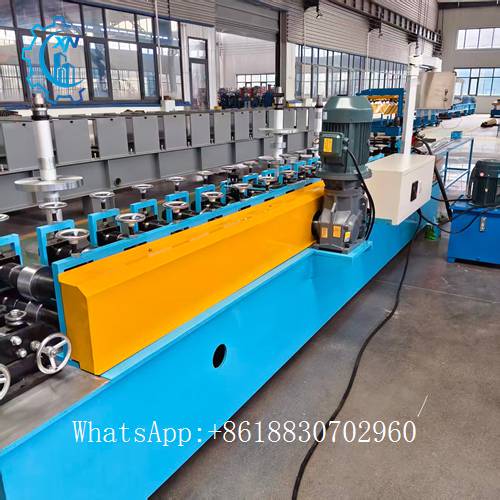

Xinnuo automatic light steel keel forming machine is fully automated rolling equipment for ceiling keel, C/U partition stud, track runner and drywall metal profiles. The whole line completes decoiling, continuous roll forming and hydraulic cutting automatically. Equipped with thickened frame and PLC intelligent control system, it supports 24h non-stop mass production, with high forming precision and low failure rate, custom sizes available.
Core Advantages
- Reinforced Thickened Frame
Heavy-duty welded main beam with H-beam stiffeners, anti-twist and shock resistant, no deformation during long-term high-speed running, long service life.

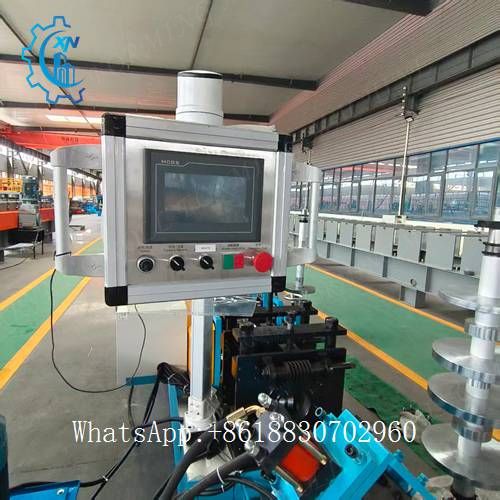

- PLC Touch Screen Control System
7-inch touch panel with visualized parameter setting. Profile width, thickness, cutting length and speed can be saved directly, quick model change without repeated debugging; auto fault alarm & production counting function included.

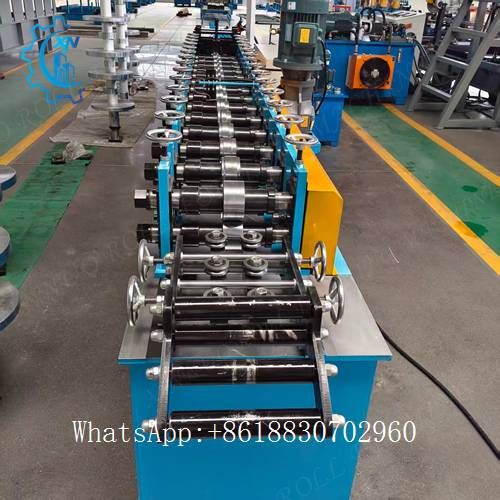

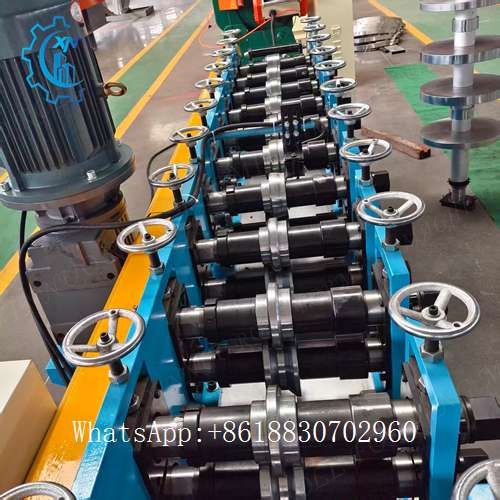

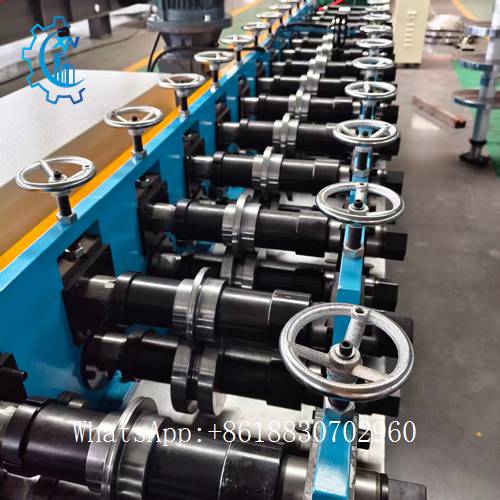

- Precision Roll Forming
Forming rollers made of quenched Cr12MoV die steel for high hardness and wear resistance. Multi-pass gradual bending ensures neat angle, scratch-free surface and minimal camber.

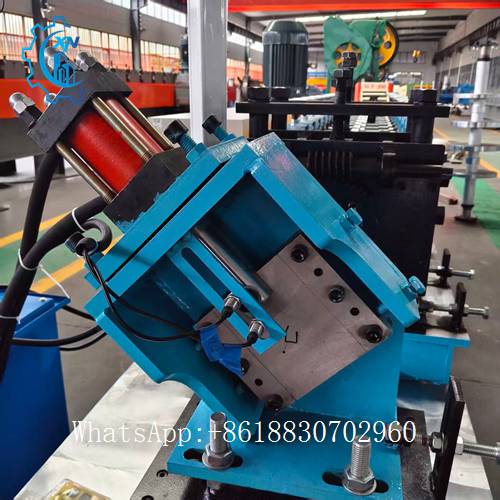

- Hydraulic Flying Cut-off
On-line synchronous flying shear cuts profiles without line stop, cutting tolerance within ±0.3mm, smooth cutting edge without secondary trimming, higher material utilization rate.

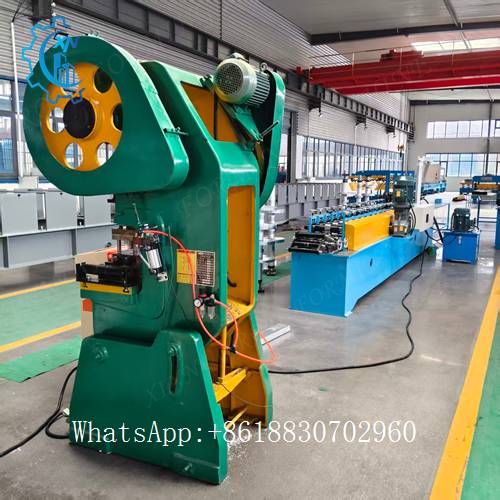

- High Automation & Labor Saving
Integrated decoiler, forming host, hydraulic cutter and outlet table. Only one worker is needed for line supervision, running speed 15–30 m/min, fast ROI for mass production.

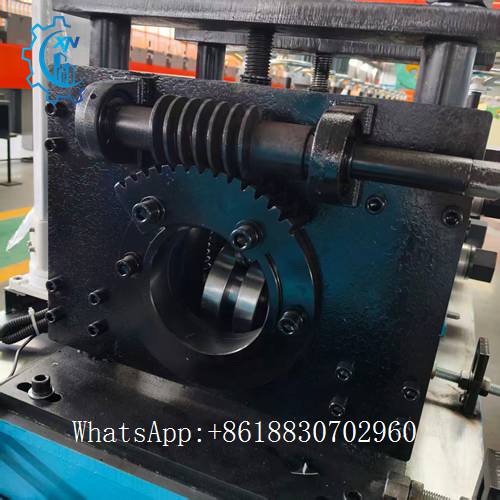

- Precise worm gear meshing structure for synchronous power delivery
- Large load capacity, anti-slip and anti-jump tooth during high-speed operation
- Low running noise, outstanding wear resistance, less maintenance needed
- Ensures uniform roller feeding and stable keel forming accuracy
| Parameter Item |
Standard Configuration |
| Applicable Raw Material |
Galvanized steel strip, color coated steel strip |
| Raw Material Thickness |
0.3–1.2 mm (custom wider & thicker model available) |
| Final Formed Profiles |
U runner track, C stud, ceiling edge keel |
| Forming Roller Stands |
12–18 sets |
| Driving Mode |
National standard motor + reducer synchronous chain drive |
| Cutting Mode |
Hydraulic online flying shear cutting |
| Control System |
PLC + 7-inch touch screen, multi-group parameter storage |
| Total Installed Power |
7.5–11 KW |
| Running Speed |
15–30 m/min, stepless speed regulation |
| Overall Outer Dimension |
6800×950×1350 mm (standard model) |
Application Scenarios
- Processing metal keels for indoor suspended ceilings and partition walls in construction projects
- Producing keel profiles for offices, shopping malls, hospitals, factories and other commercial decoration projects
- Mass production of wall frames for light steel villas and integrated housing
- Standard automated production line for professional building material manufacturers
After-sales & Customization Services
- Each machine undergoes no-load and material-carrying test running before delivery, with finished keel samples attached.
- Free supply of installation drawings and operation manuals; remote video guidance for installation and commissioning.
- 12-month full machine warranty; long-term supply of wearing parts at factory cost price.
- Custom non-standard width, thickness and multi-model integrated keel forming machines are available according to personalized requirements.
