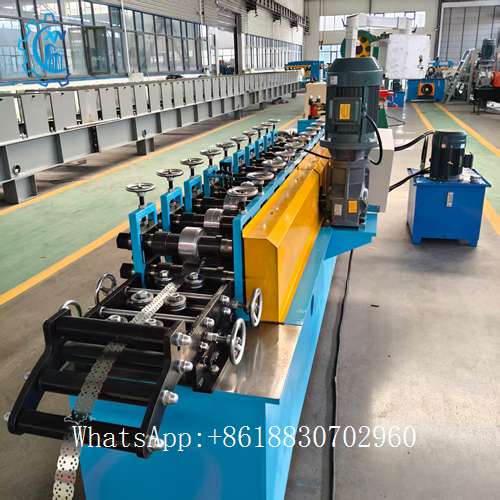

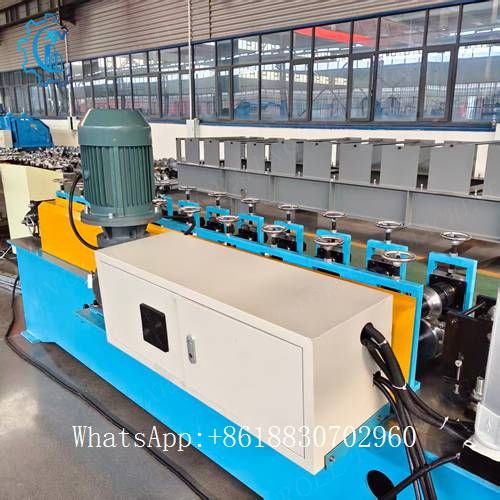

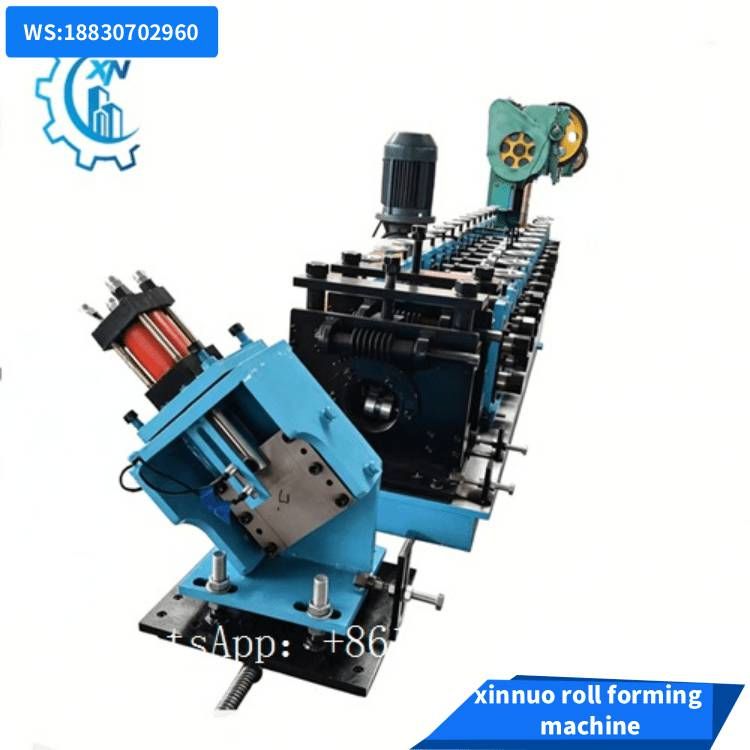

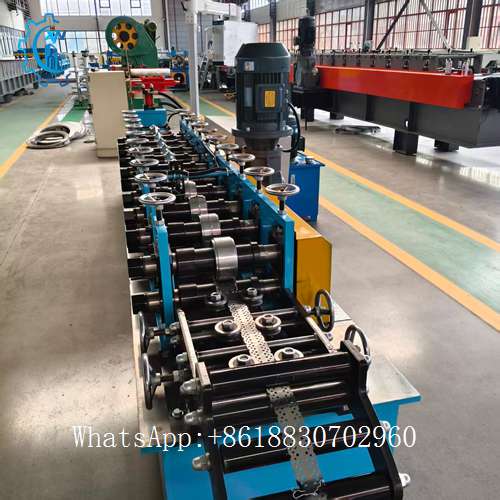

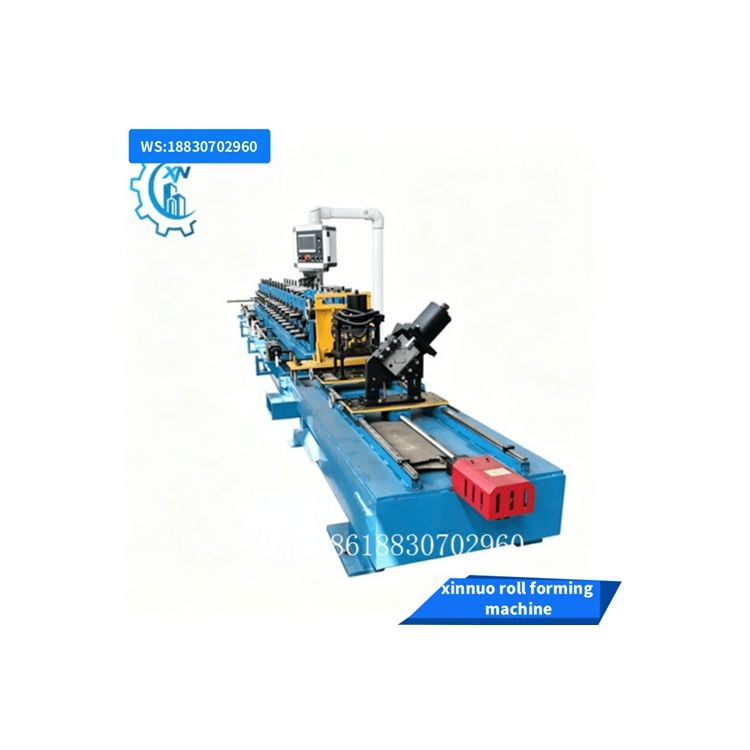

Keel Roll Forming Machine
This machine is a customized machine for theroll forming production of F drywall profilesaccording with clients' request.
This apparatus is a unique piece of machinery forcold-formed profile forming. It is a unique piece ofequipment that was created to meet the needs ofthe user.
Finished product support frame, feeding mechanism, forming host, shearingmold, PLC electronic control system, and passive unwinding mechanism make upthe majority of its components.
WhatsApp:+8618830702960

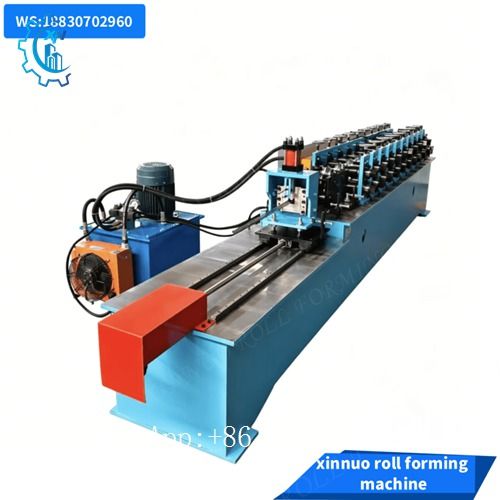

Triangle Light Metal Keel Roll Forming Machine for different models based on different designs or customer's samples . It is a new building material, the products are widely used as the roof and wall of factory,
warehouse, garage, gymnasium, exhibition center. It has many advantages, such as easy installation, short building period, beauty, light weight but high strength.
| Light Steel Keel Cold Roll Forming Machine | ||
| 1 | Suitable to process | (Prepainted)galvanized steel strips |

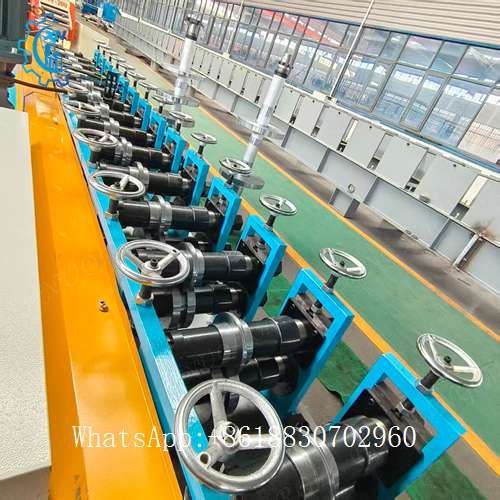

| 2 | Rollers | Angle :10Rows Roller Diameter :40mm U shape :8Rows Roller Diameter :50mm C shape :12Rows Roller Diameter :50mm Omega :10Rows Roller Diameter :50mm |
| 3 | Main frame | Square steel frame |
| 4 | Dimensions | 5.6*0.8*1.5m |
| 5 | Wallboard size | 16mm,the materials is 45# steel |
| 6 | Weight | About 2.6T |
| 7 | Driving method | Gear driver |
| 8 | Motor power | 3Kw |
| 9 | Pump Station Motor | 3Kw |
| 10 | Thickness of the plate | 0.6-1.0mm |
| 11 | Productivity | 15-25m/min |

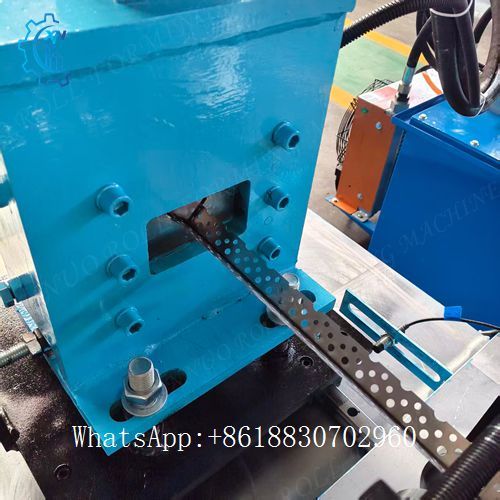

| 12 | Cutting way | Hydraulic cutting or fly saw cutting |
| 13 | Diameter of the roller | Φ50mm |
| 14 | Voltage | 380V 50Hz 3phases ,based on your need . |

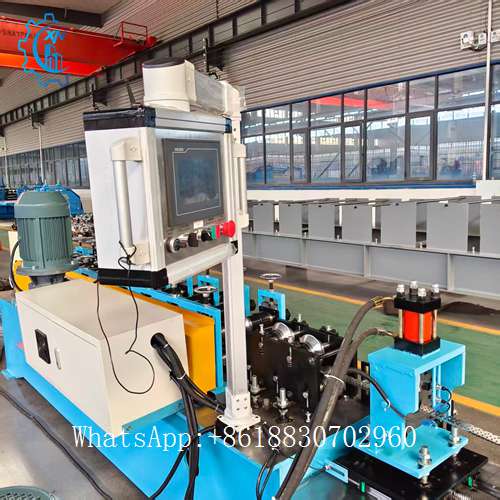

| 15 | Control system | PLC control (Delta) |
| 16 | Touch screen | Delta |
| 17 | Rolling materials | 45# forging steel with chromium plate |
| 18 | Length Tolerance | ±2mm |

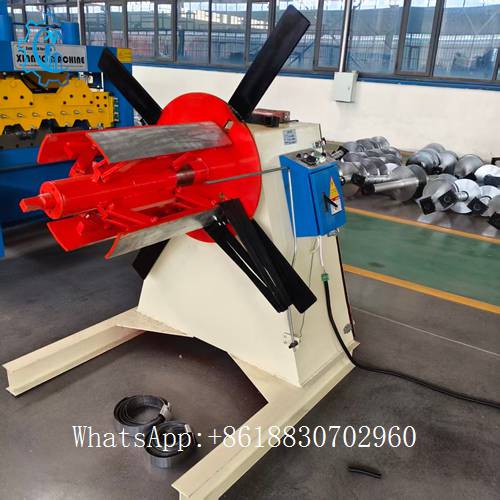

| Passive Decoiler | 1Set |

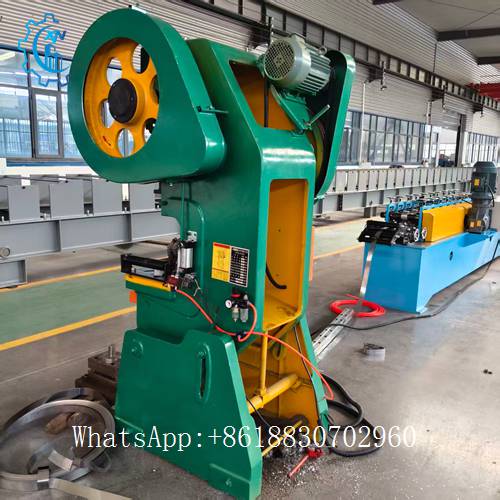

| punching | 1Set |
| Roll Forming Machine | 1Set |
| PLC Control System | 1Set |

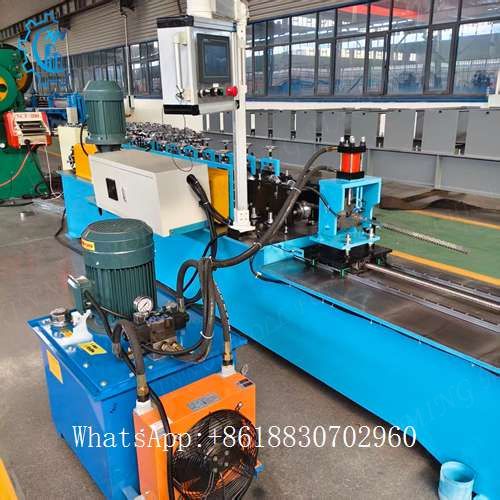

| Hydraulic Cutting System | 1Set |
| Exit Rack for roofing production | 2Pieces 3Meters |
| Spare parts | One carton box |
Export standard packing:
1.The main body of the roll forming machine will be naked packing into the container,covered with plastic film.
2.Steel wire fix the machine into the container, in case any damage when shaking on the sea.
3.The spare parts will be packed into the carton box.
4.The received goods table put into carton box .
5.Manual decoiler naked package .
