Model:Trapezoidal Roof Panel Roll Forming Machine
Min.Order Quantity:1 Pieces
Develivry time:45-60 workdays
Working speed:15-20m/min
Payment Terms:30% T/T in advance,70% when shipping
Email:xinnuo05@xinnuomachine.com
WhatsApp：+8618830702960
PRODUCTION DESCRIPTION

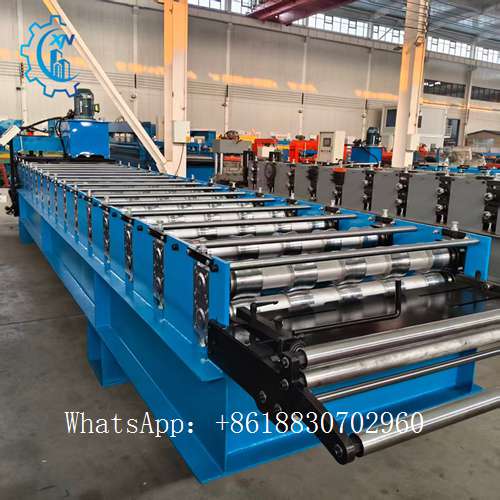

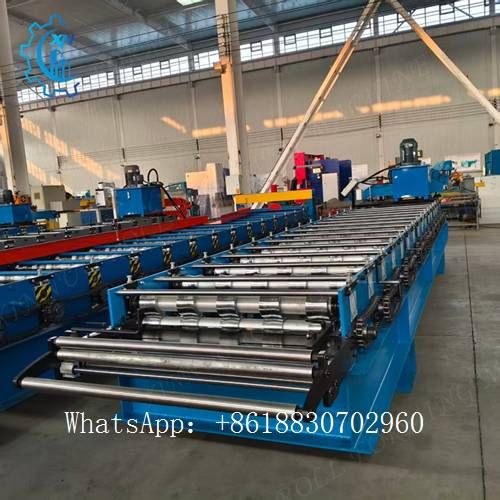

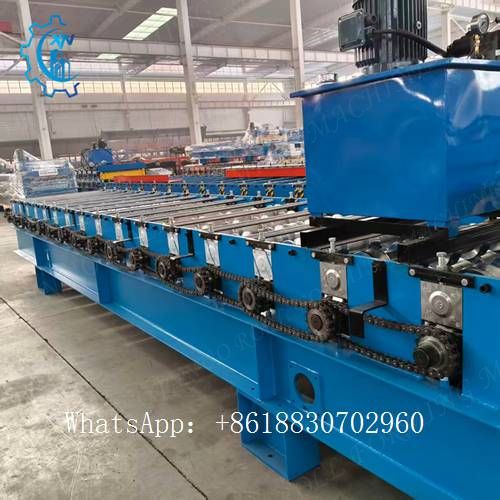

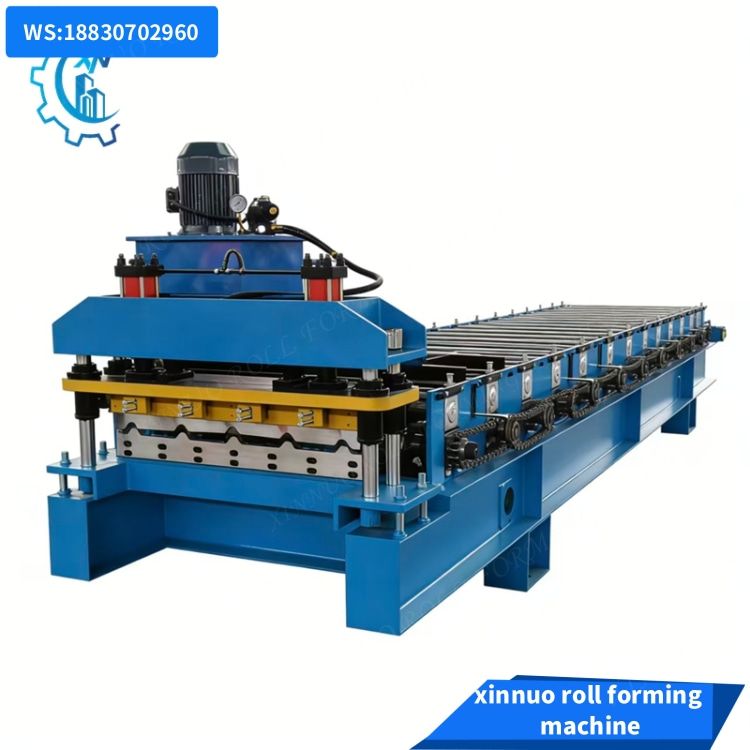

Trapezoidal Profile Roofing Sheet Making Machine
A trapezoidal sheet roll forming machine is a regular metal sheet roll former that produces metal roofing sheets or roof panels for both individual and industrial building.
This IBR metal sheet roll forming machine produces trapezoidal sheets from colour prepainted steel coils, Galvanized steel coils, aluzinc sheets, Generally, material thickness varies from 0.3 to 0.8mm, and width varies from 914mm to 1250mm. However, in some applications, material thickness can reach up to 1.5mm, like roof deck. Furthermore, in some countries or areas, people use G550 material to make full hard metal roofing sheets.
WORK FLOW
Main Workflow Of TR5 Trapezoidal Sheet Roll Forming Plants
ibr roof sheet roll forming machine
Uncoiler → Molding core → Hydraulic System → Automatic Control system → Step Formed Mechanism → Automatic Shearing Mechanism → Products Receiving Tables
1 Decoiler
|
Max. Width |
1000-1250mm |
|
|
Inner Diameter |
Φ450 – Φ550 mm |
|
|
Out Diameter |
1500 mm |
|
|
Max. Loading |
Capacity: 5000 kgs |
|
|
Working Way |
Passive or hydraulic |

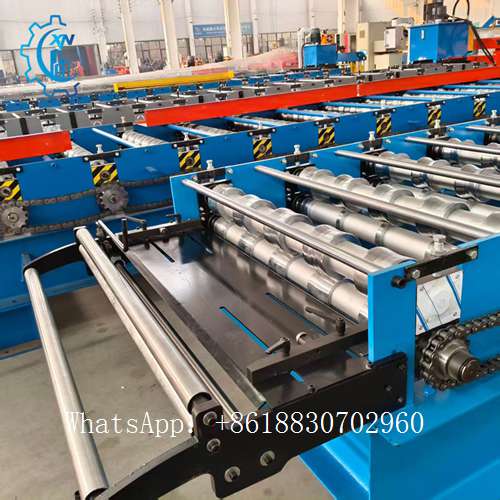

2 Feeding device with

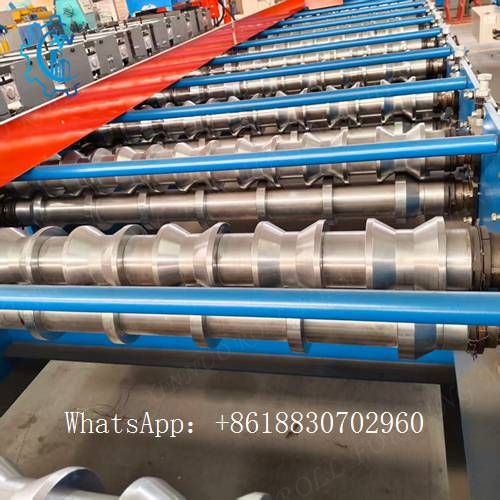

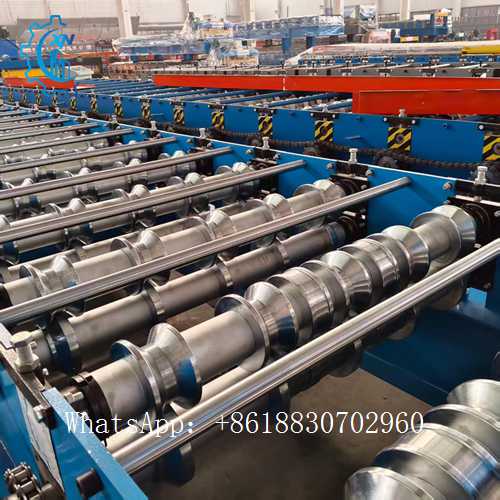

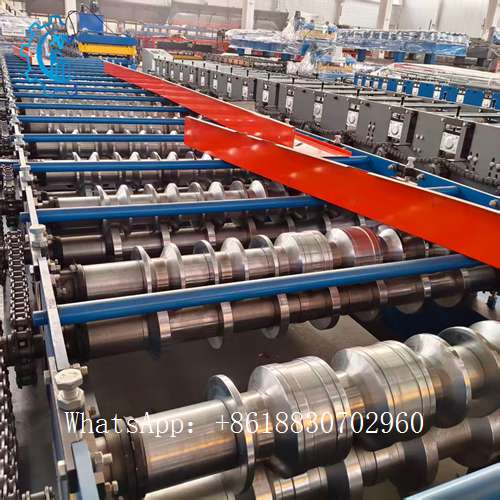

3 Roll Forming Machine
4 Cut-off Device
|
Material for Cut-Off Modular |
Cr12 steel after treatment |
|
|
Hardness for Heat Treatment |
HRC58 – 62° |
|
|
Cut-Off Type |
Qualified pillar cutting |
|
|
Motor for Hydraulic Stand |
4KW |
|
|
Punching Die Material |
Cr12 steel after treatment |
|
No Power Type |
|
|
|
Length |
2m
|
At XINNUO, we are committed to delivering high-performance metal roll forming machines tailored for global industrial needs. Our equipment offers reliable and flexible production capabilities to meet the demands of modern construction and manufacturing industries.
