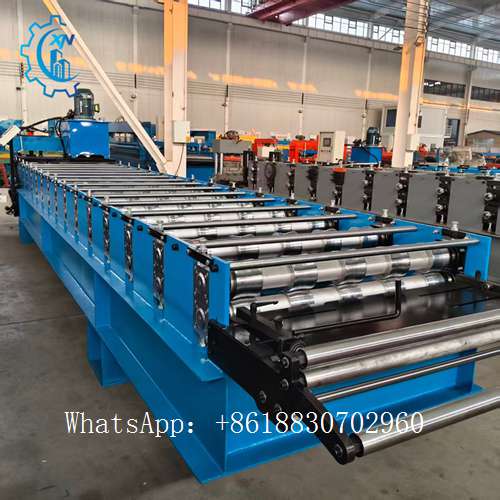

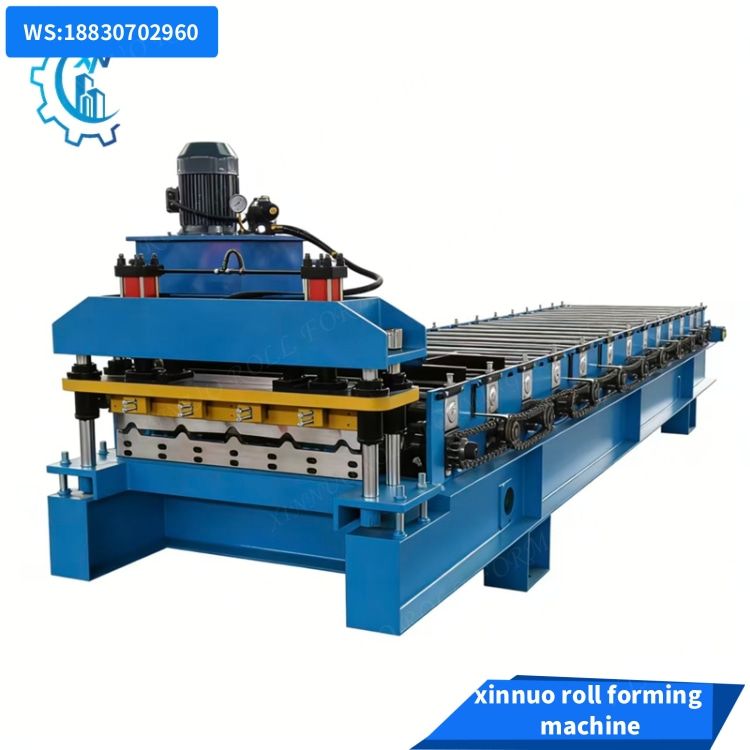

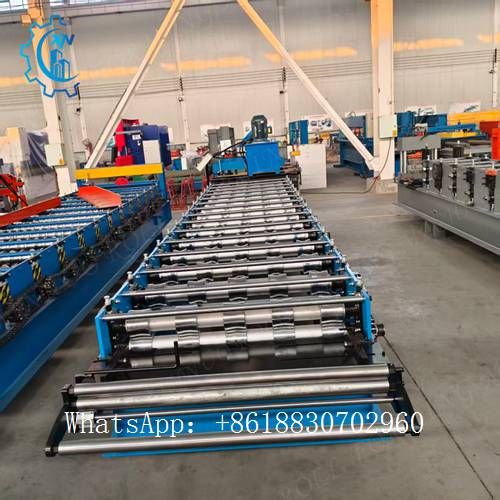

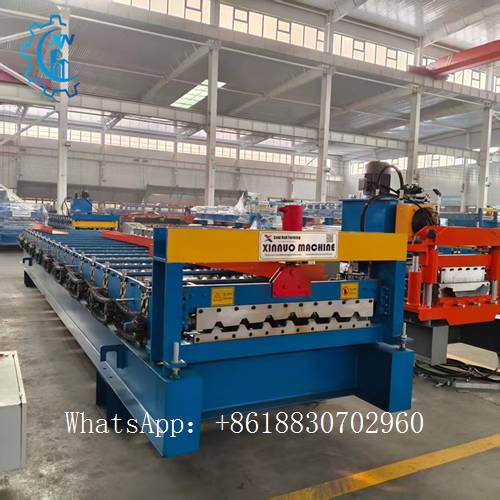

trapezoidal panel roll forming machine

What is a trapezoidal roof panel?

A trapezoidal sheet roll forming machine is a regular metal sheet roll former that produces metal roofing sheets or roof panels for both individual and industrial building.

Trapezoidal roofing sheets are the most popular metal roof panels not only for residential buildings but also for commercial or industrial buildings.  There are so many different profiles for a variety of applications.

People like to use low-profile trapezoidal sheets for elevation and IDT roofing, while for wide-span roofing and load-bearing structures, they tend to select high-profile trapezoidal sheets.  In addition,  trapezoidal

sheets have other names in Africa as industrial trough IT4, IT5, IT6 roof profiles, therefore people can barely find two exactly the same trapezoidal sheet roll forming machine in the markets.

Key Features

• High-efficiency full-automatic production line
• Stable structure, heavy-duty design, long service life
• PLC touch screen control, easy operation

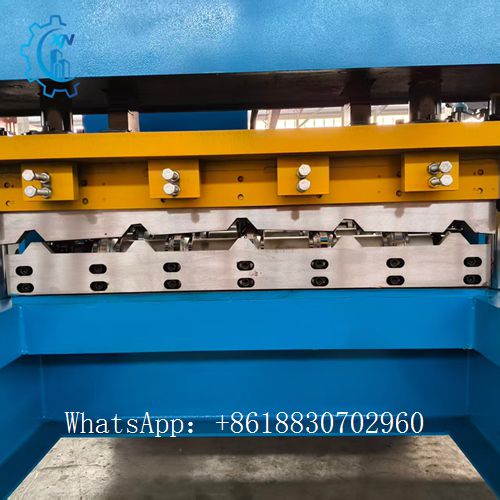

• Hydraulic cutting with high precision
• Suitable for galvanized steel, color coated steel, aluminum sheets
• Customizable profiles and sizes according to customer requirements

Technical Parameters

• Material thickness: 0.3–0.8 mm (customizable)
• Forming speed: 8–15 m/min

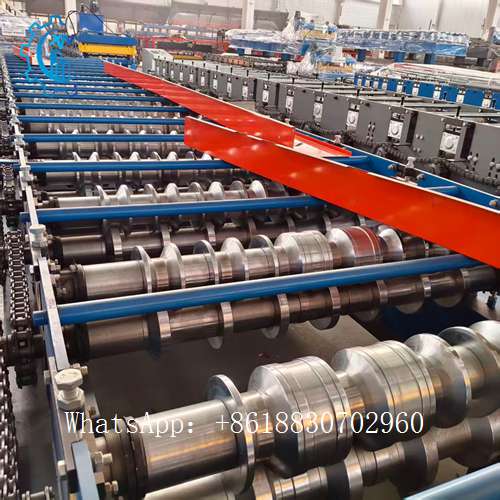

• Roller material: 45# steel with chrome plating

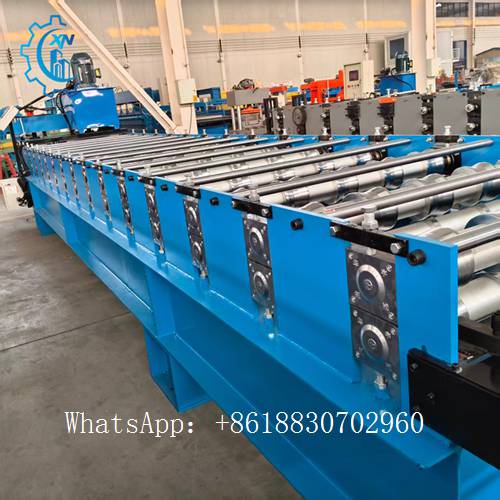

• Main frame: Heavy-duty H-beam
• Control system: PLC + inverter control
• Voltage: 380V 50Hz 3-phase (customizable)
• Total power: approx. 5.5–7.5 kW

Advantages

• High productivity, low energy consumption
• Smooth surface, no scratch on sheets
• Stable running, low noise
• Easy installation and maintenance
• We can provide the most competitive market price
• One-stop solution for roll forming machine needs

APPLICATION

steelmama Machinery factory will design roofing machines according to your roofing profile or design, and Pre-engineered metal building advantages:

1-durable

2-withstand servere conditions.

3-low cost

4-low initial investment and low maintain cost

5-environment friendly

6-all the material can be recycled

7-flexible design

8-can relocate

9-install time considerably reduced

Operate easily , work automatically with PLC controller control.

Decoiler- forming-cut – run out

Application of Trapezoidal Roof Roll Forming Machine

This IBR profile is designed for commercial and industrial roofing; which is suitable for low pitch roofing as well as curved roofing.Sheets with higher ribs and bold ribs, making exceptionally attractive and high-performance roofing

and cladding product for various Light Steel structure construction, civil construction, and mansions Building.
