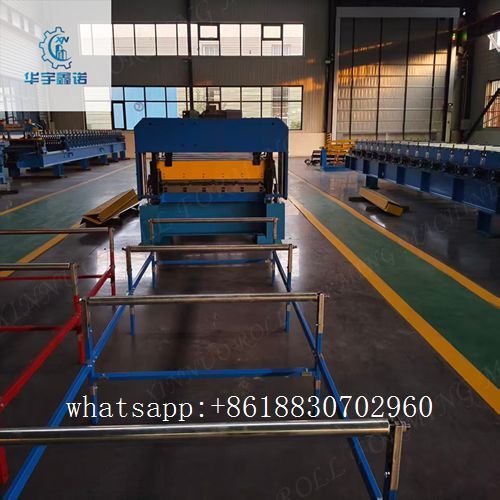

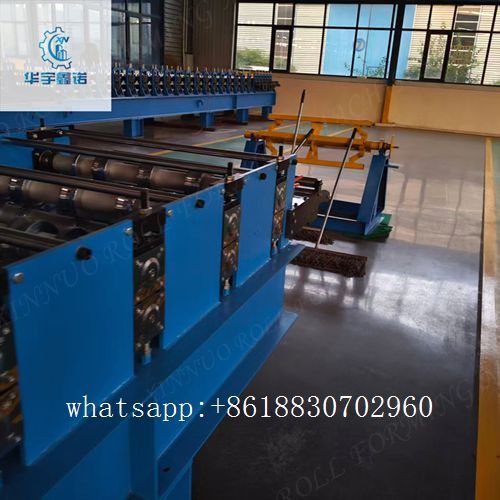

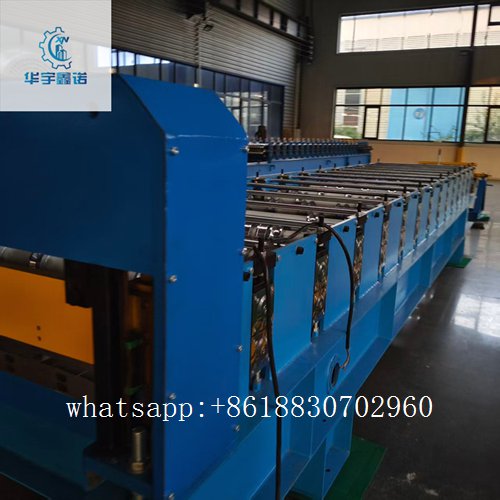

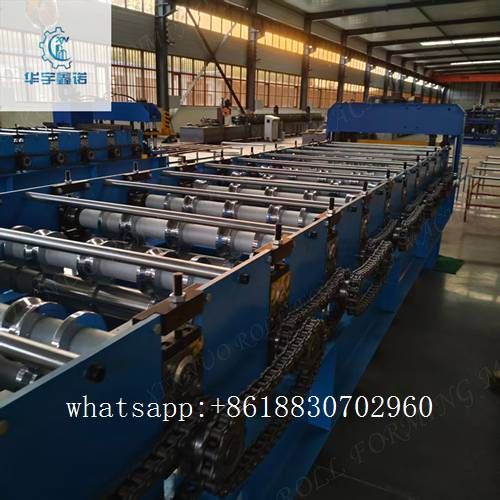

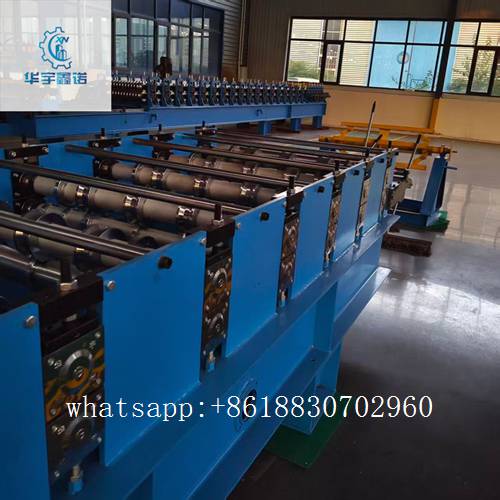

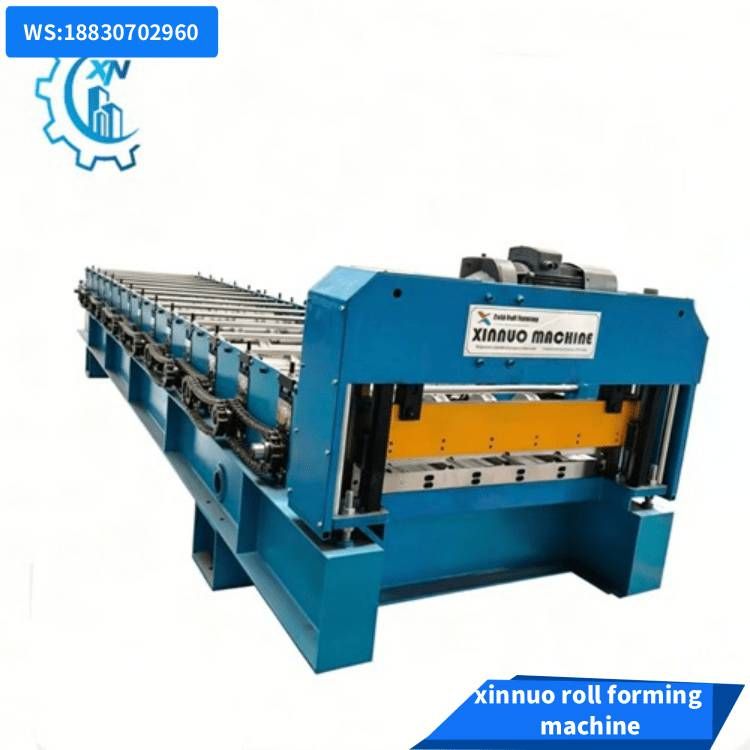

Trapezoidal Sheet Forming Machine Product Highlights

1. 1.High-Precision Forming Performance: Adopts advanced numerical control system and high-hardness forming rollers, ensuring trapezoidal sheets have uniform dimensions, smooth edges and consistent cross-section, meeting strict industrial quality standards.
2. 2.Wide Material Adaptability: Compatible with various metal materials such as galvanized steel, color-coated steel, aluminum alloy, etc., with thickness ranging from 0.3mm to 2.0mm, suitable for diverse application scenarios.
3. 3.Efficient Production Capacity: Equipped with a high-speed feeding mechanism and optimized forming process, the production speed can reach 8-15m/min, significantly improving production efficiency and reducing project construction cycles.
4. 4.Flexible Parameter Adjustment: Supports quick adjustment of trapezoidal sheet specifications (height, width, pitch) through the touch screen, without frequent replacement of molds, saving time and labor costs for specification switching.
5. 5.Durable & Low-Maintenance Design: Key components are made of high-quality alloy steel, heat treatment to enhance wear resistance; the closed protective cover prevents dust and debris from entering, reducing equipment failure rate and extending service life.
6.
7.
8.
9.
10.

    Applicable Material	Galvanized steel, color-coated steel, aluminum alloy
    Material Thickness Range	0.3mm - 2.0mm
    Forming Speed	8 - 15 m/min (adjustable based on material)
    Formed Sheet Height	20mm - 120mm (customizable)
    Formed Sheet Width	500mm - 1250mm (adjustable via control system)
    Control System	PLC numerical control with touchscreen
    Power Supply	380V/50Hz (3-phase, customizable for regions)
    Total Power	15kW - 22kW
    Machine Dimension (L×W×H)	6500mm×1800mm×1900mm (approx.)
    Weight	4500kg - 6000kg (varies by configuration)

11. FAQao

    1. Q:Are you manufacturer?

    A:Yes, we focus on cold roll forming machine manufacture over 12 years.

    2. Q: if you can accept OEM? Design and manufacture according our photo.

    A: Yes, we can accept OEM,we owned expert engineer team, professional design CAD drawings and use famous brand components

    according your demands.

    3. Q:What's the warranty for your machine?

    A: we provide 2years guarantee and provide lifetime technical support.

    4. Q:How many workers is needed for the machine operation

    A: One worker is enough, the machine use automatic PLC control system.

    5. Do you have after sales support?

    A: Yes,Our engineer can supply remote-video technical support and online support teach your worker.

    6. Q.Can you be responsible for transport?

    A.Yes,we owned expert export team, we can arrangement for you to your destination port or address.

    7. Q:What service can you provide before order?

    A:About the pre-sale service, We provide professional solutions according your demands,such as design,technical parameter,delivery

    flow etc. At the same time, we can supply invitation letter for your visit our factory and showing the machine operationfor you .

    8. Q: What is the after- sale service?

    A: we will supply lifetime technical support,quick-wear parts within 2years,Also can provide field maintenance and repair service.

    9. Q:Any other service?

    A: We can help you purchase raw material for machine,help you check ship date,update for you ship date etc

    10. Q:Any certification

    A:Yes, we have SGS ISO certification.
