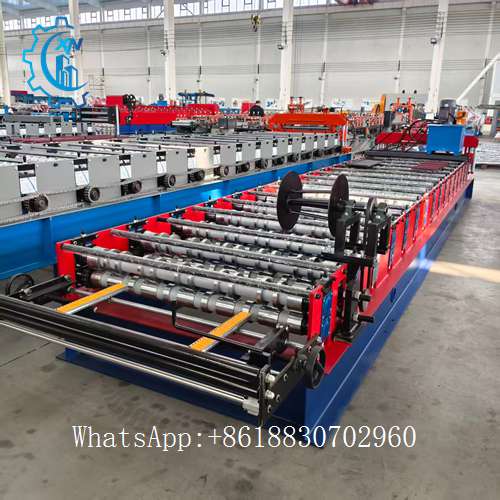

Trapezoidal Metal Roofing Sheet Roll Forming Machine | HEBEI XINNUO

 Product Overview

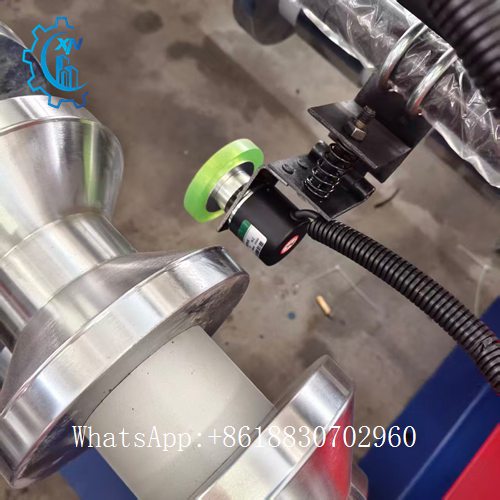

roller encoder

High-precision roller encoder length counter for roll forming machines, ensuring accurate sheet length measurement with ±1mm tolerance and automatic cutting trigger.

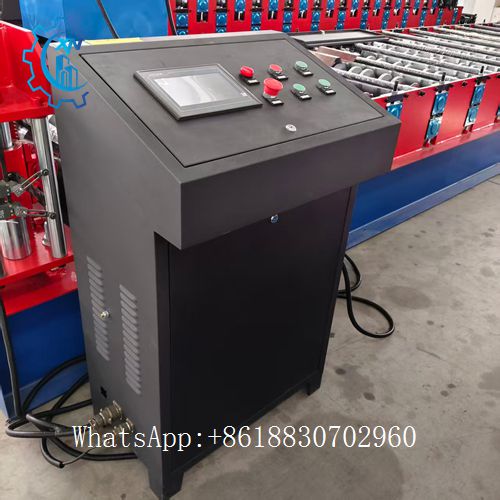

With PLC control and frequency speed adjusting technology to realize the automatic production.

The system provides a good interface screen for the roof forming machine, which can set the batches, plate length, and quantities.

Standard Production Process

1. Decoiling: Raw metal coils are loaded onto the hydraulic decoiler.
2. Leveling: The material is fed through a leveling unit to ensure flatness.

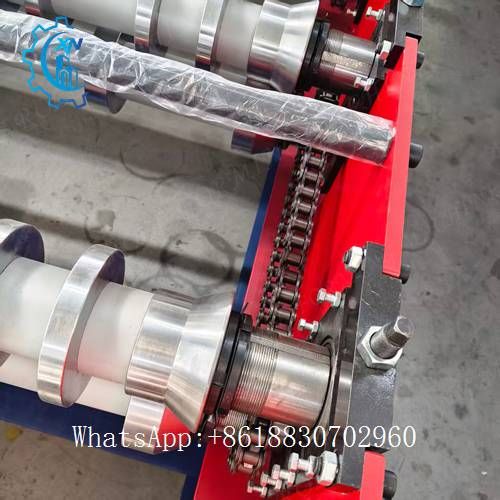

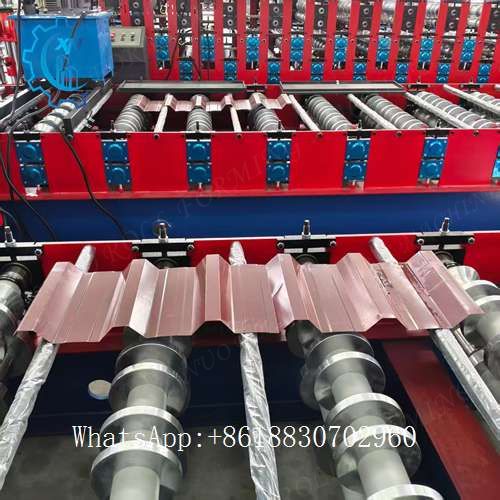

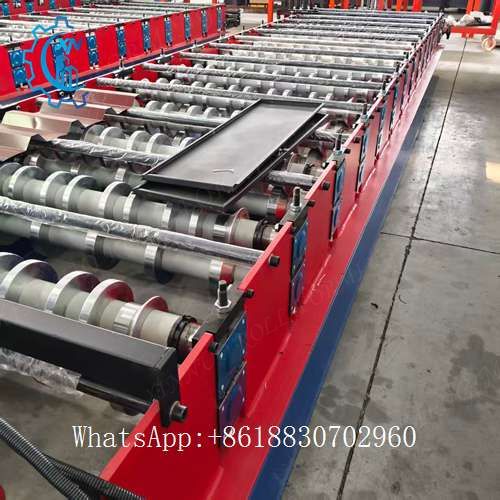

3. Roll Forming: The sheet passes through multiple roller stations to form the trapezoidal profile.

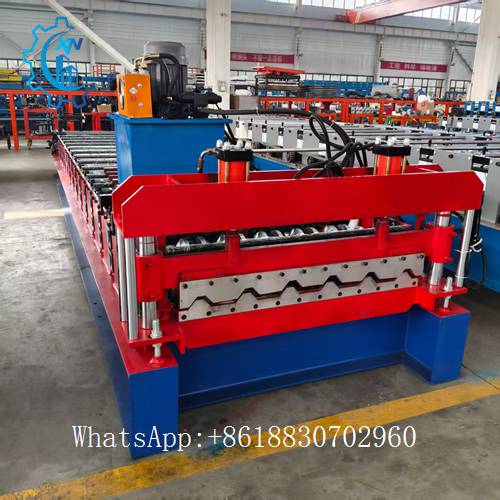

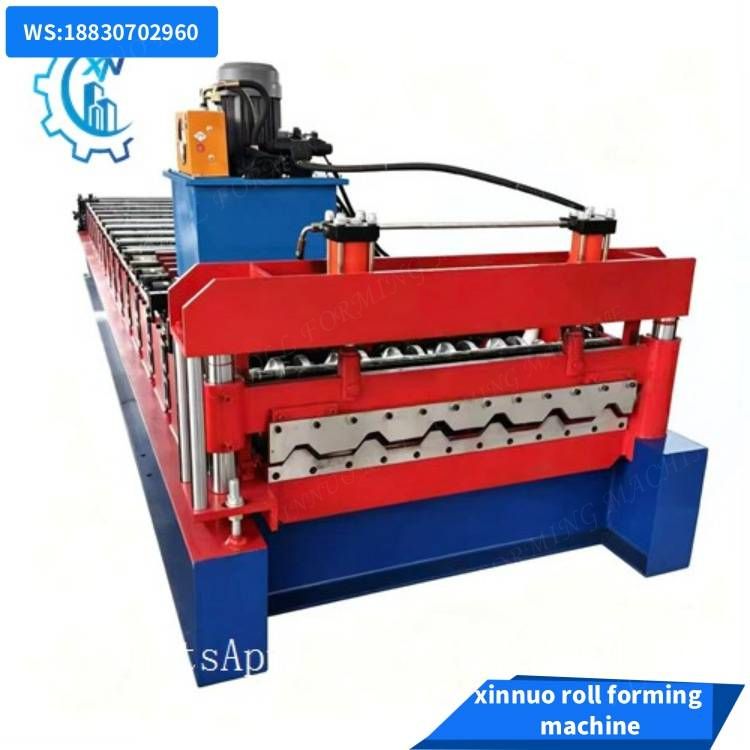

4. Hydraulic Cutting: The continuous formed panel is cut to the pre-set length automatically.
5. Output & Stacking: Finished panels are conveyed to the stacking table for collection.
