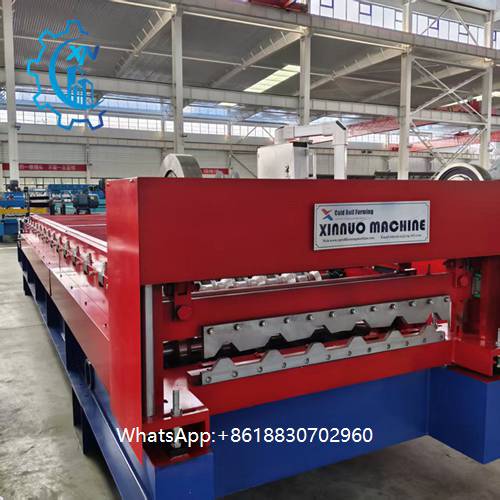

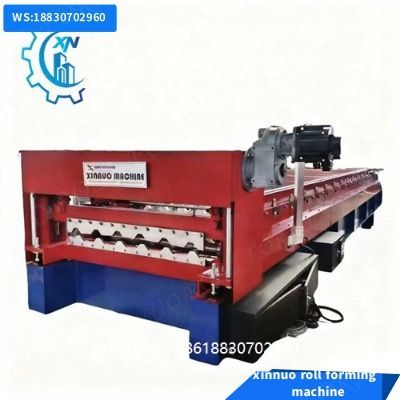

galvanized steel panel roll forming trapezoidal iron sheet making machine

Product Description

galvanized steel panel roll forming trapezoidal iron sheet making machine iron sheet making machine details :

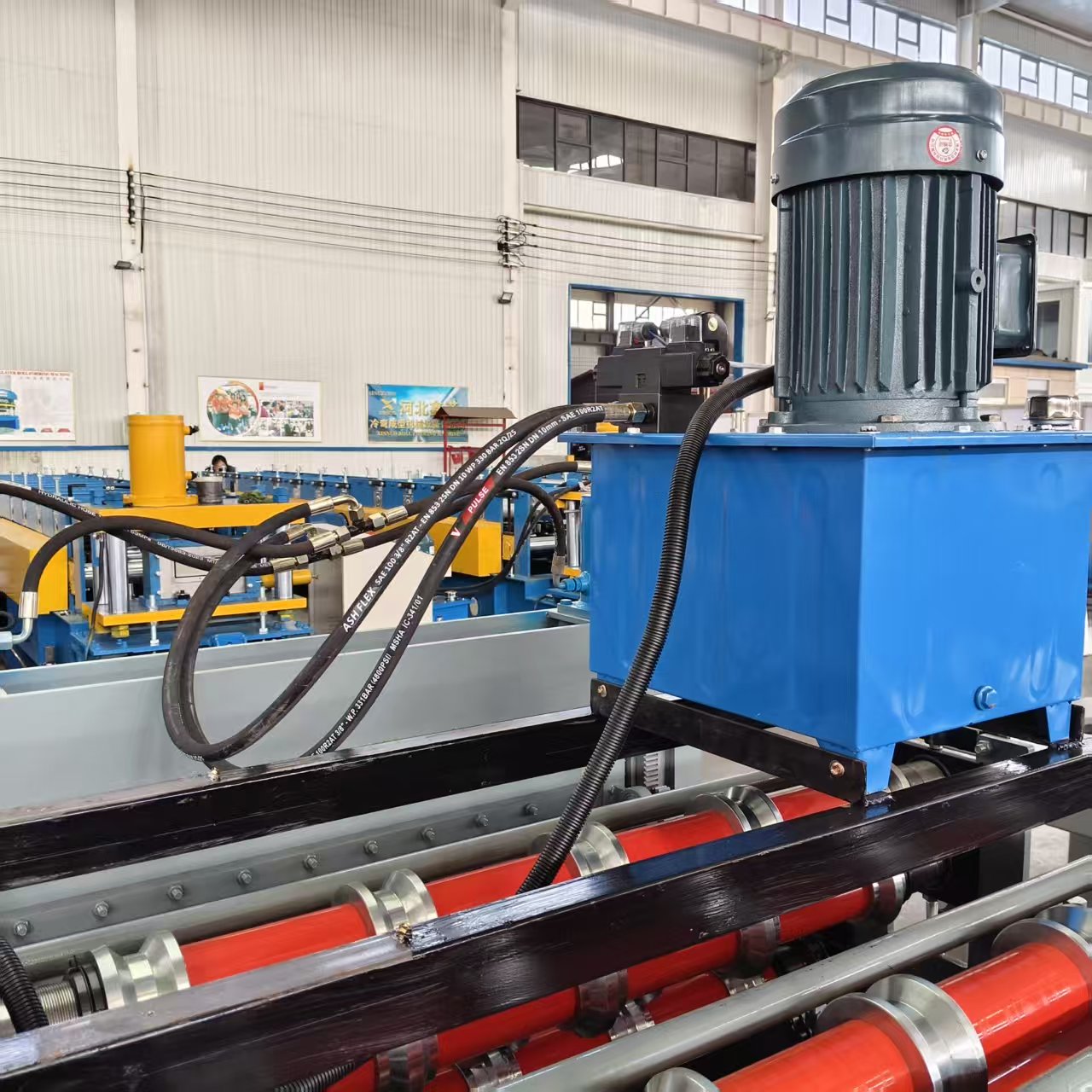

1.This iron sheet making machine is made up of roll forming machine,molding press,cutting machine,PLC computer control and hydraulic system.

2.The metal cladding wall profile roll forming machine is stable,no noise,no shake.

3.Our metal cladding wall profile roll forming machine can uses galvanized steel sheet, colored armor plate or galvalume plate as the material plate.

4. Controlling by computer, PLC display, operation is easy, running is steady and reliable,endurable,maintenance-free.

Details Images

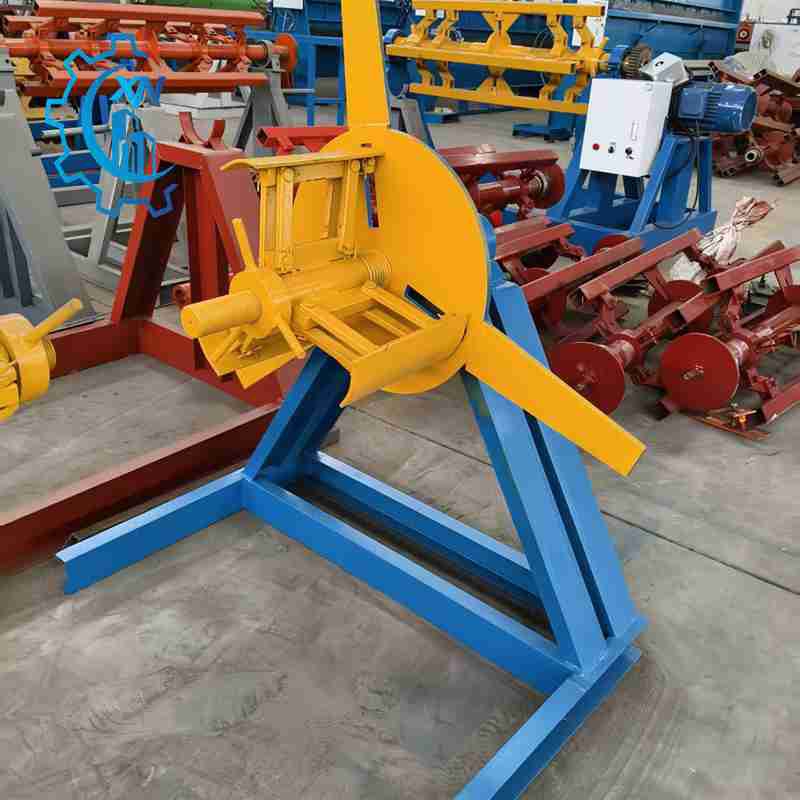

1.Manual decoiler:
Usage:It is used to support the steel coil and uncoil it in a turnable way. The steel coil is uncoiled by hand. Loading capacity:5T,Inner diameter: 500-508mm

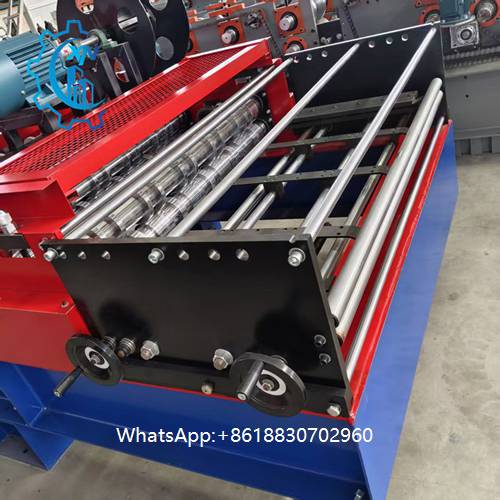

2.Feeding table

Put the raw material(steel plate) through the beach to manufacture and process, it can guarantee that the products are neat, parallel and everything is uniformity. Please refer to the equipment regulation to know the function of locate angle iron. Remarks:Pre-hand with leveling roller.

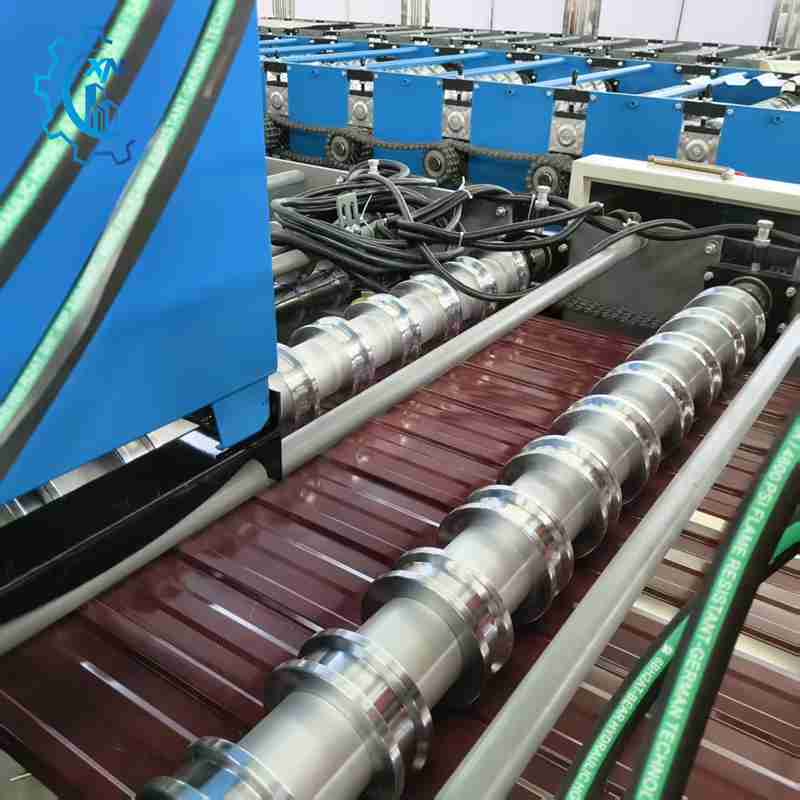

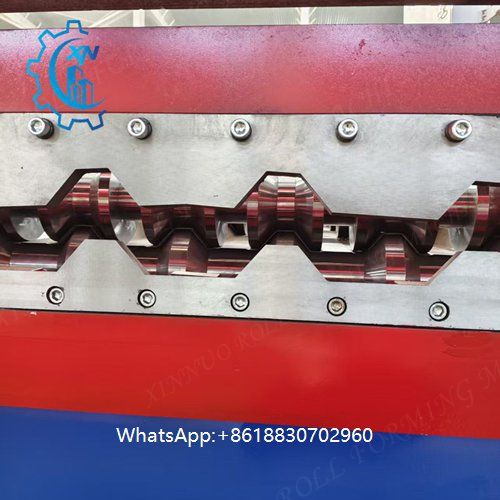

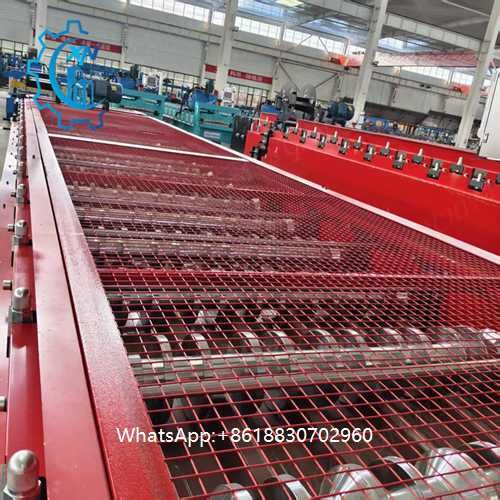

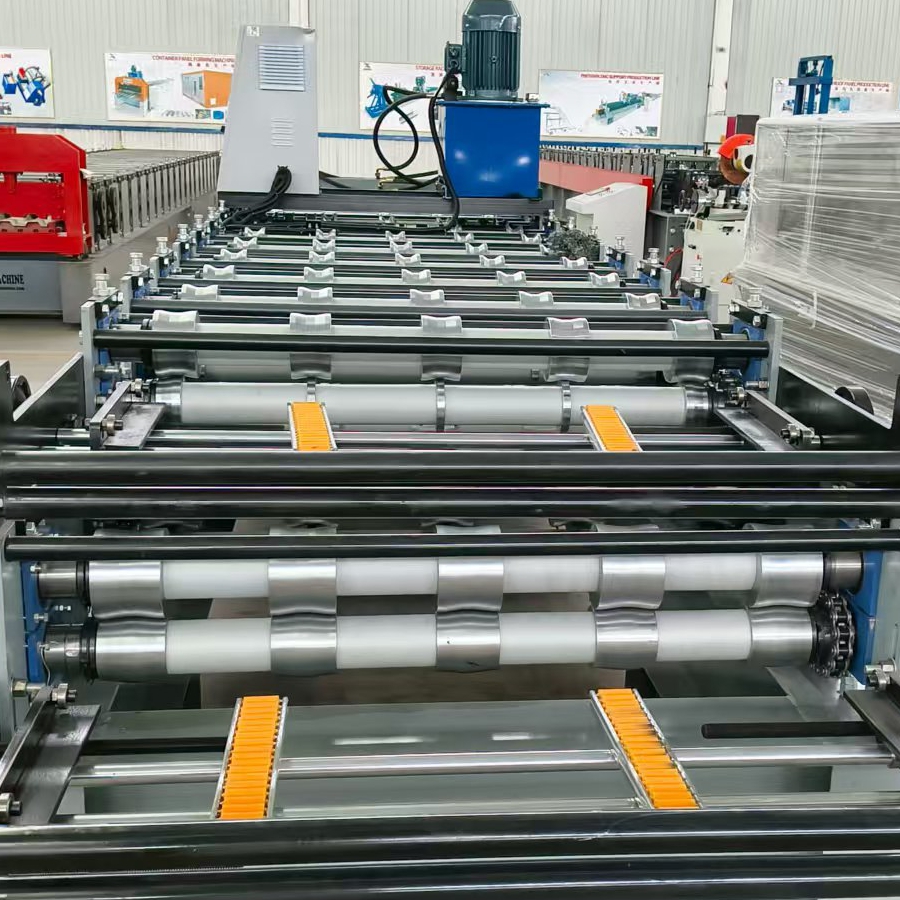

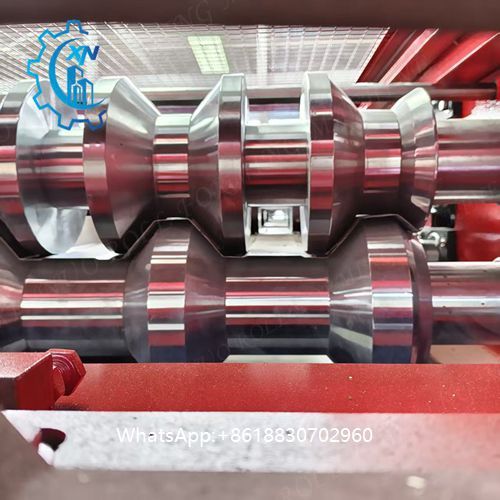

3.Main rollers

Material of rollers: High grade 45# Forging Steel ,roller surfaces polishing, hard plating , The polished surface and the heat treatment towards the molds also can keep the molding plate surface smooth and not easy to be marked when it is being stamped.

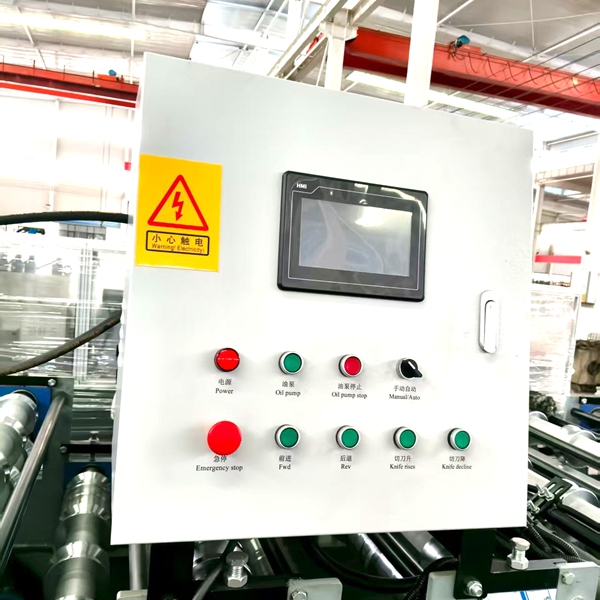

4.Computer Control Cabinet

PLC:Delta PLC(or according to customer's inquirement) Touch Screen:Delta Frequency system:Delta Chinese/English and Russian Or Spanish.

5.Motor driver

Main motor size :5.5Kw

Brand: The famous brand from Germany or according to customer's need.

6.Cutting head
It adopts the Motor drive and automatic location to decide the dimension and cut the target products. Material of blades: Cr12,quenching treatment

7.Received goods table

It adopts welded steel and supported roller to transmit the products,which is used to collect the finished products. 2 pieces 3meters.

Our Company

     Hebei Xinnuo Roll Forming Machine Co., Ltd is a industry and trade integration company,  which is on the basis of original Botou Huayu Roll Forming Machine Factory The company located in botou city, that has superior geographical and convenient traffic.It is the professional manu-facturer for metal sheet roll forming machines with seniority qualifications and experience.

   We have high technological background, advanced and mature production equipment and perfect means of inspection. We not only produce different type of roll forming machine, but also developed automatic production line of roll forming machine, roof panel, wall panel forming machine series, Glazed tile roll forming machine series, Floor deck roll forming machine series, Highway barier forming equipment, double-deck color steel tile roll forming machine series, C, Z shape steel purlin machine series. precipitator anode plate forming machine, achcamber machine series, cutting machine and bending machine series, insulated sandwich panel machine on the base to traditional forming machine. Our machines are exported to demestic and foreign markets and are highly praised by new or old customer by their good-looking appearance, fair frame and standard model. We have prepared experienced professional workers and skilled staff for you. We could design different type of cold roll forming machine according to clients requirement.

rolling machine for color steel after sales services :

1. Warranty :One years,and we will provide technical support for whole life of the equipment.

2. Delivery time: Within 60 days after deposit receipt your payment

3. Guarantee period: 12months free service/ pay service all the machine life

4. Installation and training If buyers visit our factory and check the machine, we will teach you how to install and use the machine and also train your workers/technician face to face.
