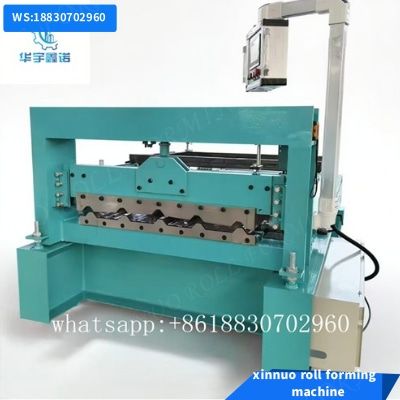

1. Product Overview
The Trapezoidal Panel Forming Machine is a high-performance, automated equipment designed for continuous production of trapezoidal metal panels—widely used in roofing, wall cladding, and industrial warehouse construction. Engineered with advanced roll-forming technology, this machine transforms flat metal coils (such as galvanized steel, aluminum, or color-coated steel) into precise, uniform trapezoidal panels in one seamless process, significantly improving production efficiency while ensuring consistent product quality.
Idealing consistent product quality.
Ideal for both large-scale manufacturing plants and medium-sized fabrication workshops, it adapts to diverse panel specifications, making it a versatile solution for the building materials industry.
2. Core Features & Advantages

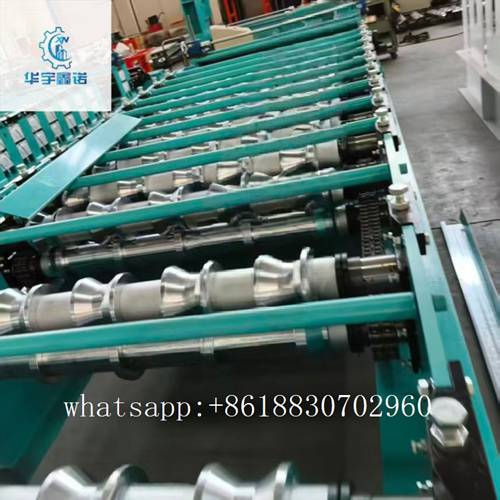

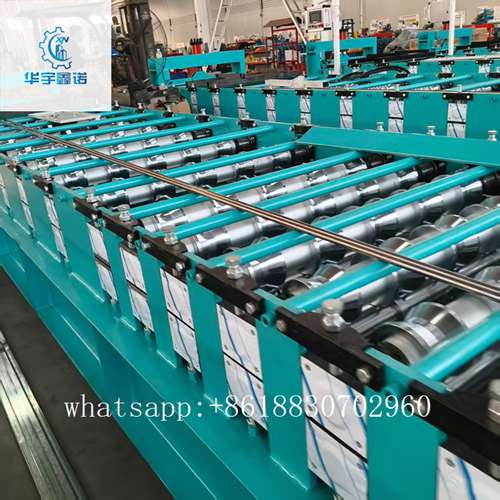

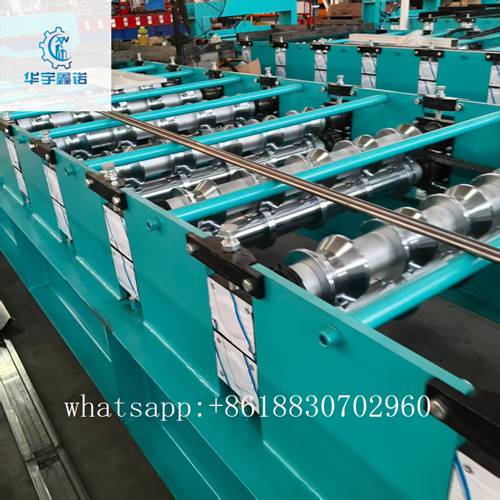

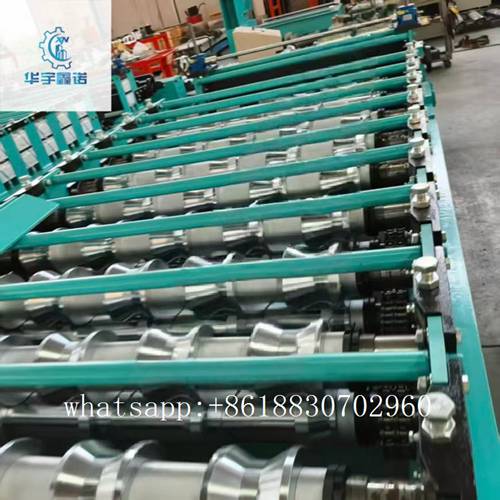

2.1 High Precision & Stability Equipped with CNC-controlled roll-forming rollers (processed by precision grinding machines) to ensure trapezoidal panels have accurate dimensions (tolerance ≤ ±0.5mm) and smooth edges, avoiding deformation or material waste. The machine frame is made of high-strength steel (Q235B) with reinforced welding, providing strong load-bearing capacity and minimizing vibration during high-speed operation—extending the equipment’s service life. 2.2 Efficient & Automated Production Continuous production speed: 8-15 meters per minute (adjustable according to material thickness and panel size), reducing labor costs compared to manual processing. Integrated with an automatic decoiler, leveling unit, and cutting system: The decoiler unwinds metal coils stably; the leveling unit eliminates coil stress for flat raw materials; the servo-driven cutting system ensures clean, burr-free cuts without stopping production. 2.3 Flexibility & Customization Supports panel thicknesses: 0.3-1.2mm (for steel) and 0.5-2.0mm (for aluminum), adapting to different structural strength requirements. Customizable trapezoidal parameters: Panel width (300-1200mm), rib height (15-80mm), and rib spacing—meet specific design needs for residential, commercial, or industrial projects. 2.4 Safety & Easy Operation Equipped with emergency stop buttons, safety guards for rotating parts, and overload protection—complying with CE safety standards. User-friendly touchscreen interface: Allows real-time adjustment of production parameters (speed, cutting length) and displays equipment status (e.g., coil remaining, error alerts) for quick troubleshooting.
| Parameter |
Specification |
| Raw Material |
Galvanized steel, color-coated steel, aluminum |
| Material Thickness |
0.3-1.2mm (steel); 0.5-2.0mm (aluminum) |
| Production Speed |
8-15 m/min (adjustable) |
| Panel Width Range |
300-1200mm (customizable) |
| Rib Height Range |
15-80mm (customizable) |
| Cutting System |

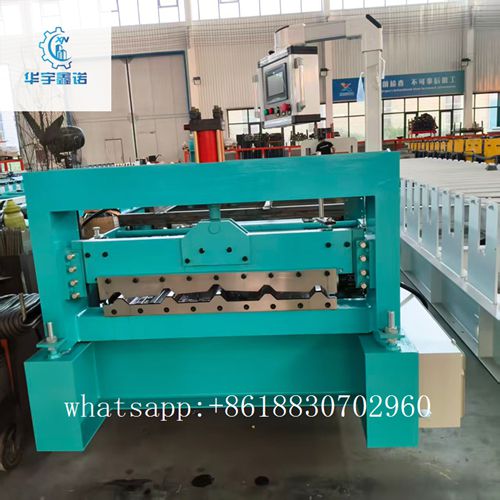

Servo-driven hydraulic cutting |
| Power Supply |
380V/50Hz (or customized for 220V/60Hz) |
| Total Power |
15-22kW |
| Machine Dimension (L×W×H) |
8-12m × 1.5-2.0m × 1.8-2.2m (varies by model) |
| Weight |
3500-6000kg |

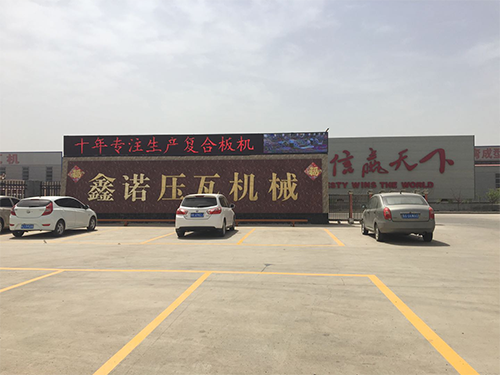

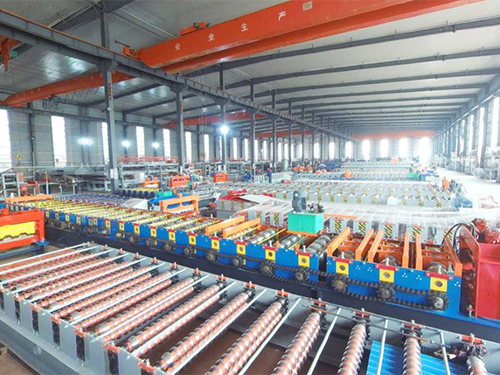

our company
Application Fields
- Building Construction: Roofing panels for factories, warehouses, and commercial buildings; wall cladding for shopping malls, residential complexes, and exhibition halls.
- Industrial Facilities: Protective panels for workshops, equipment enclosures, and storage sheds.
- Agricultural Projects: Roofing and walls for greenhouses, livestock barns, and grain storage facilities (corrosion-resistant panels available for humid environments).
-
- After-Sales Service & Support
- Warranty: 12-month warranty for the entire machine (excluding parts like rollers and belts); lifetime technical consultation.
- Installation & Training: Professional engineers provide on-site installation, commissioning, and operator training (1-3 days) to ensure smooth production.
- Spare Parts Supply: A global spare parts warehouse ensures fast delivery of replacement parts (within 3-7 days for major regions like Europe, North America, and Southeast Asia).
Whether you need to boost production capacity, improve panel quality, or expand your product range, our Trapezoidal Panel Forming Machine delivers reliable performance and customized solutions to meet your business goals. Contact us today for a personalized quote or technical demo!
