• MOQ: 1 Set
• OEM/ODM: Available
• Custom Profiles: CAD Drawing Support Included
• After-Sales Support: Engineer Onsite or Remote Video
• Use Case: Metal Roof Panel Factories, Sheet Contractors
• Service Life: 15+ Years with Proper Maintenance
• Operational Benefit: Low Operating Cost & High Output
• Email:xinnuo05@xinnuomachine.com
• WhatsApp:+8618830702960

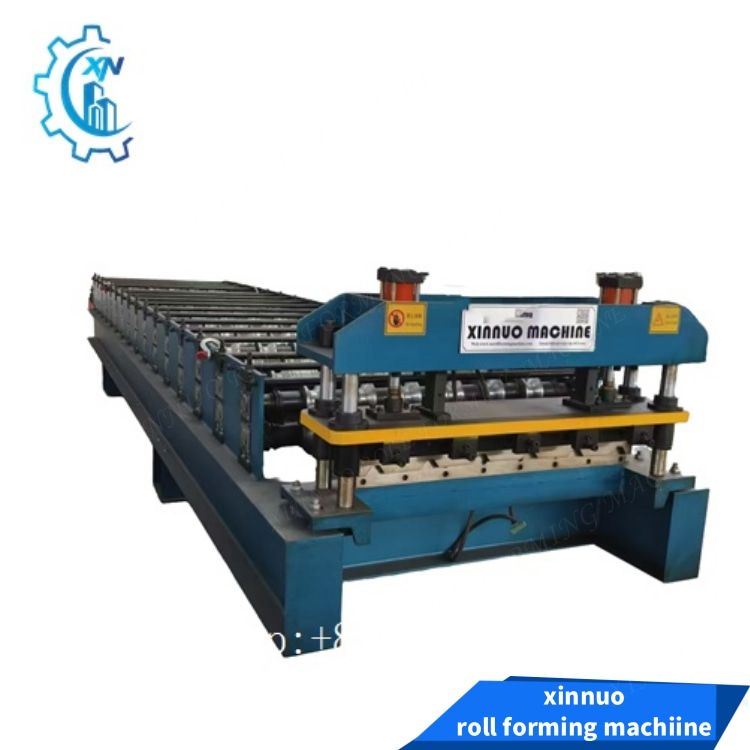

Roofing panel roll forming machine Description

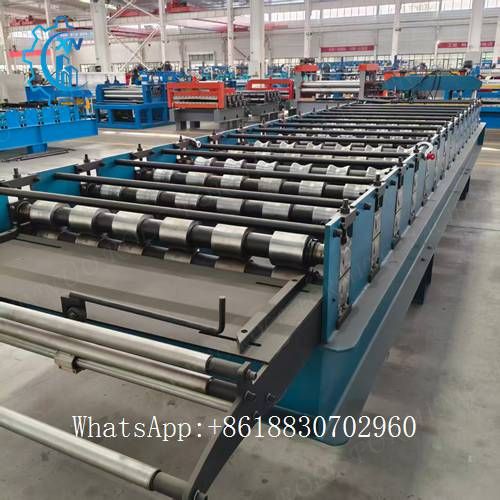

This Trapezoidal Roof Panel Roll Forming Machine is a fully automatic equipment specially designed for manufacturing steel trapezoidal roofing sheets. With high forming speed, precise cutting, and intelligent control, it offers an ideal solution for construction material producers. The equipment is easy to operate, durable, and provides excellent production efficiency, suitable for both small workshops and large industrial manufacturing lines.
| Machine Type | Trapezoidal Sheet Roll Forming Line |
| Material Options | Galvanized Steel, Color-Coated Steel, Aluminum |
| Material Thickness | 0.3–0.8 mm |
| Effective Sheet Width | 750–1100 mm |
| Feeding Width | 1000–1250 mm |

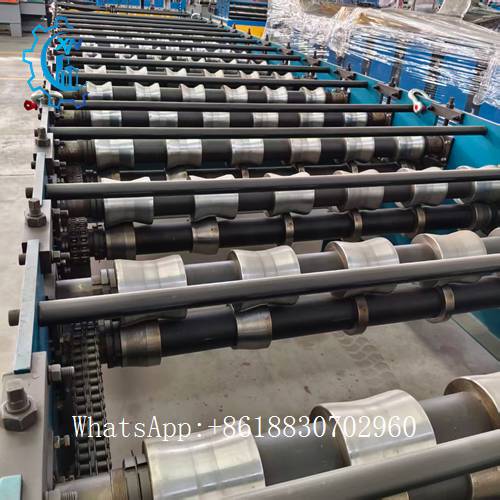

| Forming Stations | 12–20 Stations |

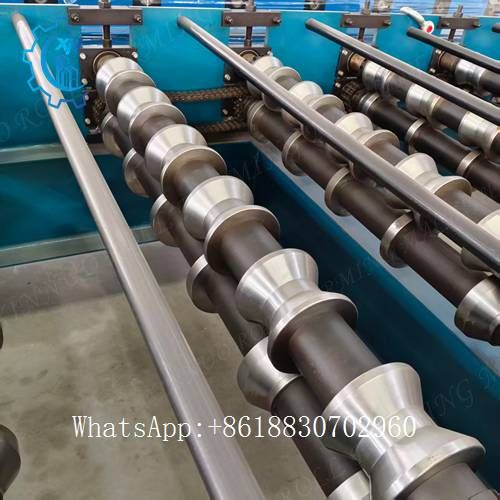

| Roller Material | GCr15 with hard chrome coating |
| Shaft Diameter | 70 mm |
| Drive Method | Chain / Gearbox Transmission |
| Main Motor | 7.5 kW |
| Hydraulic Power | 4 kW |

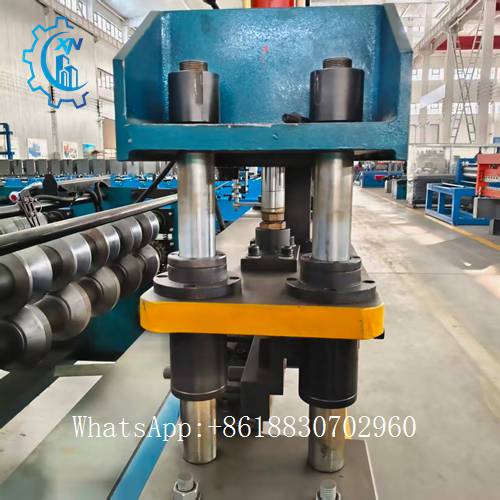

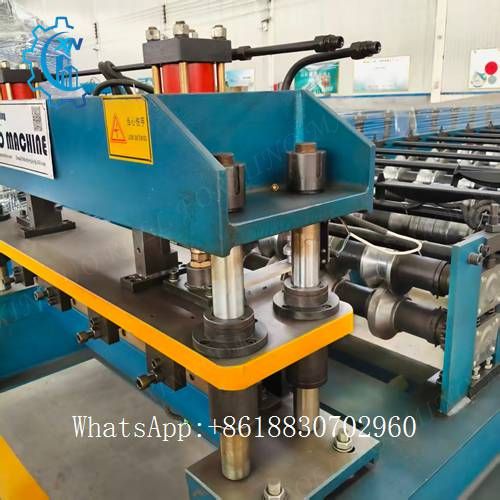

| Cutting Type | Hydraulic Post Cutting |
| Control System | Siemens/Delta PLC |
| Operation Interface | Touch Screen (HMI) |
| Voltage | 380V / 50Hz / 3Phase |
| Machine Structure | Welded 350H Steel Frame |
| Machine Size | 7800*1500*1500 mm |
|
Weight |
5–6 Tons |
| Accuracy | ±1 mm |
| Lead Time | 45–60 Workdays |
| Origin | China |
At XINNUO, we are committed to delivering high-performance metal roll forming machines tailored for global industrial needs. Our equipment offers reliable and flexible production capabilities to meet the demands of modern construction and manufacturing industries.
