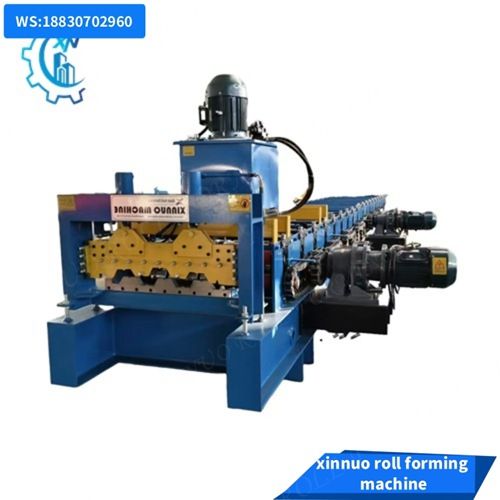

Metal deck roll forming machine is a specialized equipment used in the construction and manufacturing industries to produce metal decking panels. These panels are commonly used in building floors and other structural applications.
Smartech Machinery decking floor roll former enables you to forming raw material from thickness 0.8mm to 1.2mm or even thicker material. Our forming speed is normally 15meters per minute. Every line has PLC control which you can
set the length and blocks you want to produce and the roll former will start producing as the set parameter. Thus it is a quiet efficient metal deck floor making machine.

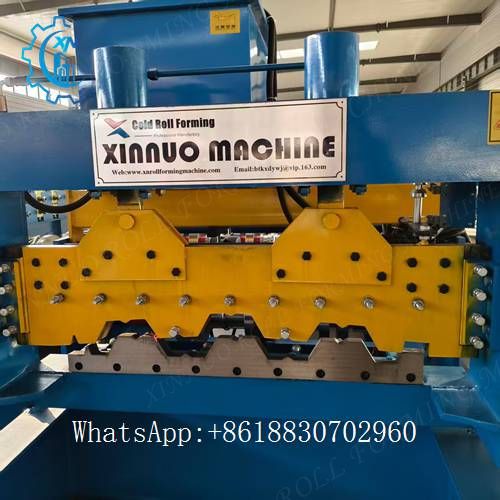

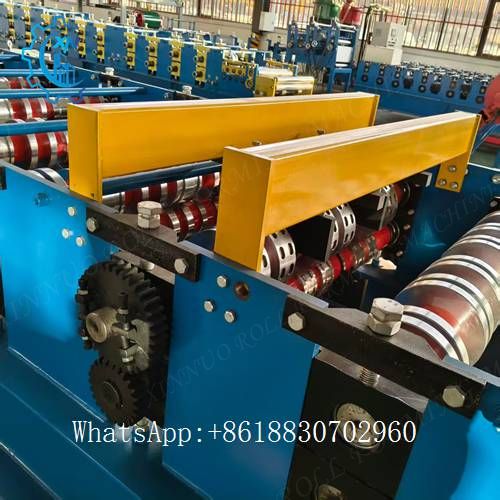

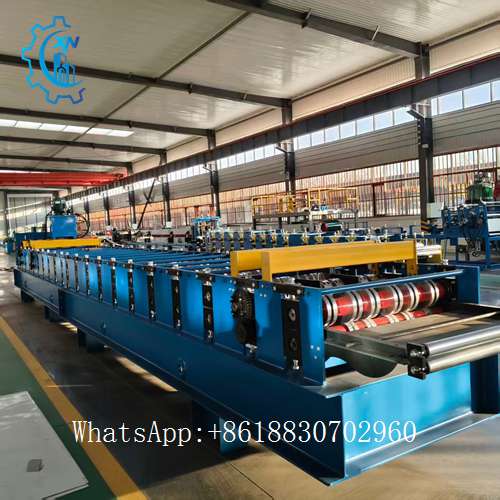

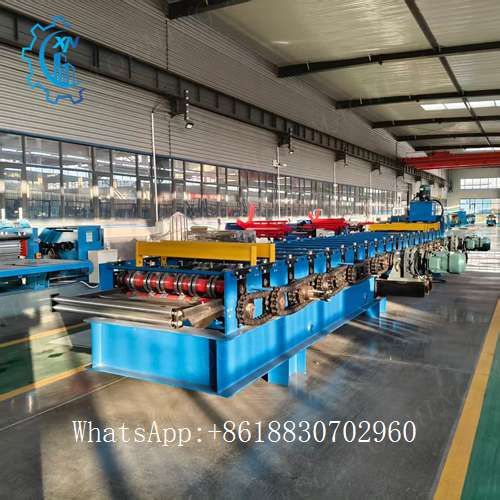

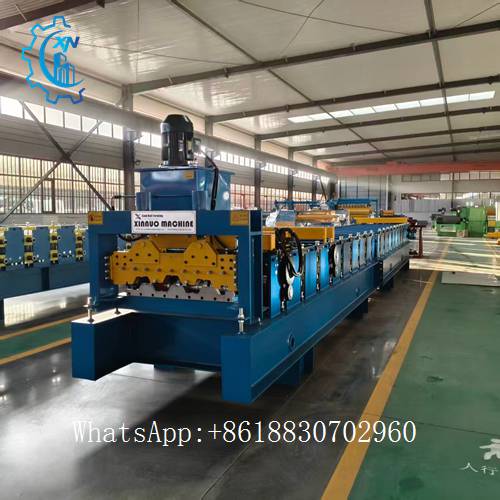

Smartech Machinery metal deck roll forming machine consists of decoiler, feeding device, roll forming stations, cutting device and an electric controlling system. You can also require to add pre-cutter device, embossing,

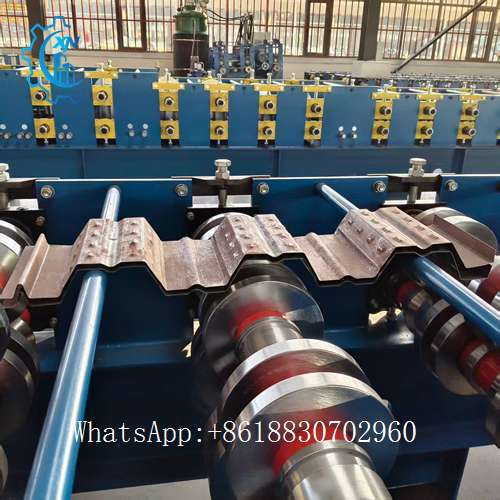

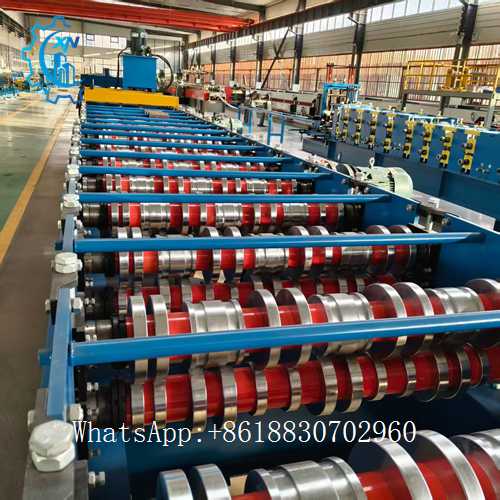

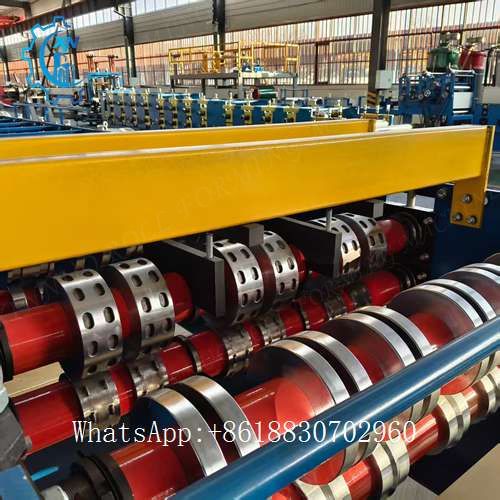

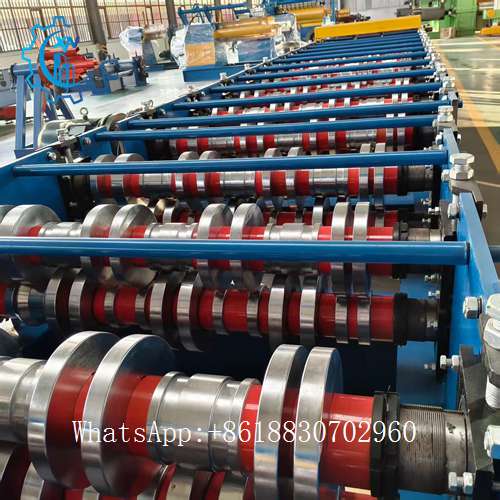

filming device, safety guard device and automatic stackers for options. By a specific set of roller stations, the metal decks can be formed step by step to the shape of confirmed profile drawing. For length of sheets, you can
put in the touch screen so the sheets will be cut at the set length by control of PLC and Encoder. It is a full automatic and continuous forming machine for deck floor sheets.
High Efficiency: Capable of producing large quantities of metal decking in a relatively short amount of time.
Consistency: Ensures uniformity and precision in the produced panels.
Customization: Can be adjusted to produce different thickness range of metal decking.
Durability: Built to handle heavy-duty materials and continuous operation.
There’re some standard metal deck profile machines that normally we make:H60 metal profile roll forming machine, H75 metal deck roll forming machine, 1 1/2" steel deck rollforming line,
2" metal deck roll forming machine and 3" composite deck roll forming machine.
| No | Item | Parameter | Remark | |
| 1 | Suitable Material | Type | GI | |
| Width(mm) | 1250 | customize | ||
| Thickness(mm) | 0.8-1.2 | customize | ||
| Yield Strength(Mpa) | 230-300 | customize | ||
| 2 | Forming Speed(m/min) | 20 | ||
| 3 | Roller Material | No.45 steel with Chromeplate | Up to buyer | |
| 4 | Roller Shaft Diameter | 90 | customize | |
| 5 | Cutting Model | Hydraulic Cutting | ||
| 6 | Power source | Type | 380V/3PH/50HZ | Up to buyer |
| Total Power | According to actual design | |||
At XINNUO, we are committed to delivering high-performance metal roll forming machines tailored for global industrial needs. Our equipment offers reliable and flexible production capabilities to meet the demands of modern construction and manufacturing industries.
