Features of the machine:

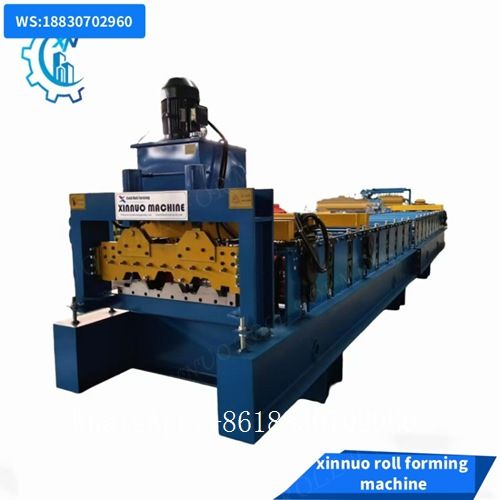

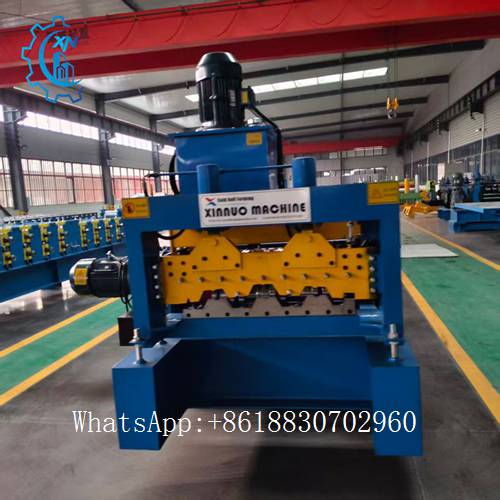

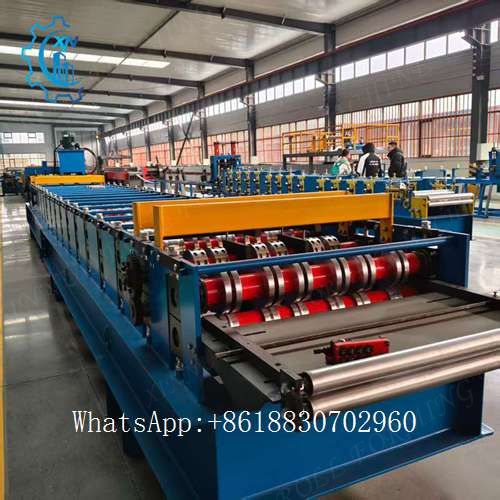

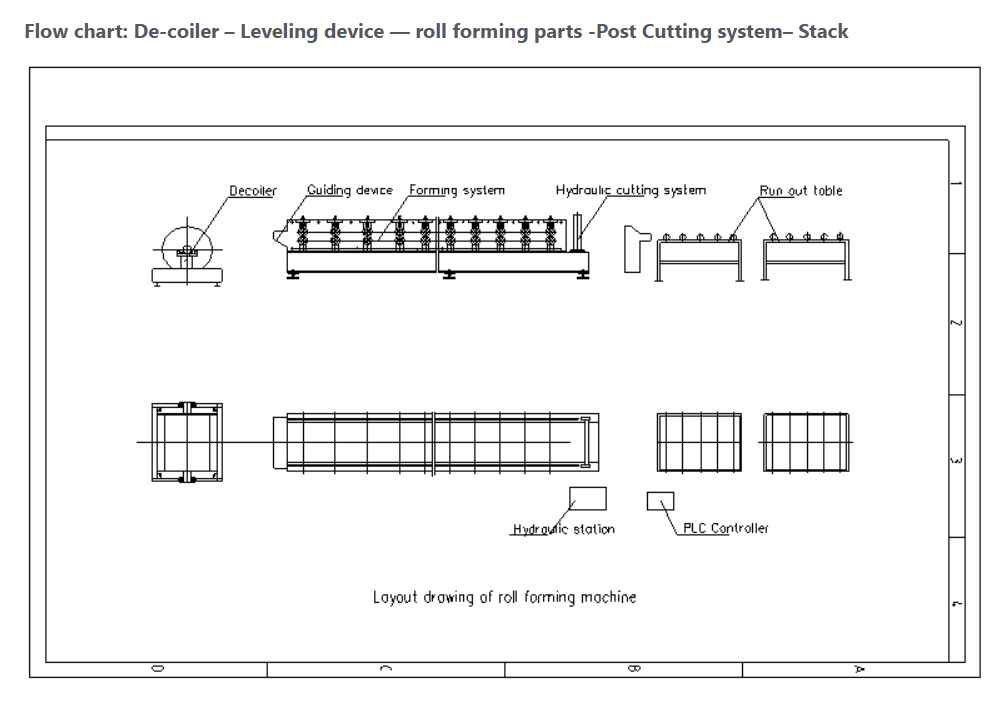

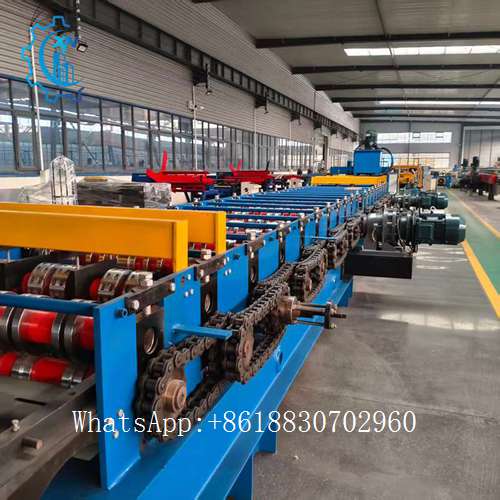

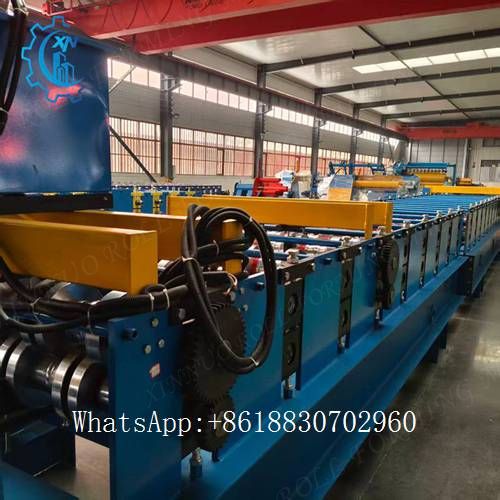

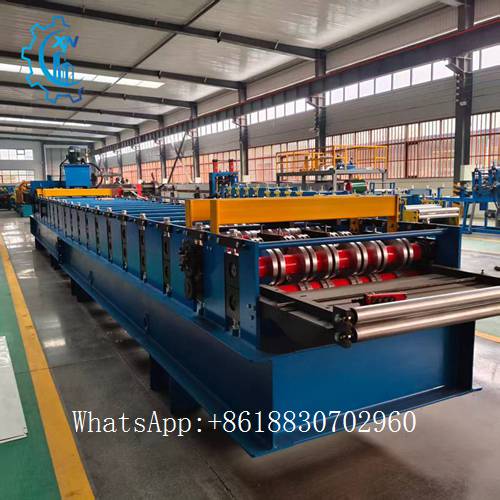

Our YX50-180-900 floor deck roll forming machine consists of decoiler, feeding and levelling device, pre-shear, roll forming system, hydraulic post cutting, run out table, hydraulic station and PLC(controlling system).
Long production line, good profile shape on final products; Time saving and labor saving, which is highly improved production efficiency and suitable for current production. This machine is easy to operate and run stable with good precision.
Hydraulic Post Cutting
1) Adopts post cutting, Stop when cutting;
2) The cutting blade material is Cr12 with quenched treatment.
2) Adopts welded frame for good rigidity.
4) Cutting frame has been heat treatment to avoid final product deformation. cutting length tolerance ±2mm;
| Machine Quick Details | |
| Model Application: floor deck | Condition: New |
| Type: Roll Forming Machine | Brand Name: Frametec |
| Raw Material Width:1000/1200/1250mm | Thick: 0.8-1.5mm |
| Applicable Materials: PPGI GI | Forming Speed: 8-15m/min |
| Warranty: 1 year | Place of Origin: China |
Roll-Forming M/C:
- The main frame of machine is welded separately and the outside wall is connected by screw after being rot blasted on the surface.

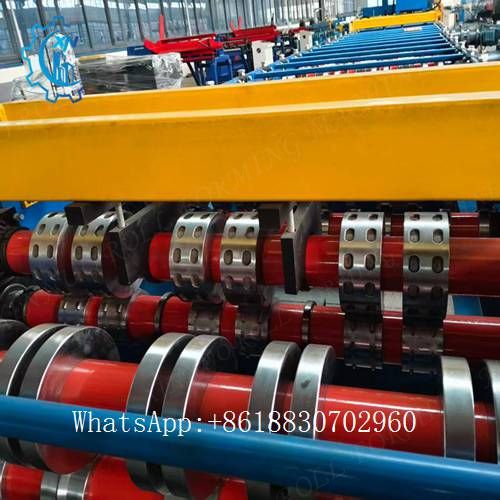

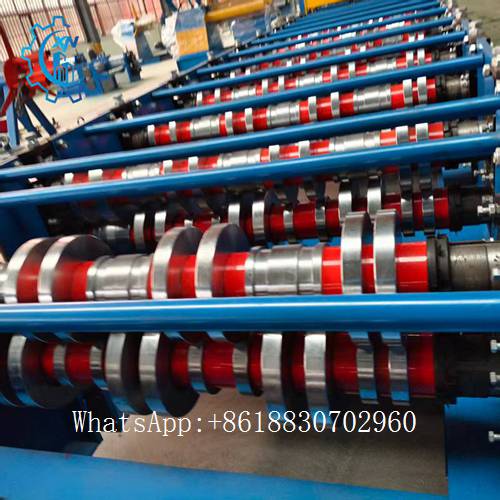

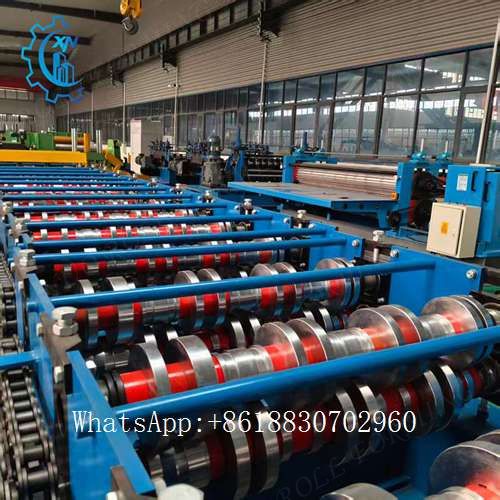

- Roller Material is high grade No.45 forged steel, with digital-controlled procession.
- Shafts of rollers are tooled by grinding machine for two times to ensure the precision of final product.
- The rollers are plated with hard chrome with thickness of 0.05mm on the surface after being machined by the exact machine tool. So that ensures long life of forming rollers.
