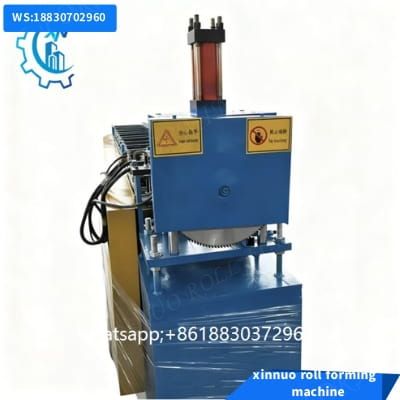

self lock roof panel forming machine

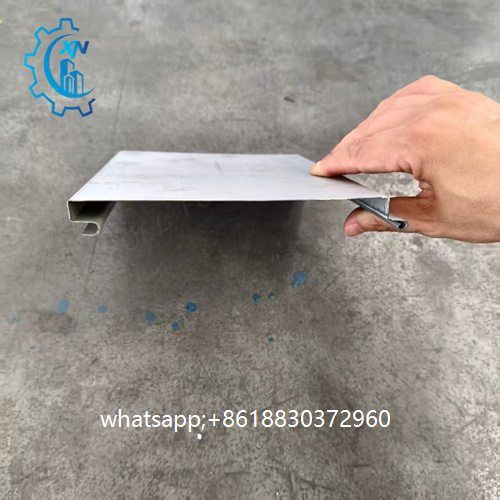

    The metal ceiling panel forming machine excels in architectural decoration with automated precision. It transforms metal coils (aluminum, galvanized steel) into various ceiling panels (square, strip, grid) through continuous rolling, forming, and cutting. Custom roller sets and servo control guarantee millimeter-level accuracy and flawless flatness. Compatible with 0.3-1.2mm metal thickness, it enables rapid specification changes and integrates uncoiling, feeding, and cutting for high efficiency (thousands of ㎡ per shift). Featuring surface protection and quiet operation, it’s perfect for residential, commercial, and office projects.

Operating Procedures of Self-Lock Roof Panel Forming Machine

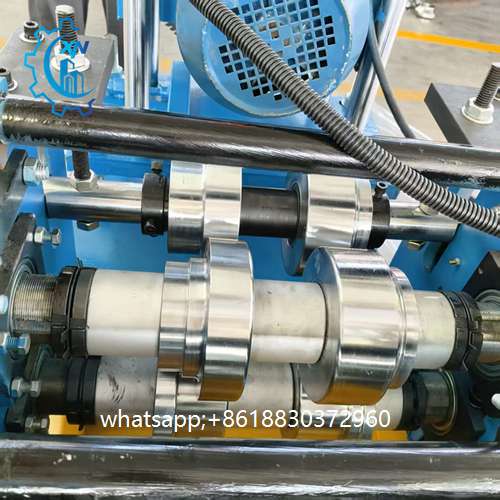

1.  Pre-operation Preparation: Check if all components (rollers, cutting mechanism, servo system) are in good condition; confirm that the power supply, air pressure, and cooling system are normal; select and install the matching roller set according to the ceiling panel specification (e.g., thickness, shape).

2.  Coil Loading: Lift the metal coil (aluminum, galvanized steel, etc.) onto the uncoiling rack, align it with the feeding direction, and fix the coil to prevent deviation during operation.

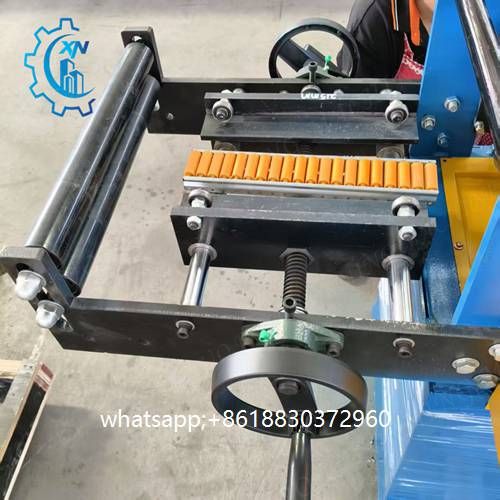

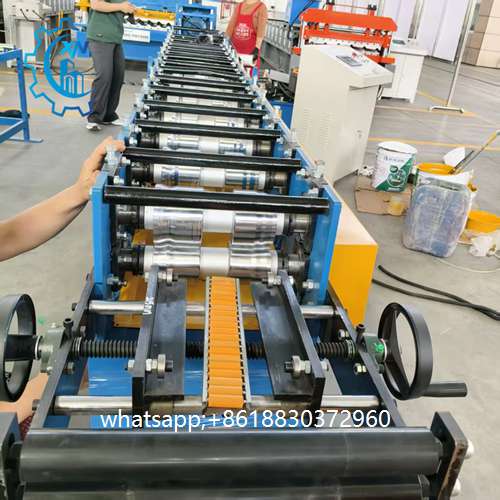

3.  Feeding Alignment: Manually guide the leading end of the metal coil through the leveling device, feeding roller, and initial forming section; adjust the side guide wheels to ensure the material is centered and avoids edge scraping.

4.  Parameter Setting: Input processing parameters (forming speed, cutting length, roller pressure) into the control panel according to the product requirements; conduct a trial run to check if the parameters match the target ceiling panel size and shape.

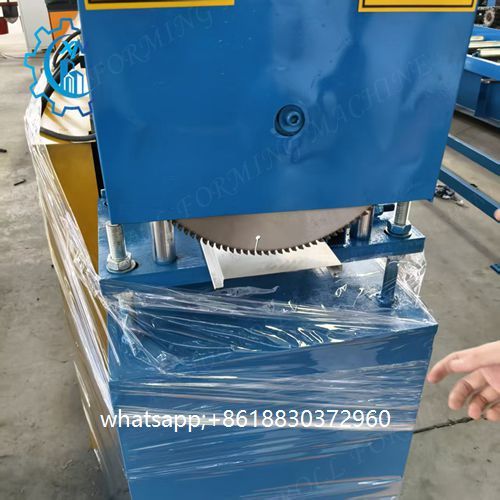

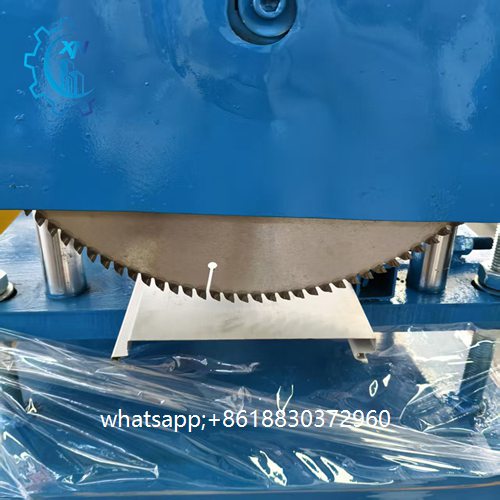

5.  Formal Operation: Start the machine, monitor the forming process in real time—ensure the metal sheet is smoothly rolled into the desired ceiling panel shape, and the cutting mechanism works accurately without burrs; record production data (output, qualified rate) periodically.

6.  Post-operation Shutdown: After completing the production task, first stop the feeding system, then wait for the remaining material in the machine to be fully processed and discharged; turn off the power supply and air pressure valve, clean the rollers and cutting tool of metal scraps, and perform routine maintenance (e.g., lubricating moving parts).
