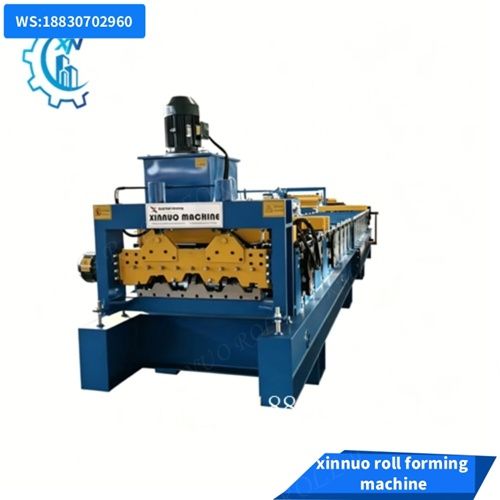

top grade floor deck roll forming machine
top grade floor deck roll forming machine top grade floor deck roll forming machine top grade floor deck roll forming machine top grade floor deck roll forming machine top grade floor deck roll forming machine

top grade floor deck roll forming machine

Product Attributes :

Suitable Coil Sheet Material for Top Grade FloorDecking Forming Machine

Suitable material: Colored/ Stainless/Galvanized Steel, Aluminum sheet

Thickness: 0.8-1.5(mm)

Yield Strength: 230-300/350 (MPa) (optional)

Width:1200/1220/1250/1500(mm)

Product Description

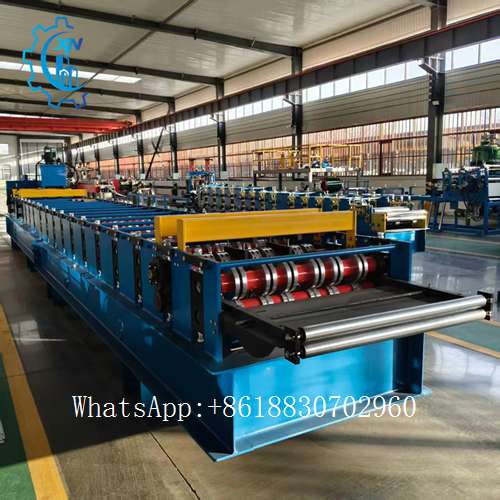

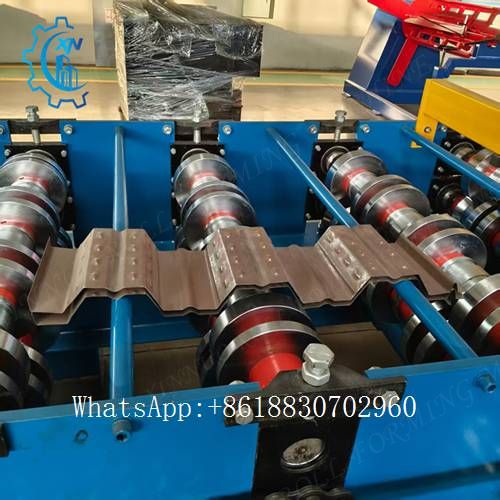

 Floor Deck Roll Forming Machine

Product Introduction

Our High-Precision Intelligent Floor Deck Roll Forming Machine is a professional automatic production equipment designed for composite floor deck manufacturing in steel structure buildings.
Integrating advanced cold roll forming technology and intelligent control system, it is dedicated to producing high-quality floor deck with uniform dimensions, high strength and smooth surface,
widely applied in industrial workshops, high-rise buildings, warehouses, large-span venues and other projects. The machine realizes full-process automation from uncoiling to stacking, greatly
improving production efficiency and product consistency, and becoming the core equipment for high-end floor deck manufacturers.

Production Parameters



Parameter Item
Specification
Processing Material
Q235, Q355 steel plate, galvanized steel
Material Thickness
0.8-1.5mm
Coil Width
500-800mm
Roll Forming Stages
23stages
Forming Speed
5-10m/min
Cutting Accuracy
±1mm/12m
Uncoiler Load Capacity
15 tons (hydraulic tension adjustment)
Control System
PLC control + digital operation panel
Power Supply
380V/50Hz (customizable according to regional standards)
Overall Dimensions (L×W×H)
15m×1.6m×2.0m
Weight
12.5 tons

Floor Deck Roll Forming Machine Working Process





  1. Uncoiling

    Hydraulic decoiler releases raw steel coil steadily for feeding.
  2. Leveling

    Flatens curved steel sheet to eliminate material stress and ensure flatness.

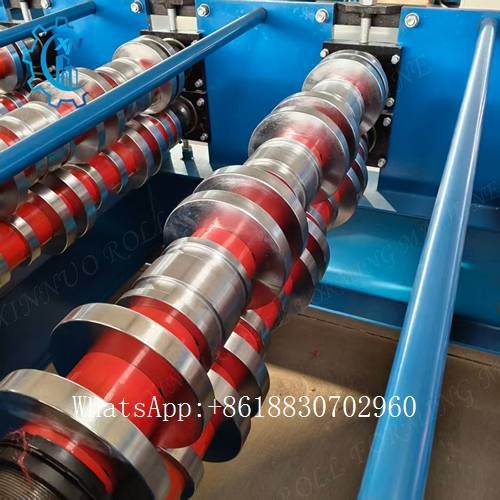

  3. Feeding & Forming

    Steel passes through multi-stage roller groups to form W-beam / three-wave guardrail profile.

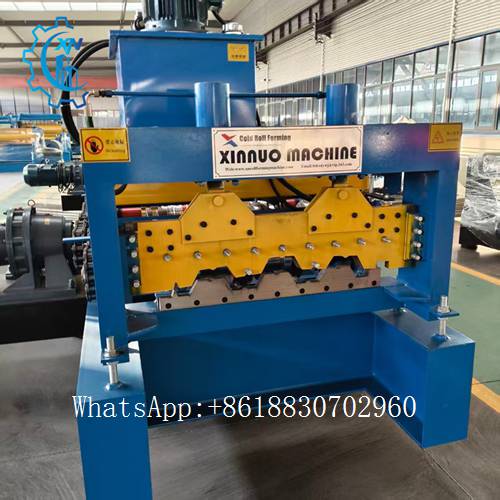

  4. Hydraulic Cutting

    Automatic length cutting with burr-free finish according to set size.
  5. Output & Stacking

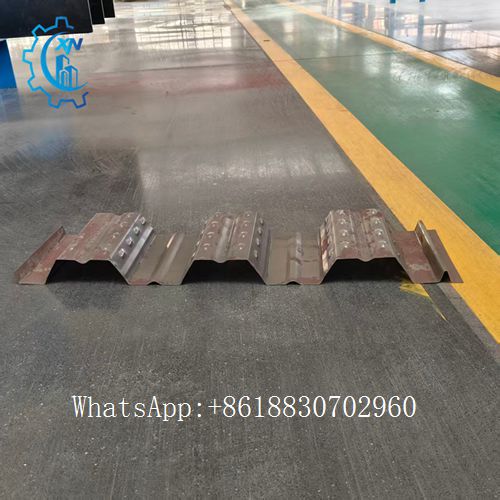

    Finished floor deck products are discharged and stacked automatically.





Core Advantages

  • High Efficiency for Mass Production: 18-stage roll forming system, 5-10m/min speed, enabling continuous mass production of standard guardrails for large orders.
  • Cost-Effective & Low Consumption: Energy-saving motor (20% less power) and optimized material use (waste <5%) to cut production costs.
  • Easy Operation & Low Threshold: Intuitive operation panel; ordinary workers can master it in 1-2 days, reducing training costs.
  • Stable Performance & Easy Maintenance: High-quality integral frame, wear-resistant replaceable rollers (≥3000h life), simple structure with low maintenance.
  • Wide Adaptability: Produces standard 6m/12m guardrails (adjustable for non-standard lengths) and fits 2.0-4.5mm thick steel plates.



Our Company

Hebei Xinnuo Roll Forming Machinery Co., Ltd., founded in 1995 in Botou, Hebei, is a professional manufacturer focusing on R&D, production and sales of cold roll forming equipment, with core focus on floor deck and its production machinery. With mature export experience, our products are sold globally, serving construction and manufacturing enterprises worldwide.

As Xinnuo’s core product, floor deck is widely used in industrial, civil buildings, warehouses and high-rises. It has simple shape, high strength and good adhesion with concrete, replacing traditional steel formwork to reduce floor load, steel consumption and project investment.

We specialize in floor deck forming machines with energy-saving cold forming technology, ensuring stable quality. Our floor deck and equipment feature easy construction, short construction period and high efficiency, reducing on-site steel binding by 60%~70%. Xinnuo provides high-quality floor deck solutions with professional design and service.
