Roof decking floor profiles are typically used as the structural component. The steel decking floor is a cold formed steel sheet.
Metal Decking use in roof and floor systems for supporting the concrete or insulating membrane of a roof. Its design and construction
magnify the properties of the steel. It causes to create a high strength to weight ratio that lowers the material, handling, and erection costs.
In addition to, Steel Floor decking roll forming machine This is the new type we engineer for decking machine, used for building surface panel.

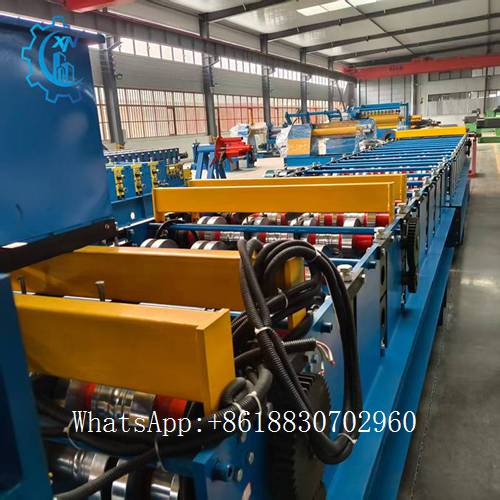

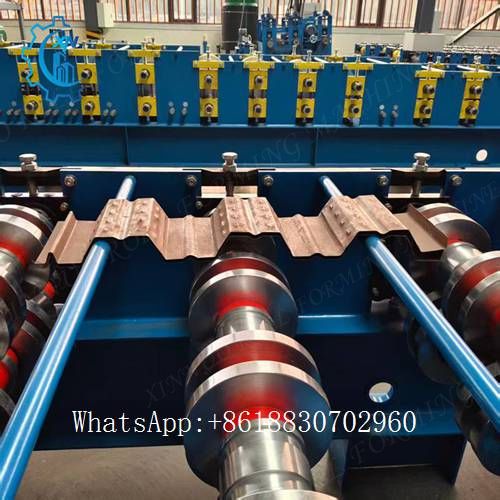

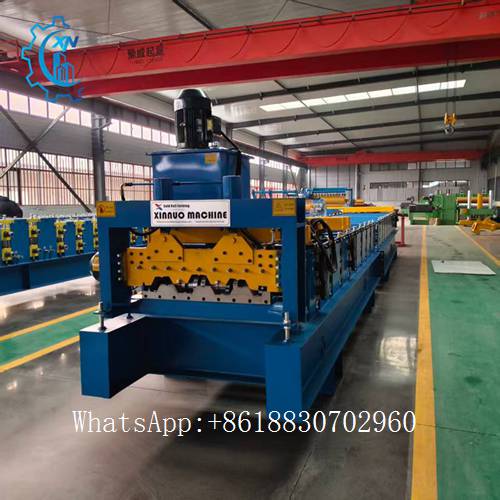

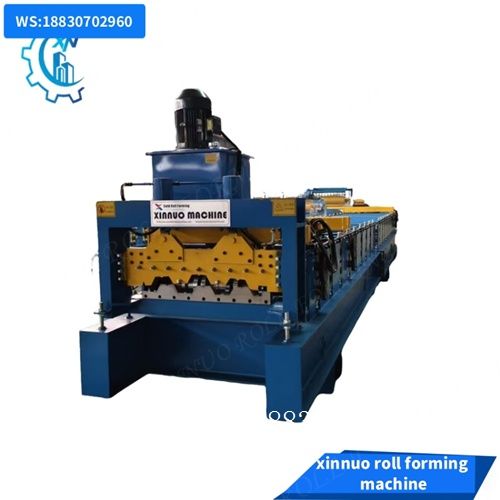

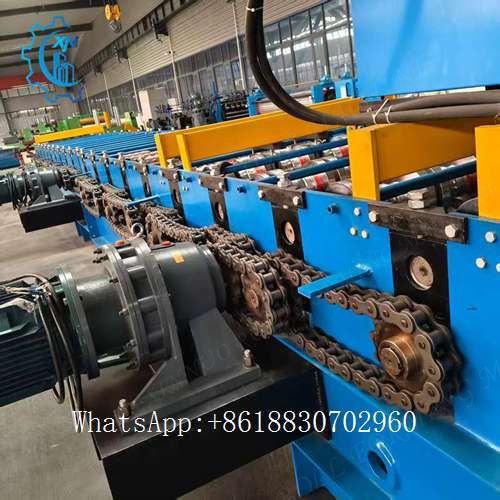

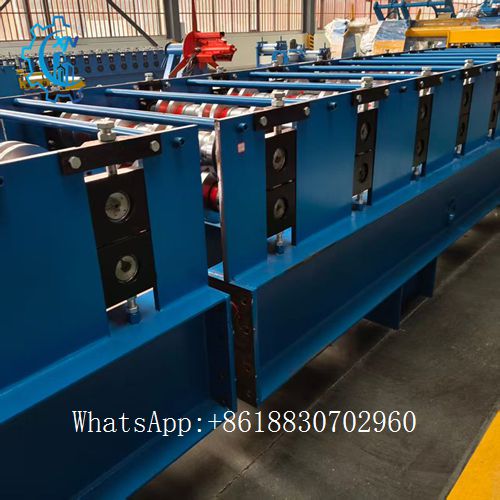

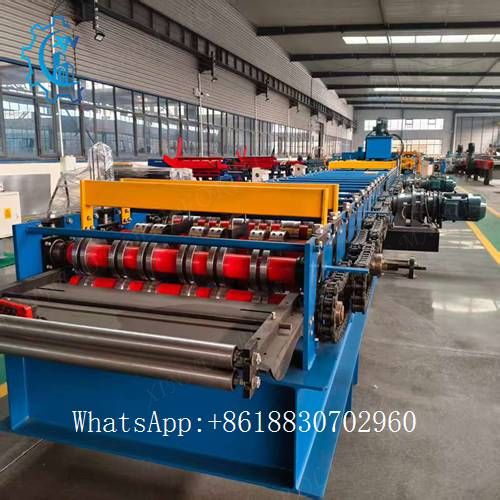

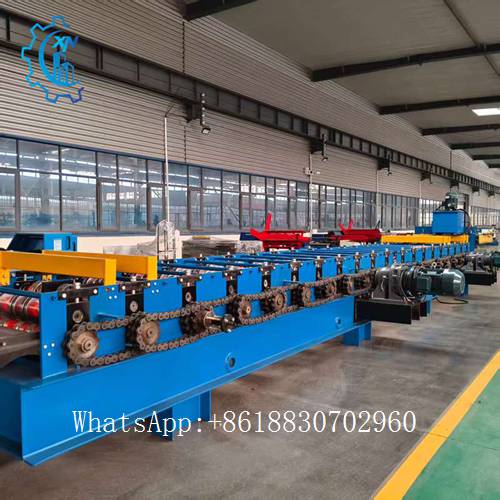

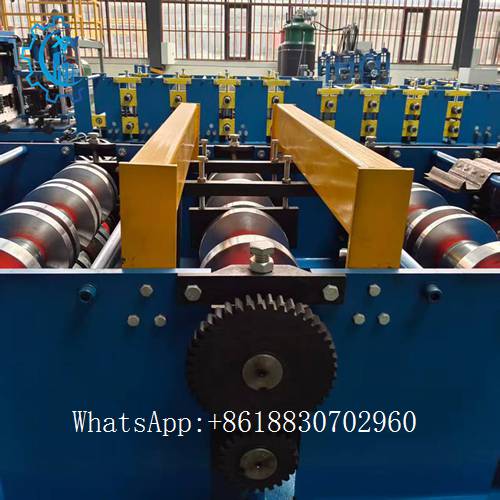

Metal Deck Roll Forming Machine is a modern, pre-eminent solution for concrete floor work.
formed floor deck is controlled within ±0.5mm, ensuring the consistency and standardization of each product, and meeting the strict
requirements of architectural engineering.
|
Parameter Item
|
Specification
|
|---|---|
|
Forming Material
|
Galvanized steel, color-coated steel, cold-rolled steel (thickness: 0.8-3.0mm)
|
|
Coil Width
|
1000-1250mm (customizable according to requirements)
|
|
Forming Speed
|
8-15m/min (adjustable)
|
|
Roller Quantity
|
18-26 sets (depending on floor deck type)
|
|

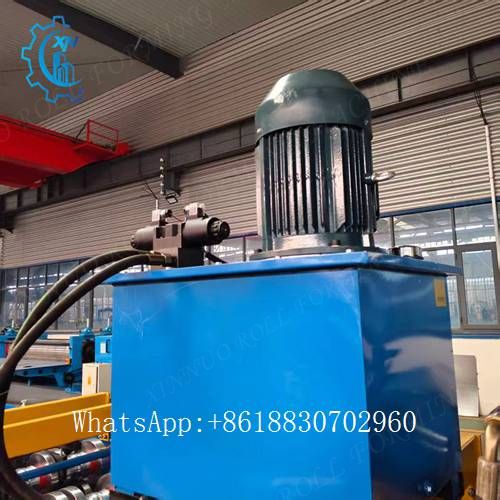

Cutting Method
|
Hydraulic cutting / Mechanical cutting (precision: ±1mm)
|
|
Control System
|
PLC touch screen control, automatic parameter setting
|
|
Power
|
11-30KW (depending on equipment model)
|
|
Overall Dimension
|
6000×1200×1500mm - 12000×1500×1800mm (customizable)
|
|
Weight
|
8-10T (depending on specification)
|
|
Voltage
|
380V/50Hz (customizable for international standards)
|
At XINNUO, we are committed to delivering high-performance metal roll forming machines tailored for global industrial needs. Our equipment offers reliable and flexible production capabilities to meet the demands of modern construction and manufacturing industries.
