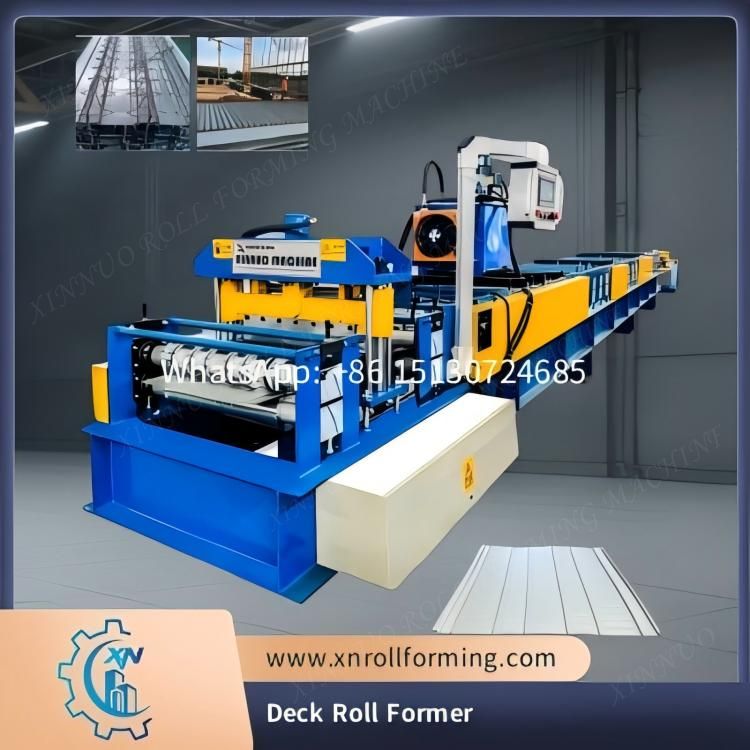

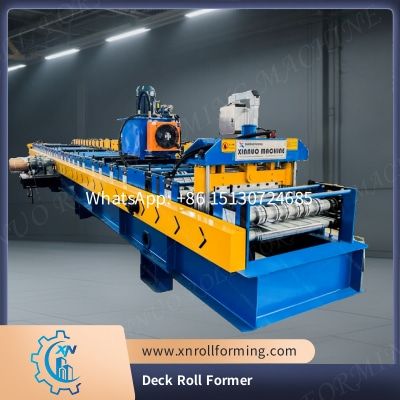

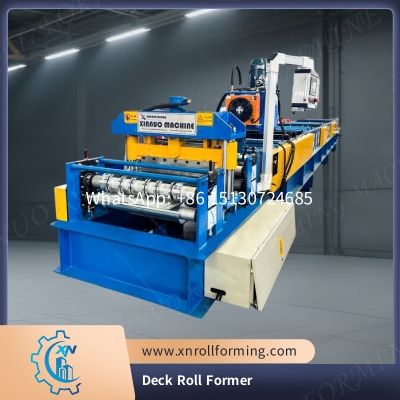

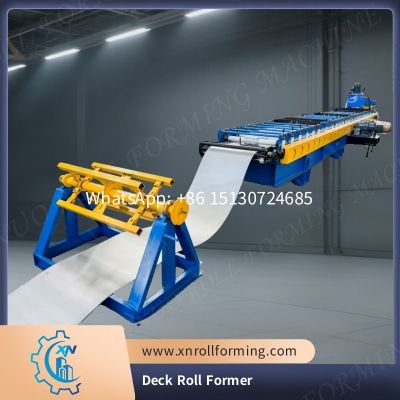

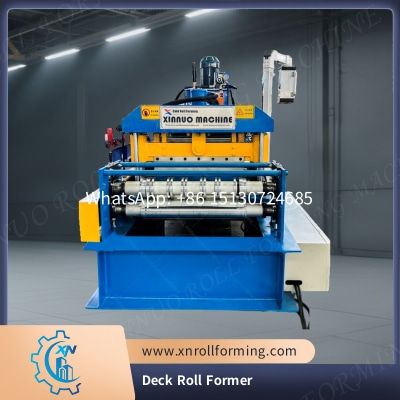

Deck Roll Former

Xinnuo's Deck Roll Former is a high - performance machine designed to meet the diverse needs of the construction and manufacturing industries. This advanced equipment is engineered to transform flat coils of metal into precisely shaped decking profiles with remarkable speed and accuracy.​



Our Deck Roll Former can handle a wide range of materials, including colored steel, galvanized steel, and aluminum. It processes materials with thicknesses typically ranging from 0.5mm to 1.5mm, providing versatility for various applications. The maximum feeding width of the machine is customizable, usually reaching up to 1250mm, ensuring compatibility with different coil sizes.​

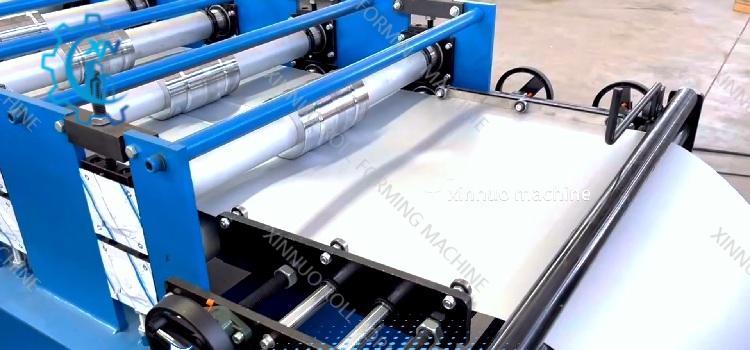

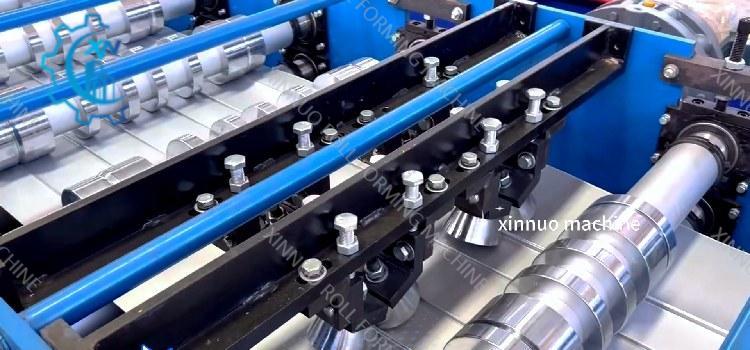

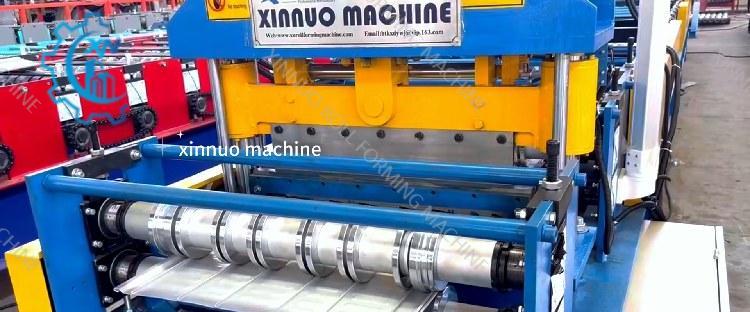

Equipped with a powerful main motor, often in the range of 15kw to 22kw depending on the model, the Deck Roll Former operates with high stability. The forming speed can reach up to 20m/min, significantly enhancing production efficiency. The roll forming system consists of multiple rows of rollers, typically 18 to 24 rows, made from high - quality 45# carbon steel. These rollers, with diameters usually between 80mm and 100mm, are precision - crafted to ensure consistent and accurate profiling of the decking materials.​



The machine is equipped with a state - of - the - art PLC control system, which allows for easy operation and precise parameter adjustment. Operators can quickly set the desired decking profile, length, and production speed, reducing setup time and minimizing material waste. The Deck Roll Former also features an automatic lubrication system, which ensures smooth operation of the rollers and extends the machine's lifespan.​

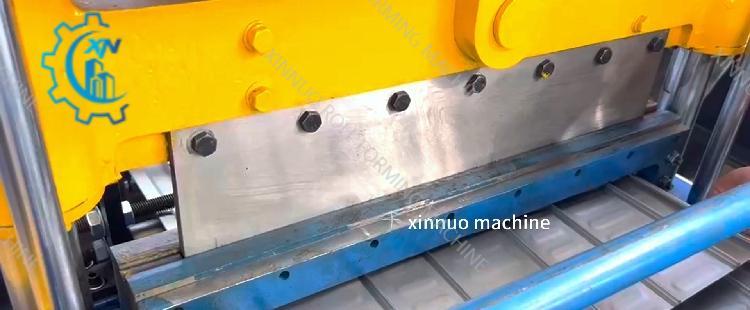

An integrated hydraulic cutting system is another highlight of the Xinnuo Deck Roll Former. The cutting blade, made from high - wear - resistant Cr12 material, makes clean and accurate cuts at the desired lengths. The hydraulic system provides consistent cutting force, ensuring high - quality finished products. Additionally, the machine can be integrated with an optional stacking system, which automatically stacks the formed deck panels, further streamlining the production process.​



Applications​

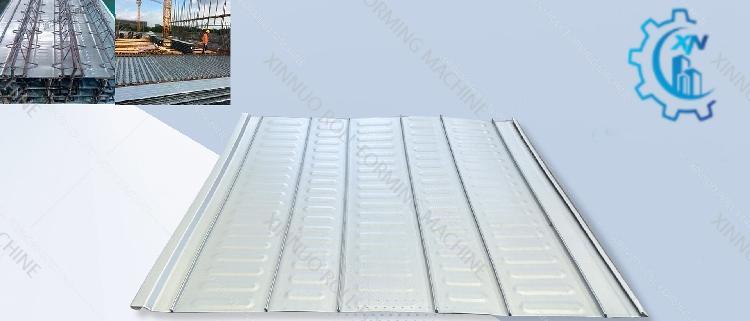

The decking profiles produced by our Xinnuo Deck Roll Former find applications in a variety of settings. In the construction industry, they are widely used for flooring and roofing in industrial buildings, such as factories and warehouses, where their durability and load - bearing capacity are crucial. In commercial buildings, the aesthetically pleasing and weather - resistant deck panels add value to shopping centers, offices, and hotels. For residential projects, the machine can produce deck panels that offer both style and long - term protection against the elements. Moreover, these panels are also suitable for agricultural buildings, providing a cost - effective and durable solution for barns and sheds.​



Standard Deck Roll Former: This model is suitable for medium - volume production and offers basic functionality for creating common decking profiles. It is a cost - effective option for small to medium - sized businesses.​

High - Speed Deck Roll Former: Designed for high - volume production, this model can achieve speeds of up to 20m/min, significantly increasing output. It is ideal for large - scale construction projects and manufacturing plants.​

Customizable Deck Roll Former: For clients with unique requirements, our customizable model allows for the production of non - standard decking profiles. Our engineering team works closely with customers to design and build a machine that meets their specific needs.​

We offer a standard one - year warranty on all our machines, covering any manufacturing defects. Our dedicated after - sales service team is available to provide on - site installation guidance, operator training, and regular maintenance services. We also offer prompt technical support to address any issues that may arise during the machine's operation, ensuring maximum uptime and customer satisfaction. All our machines comply with international quality and safety standards, such as CE certification, giving our customers peace of mind. Whether you are a small - scale fabricator or a large - scale construction enterprise, the Xinnuo Deck Roll Former is your ideal choice for efficient and high - quality deck production.
