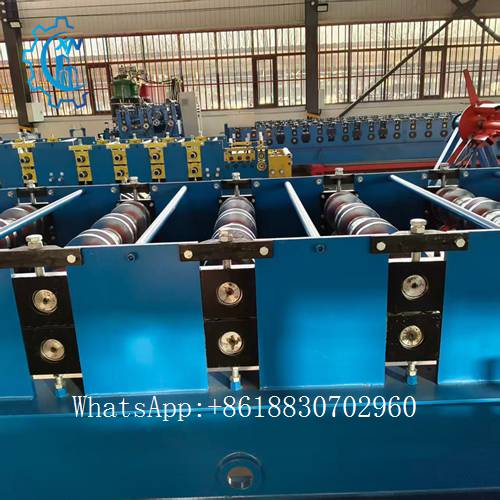

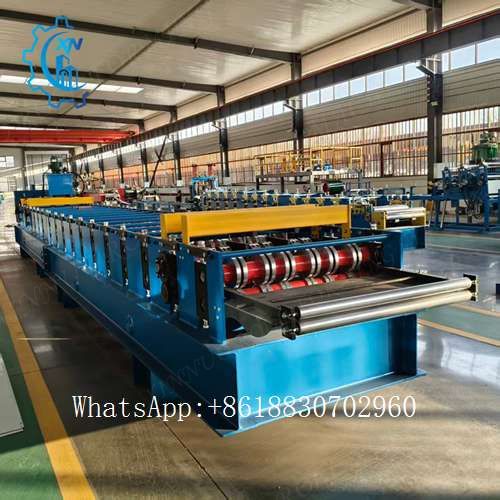

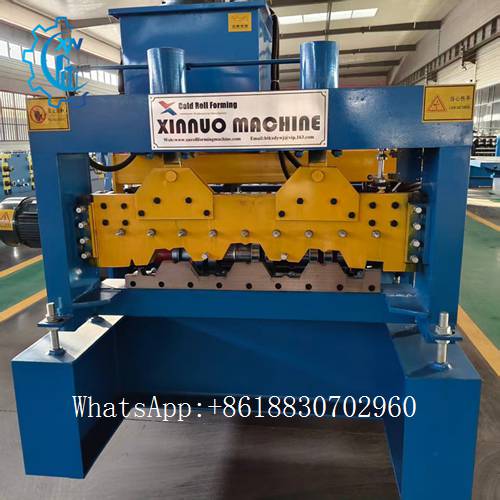

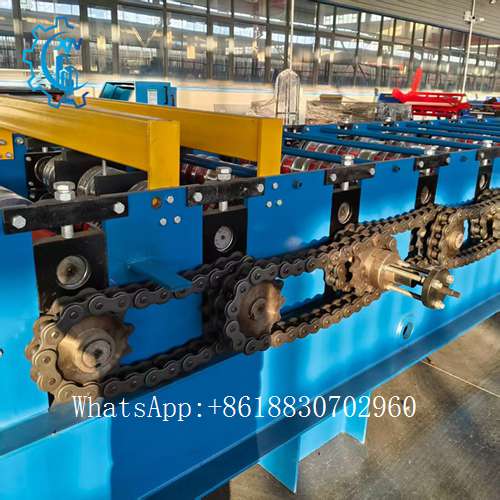

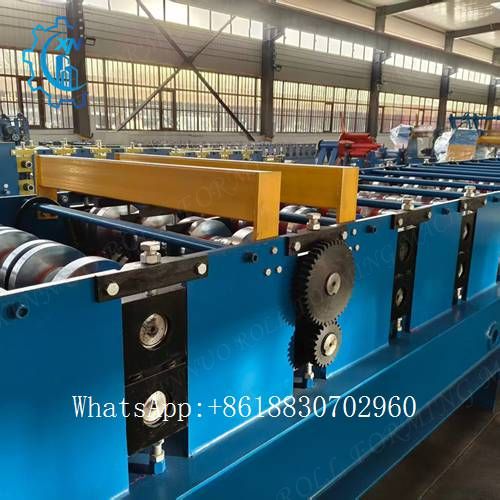

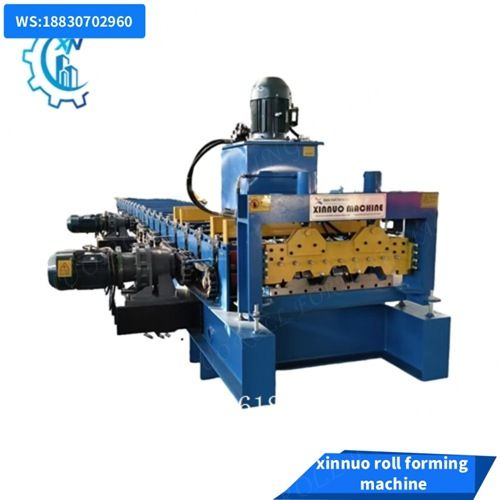

Floor Deck Roll Forming Machine
Product Introduction
Our Cost-Effective Mass-Production Floor Deck Roll Forming Machine is a practical automatic equipment tailored for medium and small-scale floor deck manufacturers. Focusing on stable performance,
easy operation and cost-saving, it is mainly used for mass production of standard composite floor deck, complying with national steel structure building standards. The machine adopts simplified and
reliable structural design, integrating core functions of uncoiling, forming, cutting and stacking, which is suitable for industrial workshops, warehouses, residential buildings and other projects, helping
manufacturers reduce production costs and improve market competitiveness.
Floor deck machine production parameter
|
Parameter Item
|
Specification
|
|
Processing Material
|
Q235, Q355 high-strength steel plate, galvanized steel, stainless steel, aluminum
|
|
Material Thickness
|
0.75-1.35mm
|
|
Coil Width
|
500-950mm (customizable)
|
|
Roll Forming Stages
|
18-25 stages
|
|
Forming Speed
|
8-15m/min
|
|
Profile Error
|
≤±0.5mm
|
|
Cutting Accuracy
|
±1mm/12m
|
|
Uncoiler Load Capacity
|
14 tons (hydraulic expansion, auto centering)
|
|
Control System
|
Siemens S7-1500 PLC + 17-inch touchscreen HMI
|
|
Power Supply
|
380V/50Hz (customizable according to regional standards)
|
|
Overall Dimensions (L×W×H)
|
13m×1.6m×1.8m
|
Core Advantages
- High Efficiency for Mass Production: 16-stage roll forming system, production speed up to 4-8m/min, realizing continuous mass production of standard floor deck, meeting large-order demands.

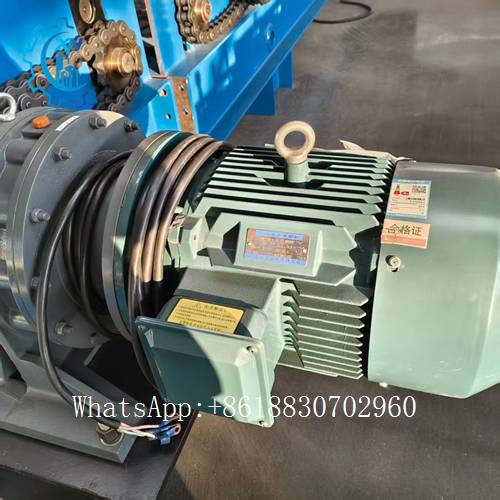

- Cost-Effective & Low Consumption: Optimized structural design, low maintenance cost; energy-saving motor, reducing power consumption by 15%; high material utilization rate, waste less than 3%.
- Easy Operation & Low Threshold: Simple operation panel, ordinary workers can master it in 1 day of training, reducing personnel training costs.

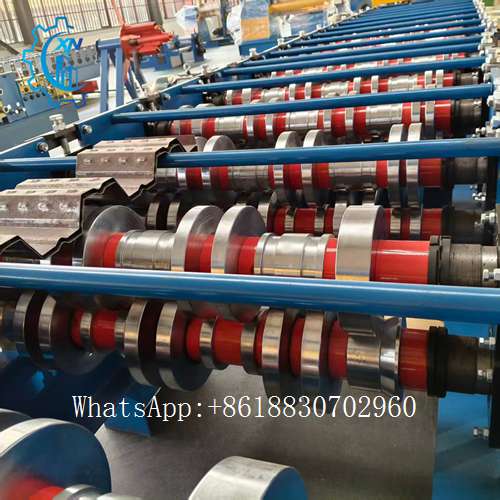

- Stable & Reliable: Integral welded frame, high-quality steel rollers, strong load-bearing capacity, stable operation, reducing downtime.
- Wide Adaptability: Supports production of common floor deck models, compatible with 0.8-1.8mm thick steel plates, adaptable to different project needs.
Product Applications

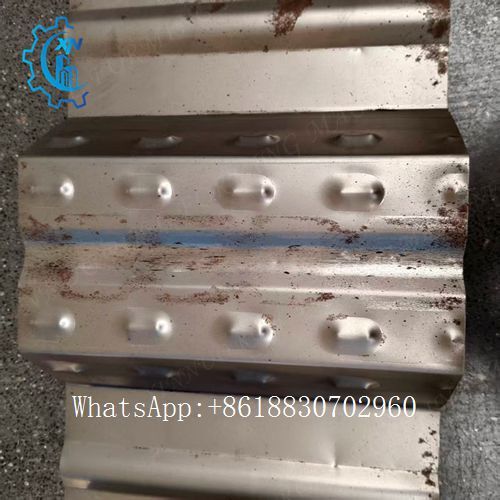

This cost-effective mass-production floor deck roll forming machine is widely applied in the manufacturing of standard composite floor decks, which are essential components for various steel
structure buildings. Its produced floor decks are extensively used in industrial workshops, large warehouses, residential buildings, commercial centers, and small to medium-sized factories.
It is particularly suitable for projects requiring efficient mass production of floor decks, such as urban residential districts, industrial parks, logistics centers, and temporary construction sites.
The machine’s stable performance and adaptable design make it an ideal choice for medium and small-scale manufacturers serving the construction industry, meeting the floor deck needs
of different types of low-rise and multi-storey buildings.
