Floor Deck Roll Forming Machine

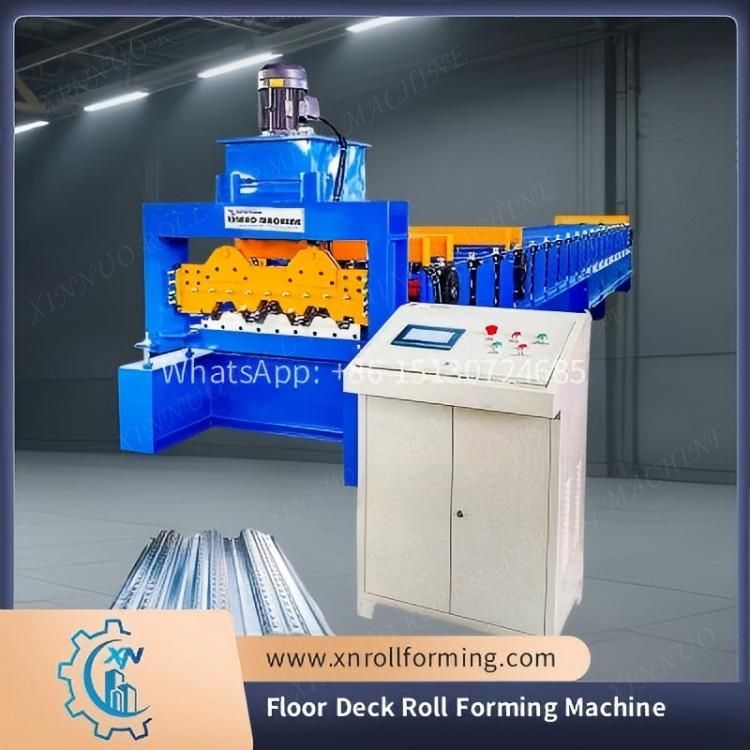

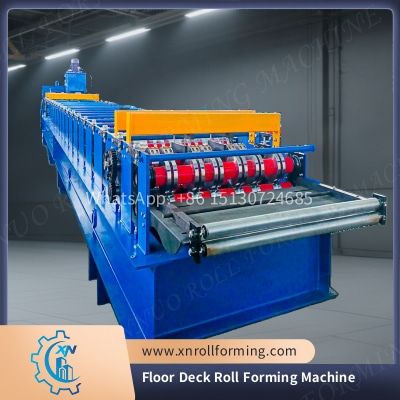

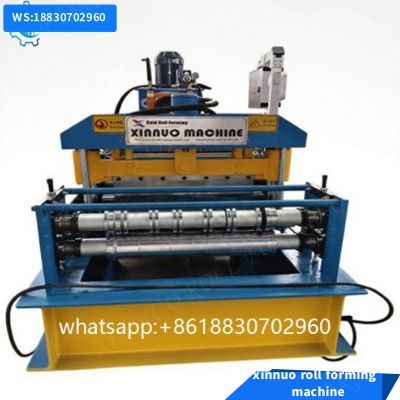

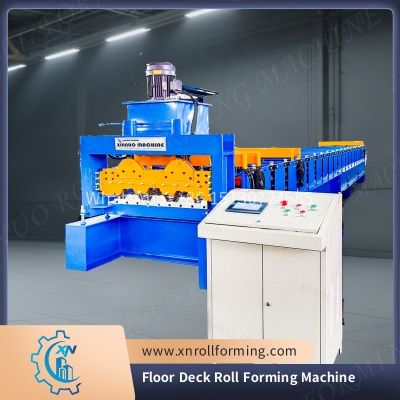

Hebei Xinnuo 1000 Floor Deck Roll Forming Machine – Precision, Strength, and Efficiency for Modern Construction

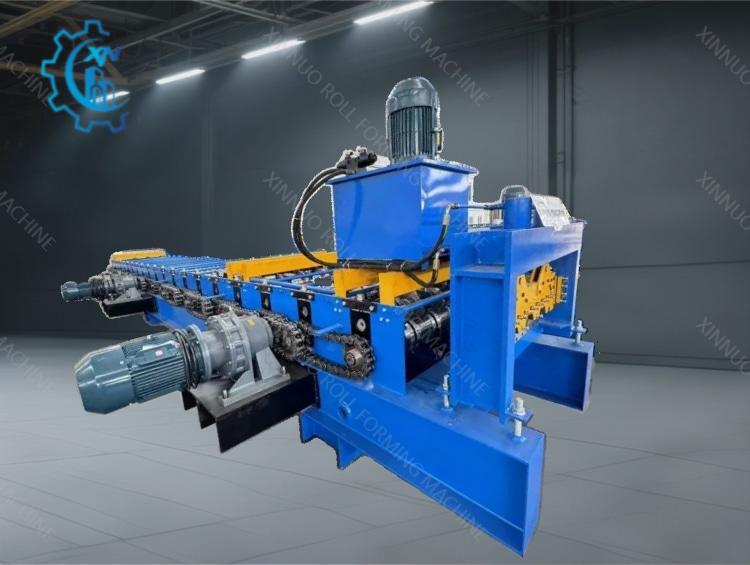

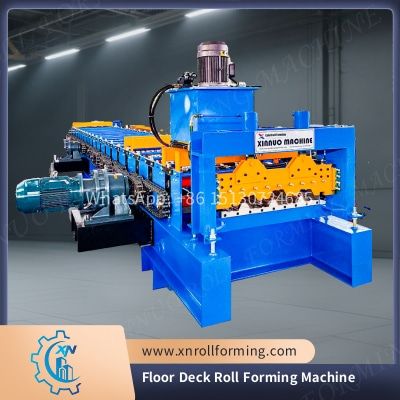

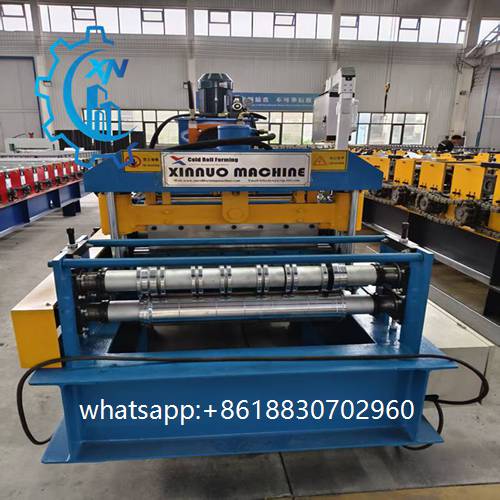

The Hebei Xinnuo 1000 Floor Deck Roll Forming Machine is a high-performance solution designed for producing color steel and galvanized steel floor decking panels with exceptional accuracy and durability. Engineered to handle plate widths from 1200 to 1250mm and thicknesses between 0.8mm and 1.2mm, this machine is ideal for meeting the demanding requirements of commercial, industrial, and residential construction projects.

No. Main parameter of hebei xinnuo 1000 floor deck roll forming machine

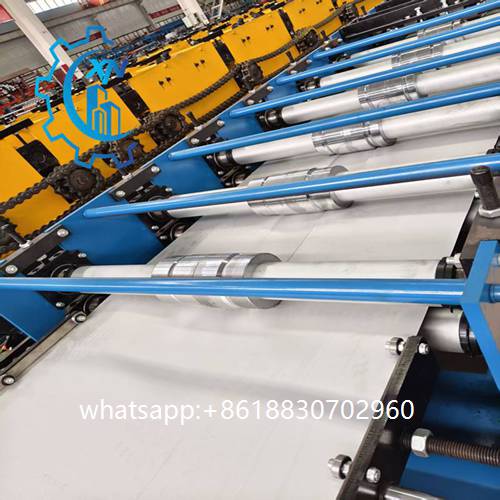

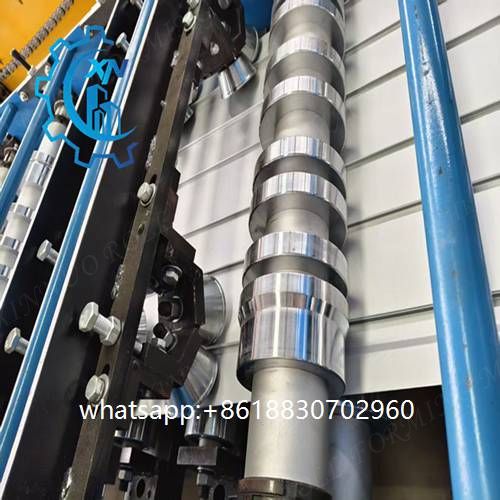

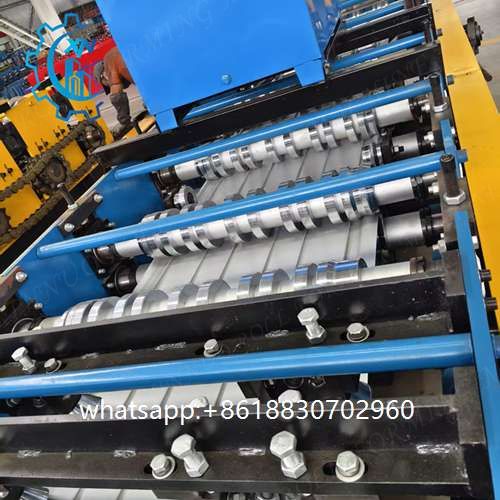

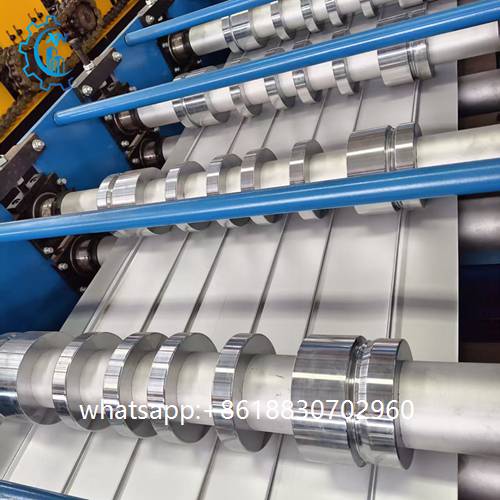

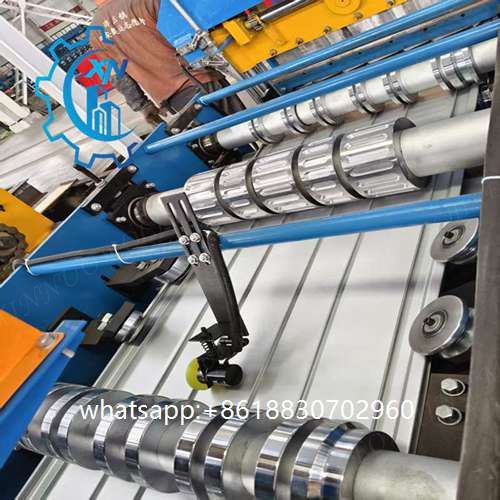

Its robust forming system consists of 24 precision rollers with a 95mm roller diameter, crafted from high-grade 45# carbon steel to ensure consistent shaping and long service life. The manual decoiler can handle up to 5 tons of raw material, supporting uninterrupted production. Driven by a powerful dual motor setup (11kW + 11kW), the machine delivers production speeds of 8–12 meters per minute, striking an optimal balance between speed and product quality.

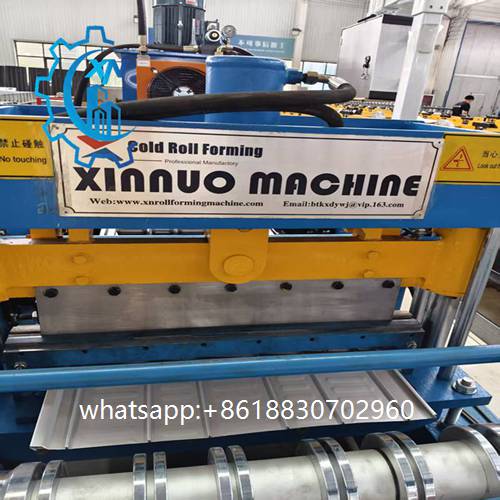

Cutting is handled by a hydraulic mould system with a 4kW hydraulic station, utilizing Cr12MoV cutting blades for superior wear resistance and clean, precise cuts. The processing precision is maintained within ±1.00mm, ensuring that every finished panel meets strict dimensional tolerances. The entire operation is controlled by a Delta PLC system, giving operators intuitive control, stable performance, and efficient workflow management.

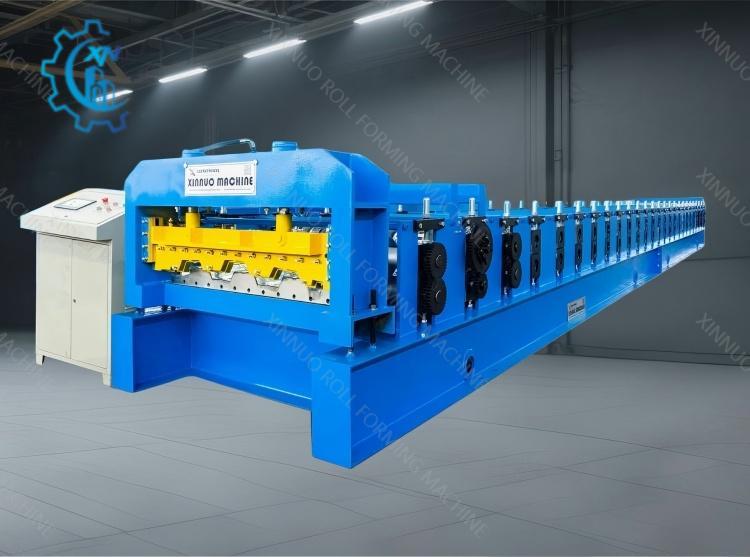

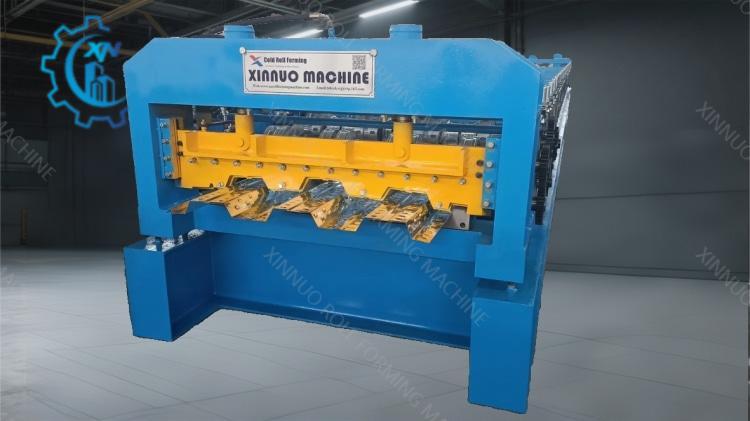

Structurally, the machine is built for longevity and stability. It features a 20mm thick side panel and a main frame constructed from 450H steel, providing excellent rigidity and vibration resistance during high-speed forming. With dimensions of 14.5m × 1.9m × 1.25m and a weight of approximately 15 tons, it offers a stable base for precision manufacturing.

Hebei Xinnuo’s commitment to quality is reflected in its compliance with CE, ISO, and TUV certifications, and the machine can be customized to meet specific project or production requirements. Operating on 380V single-phase power, it is suitable for diverse manufacturing environments worldwide.

Whether for large-scale infrastructure or high-rise buildings, the Xinnuo 1000 Floor Deck Roll Forming Machine ensures high productivity, superior panel quality, and long-term operational reliability. It stands as a cost-effective investment for manufacturers seeking a combination of engineering excellence, production efficiency, and dependable performance in floor deck production.
