Suitable Material ：Galvanzied steel
Width(mm)：1200/1250mm or according to customer’s requirement
Thickness(mm) : 0.8-1.5 or according to customer’s requirement
Yield Strength(Mpa);: 230-300 or according to customer’s requirement
WhatsApp : +8618830702960
decking machine including ：
uncoiler and, coil sheet equipment, roll forming system, post-cutting, hydraulic station, controlling system, supporter table.
| Decoiler Type |
Hydraulic |
| Loading capacity |
5Ton |
| Hydraulic Feeder unit |
Movable with pneumatic up & down |
| Axis Diameter |
85 mm |
| Pre-cutting unit |
Hydraulic way |
| Forming Roller station |
28 groups |
| Main Axis material |
First grade 45# steel heated and quenched |
| Roller material |
First grade 45# steel, Hard Chrome Coated, heated and quenched |
| Roller Structure |
Heavy-duty casting pillar |

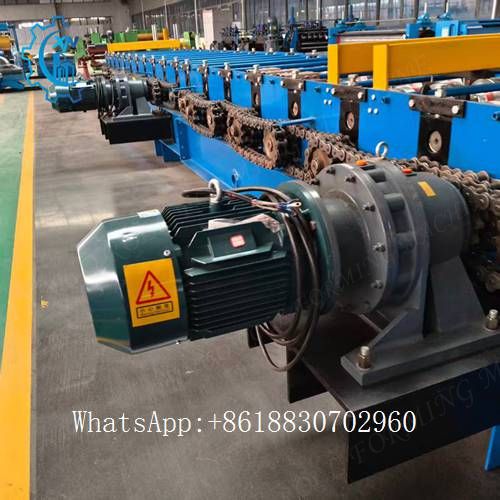

| Drive Type |
1.5’’Chain |
| Machine Frame stand | 10mm steel welded structure |

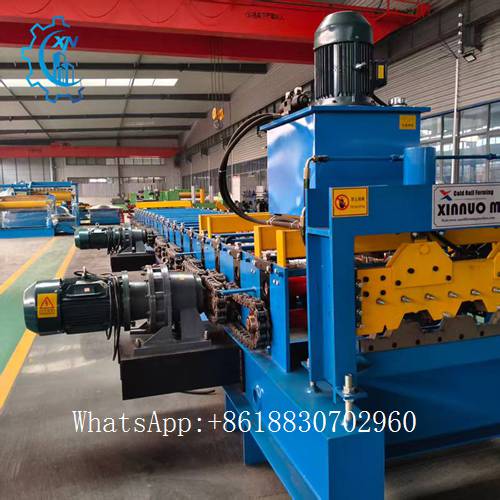

| Cutting type |
Hydraulic Cutter |
| Cutting system power |
7.5KW |
| Cutting length tolerance |
±0.05mm |
| Magnetic valve |
HUADE |
| Cooling system |
Winding type |
| Motor |
Siemens |
| Power |
7.5KW |
| PLC system |
Delta/Panasonic |
| Length Controller |
KOYO |
| Touch Screen |
Delta/Panasonic |
| Inverter |
YASKAWA |
| Voltage |
380V/50Hz/3P |
Machine Components
| No | Name | Quantity | Remarks | |
| 1 | Decoiler | 1set | Up to customer | |
| 2 |
Main machine |
Pre-cutting device | 1set | Up to customer |
| Feeding device | 1set | |||
| Roll forming system | 1set | |||
| Post cutting device | 1set | |||
| Hydraulic system | 1set | |||
| 3 | Electric control system | 1set | ||
| 4 | Supporter/Automatic Stacker | 1set | ||
Metal Roof Decks are available in 1-1/2” Deep Type A (narrow rib), Type F (intermediate rib), Type B (wide rib), or 3” Deep Type N (Deep Rib).
Narrow Rib or Type A :
Type A or Narrow Rib Roof Deck is a 1 1/2″ deep, narrow rib, structural metal roof deck section that provides a wide support surface for various types of roofing materials, and thinner rigid insulation.
Wide Rib or Type B :
Type B or Wide Rib Roof Deck is a 1 1/2″ deep, wide rib, structural metal roof deck section that provides a support surface for various types of roofing materials, and 1” or thicker rigid insulation.
Intermediate Rib or Type F :
Type F or Intermediate Rib Roof Deck is a 1 1/2″ deep, intermediate rib metal roof deck that provides an economical roofing system of structural load carrying capacity and roofing insulation materials.
Deep Rib or Type N :
Type N or Deep Rib Roof Deck is a 3″ tall, deep rib metal roof deck, that is designed to provide an economical roofing support surface when longer spans are required between roofing supports.
At XINNUO, we are committed to delivering high-performance metal roll forming machines tailored for global industrial needs. Our equipment offers reliable and flexible production capabilities to meet the demands of modern construction and manufacturing industries.
