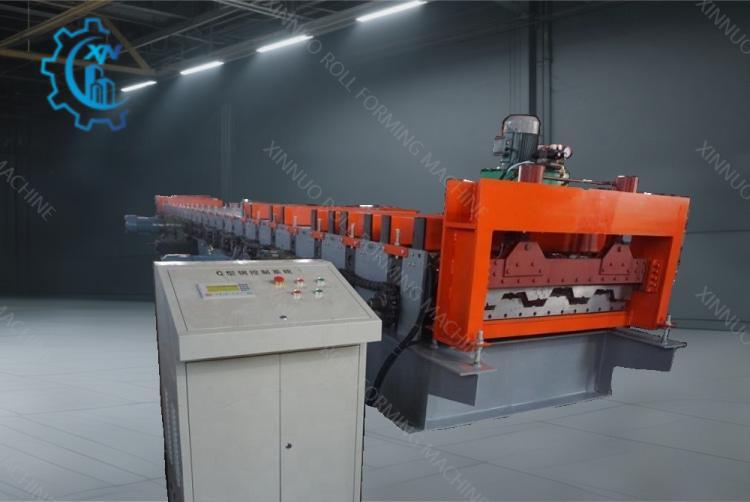

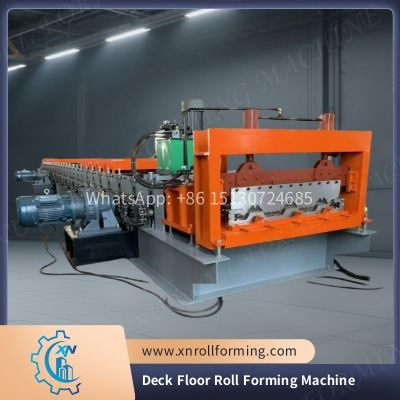

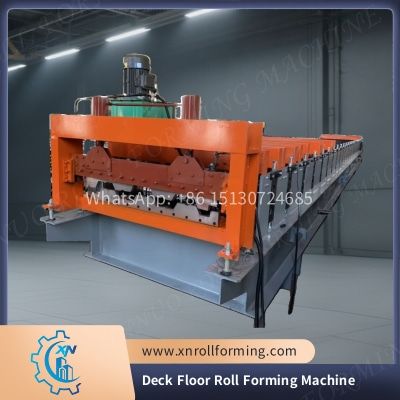

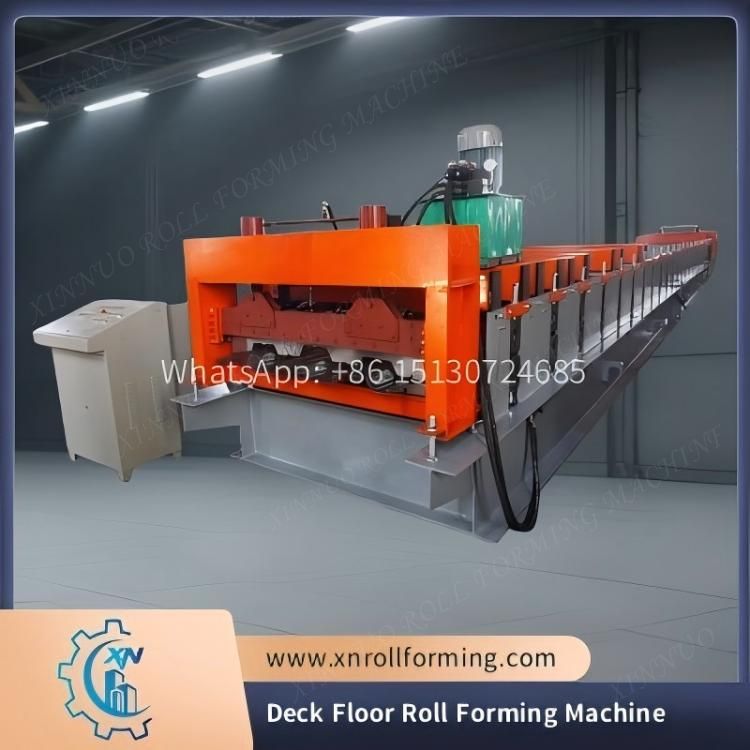

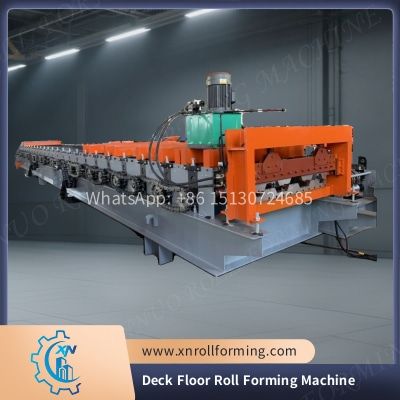

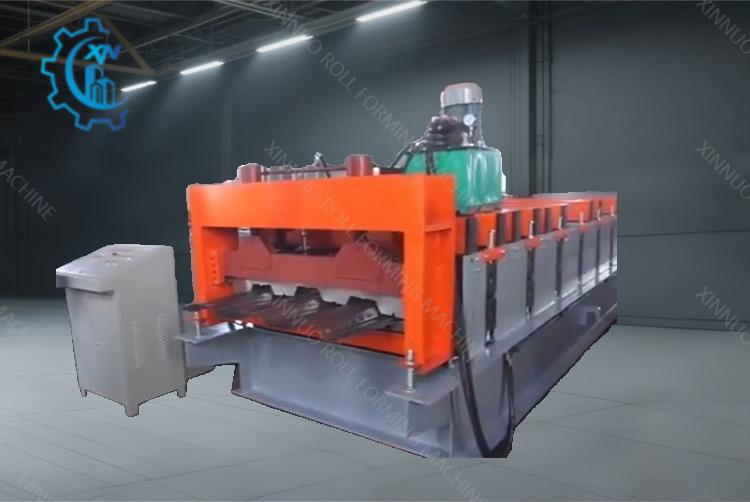

Deck Floor Roll Forming Machine

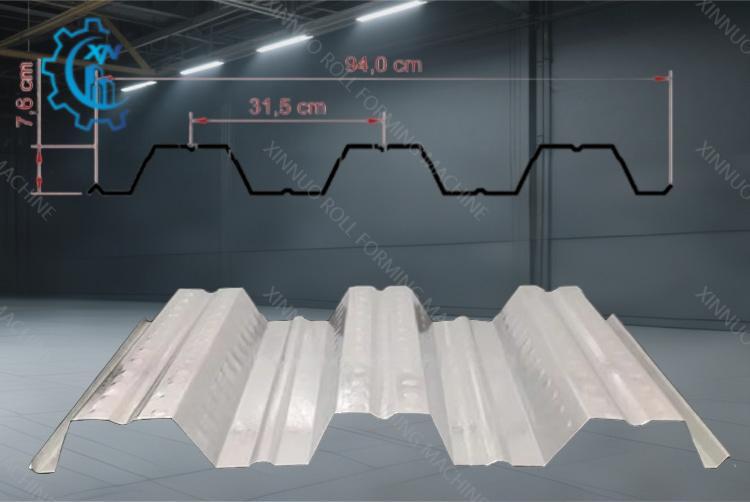

The Xinnuo Deck Floor Roll Forming Machine is designed to deliver robust, high-performance solutions for manufacturing precision steel deck flooring panels. Engineered with industrial-grade durability, it processes color steel plates up to 1219mm wide and with thicknesses ranging from 0.8mm to 1.2mm, ensuring adaptability for various construction needs.

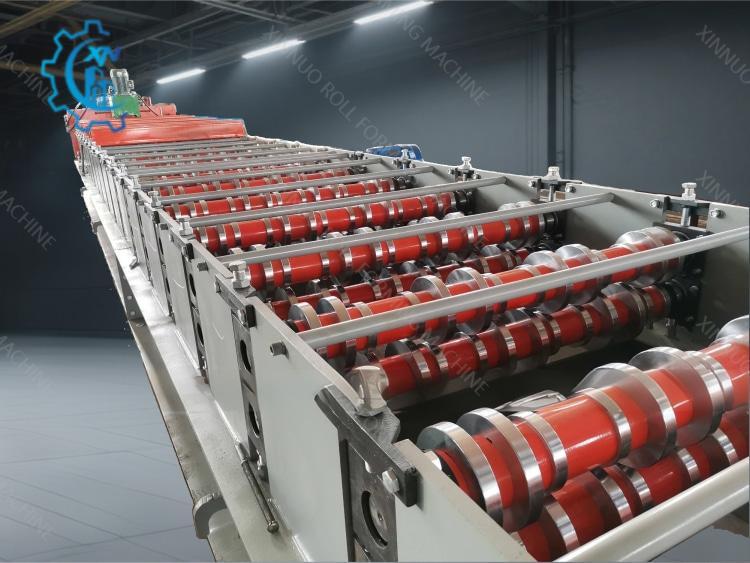

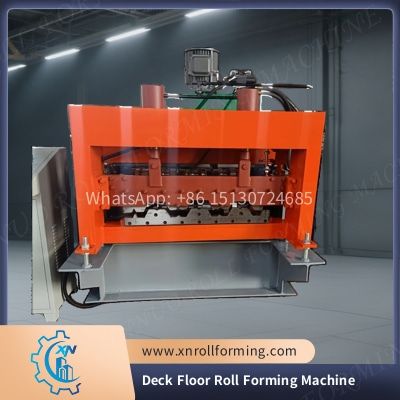

This model features a manual decoiler capable of loading up to 5 tons of raw material, allowing uninterrupted production runs with minimal downtime. It utilizes 24 rows of rollers with an 85mm diameter, manufactured from Carbon Steel 45# for excellent wear resistance and consistent shaping accuracy. The main motor, rated at 18kW, works in harmony with an 11kW hydraulic cutting system, ensuring smooth, clean cuts with processing precision maintained within ±1.0mm.

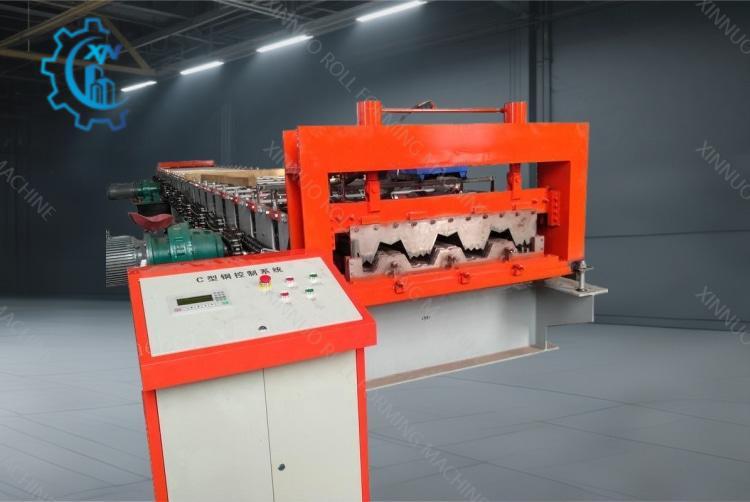

The cutting blades are made from Cr12 Mov steel, known for its exceptional hardness and long service life, making it ideal for heavy-duty production cycles. A Delta PLC control system offers user-friendly operation, precise automation, and reliable control over forming and cutting sequences.

The machine’s structural strength comes from its 350 H steel frame and 16mm thick side panels, which enhance stability and minimize vibration during high-speed operation. Despite its heavy-duty build — weighing approximately 5 tons — its overall footprint of 8.5m × 1.6m × 1.6m makes it suitable for both medium-sized and large-scale manufacturing facilities.

Operating at 380V / 50Hz / 3-phase (with customizable voltage options), this equipment meets CE and ISO certification standards, ensuring compliance with international safety and quality benchmarks. Additionally, Xinnuo offers customization to meet specific client requirements, from panel profile design to enhanced automation functions.

With its combination of strong material compatibility, high-precision forming, and efficient cutting, the Xinnuo Deck Floor Roll Forming Machine is particularly recommended for companies engaged in steel structure construction, commercial building flooring, and large-scale infrastructure projects. It provides not only consistent product quality but also long-term operational reliability, reducing maintenance costs and maximizing output.

Choosing this model means investing in a solution that balances performance, precision, and durability — backed by Xinnuo’s industry expertise and commitment to engineering excellence. Whether for new production lines or upgrading existing facilities, it stands as a dependable, cost-effective choice for professional steel deck manufacturing.
