Deck Roll Forming Machine

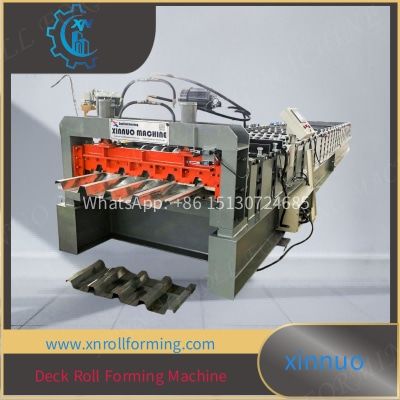

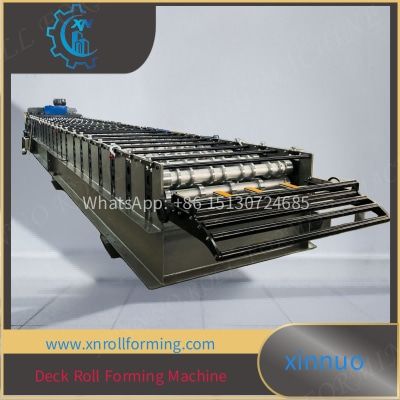

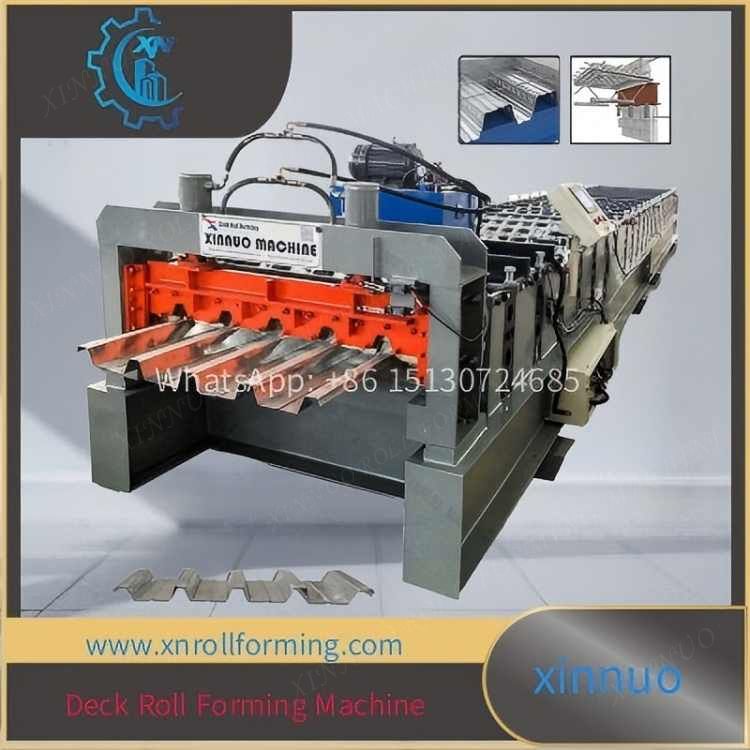

Xinnuo 1000 Automatic Floor Deck Roll Forming Machine – Built for Strength, Precision, and High Output

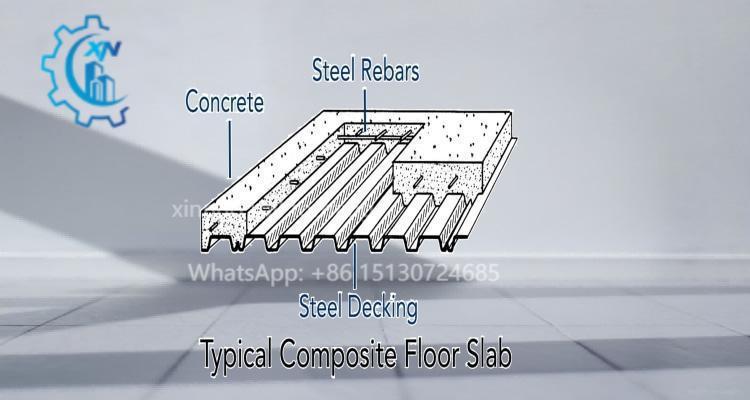

The Xinnuo 1000 Automatic Floor Deck Roll Forming Machine is a heavy-duty and high-speed production line tailored for manufacturing metal floor decking used in steel structure buildings, bridges, commercial complexes, and industrial plants. Designed with robust construction and smart automation, it offers an optimal solution for companies seeking consistent quality, structural integrity, and operational efficiency.

Wide Material Adaptability

This machine can handle a wide range of raw materials including color-coated steel plates, galvanized sheets, and aluminum coils, making it suitable for diverse industrial flooring applications. With a feeding width of 1000 mm and the ability to process material thicknesses from 0.8 mm to 1.2 mm, it meets the needs of most standard deck designs.

Strong and Stable Forming System

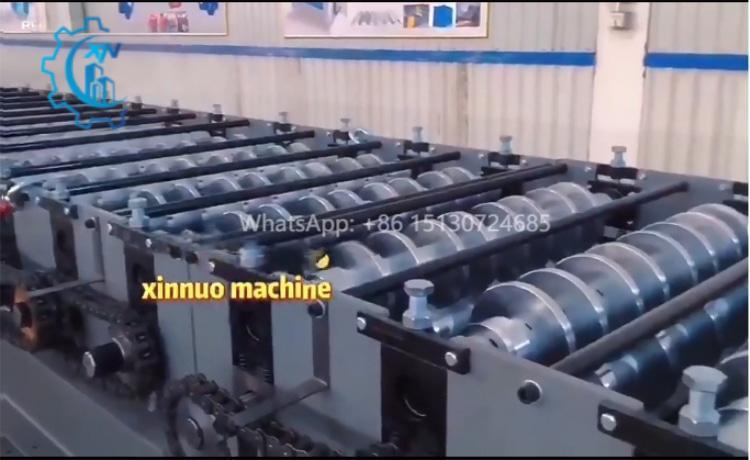

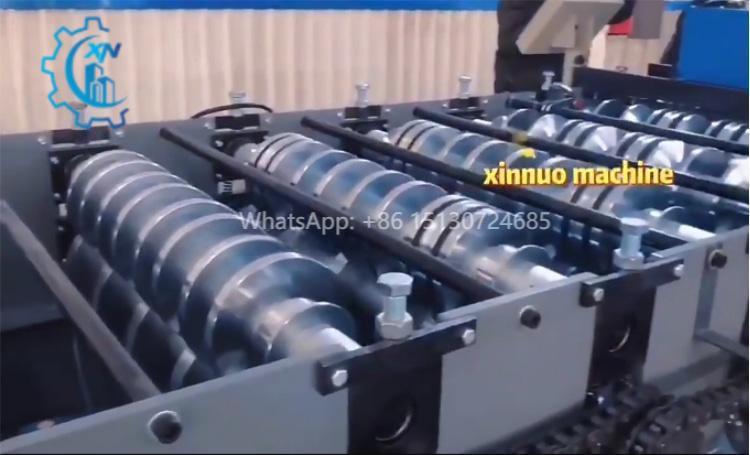

The roll forming section includes 24 precision-aligned roller stations, each built using 90 mm diameter shafts for strong torque transmission and long-lasting performance. The rollers are made from hardened 45# carbon steel, providing excellent resistance to wear and deformation over time. A Cr12 cutting plate is used in the hydraulic cutting unit to ensure clean and accurate cuts with minimal edge damage.

High Productivity and Intelligent Control

Powered by a 22 kW main motor, the machine can reach forming speeds of 8–12 meters per minute, making it highly productive for large-scale flooring panel production. The integrated PLC control system automates the workflow, providing digital precision and allowing for real-time adjustments to length, batch, or cutting parameters.

Industrial-Grade Frame and Support Structure

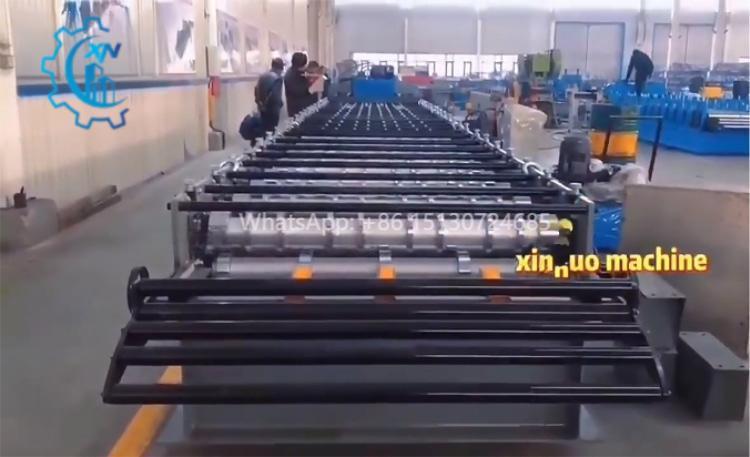

To withstand the heavy-duty workload, the machine is built on a 450 mm H-beam steel base and features 20 mm thick steel side plates, offering exceptional rigidity and vibration resistance. The total machine weight is approximately 14 tons, and its footprint measures 10,500 × 1600 × 1700 mm, suitable for installation in large manufacturing workshops.

Customization and Support

Xinnuo offers the ability to customize deck profile shapes, embossing patterns, and cut lengths according to client drawings or project specifications. The machine is CE/ISO certified and comes with technical documentation, training options, and after-sales support.

Conclusion

With its heavy-duty structure, high-speed output, and automated precision, Xinnuo’s 1000 Floor Deck Roll Forming Machine is the ideal solution for any company producing steel decking at industrial volumes. It delivers the strength, accuracy, and reliability essential for modern construction material manufacturing.
