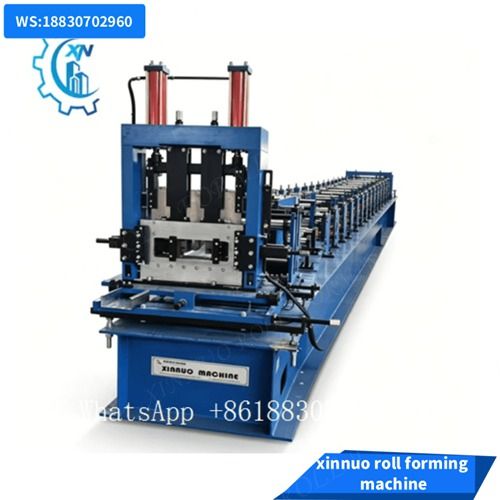

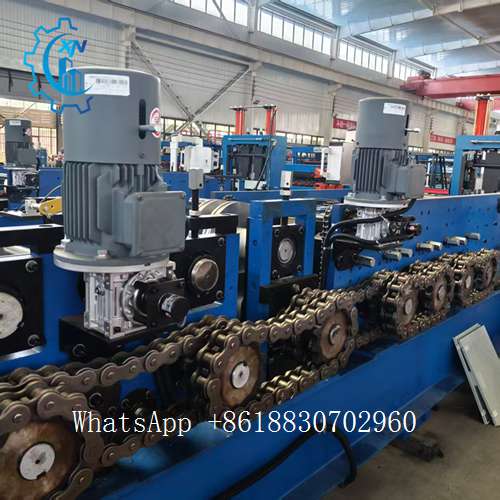

Automatic Interchangeable CZ Purlin Roll Forming Machine

This automatic CZ purlin roll forming machine is specially engineered for Indian steel fabricators and purlin manufacturers, to produce C‑channel and Z‑channel purlins for PEB steel warehouses, factory buildings and industrial roofing projects.

One machine can produce multiple sizes of C & Z purlins without changing forming rollers. Support galvanized steel(GI), PPGI raw material, widely used in India local steel structure market.

Main Machine Composition

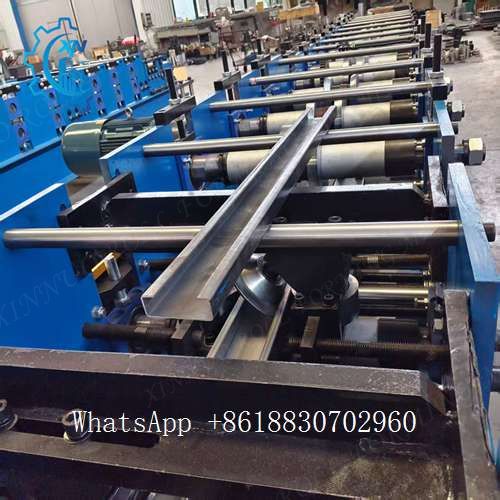

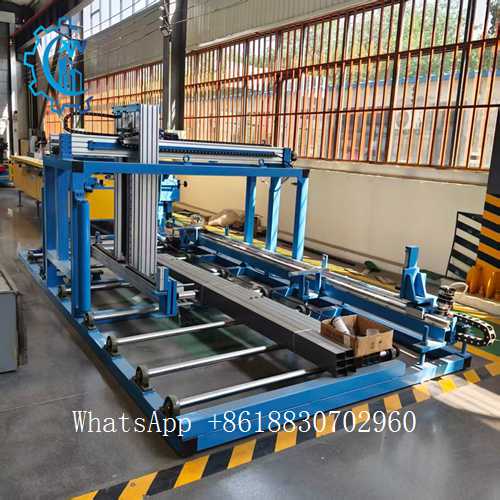

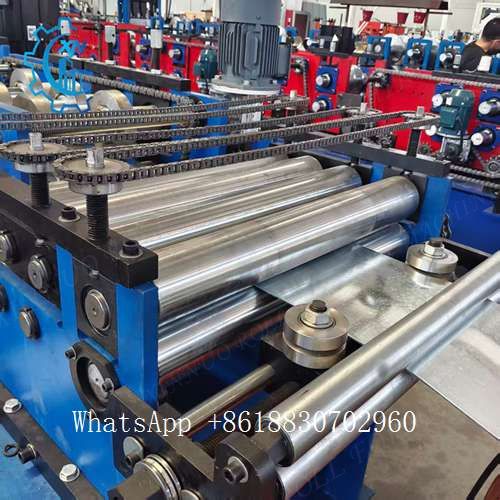

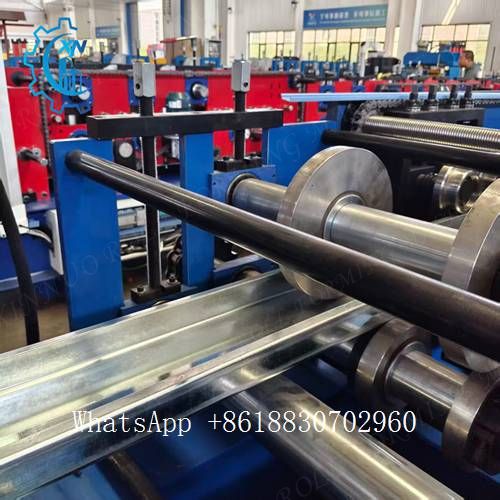

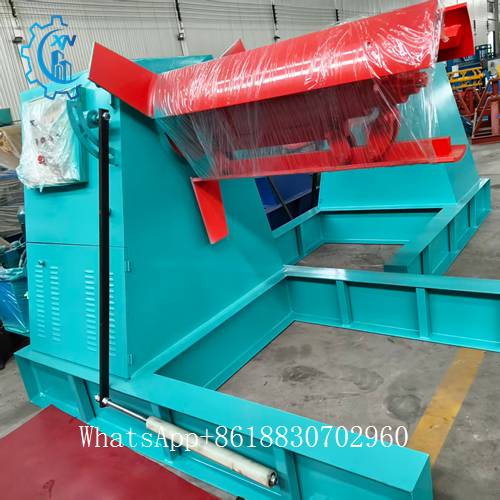

Hydraulic decoiler → Feeding & guiding unit → Roll forming system → Hydraulic punching station → Hydraulic cutting system → PLC control cabinet → Output table

Application

Produce C & Z steel purlins for PEB buildings, industrial workshops, warehouses, factory roofing & wall framing projects in India.

Technical Parameters

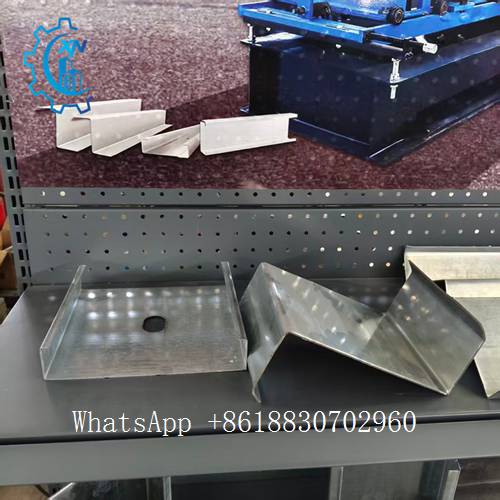

Produced profile: C purlin, Z purlin

Web height range: 80‑300 mm (popular size in India)

Material thickness: 0.8‑2.0 mm GI / PPGI steel coil

Forming speed: 12‑18 m/min

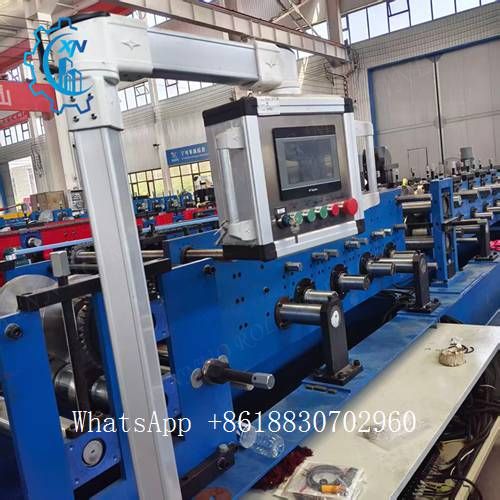

Control system: PLC + Touch screen (English)

Power supply: 3‑Phase, 415V, 50Hz (India standard)

Cutting way: Hydraulic post‑cut

Raw material coil: Galvanized steel, PPGI

Working process: Decoiling‑feeding‑forming‑punching‑cutting‑finished output

Key Features for Indian Market

Quick C/Z profile & size adjustment: Stepless size adjustment, switch between C purlin and Z purlin quickly, reduce production downtime.

Heavy‑duty machine frame: Welded thick steel frame, solid forming shafts, hardened rollers for long service life, stable running under continuous heavy‑load production.

Local power adaption: Support India standard 3‑phase 415V‑50Hz power supply. PLC touch screen with English language interface, easy operation for local workers.

Universal hydraulic cutting: No need to change cutting blade when switching different purlin sizes.

Accurate punching & fixed‑length cutting: Automatic hole punching and fixed‑length cutting, finished purlin with good dimension tolerance.

Reliable after‑sales support: Provide remote video commissioning, operation training and spare‑parts supply for Indian customers.

FAQ

Q1: Can this machine work with India local 415V‑50Hz power supply?

A: Yes. Hebei Xinnuo factory can configure the electric cabinet to match Indian standard 3‑phase 415V 50Hz power supply. The PLC touch‑screen supports English language for local operators.

Q2: How fast can we switch between C purlin and Z purlin on this machine?

A: This interchangeable CZ purlin machine supports stepless size adjustment. Switching between C profile and Z profile takes several minutes, no need to change forming rollers, greatly reduce production downtime for Indian purlin manufacturers.

Q3: What is the machine warranty and after‑sales support from Hebei Xinnuo?

A: 12‑month warranty for whole machine (excluding wearing parts). We provide remote video guidance, operation training and lifetime technical support. Spare parts can be supplied quickly from our Hebei Xinnuo factory.

Q4: Can this CZ purlin machine run GI galvanized steel coil widely used in India market?

A: Sure. It is designed for GI and PPGI steel coil within 1.0‑4.0 mm thickness, perfectly fit for local PEB warehouse and steel structure projects in India.

Q5: What is your loading and delivery lead‑time after order confirmation?

A: Normally Hebei Xinnuo factory needs 60‑90 working days for production. Exact lead‑time will be confirmed according to your final machine configuration.
