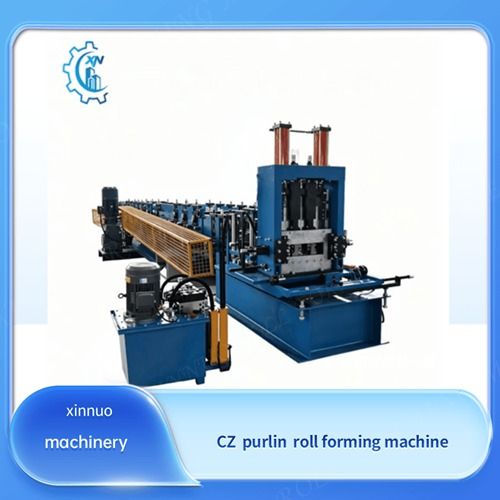

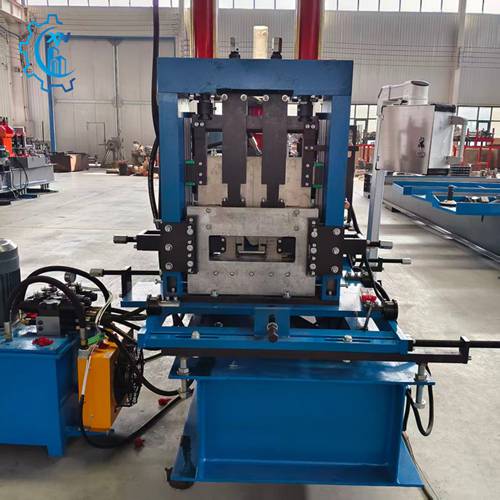

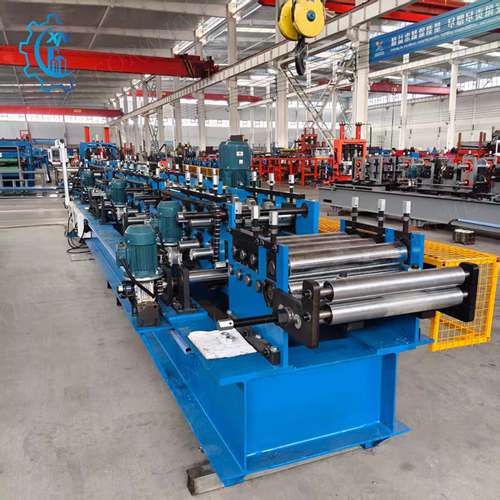

Auto CZ purlin machine, C channel roll forming machine
C&Z shape and multi sizes produced by one machine
Auto change size, auto punch holes, easy operate
Suitable for thickness 1.5-3.0mm
Web size 80-300mm
Flange size 40-80mm
Fast speed 0-15m/min
XINNUO CZ purlin roll forming machine is an automatic change shape machine, which can produce C and Z , it can interchange automatically, we adopt arch structure which let me machine more stable when running, following is our machine advantage:
1. Flexible and changeable, saving production time
2.Multiple specifications and large plate types
3. Digital automatic type change, one-button automatic type change, high practicality, simple operation
|
Material |
Type |
Colored or galvanized steel sheet |
|
Thickness（mm） |
1.5-3.0 |
|
|
Yield stress（Mpa） |
235-350 |
|
|
Max. Forming speed（m/min） |
0-15m/min |
|
|
Roller material |
GCr15 steel with hard chrome treatment |
|
|
Roller driven type |

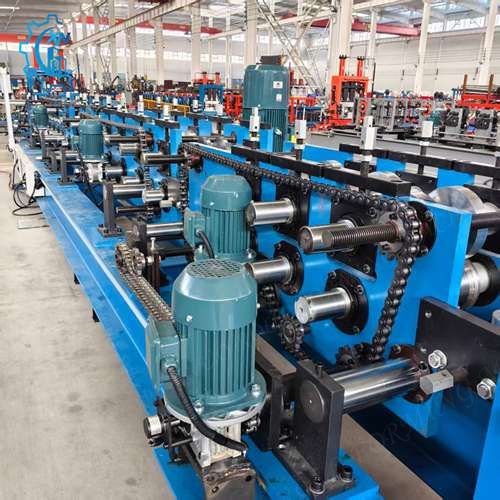

Chain transmission |
|
|
Controller |
PLC |
|
|
Operation |
Touch screen and button |
|
|
Hydraulic system pressure（Mpa） |
12 |
|
|
Hydraulic station motor power（KW） |
18.5 |
|
|
Main motor power（KW） |
5.5 |
|
|
Total weight（Kg） |
About 8000 |
|

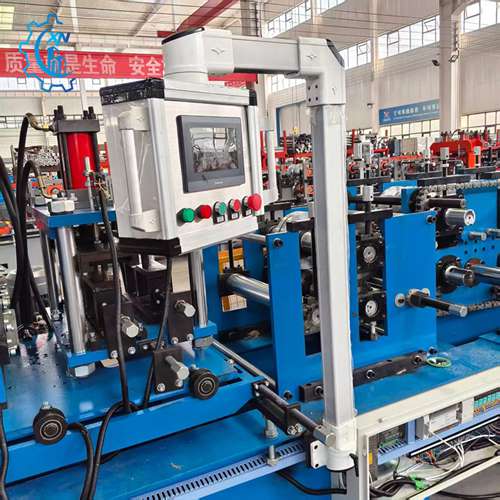

PLC Contrl Systerm

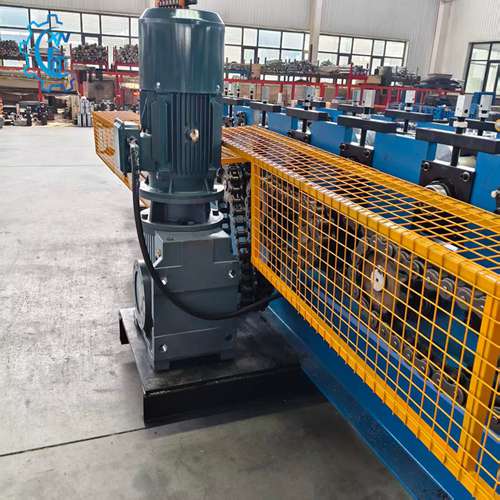

Servo Main Motor

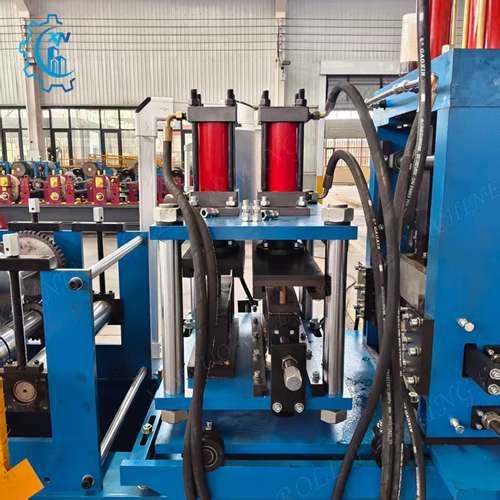

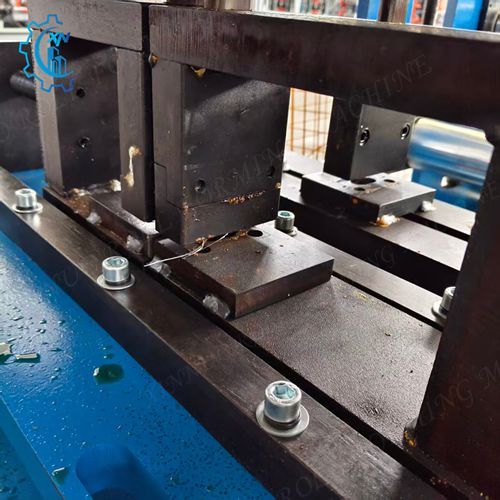

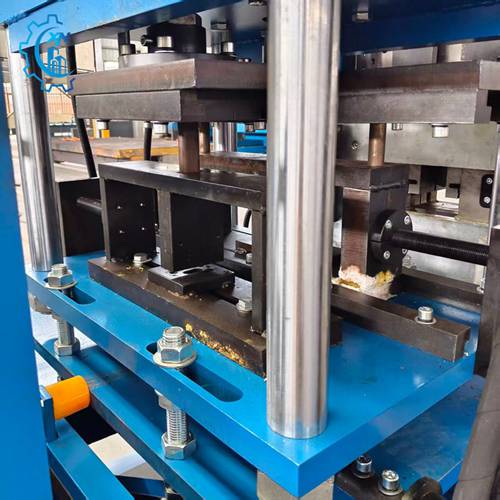

Punch syeterm
At XINNUO, we are committed to delivering high-performance metal roll forming machines tailored for global industrial needs. Our equipment offers reliable and flexible production capabilities to meet the demands of modern construction and manufacturing industries.
