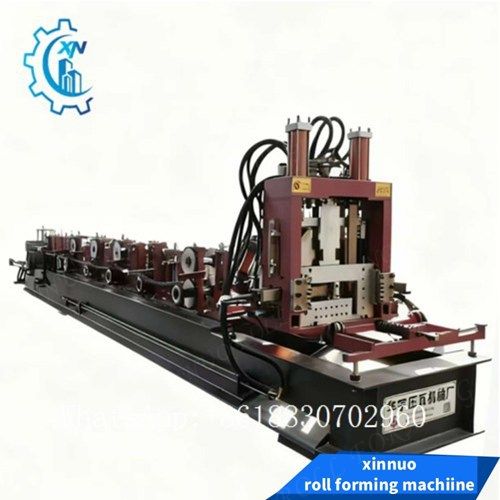

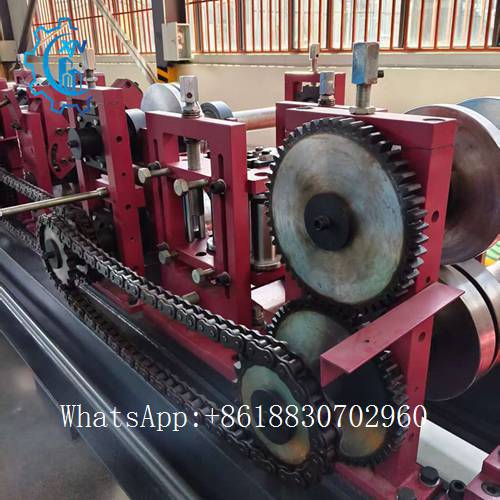

c100-300/z120-300 cz purlin roll forming machine

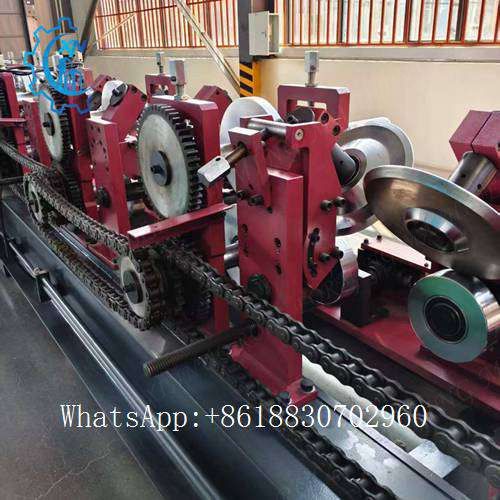

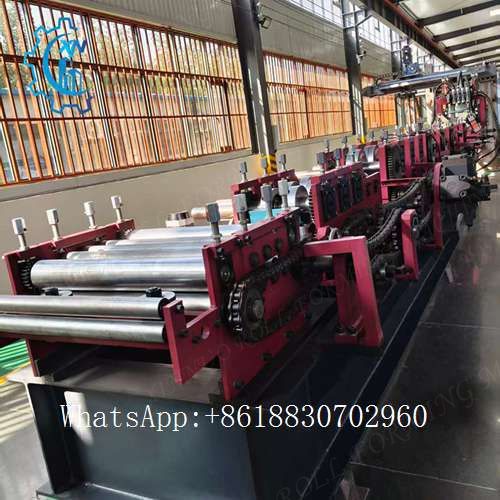

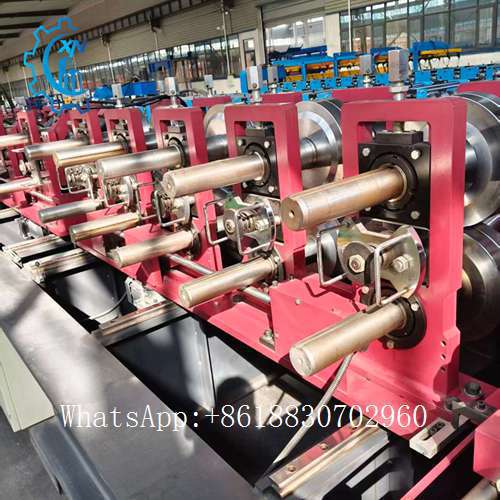

    Xinnuo CZ purlin machine, a classic model designed for mid to high-end customers seeking exceptional performance and stability. With 21 roll forming stations, this machine offers double straightening for higher accuracy, ensuring your output meets the highest standards. The width range of 80-300mm and thickness range of 1.0-3.0mm provides versatility in production and can meet the needs of various projects.

a) Fully automatic type: purlin size change and CZ interchange both are controlled by PLC and operating on touch panel, within 1 minute.

b) Semi-automatic type: purlin size change by press button, CZ interchange change manully (within 10 minutes)

c）As the leading and one of biggest C&Z Purlin Machine manufacturer in China, We have over 30 years of production experience.We guarantee you the quality of our products.

d)Technical Parameters

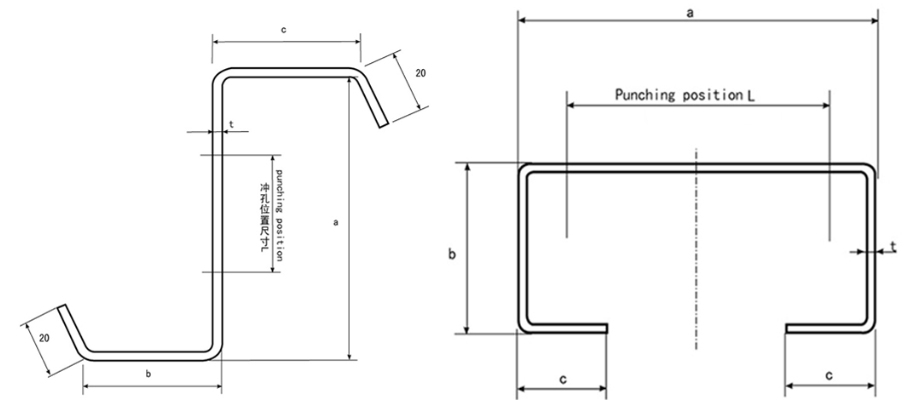

e)Standard Shape Profile (also can be customized)

C purlin: A=100-300mm; B=40-80mm; C=10-25mm; T=1.5-3mm

Z purlin: A=120-300mm; B=40-80mm; C=10-25mm; T=1.5-3mm

f）Our Company

    Xinnuo Roll Forming Machine Co.,Ltd Established in 1998, is a leading manufacturer specializing in the design and production of C/Z purlin roll forming machines, high-speed purlin lines, and other customized roll forming equipment. Our facilities cover over 100,000 square meters, including 2 modern factorys and 12 warehousing bases. Since 2002, Xinnuo machines have been successfully exported to over 180 countries worldwide, earning consistent praise fortheir performance, ease of operation, and our comprehensive customer service. Looking ahead, Xinnuo remains commited to the principle of "Quality First, Service First, Customer First." We continue to focson R&D in energy-saving and intelligent machinery for the construction sector, aiming to deliver fully automated, unmanned production solutions that drive efficiency and innovation for our global partners.
