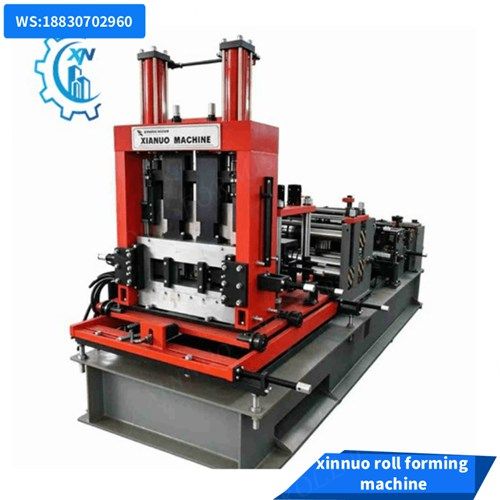

fully automatic interchange cz purlin making machine

C,Z,& U PURLIN MACHINE

The C-Z purlin machines are specifically used to manufacture multi-size C and Z purlin channels, we manufacture Semi-automatic and Automatic both types of C-Z interchangeable Purlin Machines.

The C and Z purlin produced by these machines are of high quality and scratch less material, and is best suited for sized from 80mm-300mm width with maximum 3 mm of thickness.

The Machine's parts are all made with precision and experienced personals, with optimum quality roll tools .

The Roll tools are carved in highly precise CNC machines which gives the best quality and long life as they are hard chromed up to 40 Microns.

ADVANTAGES

1. Make different purlin size without changing rollers or spacers.

2. Quick change any size from 80mm to 300mm in 3 min.

3. Pre Cutting system(also can add post-cutter),no need changing cutter for different size.

4. Easy to operate, low maintenance cost.

5. Infinite sizing from 80-300mm,help to save material.

6. Optional Punch hole at any position of purlin web and flange.6. Embossing, Logo Marking.

7. Full safety protection with cover guard, emergency switches, mistake proofing program

WORK FLOW

Main Workflow Of c z purlin roll forming machine

c z steel purlin roll forming machine

Uncoiler  →  Molding core  →  Hydraulic System  →   Automatic Control system  →   Step Formed Mechanism  →  Automatic Shearing Mechanism  →   Products Receiving Tables

automatic CZ purlin forming machine Components:

Decoiler	1	set

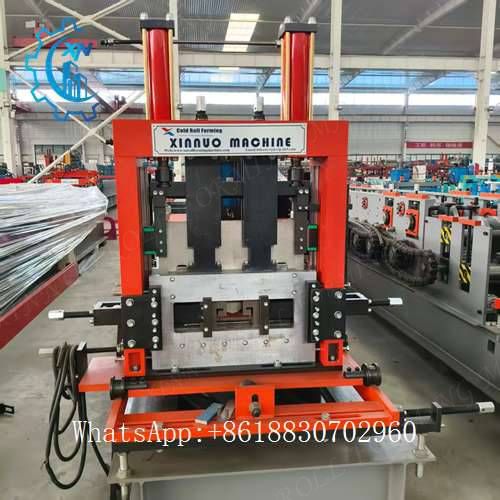

Feeding Device  With Pre-sliding Cutter	1	set

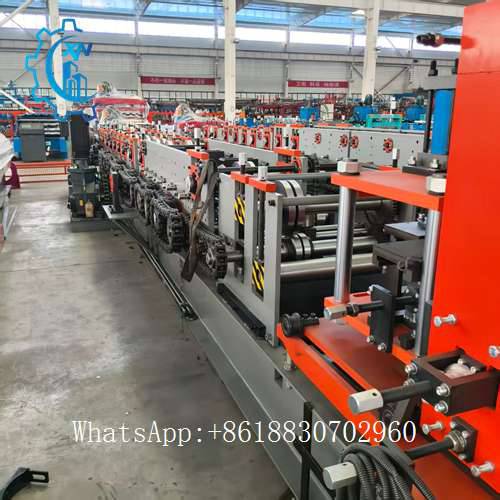

Forming Machine	1	set

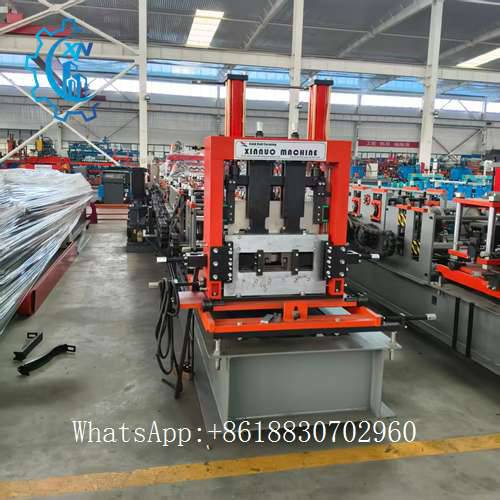

Cutting Device	1	set
PLC Control Box	1	set
Hydraulic Pump Station	1	set
Production Support Table	1	set

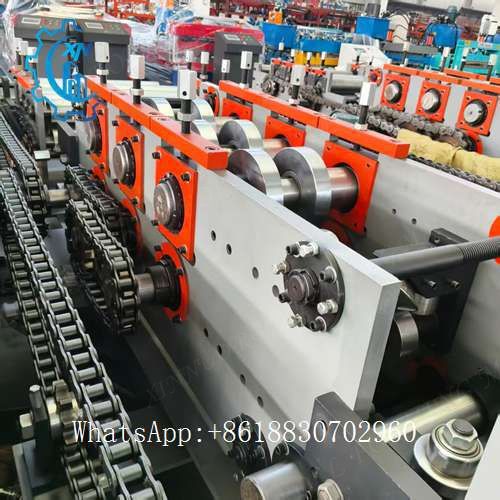

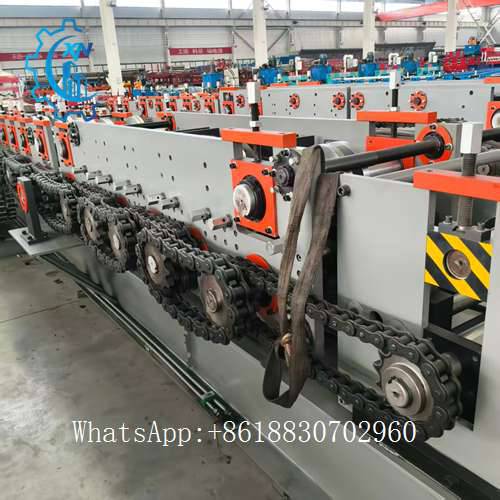

Main CZ roll forming machine:

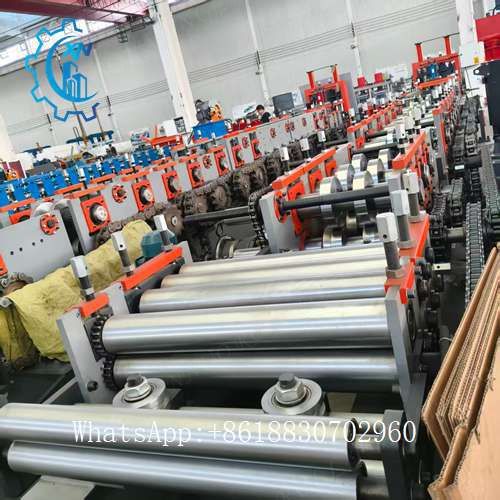

Leveling station: Solid φ105mm (upper 3 and lower 4) rollers plus additional pressure rollers are used to level the steel coils
Roller material: flat wheel Gcr15 bearing steel/slant wheel Cr12 mold steel

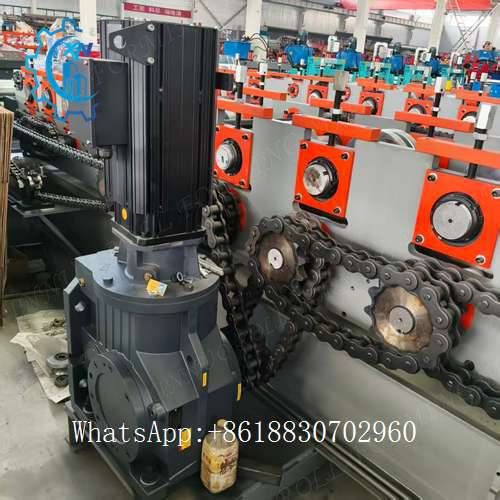

Purlin machine main drive: servo motor 45.0KW
Machine spindle: φ100/85mm40Cr round steel quenched and tempered
Blade material: Cr12Mov mold steel wire cut and heat treated
Control system: automatic PLC control with touch panel settings

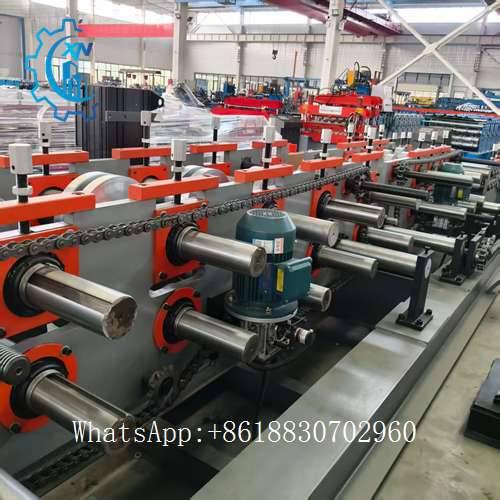

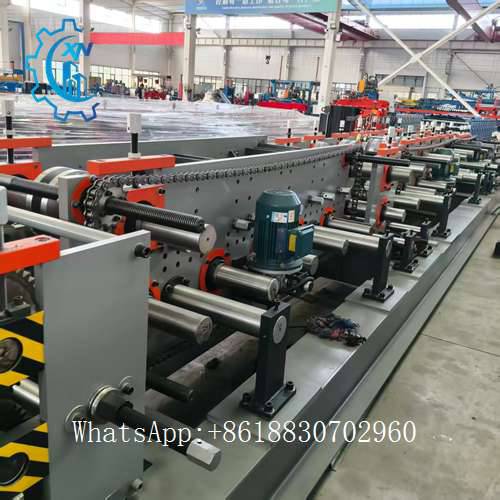

Purlin size adjustment: continuous adjustment through PLC control and touch panel settings

Application Scenarios

• Steel structure factory workshops & warehouses
• Agricultural greenhouses, livestock barns
• Solar panel mounting bracket
• Canopy, roof & wall support purlins
• Prefabricated building projects

Package & After-sales

• Export standard nude packing, suitable for 40ft container shipment.
• 12 months warranty for core components.
• We provide overseas installation guidance, operator training and lifelong technical support.
• Spare parts supply available for Central Asia customers.
