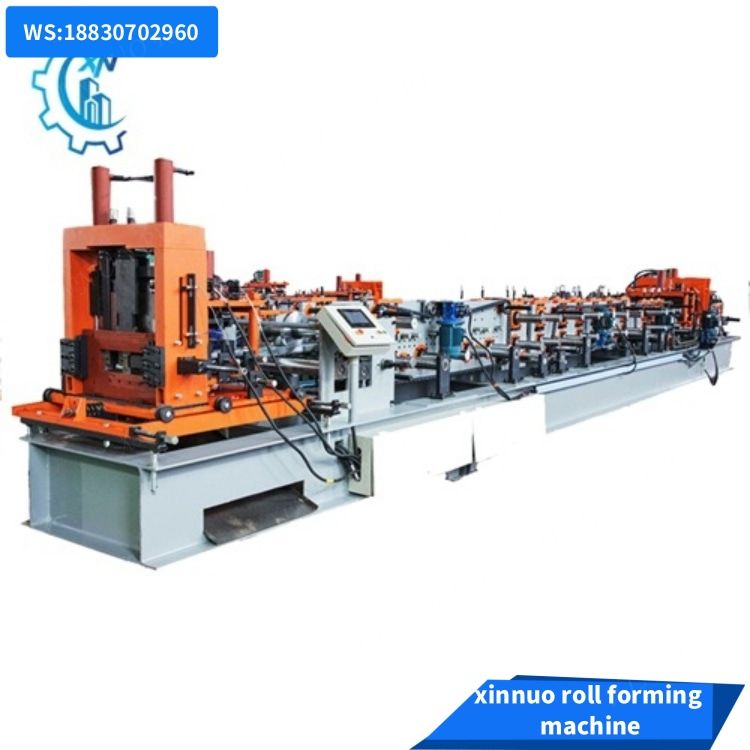

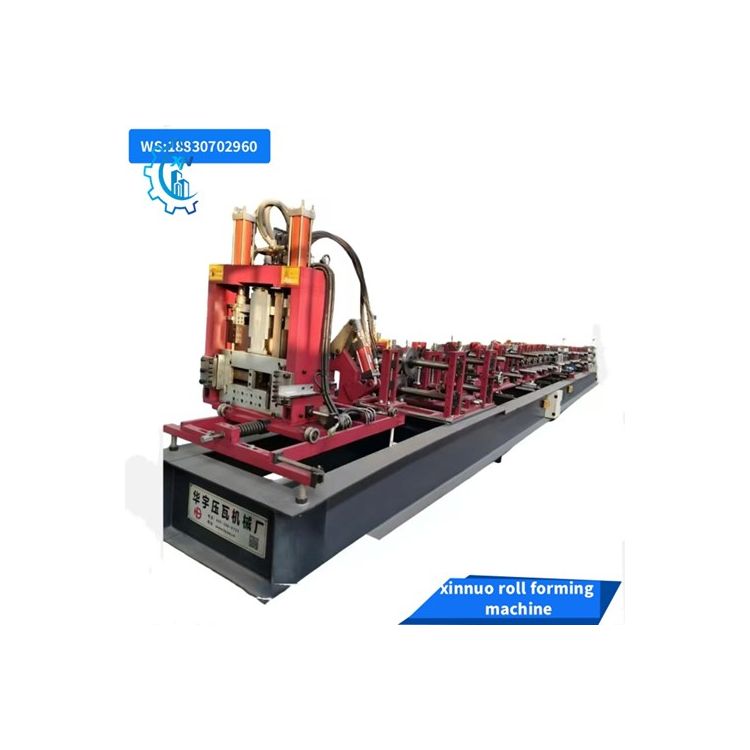

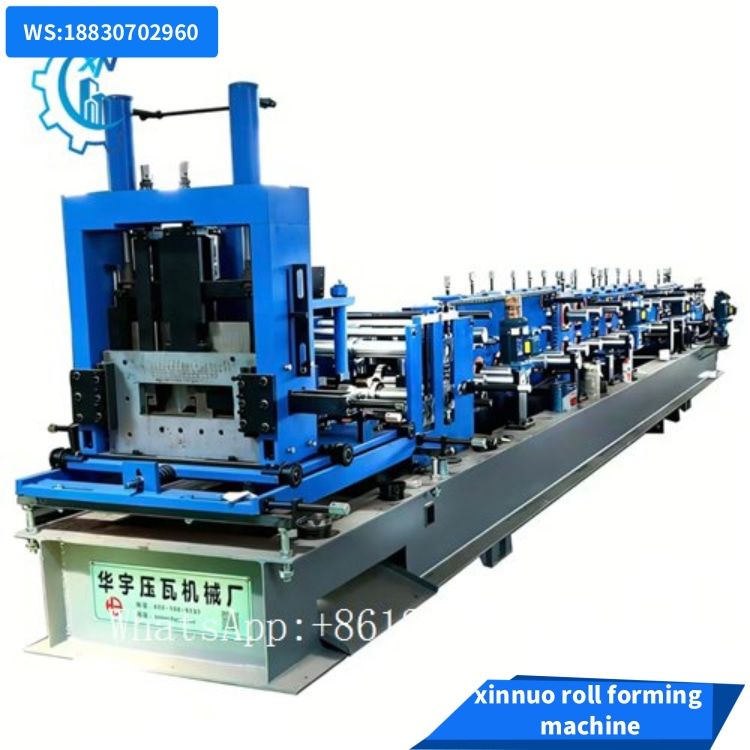

cz purlin interchangeable making roll Forming machine

C Z purlin cold roll forming machine is a machine can produce many sizes,Generally,there are three types of machine,
c purlin machine, z purlin roll forming machine, C Z Section Steel Purlin Machine.
The Web width can be 80-300mm,flange height can be 30-80mm, it is adjustable from min to max. The size of holes can be design by customers.

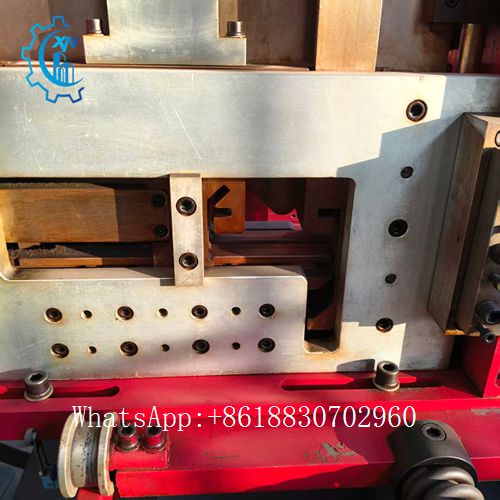

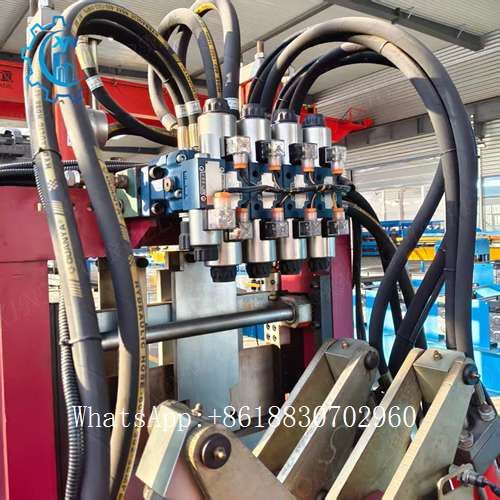

• Hydraulic Post Cutter

  1. Cutting method: Multiple size cutting
  2. Blade Material: Cr12Mov
  3. Surface Treatment: CNC semi-finishing
  4. Vacuum treatment to 58-60HRC, CNC finishing

CZ Purlin Roll Forming Machine Parameter

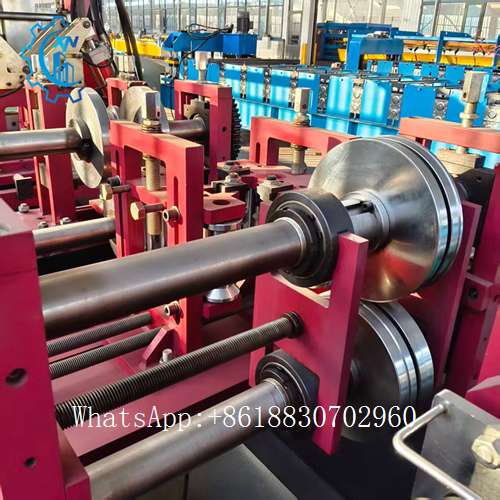

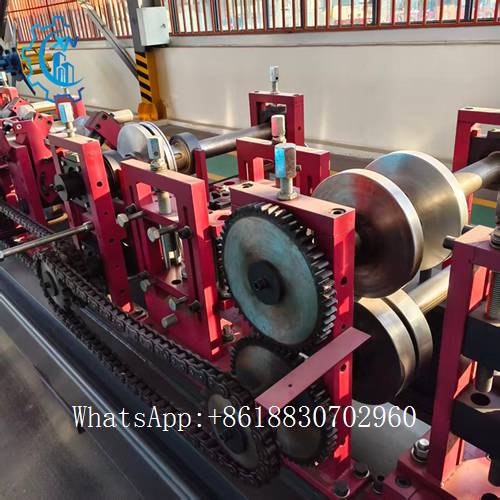

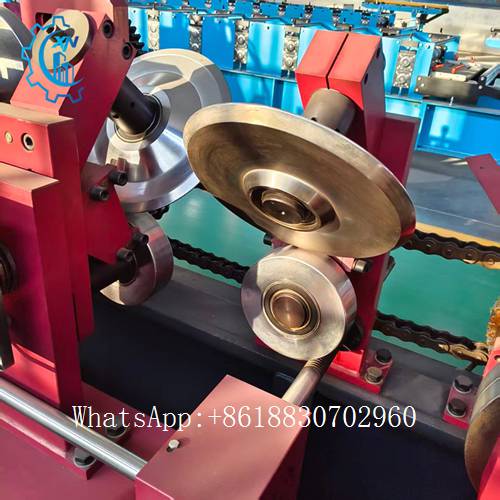

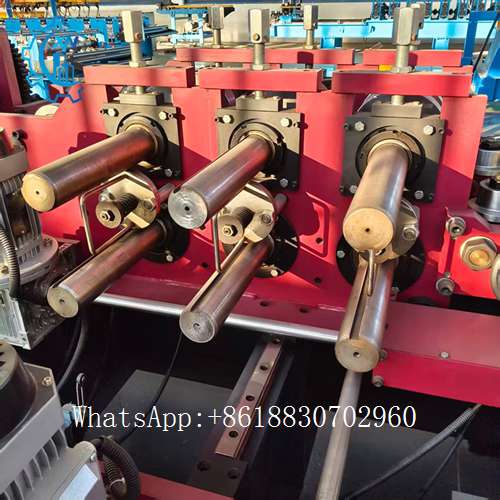

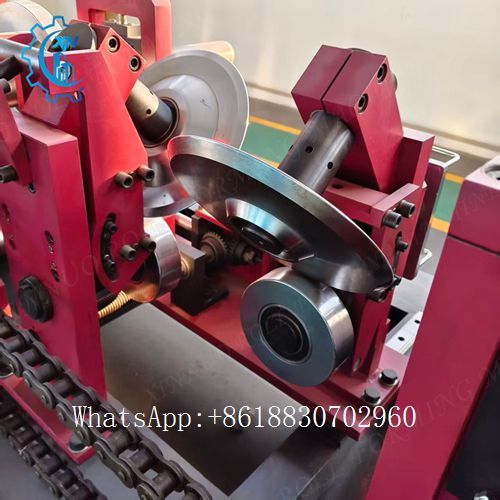

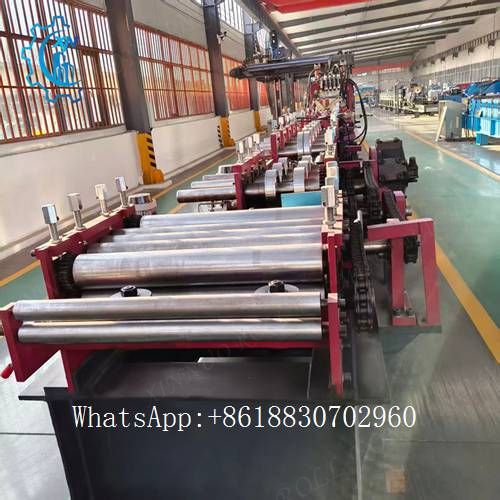

• Roll Former

  1. Forming Steps: 20 steps
  2. Running Speed: 15m/min (without punching and cutting)
  3. Main Servo Motor Power: 25kW
  4. Roller Material: Gcr15/Cr12, CNC processing and heat treatment, hard chrome plated on the surface
  5. Shaft Material: 40Cr with shaft diameter of 90mm
  6. Machine Frame: 400# H-beam and A3 steel with 30mm thickness

• PLC Controller (Delta Brand)

  1. Punching position control
  2. Cutting position control
  3. Production batch quantity control
  4. Voltage: 380V/50Hz/3ph
