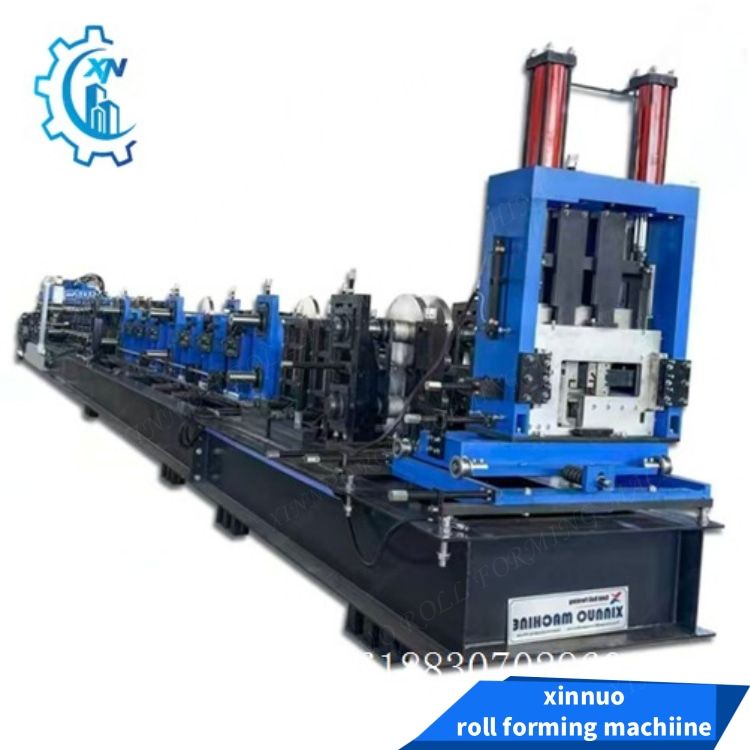

Auto CZ purlin machine, C channel roll forming machine
C&Z shape and multi sizes produced by one machine
Auto change size, auto punch holes, easy operate
Suitable for thickness 1.5-3mm
Web size 80-300mm
Flange size 40-80mm
Fast speed 0-15m/min
Email：xinnuo2025@xinnuomachine.com
WhatsApp:+8618830702960

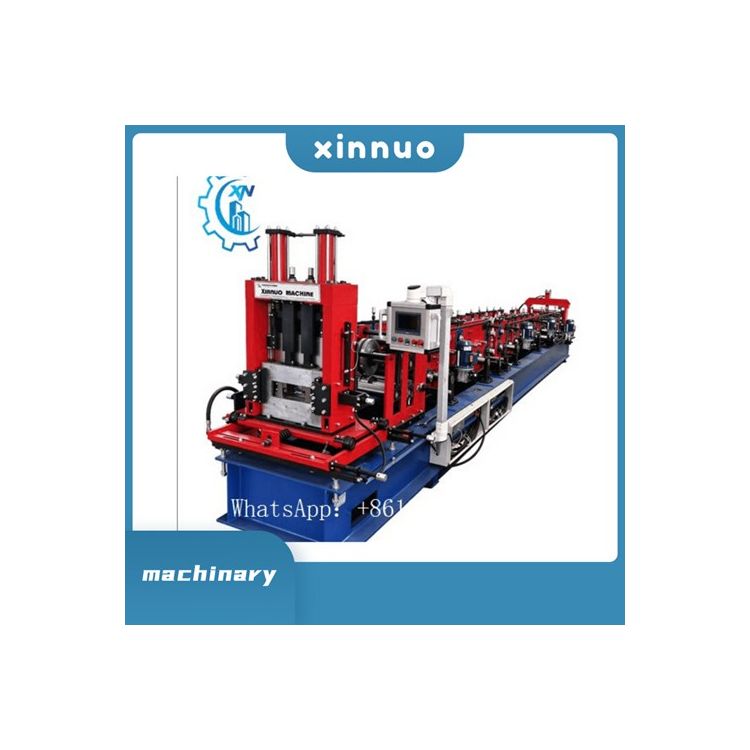

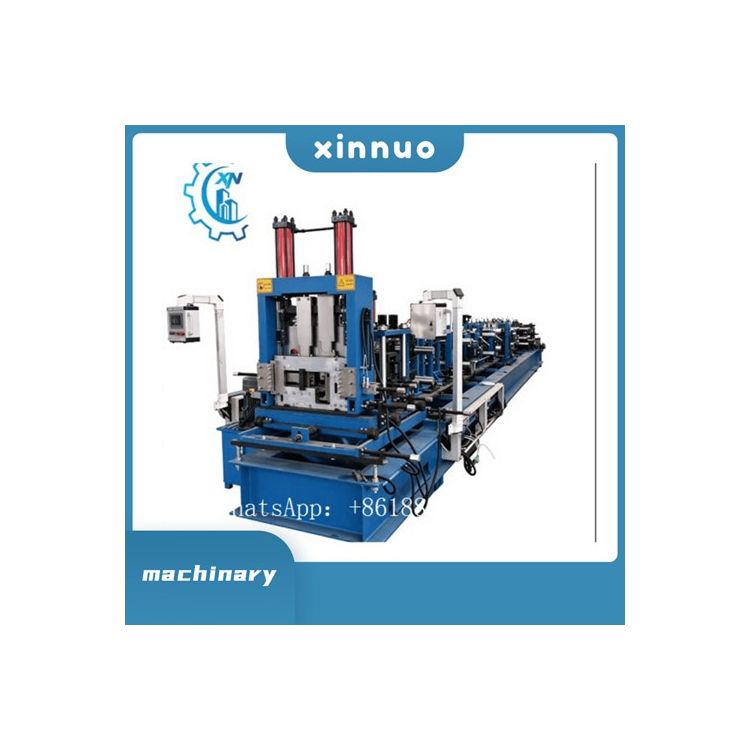

CZ Purlin Roll Forming Machine
Xinnuo CZ Purlin Roll Forming Machine is a high-efficiency, integrated industrial equipment for cold roll forming of C and Z type steel purlins, core components for steel structure buildings. It features one-machine dual-purpose design, realizing quick switch between C and Z profiles without replacing molds, greatly saving production time and cost. Equipped with PLC touch screen control system, the machine achieves fully automatic operation from decoiling, feeding, forming to cutting. It has high forming precision, stable performance and adjustable product specifications, perfectly meeting the customized production needs of construction, prefabricated house and steel structure engineering industries.

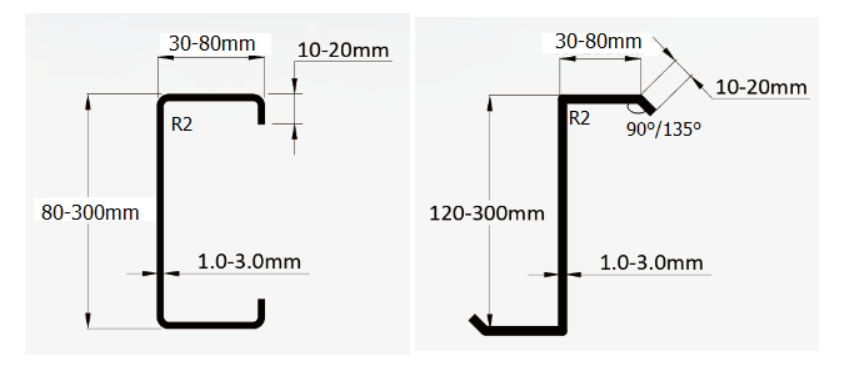

Thickness 1.0-3.0mm
-Width in Any size within 80-300mm
-Height in Any size within 30-80mm
-Lips in Any size within 10-20mm & Variable size Z
-Width in Any size within 120-300mm
-Height in Any size within 30-80mm
-Lips in Any size within 10-20mm
Inner Angel: 135°and 90°
| Parameter Items | Specifications |
|---|---|
| Forming Material | Galvanized steel, cold rolled steel, mild steel |
| Material Thickness | 0.8-3.0mm |
| Forming Speed | 8-15m/min |
| Profile Specification | C/Z type, width 80-300mm (adjustable), height 40-150mm (adjustable) |
| Control System | PLC touch screen control system (Siemens/Mitsubishi optional) |
| Driving Method | C motor + gear box transmission |

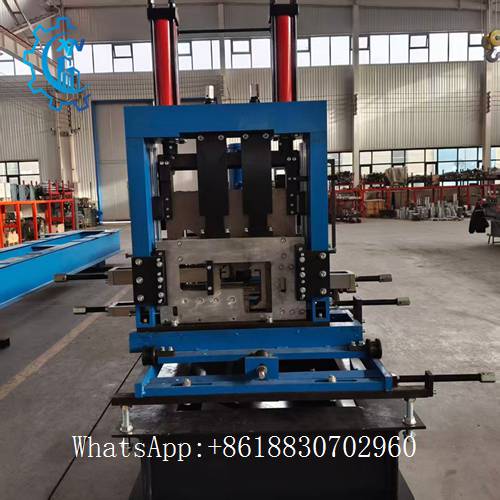

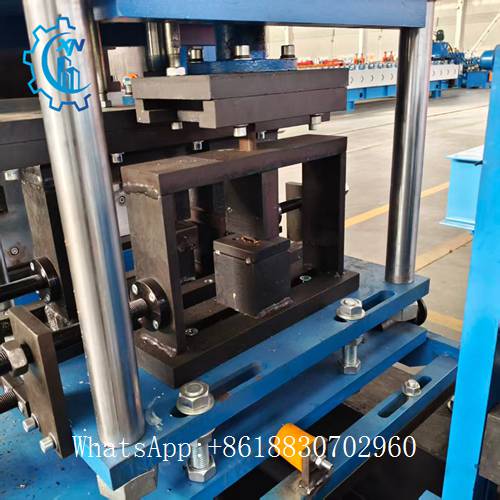

| Cutting Method | ydraulic cutting (high precision, no burr) |
| Installed Power | 5-30KW (customized by model) |
| Power Supply | 80V/50Hz/3Phase (customizable for global voltage) |
| Overall Weight | 5-10T (based on different configurations) |
| Overall Dimension | 8000×1500×2200mm (L×W×H, customizable) |
| Working Process | Automatic decoiling → feeding → roll forming → sizing → cutting → output |
| Main Frame | Welded steel structure, high temperature quenching for anti- deformation |
At XINNUO, we are committed to delivering high-performance metal roll forming machines tailored for global industrial needs. Our equipment offers reliable and flexible production capabilities to meet the demands of modern construction and manufacturing industries.
