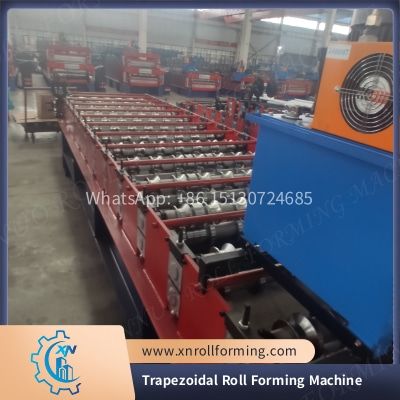

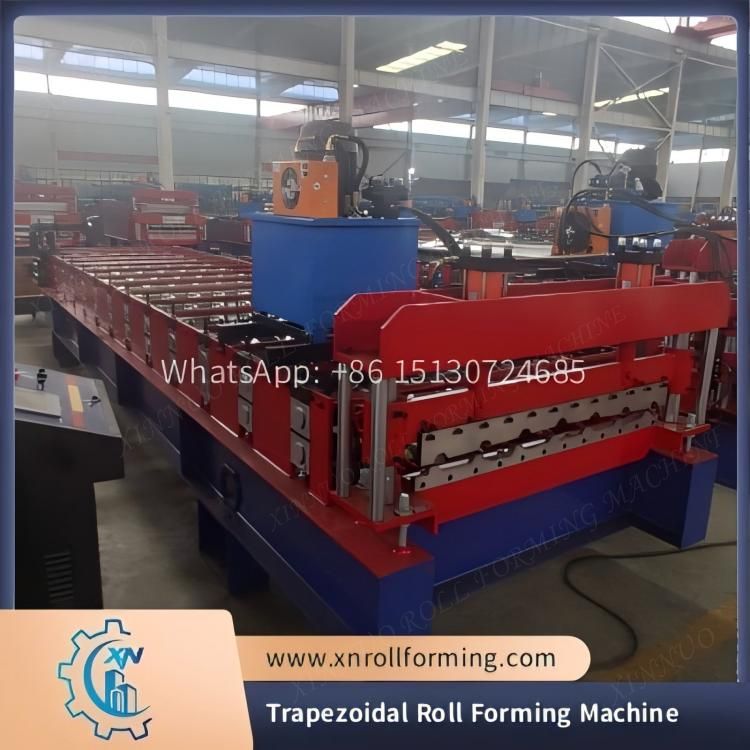

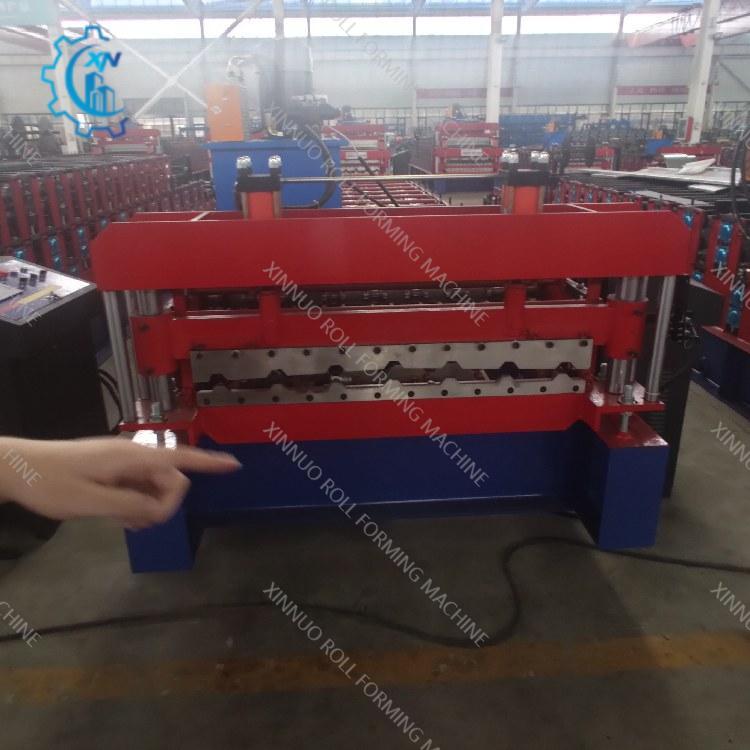

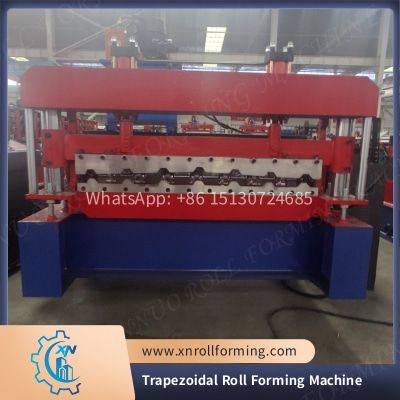

Trapezoidal Roll Forming Machine – Reliable Solution for Modern Roofing and Cladding

In today’s construction industry, roofing sheets are no longer chosen only for durability; they must also provide aesthetics, weather resistance, and structural performance. Among the many profiles available, trapezoidal roofing sheets have become a preferred option for industrial, residential, and commercial projects worldwide. To meet this demand with precision and efficiency, Xinnuo introduces the Trapezoidal Roll Forming Machine, a robust system designed to transform steel coils into high-quality trapezoidal panels.

Function and Applications

The trapezoidal profile is widely used for roofing, wall cladding, and façade systems. Its unique angular geometry improves water drainage, resists wind uplift, and enhances load-bearing capacity, making it suitable for warehouses, workshops, office buildings, and modern housing projects. The Trapezoidal Roll Forming Machine automates the entire production process, ensuring that each panel is consistent in shape, length, and finish, ready to be installed directly on construction sites.

Design and Technical Highlights

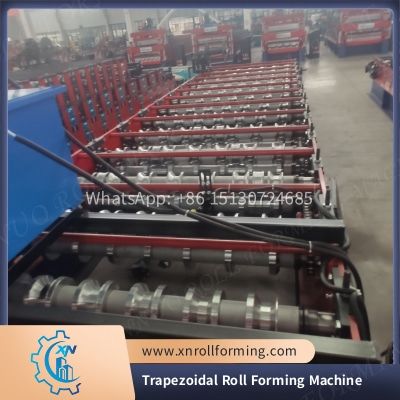

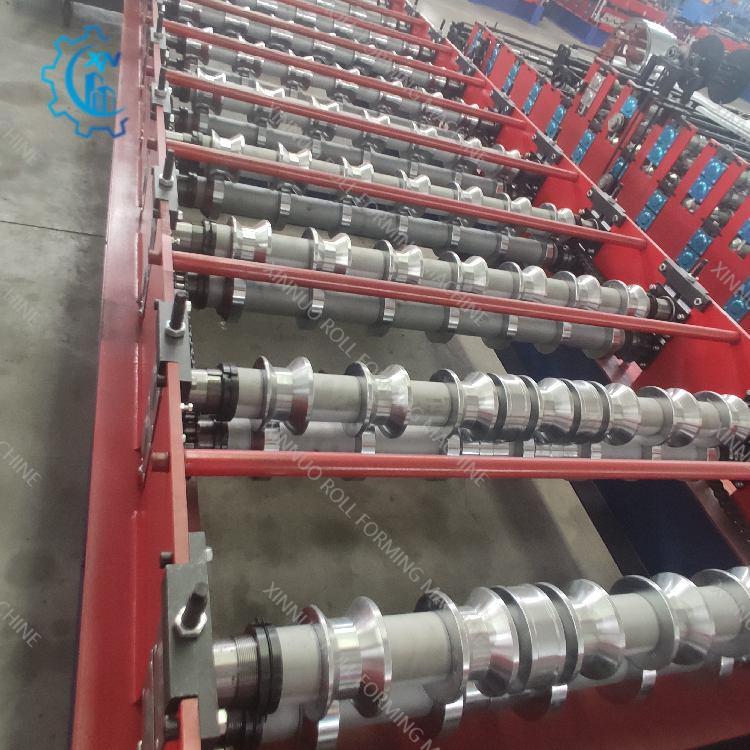

Built on a heavy-duty welded structure, the machine offers long-term stability during continuous operation. Hardened rollers, precisely machined from alloy steel, gradually shape the flat metal coil into trapezoidal profiles through multiple forming stations. The thickness of processed materials typically ranges from 0.3 to 0.8 mm, with flexibility to adjust based on project requirements.

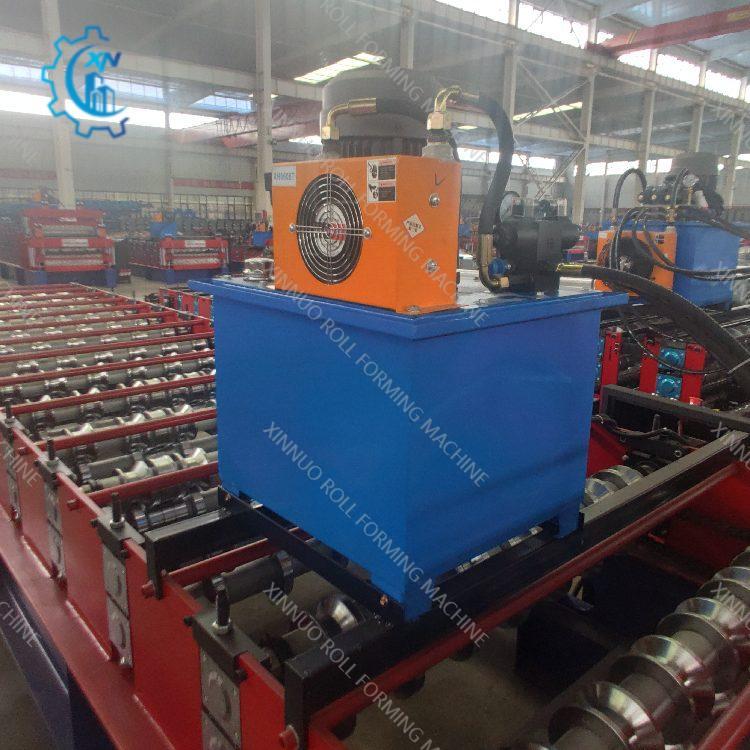

Advanced automation is at the core of this machine. Equipped with PLC control and a touch-screen interface, operators can easily set panel dimensions, monitor production speed, and control cutting operations. The hydraulic shearing system ensures accurate cuts without deforming the sheet edges, while optional embossing or protective film covering enhances panel performance.

Key Advantages

• Consistent Quality: Produces uniform trapezoidal panels with smooth finishes

• High Productivity: Continuous forming and automatic cutting maximize efficiency

• Flexible Customization: Adjustable tooling supports different widths, heights, and lengths

• Durability: Sturdy frame and wear-resistant rollers extend machine life

• Low Waste: Precise forming reduces material loss during production

Benefits for Construction

The trapezoidal sheets made by this machine provide multiple advantages:

• Strong Weather Resistance: The angled profile channels water quickly, reducing leakage risk

• Enhanced Strength: Capable of supporting heavy loads across large spans

• Architectural Appeal: Modern and professional appearance suitable for visible roofing and cladding

• Wide Compatibility: Works with galvanized steel, color-coated coils, and aluminum sheets

Maintenance and Safety

Designed for long-term reliability, the machine features protective guards, emergency stop systems, and intuitive controls to ensure safe operation. Routine maintenance is simplified with accessible rollers and cutting units, reducing downtime and ensuring stable production.

Why Choose Xinnuo

With years of experience in roll forming equipment manufacturing, Xinnuo delivers not only machines but also tailored solutions for global clients. Each Trapezoidal Roll Forming Machine is tested thoroughly before shipment, and customers benefit from technical support, installation guidance, and after-sales service.

Conclusion

The Xinnuo Trapezoidal Roll Forming Machine combines engineering precision with practical efficiency. Whether for industrial warehouses, modern office complexes, or residential housing, it delivers reliable trapezoidal panels that meet today’s construction standards. By investing in this machine, manufacturers gain a dependable tool that ensures productivity, cost savings, and consistent quality across every project.
