1. Payment term
TT, you should pay 40% as the deposit on the order day,then pay 60% before delivery when you inspect goods well in factory or by video
2. Warranty
12 months, and lifelong technical support service.
3. Installation
If you need, we will send one technician to your factory to install & testing the machine.
You should pay for flight tickets and local accommodation,and pay 150 USD/day for salary.
4.Email:xinnuo05@xinnuomachine.com
5.WhatsApp：+8618830702960
2.Technique parameters
| Suitable Material | Colored or galvanized steel coil, HRB60 or equivalent | |||
| Thickness Range | 0.3-0.8 mm | |||
| Material yield stress | 230~550 Mpa | |||
| Roller driven type | Chain transmission | |||
| Chain transmission | 4 Kw | |||
| Main motor power | 4~5.5Kw | |||
| Total power | 7~8.5Kw | |||
| Coil Width Range | 914, 1000, 1220 or 1250 mm.(According to your actual drawing.) | |||
| Electric Power | 380V, 50 Hz, 3 phase(or according to your need) | |||
| Dimension | About 7.2*1.3*1.4m(L*W*H), as per the drawing | |||

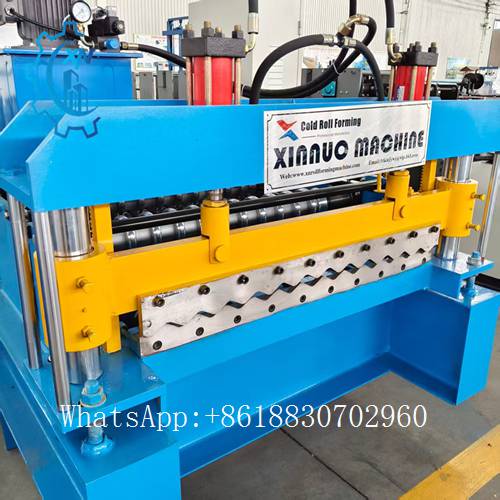

| Cutting | Automatically stop and cutting when it comes to the set length. | |||
| Length of the Sheet | You can set the length according to your need. | It is controlled by Delta PLC | length accuracy: ±1mm. | |

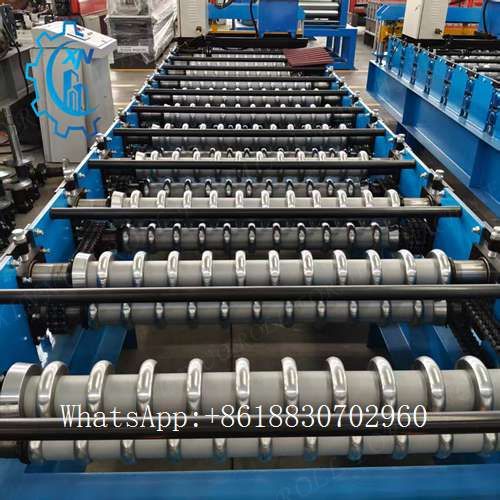

| Roller material | 45# steel with chrome treatment |
3. Work flow
Manual decoiler- Roll forming machine- PLC control- Hydraulic system - Post cut- Stacking
Specific description
(1) Manual decoiler
Un-powered, single head, max capacity: 5000kg

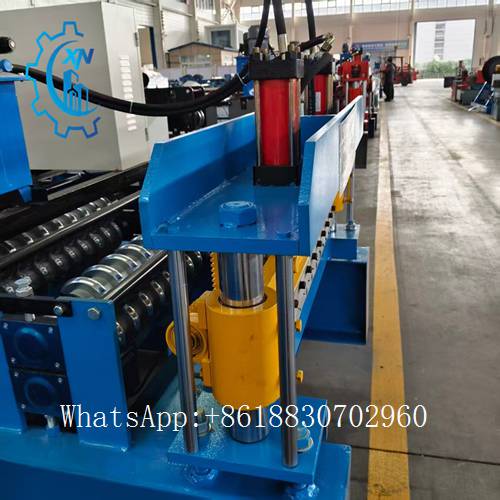

(2) hydraulic pump station
It is controlled by gear wheel oil pump, after filling the hydraulic oil into the hydraulic oil tank,
the pump drive the cutting machine to begin the cutting job.
(3) Computer control cabinet
It adopts TaiDa PLC to control, the target sheet length is adjustable.
Computed mode has two modes: Automatic and manual.
Touch screen.
(4) Output table
It is used to load the finished sheet. This kind is convenient for shipment.
(5) Spare parts
4. Packing and shipping details
1. Need one 40ft container.
2. Fit for ocean shipping.
3. The main body of the roll forming machine will be naked packing into the container, covered with plastic film.
4. Steel wire fixes the machine into the container, in case of any damage when shaking on the sea.
5. The spare parts will be packed into the carton box.
6. The received goods table put into a carton box.
7. Manual decoiler naked package.
5.Our company
Xinnuo Roll Forming Machine Co.,Ltd Established in 1998, is a leading manufacturer specializing in the design and production of C/Z purlin roll forming machines, high-speed purlin lines, and other customized roll forming equipment. Our facilities cover over 100,000 square meters, including 2 modern factorys and 12 warehousing bases. Since 2002, Xinnuo machines have been successfully exported to over 180 countries worldwide, earning consistent praise fortheir performance, ease of operation, and our comprehensive customer service. Looking ahead, Xinnuo remains commited to the principle of "Quality First, Service First, Customer First." We continue to focson R&D in energy-saving and intelligent machinery for the construction sector, aiming to deliver fully automated, unmanned production solutions that drive efficiency and innovation for our global partners.
At XINNUO, we are committed to delivering high-performance metal roll forming machines tailored for global industrial needs. Our equipment offers reliable and flexible production capabilities to meet the demands of modern construction and manufacturing industries.
