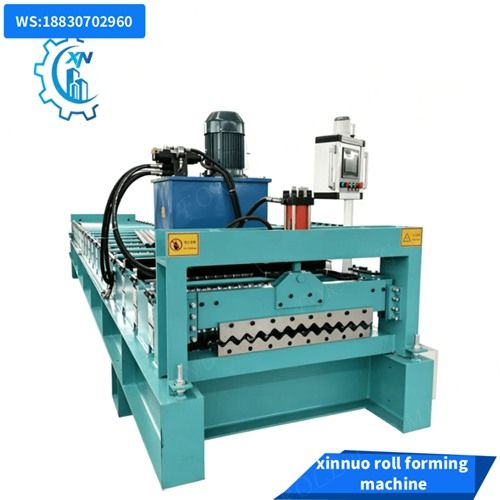

Components of machine:

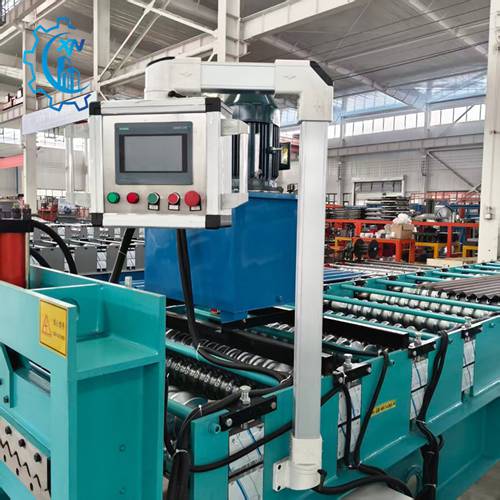

| Decoiler | 1set |
| Feeding & guiding device | 1set |
| Main roll forming machine | 1set |
| Hydraulic cutting system | 1set |
| Controlling system | 1set |
| Run out table | 1set |
Technical parameter:
| Item | Specification | |
|
Material |

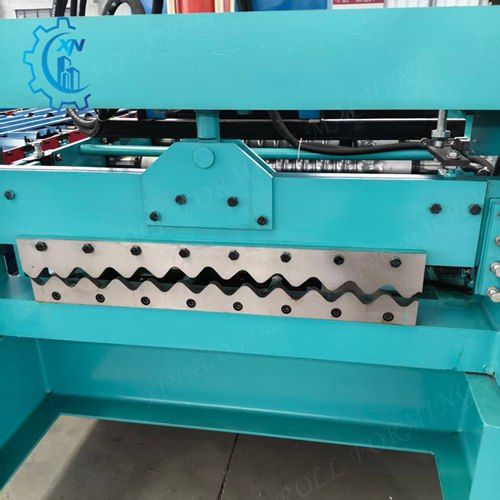

Type | Pre-painted steel coil & galvanized coils |
| Thickness | 0.4-0.7mm | |
| Yield strength | 235-345Mpa | |
| Roller material | 45#Chrome steel | |
| Forming speed | About 20m/min | |
| Output speed | 20m/min | |
| Speed adjusting mode | AC Frequency | |
| Roller drive | Decelerating motor + Chain drive | |
| Cutting mode | Hydraulic cutting | |
| Cutter material | Cr12 mould steel | |
| Length measurement | Encoder | |
| Control mode | Panasonic PLC | |
| Operating mode | Button +Panasonic Touch screen | |
| Main motor power(kw) | 7.5KW | |
| Hydraulic station motor power(kw) | 2.2 KW | |
Component and Function
1. Sheet guiding equipment: Using guiding equipment of leader sliding block style. The width and the left or right position can be adjusted only by adjusting the leader, then the sliding block can realize left or right movement.

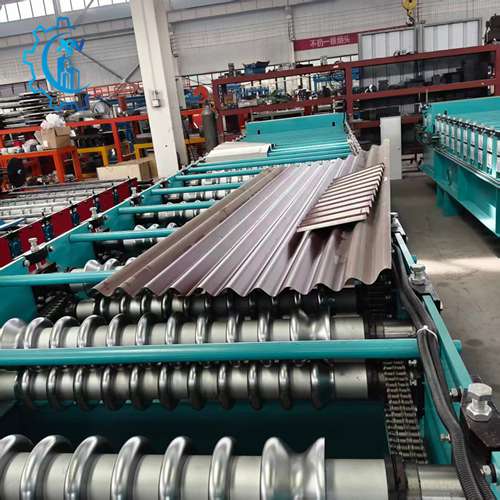

2. Mainframe Transmission: Transfer the main motor power to the rollers through chains and sprockets, and also transfer the coil sheet.

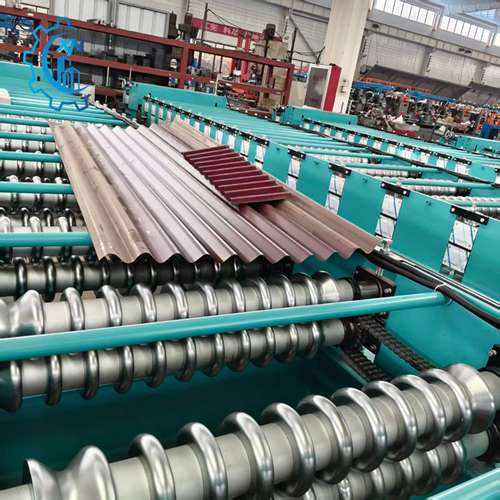

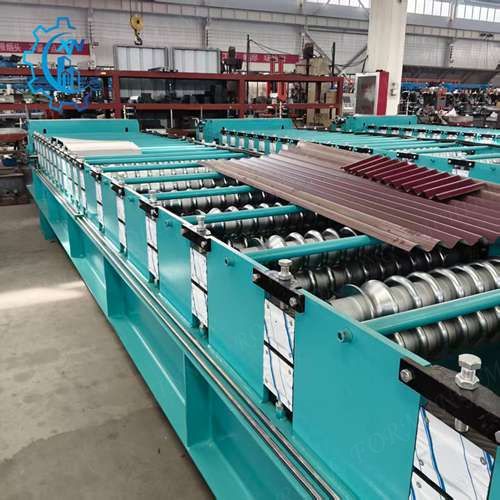

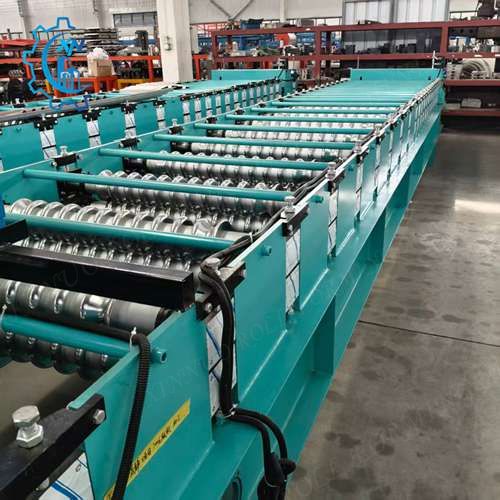

3. Roll forming system: The main frame of machine is welded separately and the outside wall is connected by screw after being roto-blasted on the surface. The rollers are surface-chrome plated after being machined by the exact machine tool..
Product Advantage
1.Certificate: ISO 9001, CE,
2. Lifetime services
3. Introduced Mitsubishi PLC with touch screen to machine controll system.
4. Roller cover with 0.05mm chrome; 82mm diameter solid steel shaft. Lifetime>10years.
5. One worker operation (minimum)
6. Heat treatment:Cutting blade. Quenched treatment: Cr12 mould steel cutter
7. Product cut-to-length.
8.Technician overseas installing and training availabl

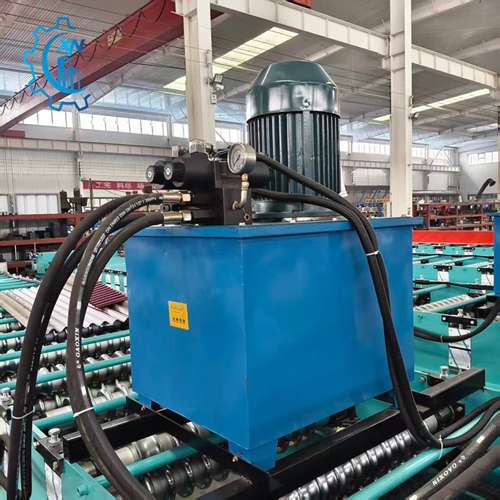

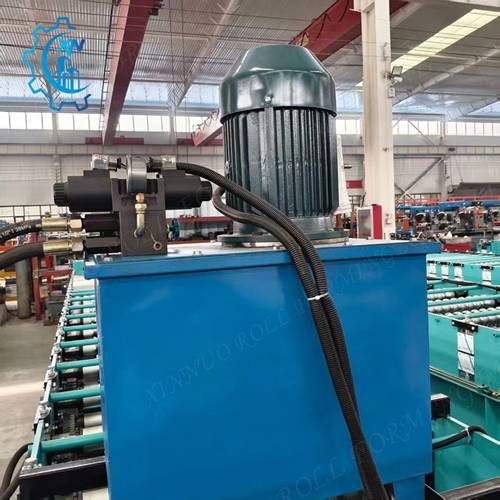

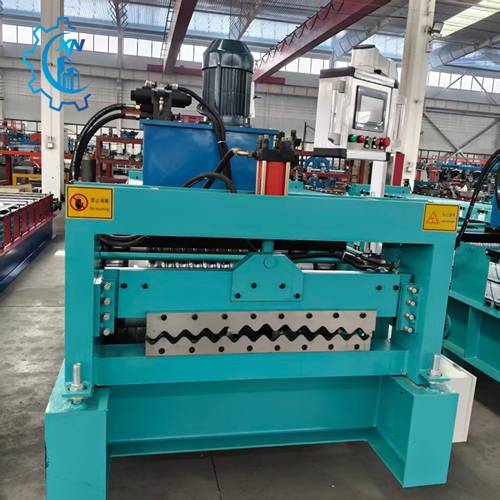

Integrated hydraulic station for roof panel roll forming machine, including motor, dual hydraulic pump and thickened oil tank.
The motor supplies stable power, the pump with pressure gauge precisely controls cutting action, and the large blue oil tank cools oil and filters impurities. Compact assembled unit delivers smooth, clean cutting for metal sheets.
Product Feature
1.Designed by experienced R&D members with lifetime services.
2. Introduced Mitsubishi PLC with touch screen.
3. Need only one worker (minimum) to operate
4. Roller cover with 0.05mm chrome, ensure lifetime>10years
5. Cr12 mould steel cutter with quenched treatment. Blade with heat treatment.
6. Product cut-to-length.
7.72mm diameter solid steel shaft
Designated use
1. Some final products for Automobile.
2. Some final products for Building, such as for Roofing / Ceiling / Wall materials, and dry wall (track and stud) material.
3. Some final products for Gate-Panel, Guard-Panel and sound insulation
