MODEL:XN-CRP-760/988
PROCESSING MATERIAL：GI, PPGI, PPGL, Aluminum Coil
MATERIAL THICKNESS：0.3 – 0.7 mm (Standard)
ROLLER STATIONS：13 – 20 Stations
MACHINE DIMENSIONS：8,000 × 1,600 × 1,800 mm (L×W×H)
EMAIL:xinnuo05@xinnuomachine.com
WhatsApp:+8618830702960

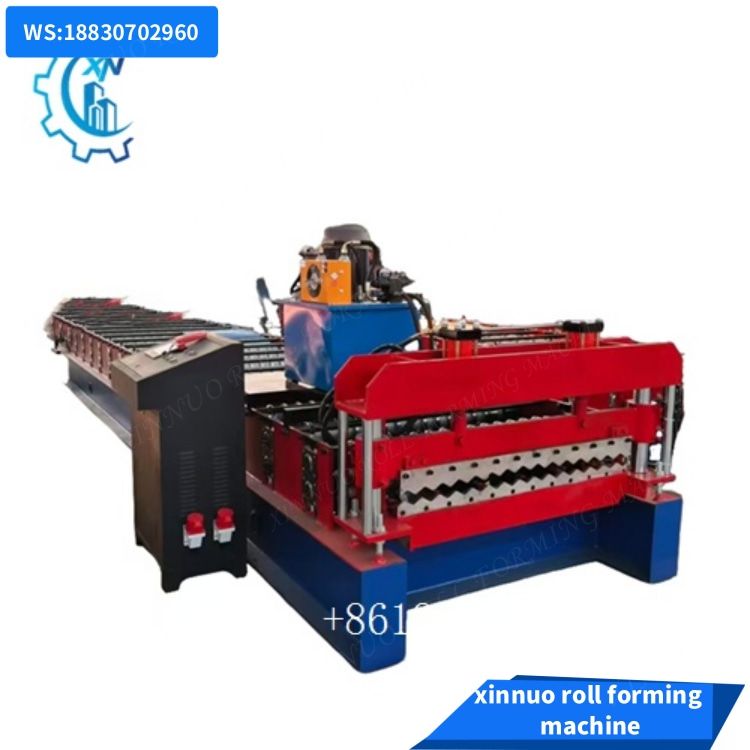

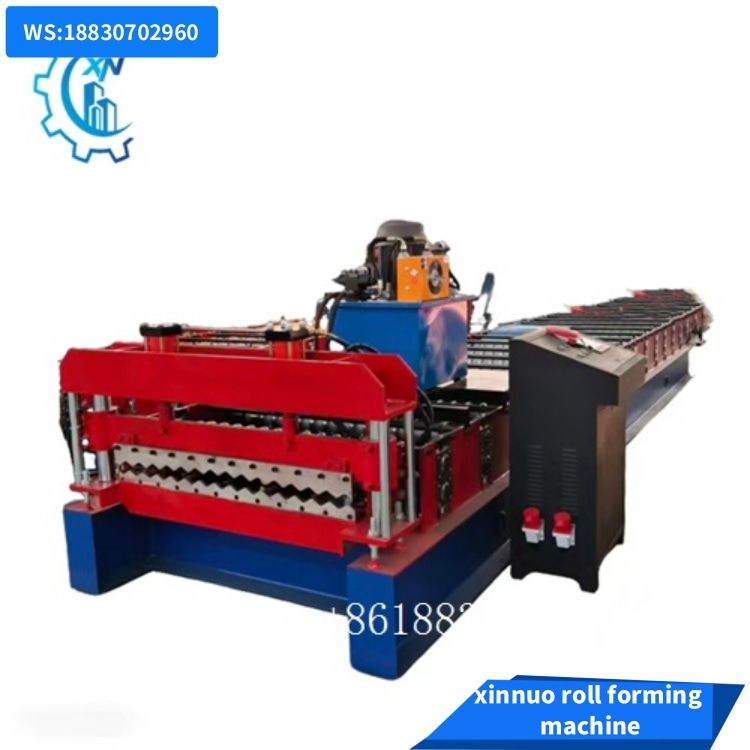

Corrugated Sheet Roll Forming Machine (8-35m/min)
The fast speed corugation sheet rollforming machine is used to make sinusoidal steel sheets by using 0.3mm-0.7mm galvanizedcoil. The corrugated roll forming machine speed can be up to 8-35m/min including fly-cut.
Because of their low cost, short building period, re-cycle use, and elegant appearance. The corrugated sheets produced by thismachine can be used as the roof of villas, luxury houses, theatres, exhibition centers.

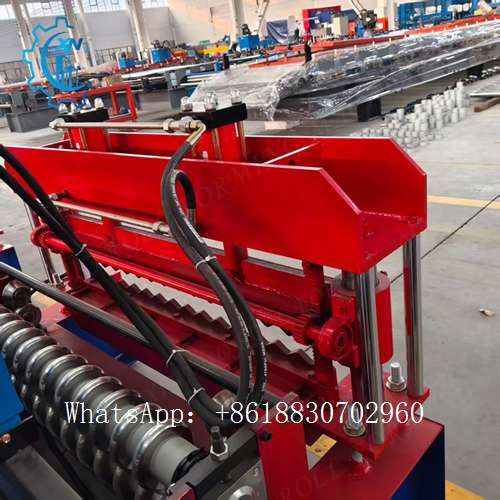

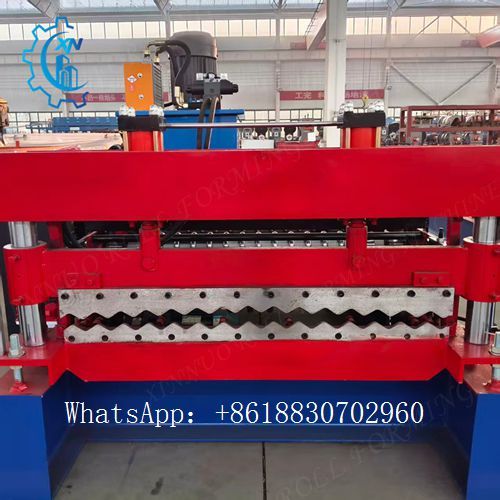

Fly Cut of Corrugated Sheet Roll Forming Machine
1. Servo motor and ball screw to make the speed and size more stable.
2. Length tolerance: +/-1.5mm
3. Cutting without stop the main machine.
4. PLC & HMI adopts Mitsubishi brand.

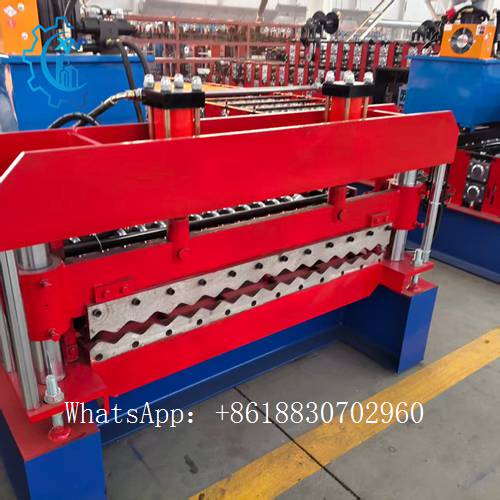

Main Machine of Corrugating Machine

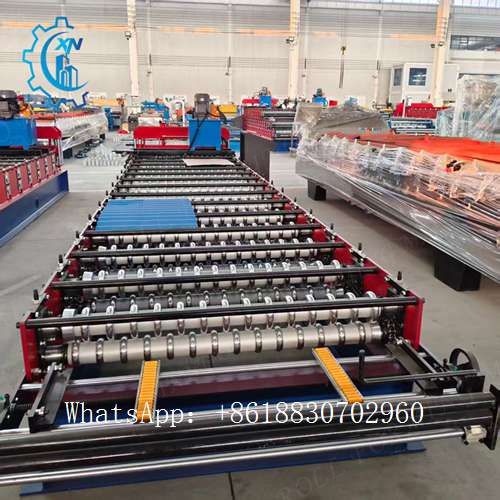

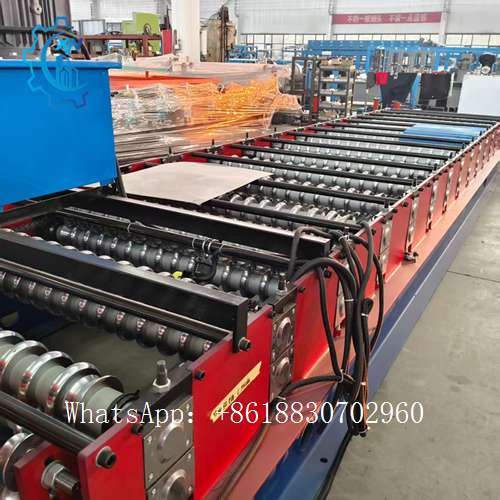

1. Roll stand: 16 stations, it includes leveling rollers, main forming rollers
2. Main motor power: 5.5kW, it adopts cycloid cone pulley reducer, chain or gearbox transmission3. Material of the roller: 1045 high grade steel, chromeplate
4. The roller processed by CNC machine wth finish machining. The surface adopt finished polishing, the roughness is 0.05mm
5. Material of the main shaft: 45# forged steel with heat treatment
6. The diameter of the main shaft: 70mm
7. Machine frame: welding by 350 x 175mm H shape steel. The surface used shotblasting treatment.

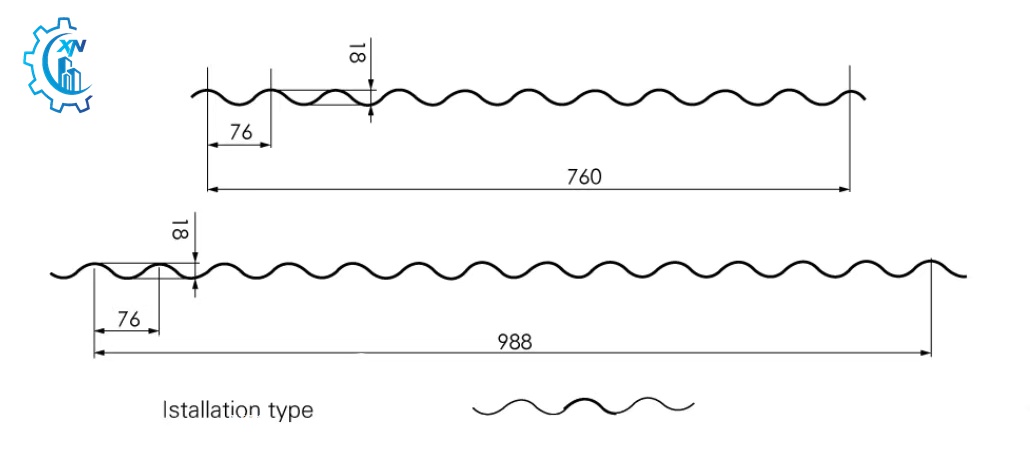

Typical Profile Drawing of Corrugating Roll Former

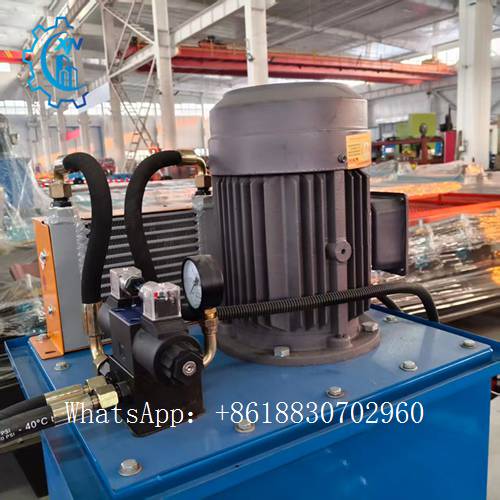

| PARAMETER | SPECIFICATION |
|---|---|
| MODEL | XN-CRP-760/ 988 |
| PROCESSING MATERIAL | GI, PPGI, PPGL, Aluminum Coil |
| MATERIAL THICKNESS | 0.3 – 0.7 mm (Standard) |
| INPUT COIL WIDTH | 1000 / 1200 / 1250 mm (Customizable) |
| FORMED PANEL WIDTH | 760/ 988 mm (Effective) |
| PROFILE TYPE | Corrugated (Wave Height: 25 mm, Pitch: 210 mm) |
| ROLLER STATIONS | 16 – 22 Stations |
| ROLLER MATERIAL | 45# Forged Steel, Hard Chrome Plated (HRC 58–62) |
| SHAFT DIAMETER | 70 mm (45# Quenched & Tempered) |
| PRODUCTION SPEED | 12 – 25 m/min (Variable Frequency) |
| CUTTING SYSTEM | Hydraulic Profile Cutting (Cr12MoV Blade) |
| CUTTING TOLERANCE | ±1.5 mm |
| CONTROL SYSTEM | PLC + Touch Screen (Siemens/Panasonic) |
| TOTAL POWER | 5.5 – 11 kW (380V/50Hz/3Ph) |
| MACHINE DIMENSIONS | 8,000 × 1,600 × 1,800 mm (L×W×H) |
| MACHINE WEIGHT | 8 – 12 Tons |
| DECOILER CAPACITY | 3 – 5 Tons (Hydraulic Expansion) |
| OPERATION | 1–2 Operators, 24h Continuous Work |
<
At XINNUO, we are committed to delivering high-performance metal roll forming machines tailored for global industrial needs. Our equipment offers reliable and flexible production capabilities to meet the demands of modern construction and manufacturing industries.
8618830702960
