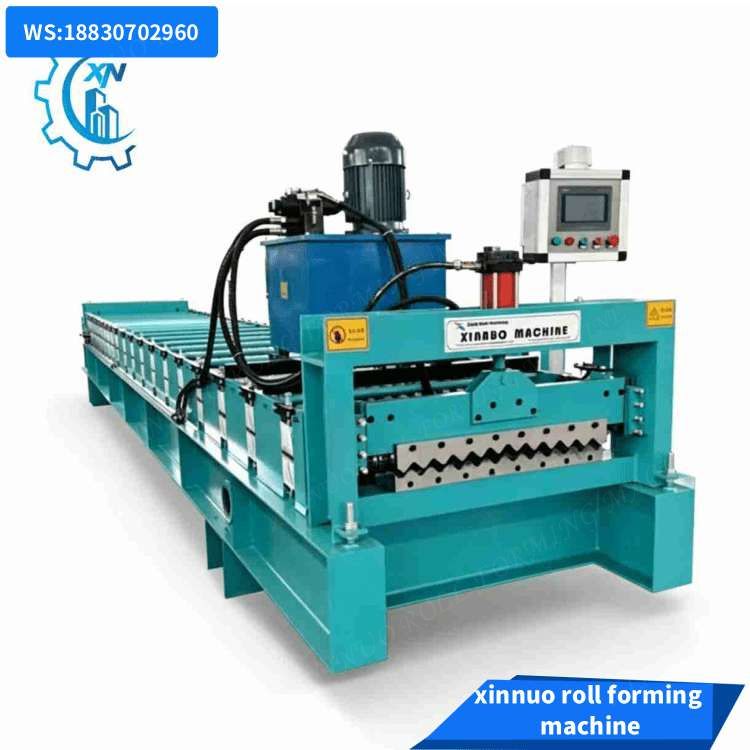

corrugated roof roll forming machine 0.3-0.7mm

Corrugated Roof Sheeting Machine

corrugated metal roofing sheets have durability because of their special corrugated shape. in addition, The natural shape of corrugated metal roof panels gives it a structural advantage

over other panels of the same material. the color-coated roofing sheets can hide small imperfections over time from weather or impacts.

XINNUO▷ Corrugated Roll Forming Machine | Corrugated Metal Roofing  ◁ is specifically designed for rolling galvanized also pre-painted and Galvalume steels into corrugated roof sheets.

Work flow

Decoiler---Feeding Guide Device---Roll Forming System--- Hydraulic Post Cutting Device---Exit Rack- PLC Control System

1) Manual Decoiler:

one set

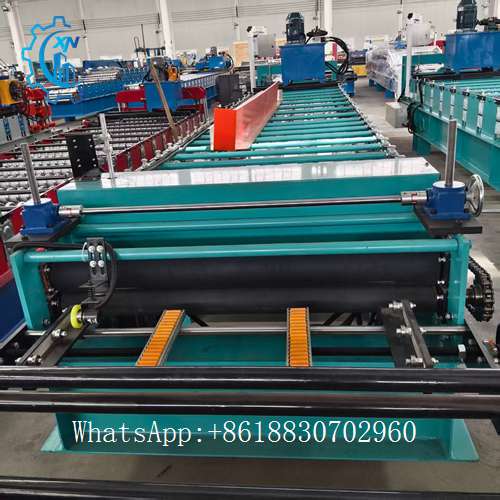

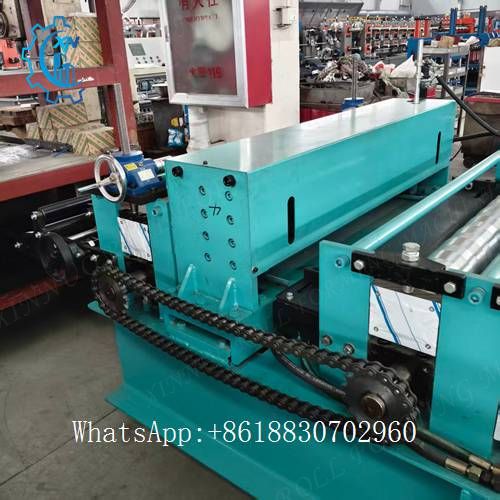

2) Feeding Guide Device

The guiding position can be adjusted for suitable material feeding by manual.

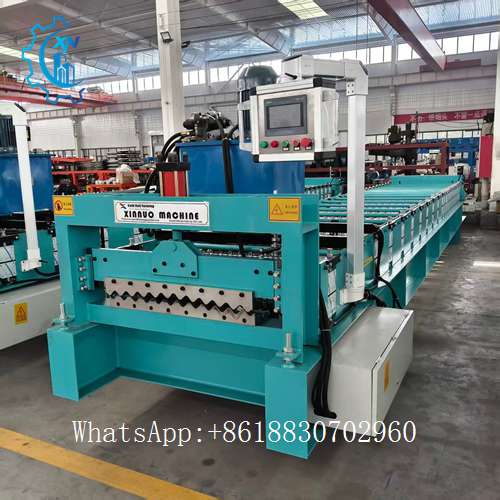

3) Main Machine

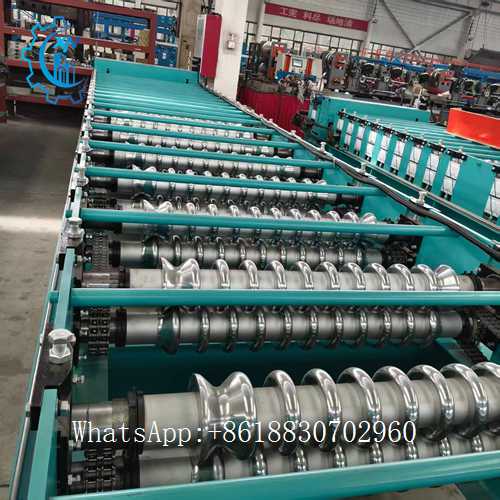

Rollers manufactured from 4S# precision machined, hard Chrome Coated; with thickness 0.5mm,surface with miror treatment (forlonger life and anti-rust);

Shafts manufactured from 45# steel,Quenching and tempering, hard chrome

Body frame made from 450# H type steel by welding

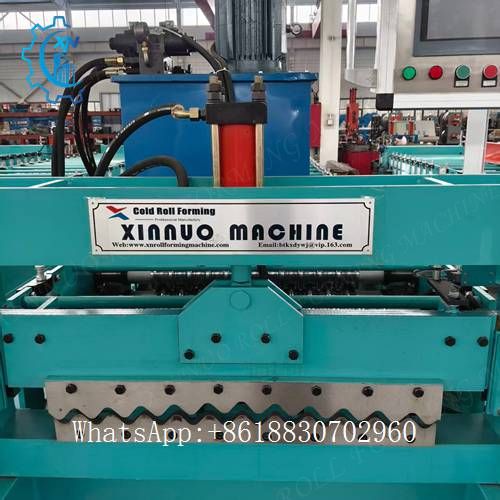

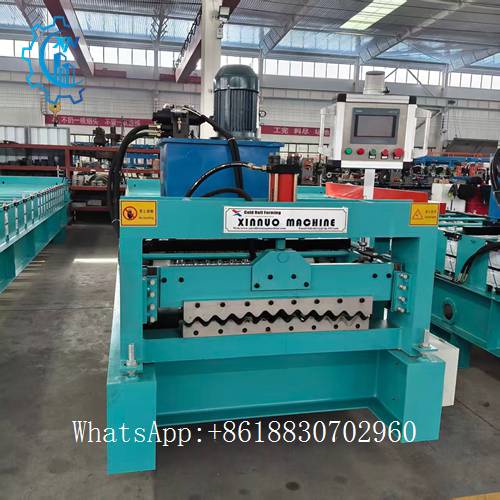

4) Hydraulic Post Cutting Device

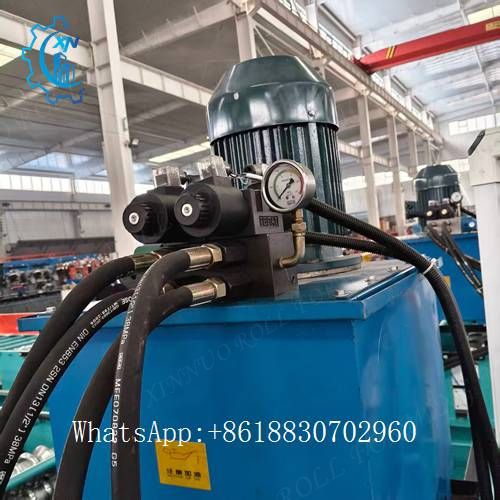

Made by high quality mold steel Cr12MoV,with heat treatment, HRC58-62Cutter frame made from high quality 18mm steel plate by weldingHydraulic motor:3kW, Hydraulic pressure range: 0-16Mpa

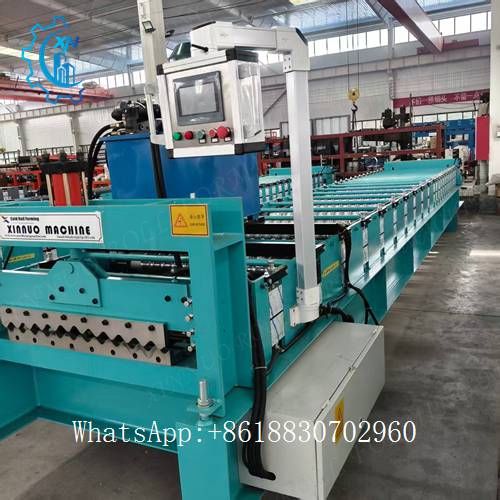

5) PLC Control System

Control The Quantity And Cutting Length Automatically.Input The Production Data(Production Batch,pcs, Length,etc.) On The Touch Screen.It Can Finish The Production Automatically.Combined With:

PLC, Inverter, Touch Screen, Encoder, etc.Cut-to-Length Tolerances+1 mmControl Voltage 24V

6)：Exit Rack

Un-powered, Two units,with rollers on it for easy movement

After-sale Service

1. The warranty is 24 months after the client receives the machine.

Within the 24 months, we will courier the replacement parts to the client free of charge.

2. We offer technical support for the entire life of our machines.

3. We can send our technicians to install and train the workers in the clients' factories with extra cost.
