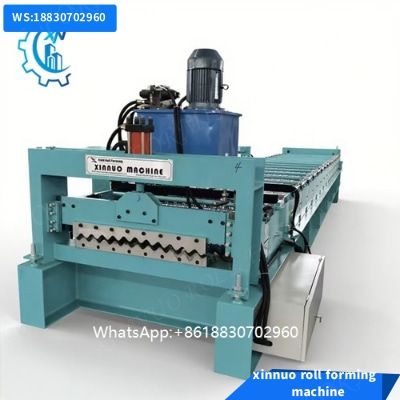

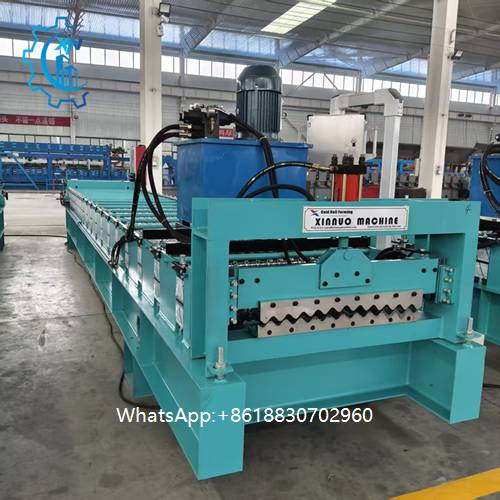

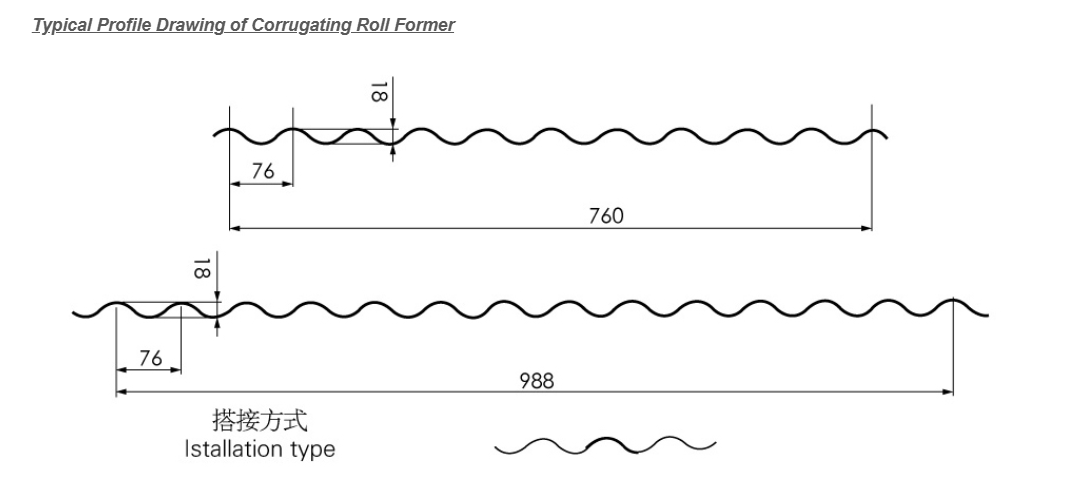

This high-performance corrugated sheet forming machine is designed to efficiently produce precision corrugated sheets from metal (aluminum, steel) or plastic materials. Equipped with automatic feeding, shaping, and cutting systems, it ensures consistent wave patterns (adjustable for 5-20mm depths) and high production speed (up to 15m/min). Suitable for construction roofing, wall panels, user-friendly PLC control, and safety guards to minimize downtime. Ideal for small-to-large factories seeking reliable, cost-effective corrugated sheet production solutions.

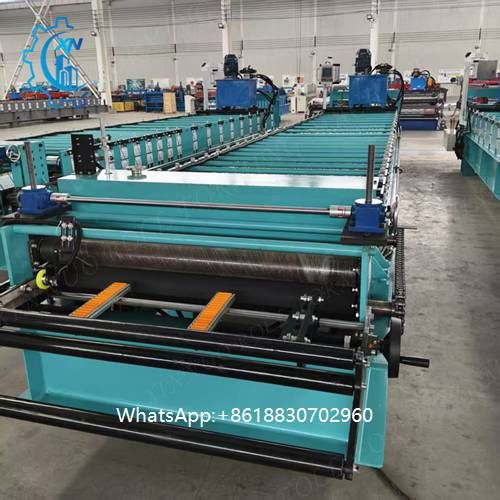

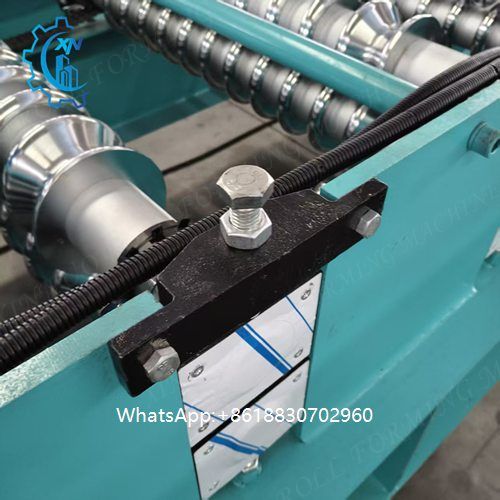

Main Machine of Corrugating Machine

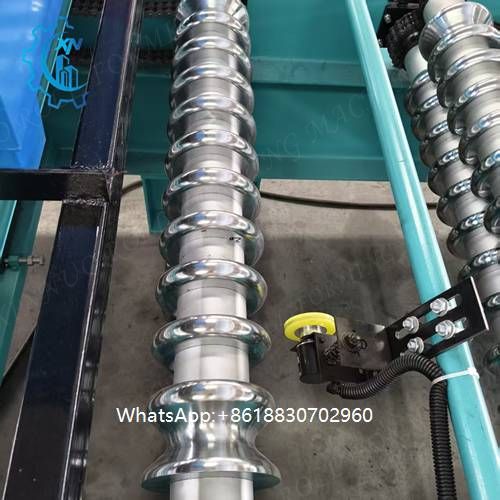

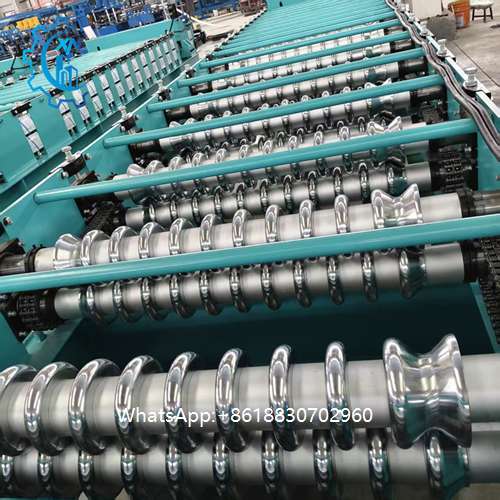

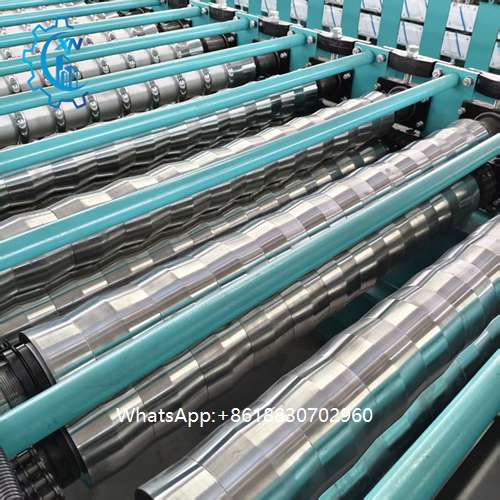

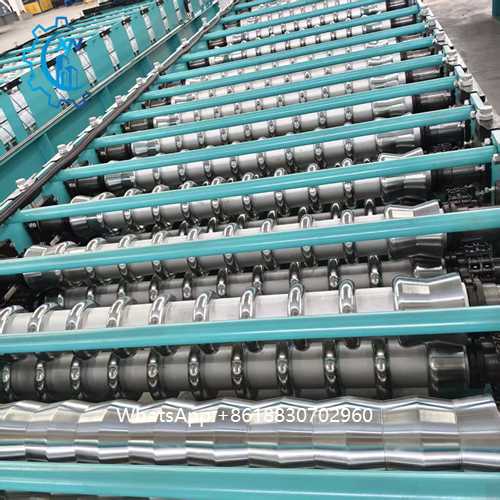

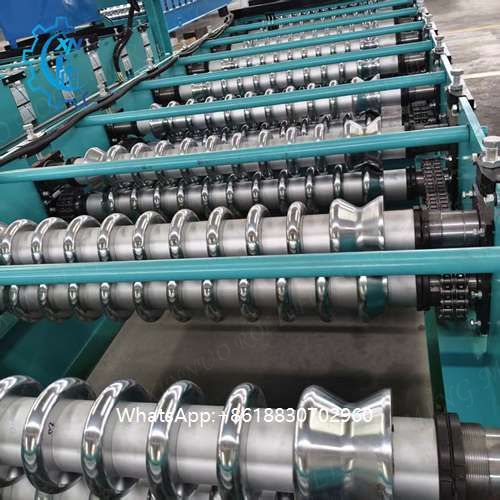

1. Roll stand: 16 stations, it includes leveling rollers, main forming rollers
2. Main motor power: 5.5kW, it adopts cycloid cone pulley reducer, chain or gearbox transrt, ssion
3. Material of the roller: 1045 high grade steel, chromeplate
4. The roller processed by CNC machine with finish machining. The suface adopt finished polishing, the roughness is 0.05mm
5. Material of the main shaft: 45# forged steel with heat treatment
6. The diameter of the main shaft: φ70mm
7.Machine frame: welding by 350 x 175mm H shape steel, by using carbon dioxide gas arc welding. The surface used shot blasting treatment.
Fly Cut of Corrugated Sheet Roll Forming Machine
1. Servo motor and ball screw to make the speed and size more stable.
2. Length tolerance: +/-1.5mm
3. Cutting without stop the main machine.
4.PLC & HMl adopts Mitsubishi brand.
| Production Material(mm) |
1250×(0.3～1.0)×L, PPGI |
| Forming speed |
15-25m |
| Number of stations |
13-22rows |
| Roller stations type |
Side Wall |
| Main motor power |
7.5KW |

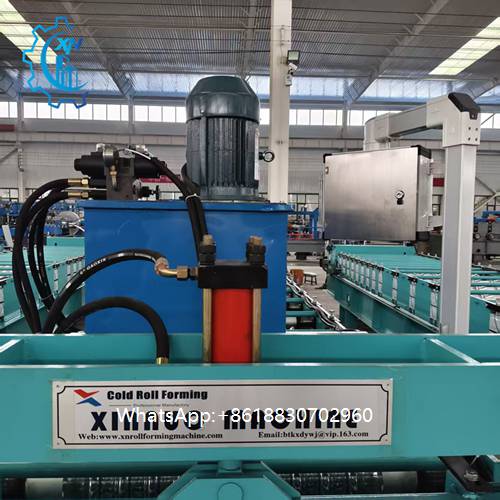

| Power of hydraulic station |
3.0KW |
| Roller material |
high-quality GCr15 forged steelwith hard chrome-plated hardwareHRC 58-62 |
| Shaft diameter |
76mm |
| Shaft material |
|
high-quality steel 45 quenched |
and tempered after finishing treatment |
| Hydraulic station pressure |
10～15 Mpa |
| Cutter material |
Cr12 quenched |
| Decoiler |
5 Ton Automatic decoiler with loading car |
| Electronic controlling system |
|
Full-frequency PLC controlling system, |
error of cutting length ≤ 2mm |
| Stacker |
8 meters Auto stacker |
| Cutting |
Post cutting with hydraulic driving |
