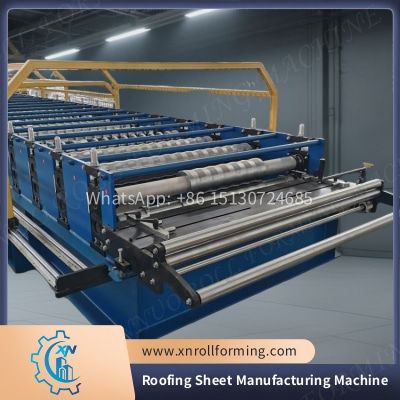

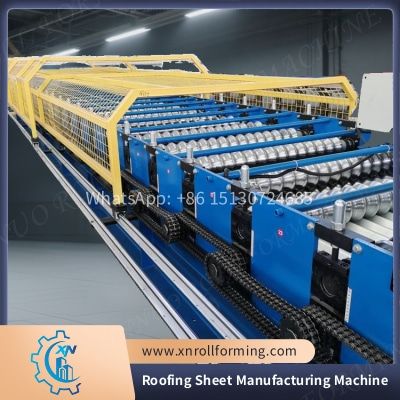

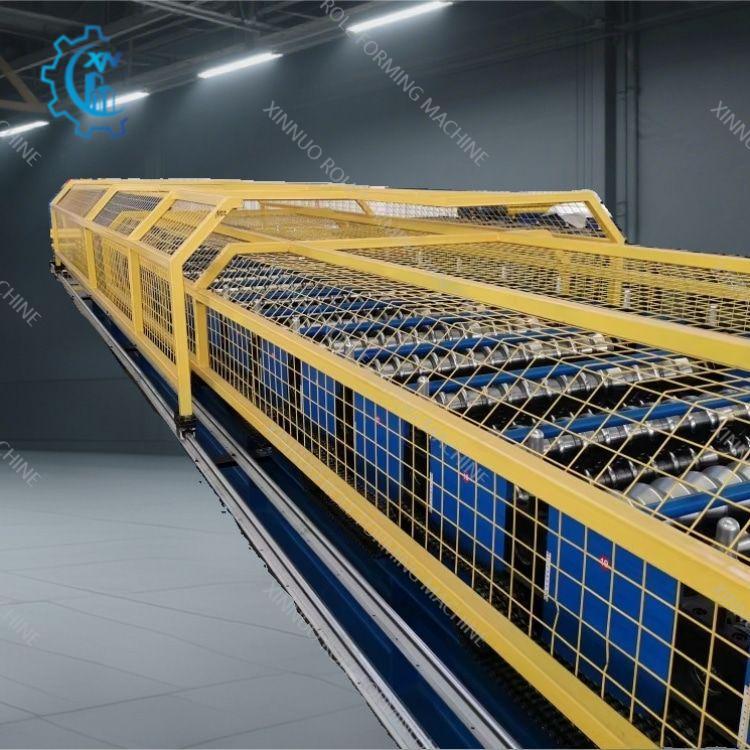

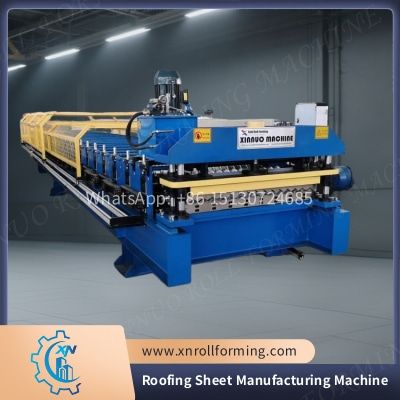

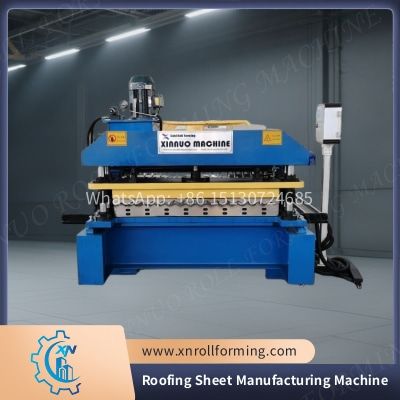

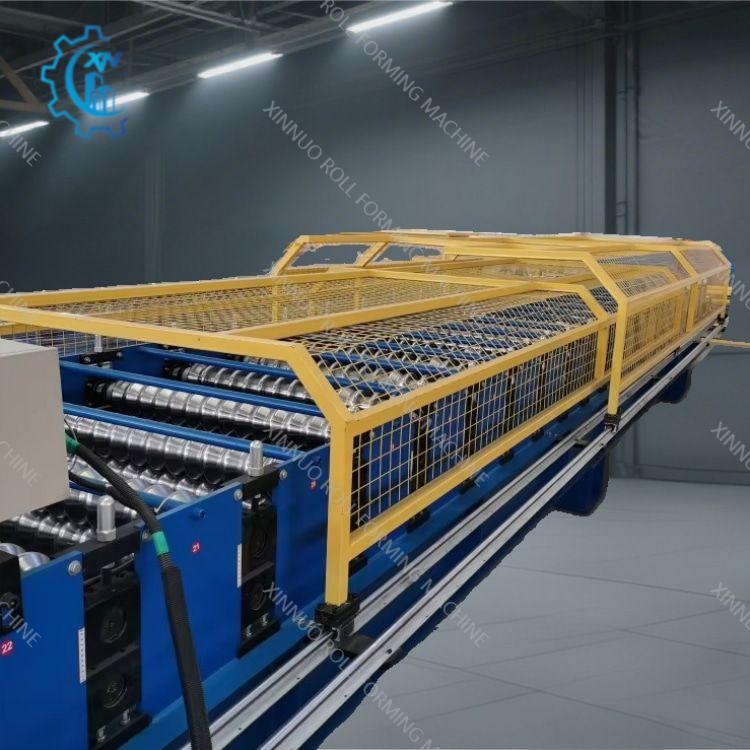

Roofing Sheet Manufacturing Machine

The Xinnuo Roofing Sheet Manufacturing Machine represents one of the most advanced solutions for producing color steel corrugated roofing sheets in today’s construction industry. Designed as a high-speed, fully automatic roll forming machine, it has become especially popular in Cameroon and neighboring markets where reliable, durable, and aesthetically pleasing roofing materials are in high demand.

Engineered for precision, this machine can process color steel plates within a wide size range, handling widths from 914mm to 1450mm and thicknesses between 0.3mm and 0.6mm. The integrated manual decoiler supports up to 5 tons of raw material, ensuring continuous feeding and stable performance for extended production runs. This makes the machine suitable for both large-scale industrial manufacturers and contractors serving local housing projects.

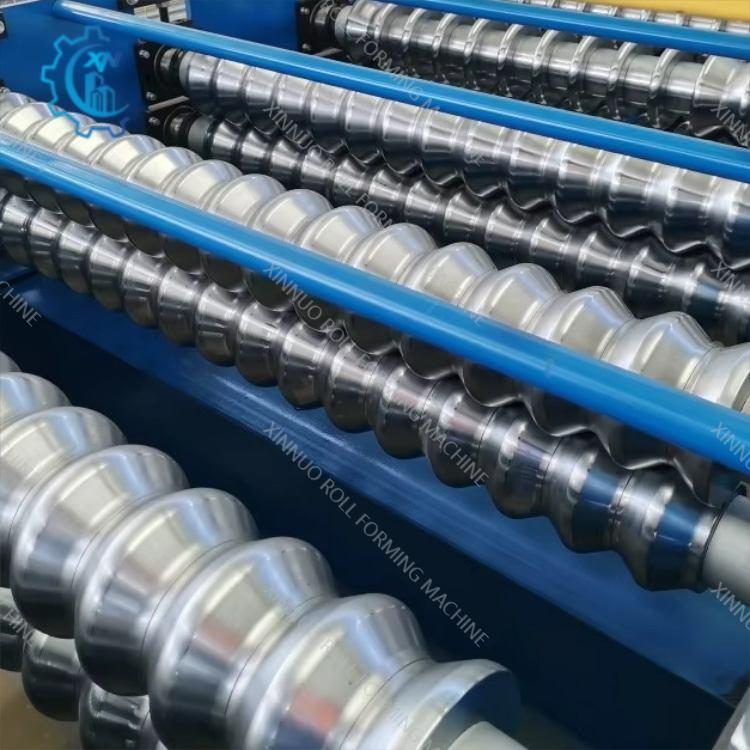

At the heart of the forming process are 18 hardened rollers, each 80mm in diameter and crafted from 45# carbon steel, delivering consistent shaping with excellent durability. The cutting system operates with 4kW of hydraulic power, supported by blades made of Cr12Mov steel. Known for its superior hardness and wear resistance, this ensures precise cutting accuracy within ±1.0mm, resulting in sheets that meet the strictest quality standards.

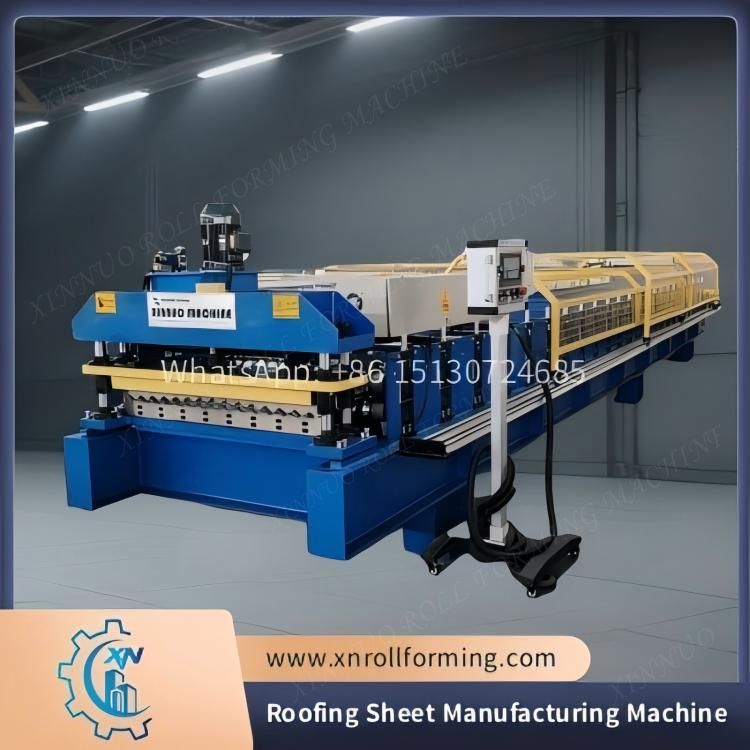

The machine’s main motor is rated at 5.5kW, providing sufficient power for high-speed operation without sacrificing stability. All functions are coordinated through a Delta PLC control system, giving operators user-friendly programming, automated adjustments, and reliable monitoring throughout the production cycle. With robust construction using 350H steel and reinforced 16mm side panels, the machine guarantees rigidity and long service life even under demanding workloads.

Compact yet powerful, the equipment measures 8.5m in length, 1.6m in width, and 1.6m in height, with an overall weight of about 5 tons. It is designed for 380V, 50Hz, three-phase power supply, but can be customized to meet specific voltage requirements. Certified with CE and ISO, the machine aligns with international safety and quality standards.

For construction enterprises in Africa, particularly Cameroon, this roofing sheet manufacturing machine offers a reliable way to boost productivity while delivering premium roofing products. With its combination of high efficiency, accurate forming, and durable performance, Xinnuo’s solution is a trusted investment for businesses looking to strengthen their competitiveness in the roofing materials market.
